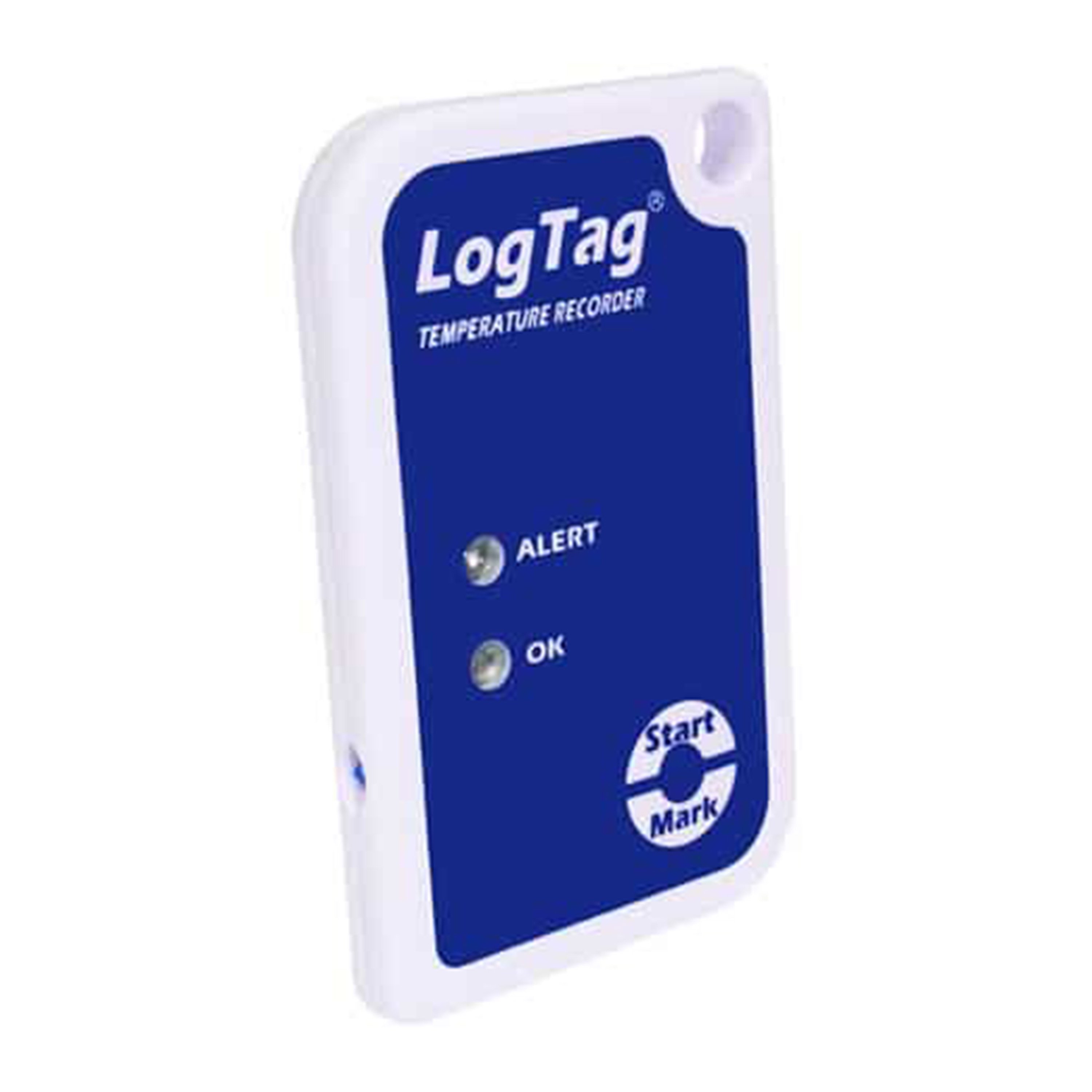

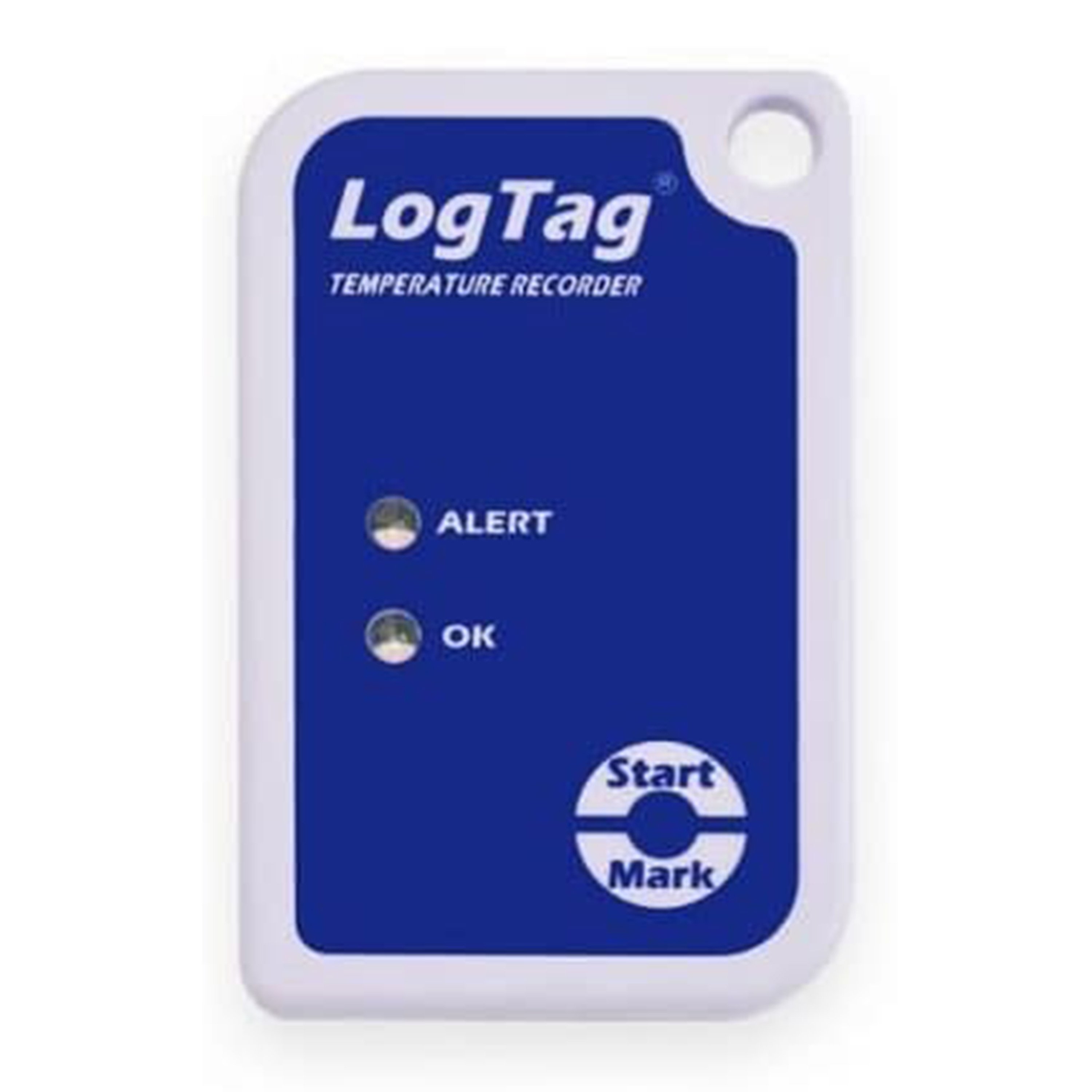

Thermco Multi-Use Temperature Data Logger

The Thermco Multi-Use Temperature Data Logger is a multi-trip device that records high-temperature readings simultaneously.

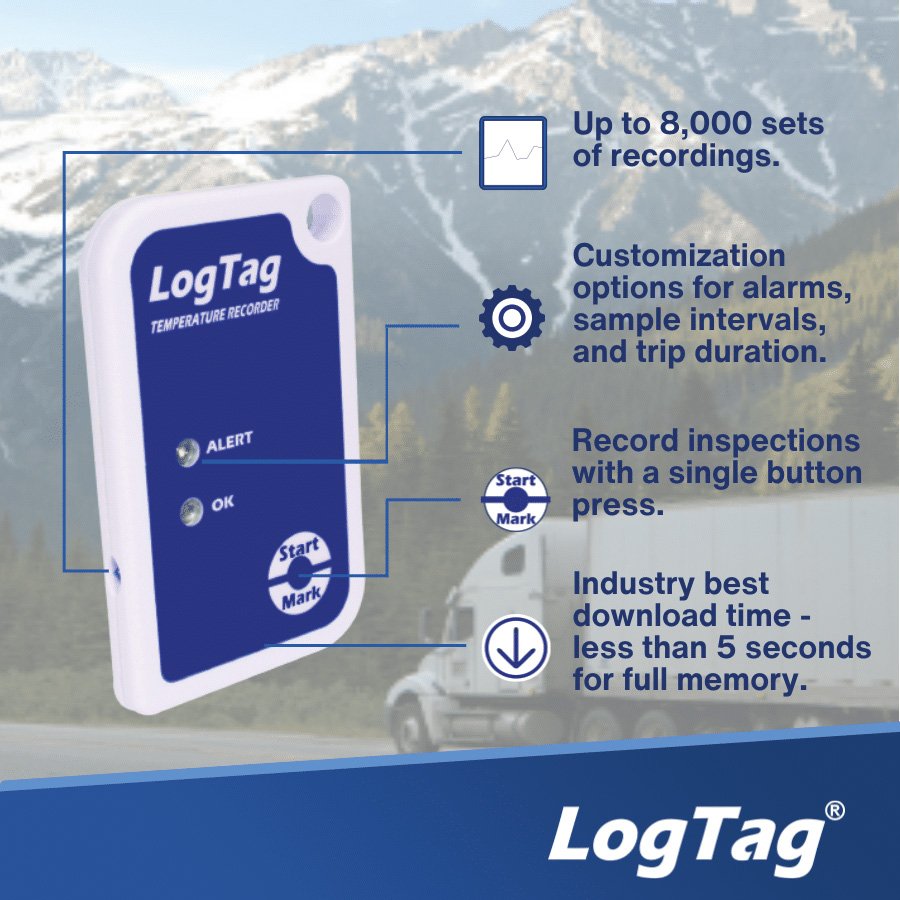

Features:

• Versatile, wide range, multi-trip temperature logger
• ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms
  • Red Light (ALERT) - Provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured
  • Green Light (OK) - Provides immediate visual confirmation, without access to a PC, that the unit is operating
• Made with a robust and durable polycarbonate case
• Using the LogTag interface and free LogTag analyzer software, you can easily configure start delay, sampling rate, reading count, and ALERT settings
• Readings are downloaded with LogTag Analyzer, offering charting, zooming, data statistics, and export options (e.g., Excel)

Technical Specifications:

• Temperature Measurement Range: -40°C to 85°C
• Operating Temperature Range: -40°C to 85°C
• Storage Temperature Range: -30°C to 55°C
• Rated Temperature Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±0.5°C for -20°C to 40°C
  • Better than ±0.7°C for -30°C to -20°C and 40°C to 60°C
  • Better than ±0.8°C for 60°C to 85°C
  • Better than ±0.9°C for -40°C to -30°C.
• Rated Temperature Reading Resolution: LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • Less than 0.1°C for -40°C to 40°C
    Less than 0.2°C for 40°C to 80°C
    Less than 0.4°C for 80°C to 85°C
• Memory: 8,031 temperature readings. 53 days at 10-minute logging, 80 days at 15-minute logging
• Sensor Reaction Time: Typically less than 5 minutes (T90) in moving air (1m/s)
• Sampling Interval: Configurable from 30 seconds to several hours
• Logging Start Options: Push button start or specific date and time. Optional start delay of up to 18 hours
• Alarms: 1 configurable upper and 1 configurable lower alarms
• Download Time: Typically less than 5 seconds for full memory, depending on the computer or readout device used
• Power Source: CR2450 3V LiMnO2 Battery (Fixed)
• Battery Life: 1 year storage, followed by 2-3 years of normal use (based on 15-minute logging, download data monthly)
• Real Time Clock:
  • Rated accuracy ±25 ppm at 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, RoHS, FCC, CE, C-TICK, TÜV, EN12830, and WHO PQS
• Overall Dimensions: 0.34" L x 2.1" W x 3.4" H
