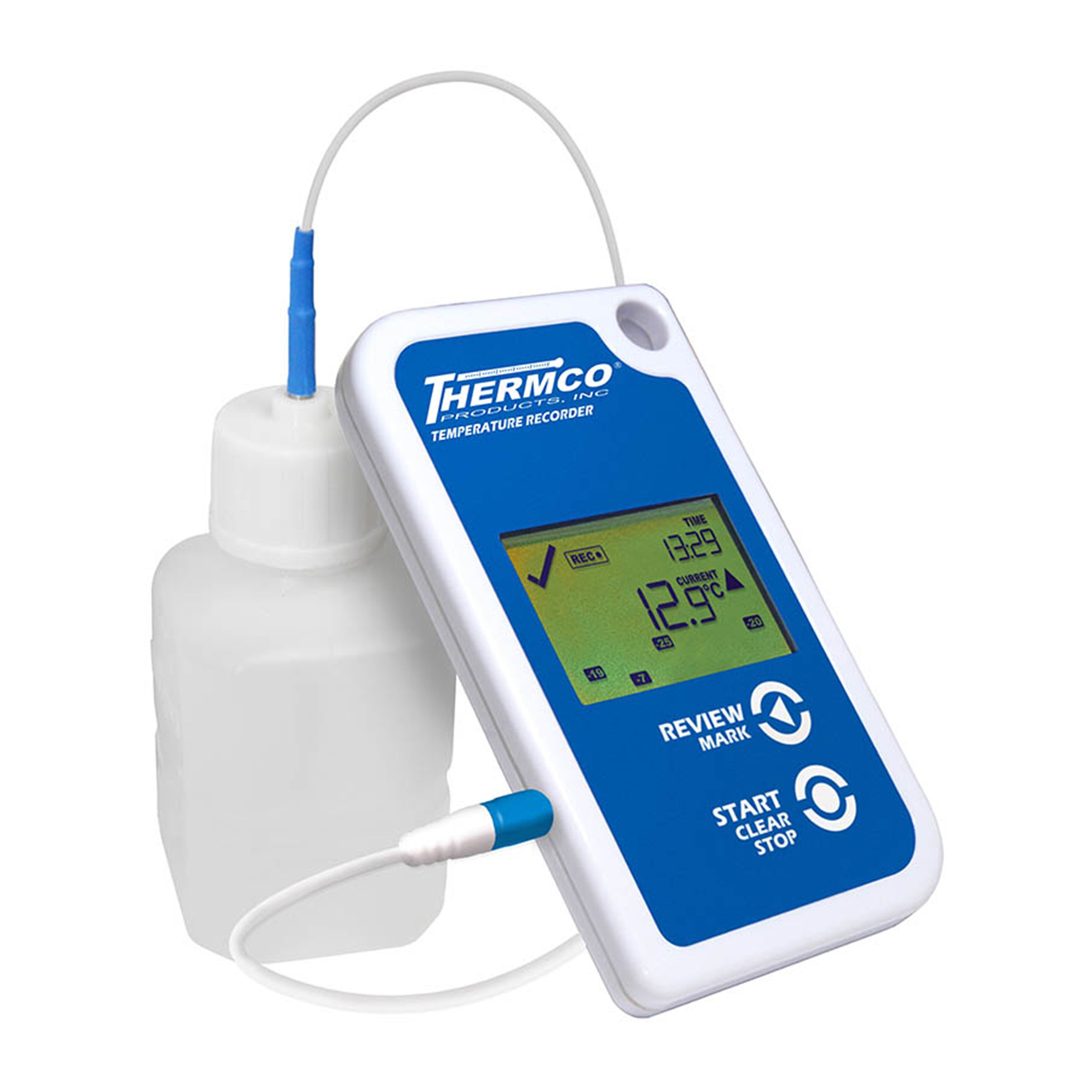

Thermco USB Temperature Data Logger with LCD Display

The Thermco USB Temperature Data Logger with LCD Display is ideal for use in monitoring and recording vaccine temperatures in refrigerators and freezers.

Features:

• Comprehensive customisation options, including alarm settings, sample interval, and trip duration
• A real-time clock provides date/ time stamps for each temperature reading
• Inspections can be recorded at the push of a button
• It has a built-in audible alarm
• Easy-to-read LCD with 30-day summary in calendar format
• Auto-pause function - Unplugging the external probe automatically suspends alarm and statistics processing
• Rapid configuration and download
• Interchangeable external probe with a high-quality gold-plated connector
• User-replaceable coin cell battery

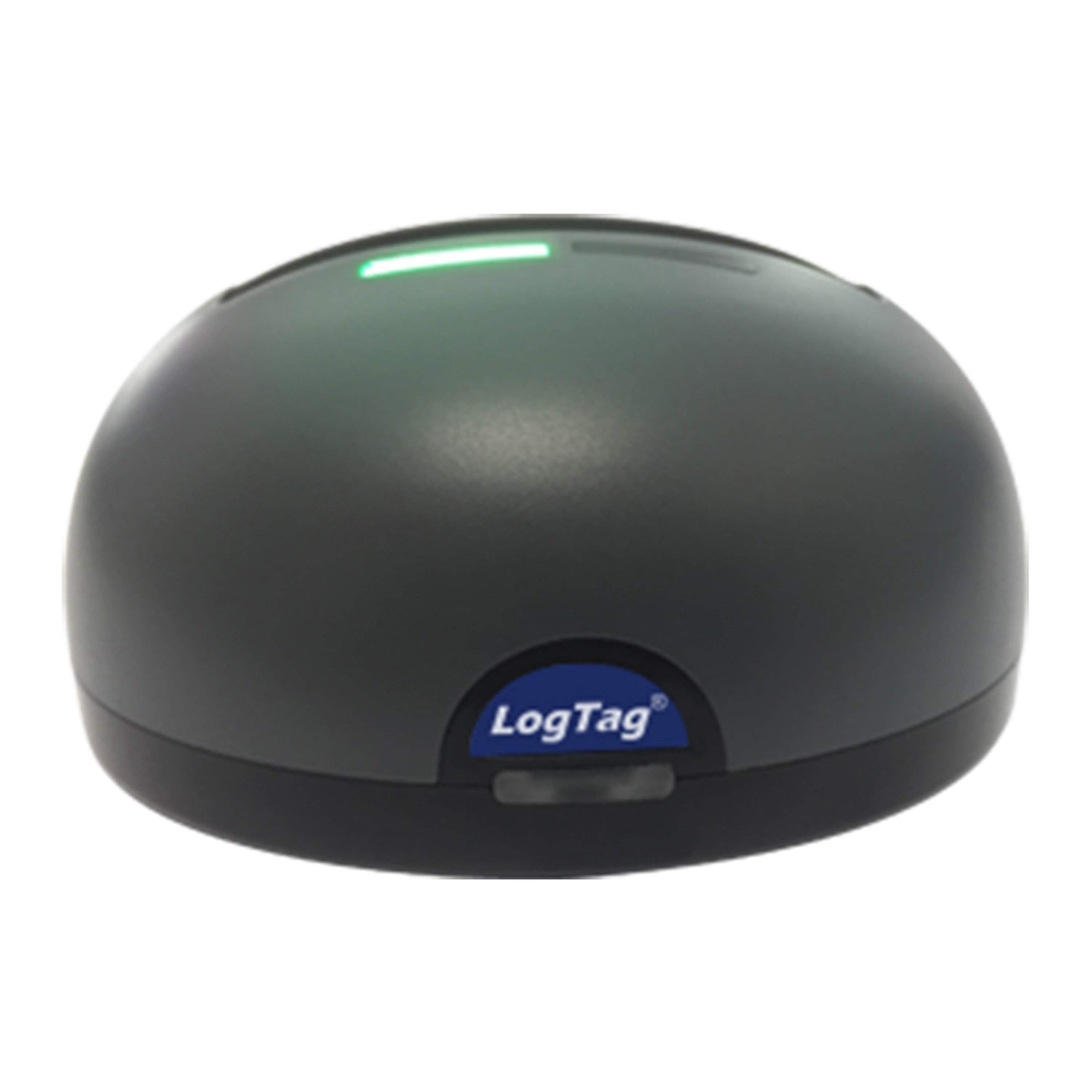

• Comes with a 3m probe, a buffer bottle, and a USB interface cradle

Technical Specifications:

• Temperature Measurement Range: -40°C to 99°C
• Operating Temperature Range: -30°C to 60°C
• Storage Temperature Range: -10°C to 40°C
• Rated Temperature Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±0.5°C for -20°C to 40°C, typically ±0.3°C
  • Better than ±0.8°C for -40°C to -20°C, typically ±0.5°C
  • Better than ±0.8°C for 40°C to 70°C, typically ±0.7°C
  • Better than ±1.2°C for 70°C to 99°C, typically ±1°C
• Rated Temperature Reading Resolution: LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • 0.1°C for -40°C to 50°C
  • 0.2°C for 50°C to 70°C
  • 0.3°C for 70°C to 80°C
  • 0.4°C to 0.6°C for 80°C to 99°C
• Memory: 15,905 temperature readings. 66 days at 6-minute logging
• Sampling Interval: Configurable from 30 seconds to hourly
• Logging Start Options: Push button start or specific date and time. Optional start delay of up to 18 hours
• Download Time: Typically less than 10 seconds for full memory, depending on the computer or readout device used
• Power Source: 3V CR2032 (LiMnO2) coin cell battery, user replaceable
• Battery Life: 1 year storage, followed by 1 year of operation with normal use (6-minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly)
  NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible
• Real Time Clock:
  • Rated accuracy ±25 ppm at 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C
• Standard External Probe Cable Lengths:
  • Standard: 59.05"
  • Extended: 118.11"
• Remote External Probe Type: PTFE (FDA food contact rated) coaxial
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions: 0.5" L x 2.5" W x 4.8" H
