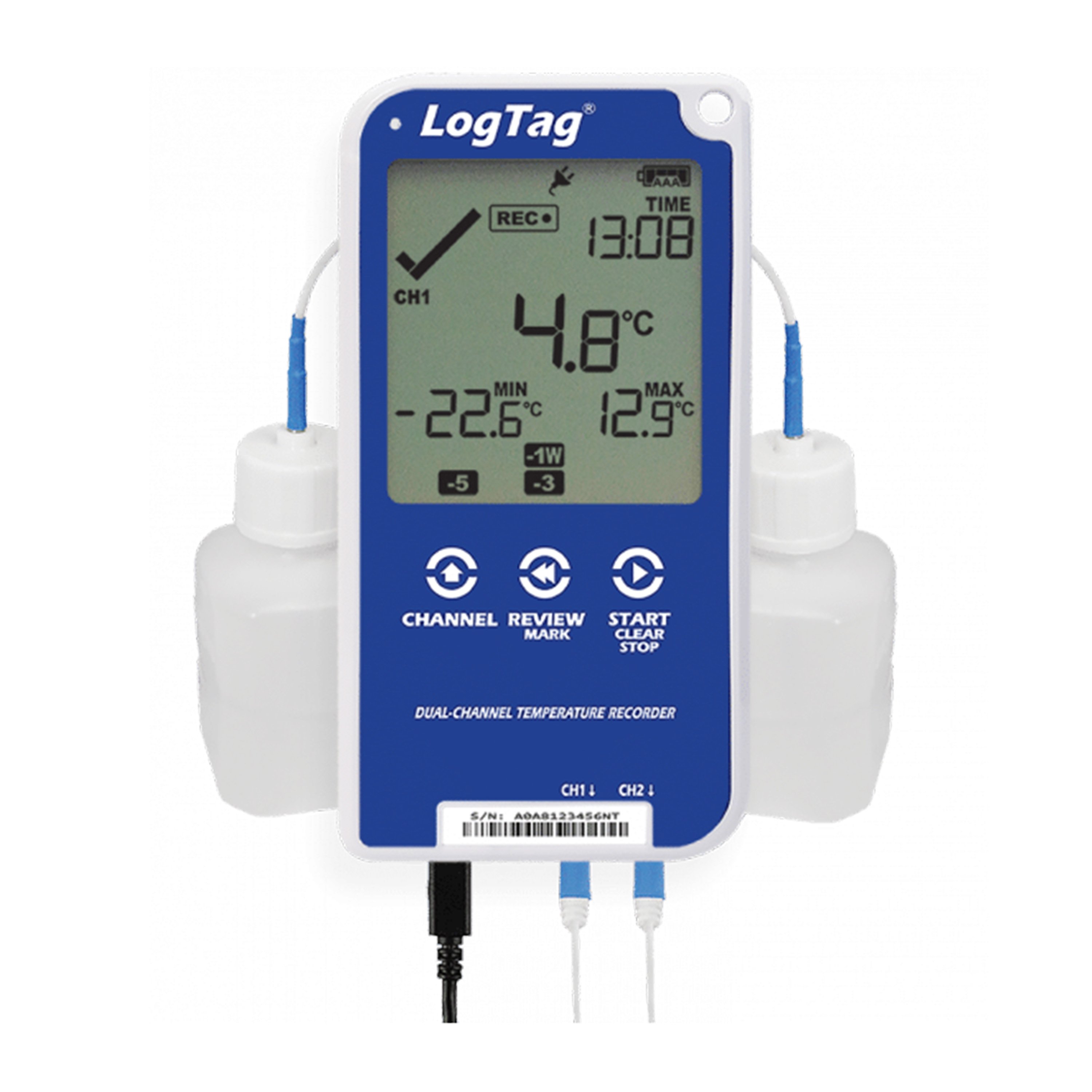

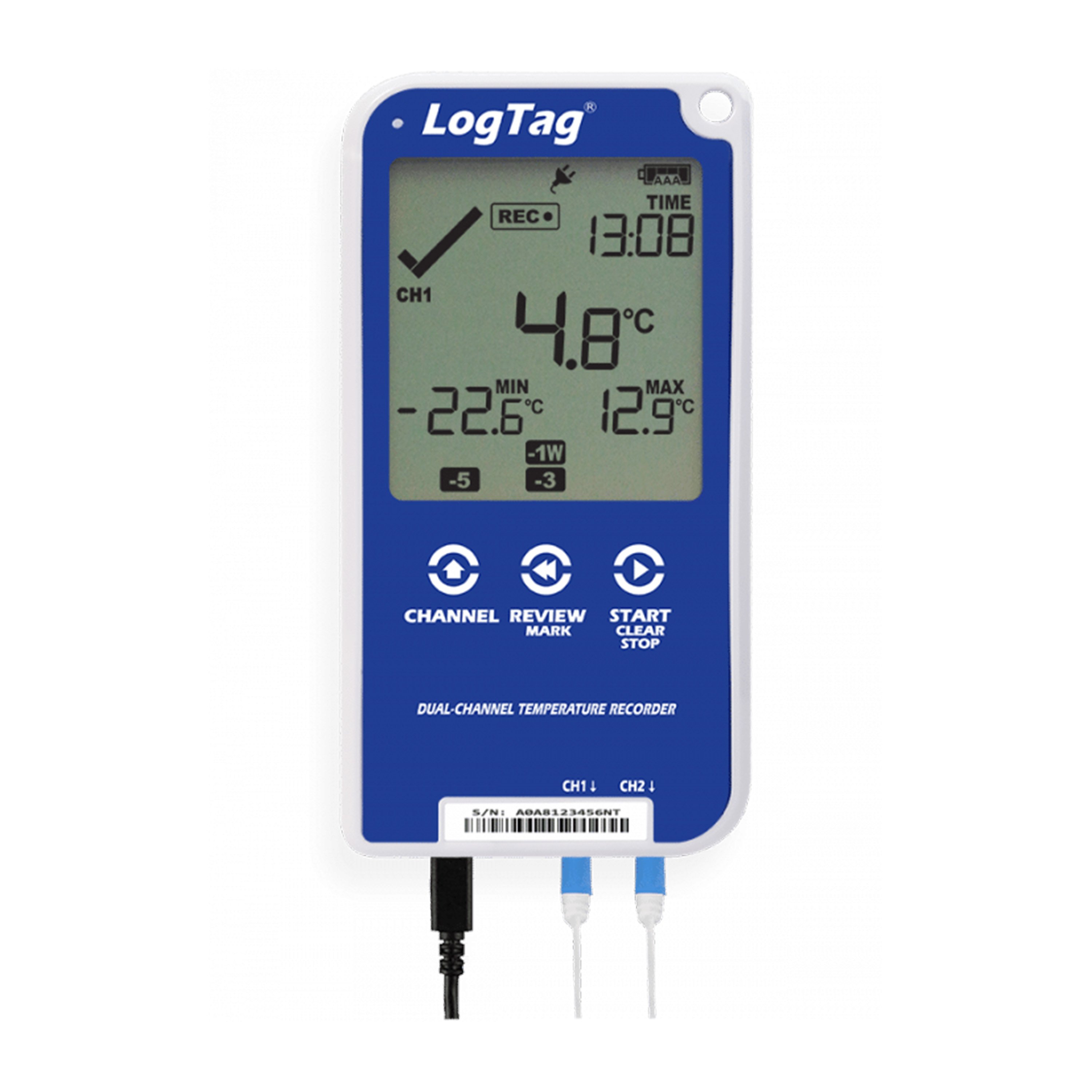

Thermco Dual-Channel Temperature Data-Logger with LCD Display

The Thermco Dual-Channel Temperature Data-Logger with LCD Display is ideal for monitoring and recording temperatures of vaccines in refrigerators or freezers.

Features:

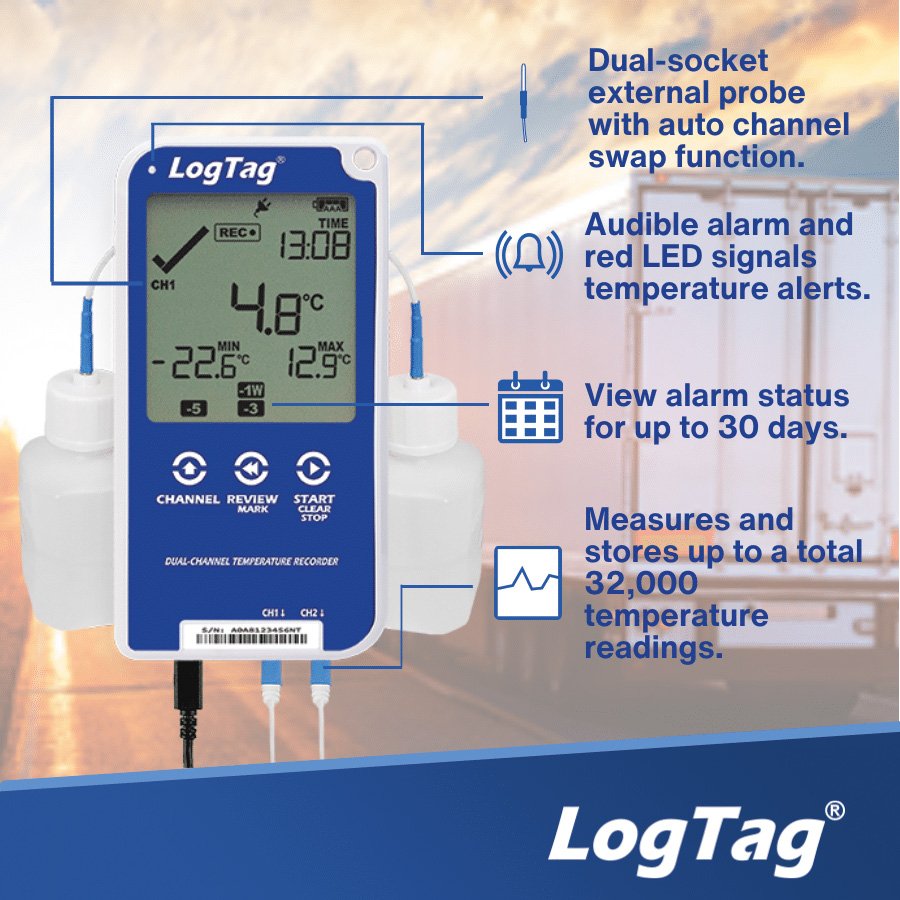

• Large, easy-to-read display to see the current, min, and max temperatures
• Audible alarm and flashing red LED signal a temperature alarm
• View alarm status for up to 30 days at a glance
• An alarm is triggered when temperature readings exceed the pre-set limits, indicated by a large 'X' on the display and, if enabled, an audible alert
• All ST100 precision thermistor external probes can be interchangeably connected to the UTRED30-16
• Different probe models can be used for each channel. Not compatible with ST10 sensor

Technical Specifications:

• Temperature Measurement Range: -40°C to 99°C
• Operating Temperature Range: -30°C to 60°C, 0 - 99 % RH (non-condensing)
• Storage Temperature Range: -10°C to 40°C
• Rated Temperature Reading Accuracy:
  • Better than ±0.5°C for -20°C to 40°C, typically ±0.3°C
  • Better than ±0.8°C for -40°C to -20°C, typically ±0.5°C
  • Better than ±0.8°C for 40°C to 70°C, typically ±0.7°C
  • Better than ±1.2°C for 70°C to 99°C, typically ±1°C
• Rated Temperature Resolution: LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • Better than 0.1°C for -30°C to 60°C
  • Better than 0.2°C for -40°C to -30°C
  • Better than 0.5°C for 60°C to 99°C
• Memory: 32,000 total log memory. Provides 16,000 temperature readings per channel
• Sampling Interval: Configurable from 30 seconds to 18 hours. (Typically 5-minute logging)
• Logging Start Options: Push button start or specific date and time. Optional start delay
• Download Time: Typically, with full memory, in less than 20 seconds
• Alarms: Up to 6 individually configurable alarms for each channel. Possible to set alarms separately for Channel 1 and Channel 2
• Probe Connectivity: Up to 2
• Real Time Clock:
  • Typical accuracy ±25 ppm @ 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
• Power Source: 5V via micro USB socket or 2 x 1.5V AAA batteries. CR2032 LiMnO2 coin cell (backup logging function only)
• Battery Life: AAA battery up to 12 months, if the unit is operated without a power supply
• Connection: USB 2.0 / Micro USB Socket
• Standard Remote Probe Cable Lengths:
  • Standard: 59.06"
  • Extended: 118.11"
• Remote Probe Cable Type: PTFE (FDA food contact rated) coaxial
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, RoHS, WHO, CDC, VFC, NIH, PHASC, and AAP
• Overall Dimensions (Including USB cap): 0.5" L x 2.5" W x 4.8" H
