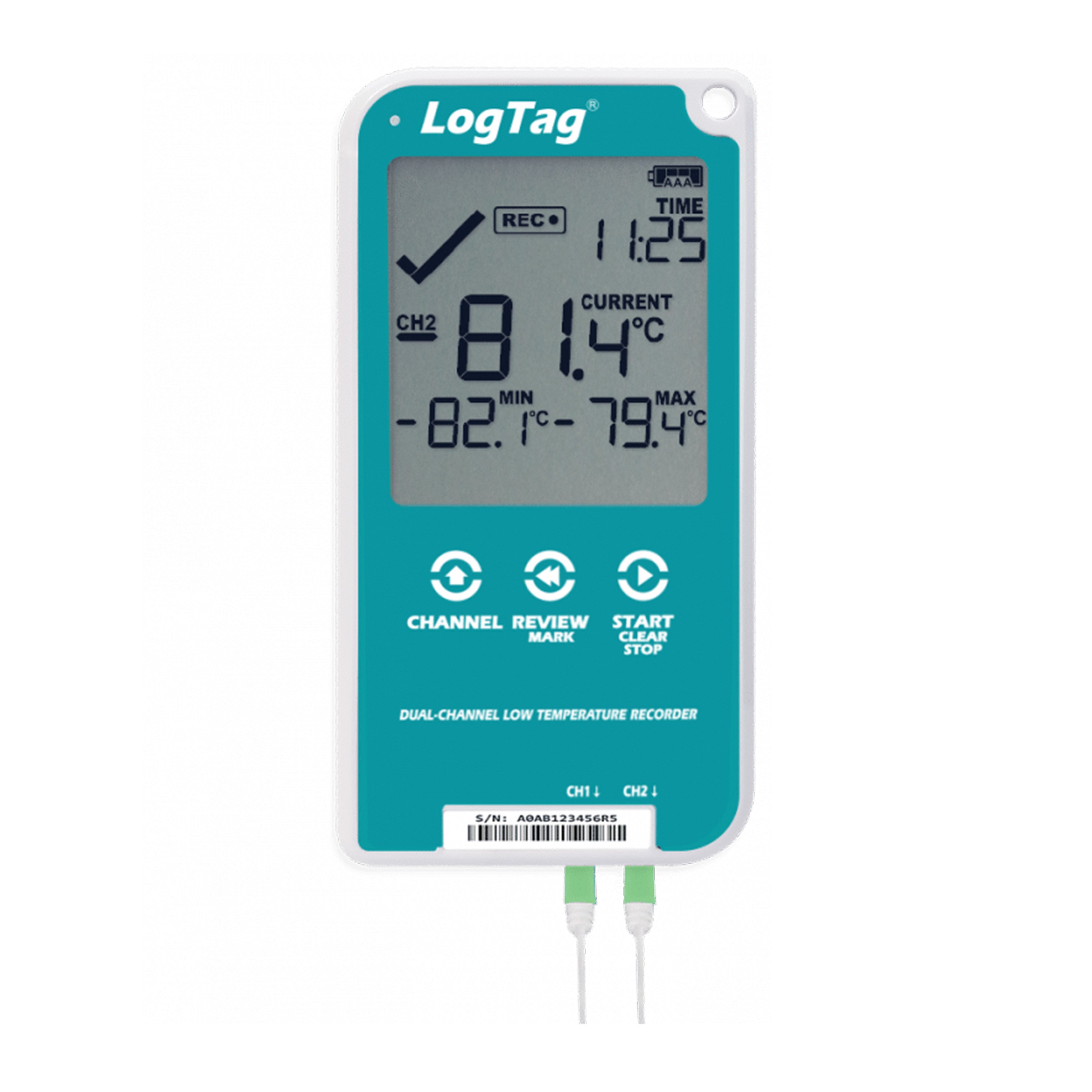

Thermco Dual-Channel Ultra-Low Temperature Data Logger with LCD Display

The Thermco Dual-Channel Ultra-Low Temperature Data Logger with LCD Display is ideal for monitoring and recording temperatures of vaccines in refrigerators or freezers.

Features:

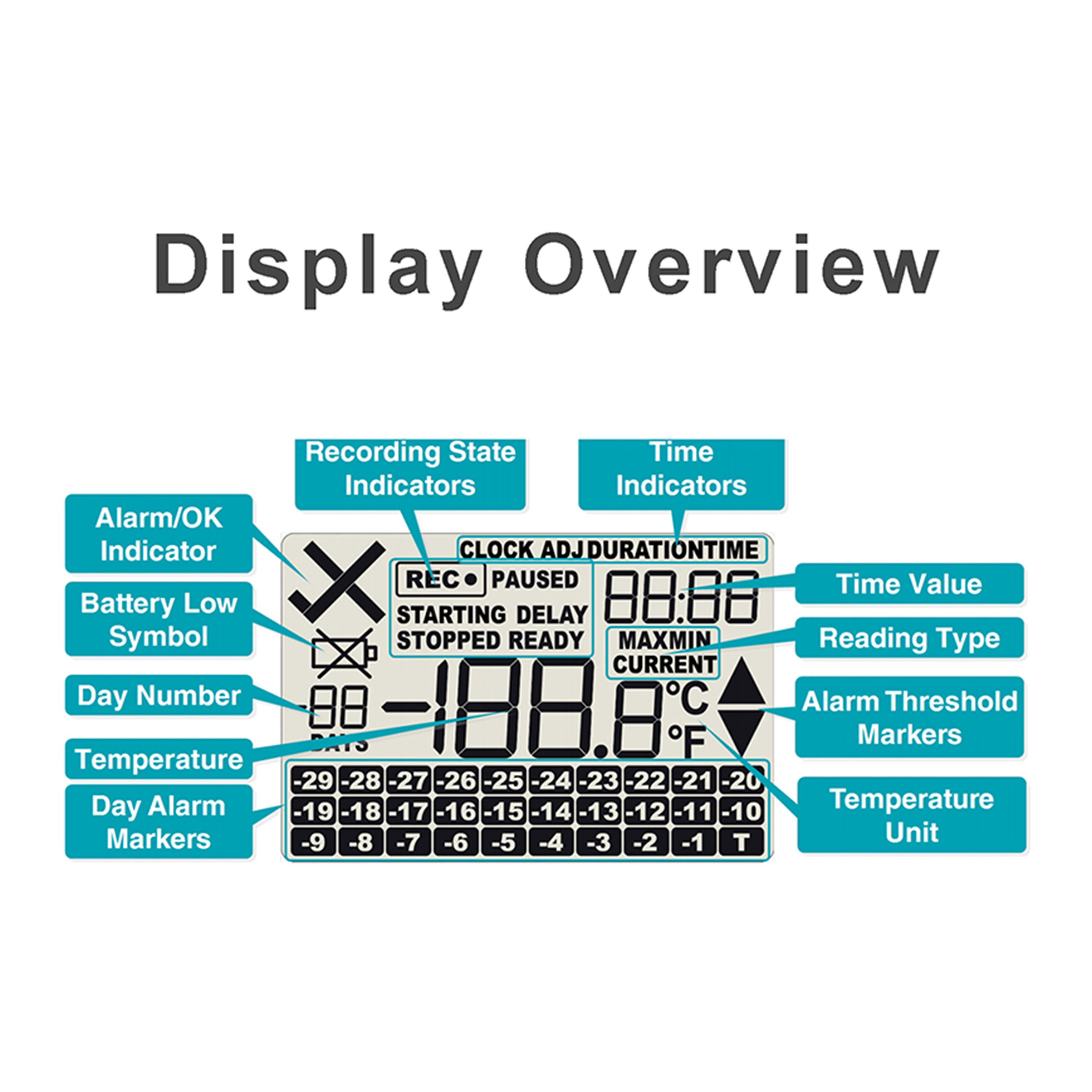

• Large, easy-to-read display to see the current, min, and max temperatures
• Audible alarm and flashing red LED signal a temperature alarm
• View alarm status for up to 30 days at a glance
• Real-time data automatically uploaded via WiFi to the LogTag Online cloud
• Download data via LogTag Analyzer or as a PDF (no software required) when WiFi is unavailable
• Interchangeable external probe with a high-quality gold-plated connector with a stainless steel air probe
• Record inspections at the push of a button
• Auto-pause function suspends alarm and statistic processing when the external sensor is unplugged
• Second battery backup via a coin cell to ensure no data is lost even if the power source and alkaline batteries fail
• Comprehensive customization options, including sampling interval and alarm settings
• Made with a robust and durable polycarbonate case
• Meets and exceeds CDC and VFC with NIST Traceable Certification

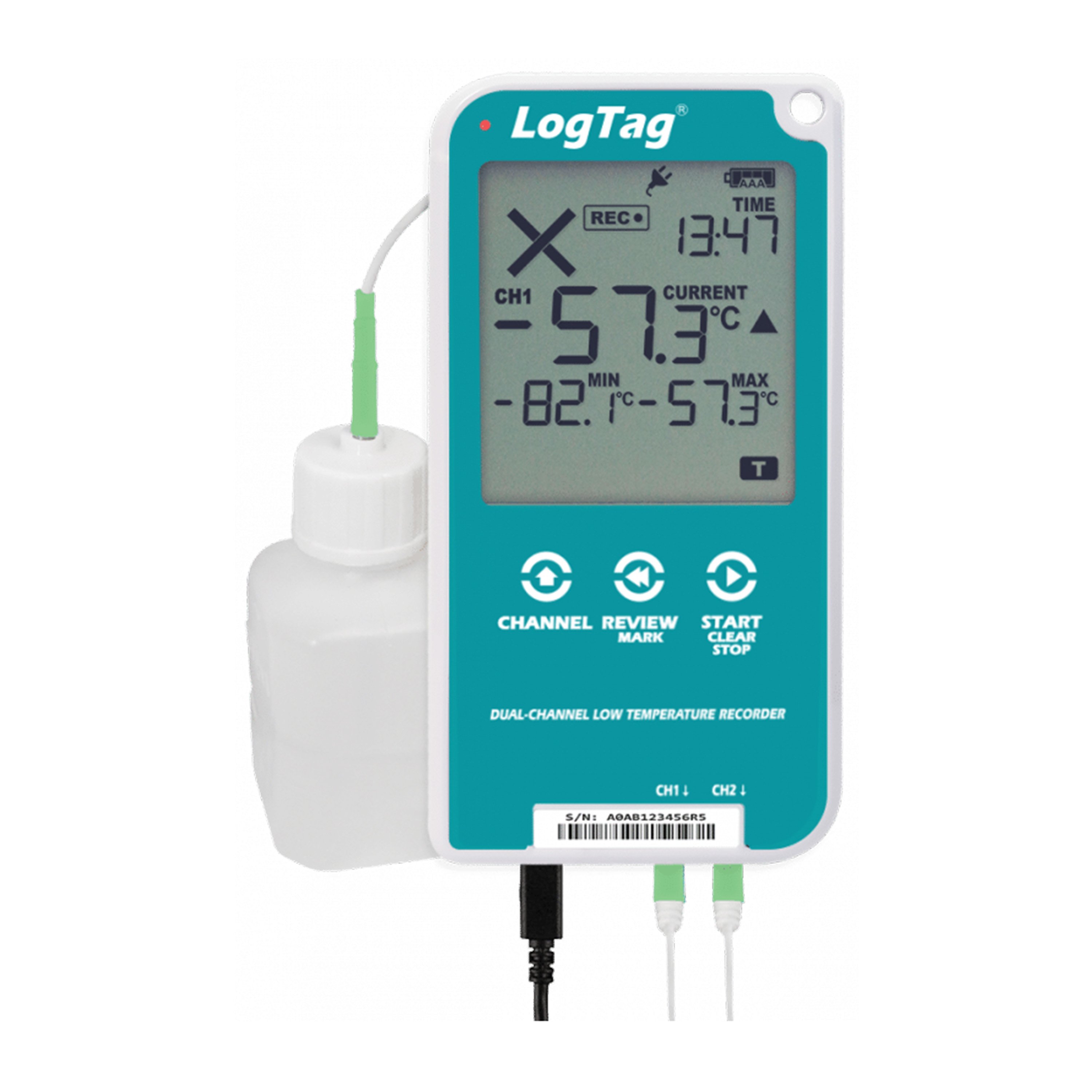

• Comes with 3m probe and a buffer bottle

Technical Specifications:

• Temperature Measurement Range: -90°C to 40°C
• Operating Temperature Range: -30°C to 60°C
• Storage Temperature Range: 0°C to 40°C
• Rated Temperature Reading Accuracy:
  • Better than ±0.5°C for -20°C to 10°C
  • Better than ±0.7°C for -50°C to -20°C and 10°C to 30°C
  • Better than ±1°C for -80°C to -50°C and 30°C to 40°C
  • Better than ±1.8°C for -90°C to -80°C
• Rated Temperature Reading Resolution: LogTag Analyzer® currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • 0.1°C for measurements -80°C to 10°C
  • 0.2°C for measurements 10°C to 20°C and -90°C to -80°C
  • 0.3°C for measurements 20°C to 30°C
  • 0.5°C for measurements 30°C to 40°C
• Memory: 16,129 temperature readings. 67 days at 6-minute logging
• Sensor Reaction Time: Typically less than 2 minutes(T90) in moving air (1m/s) for ST10S type
• Sampling Interval: Configurable from 30 seconds to 18 hours
• Logging Start Options: Push button start (with configurable start delay from 1 minute to 72 hours) or specific date and time
• Download Time: Typically, with full memory, in less than 10 seconds
• Power Source: 5V via micro USB socket or 2 x 1.5V AAA alkaline batteries. CR2032 LiMg coin cell (backup logging function only)
• Battery Life: AAA battery up to 12 months, if the unit is operated without a power supply
• Real Time Clock:
  • Rated accuracy ±25 ppm at 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C
• Connection: USB 2.0 / Micro USB Socket
• Remote Sensor Cable Type: PTFE (FDA food contact rated) coaxial
• Probe Cable Length: 118.11"
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions: 0.5" L x 2.5" W x 4.8" H
