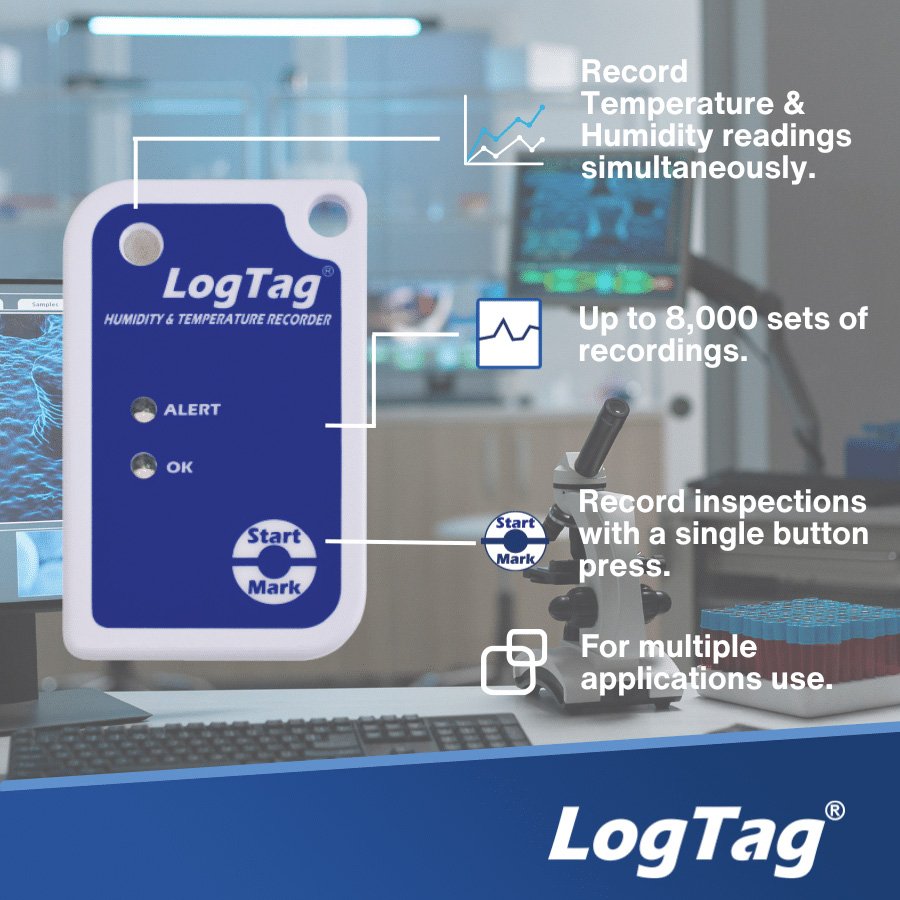

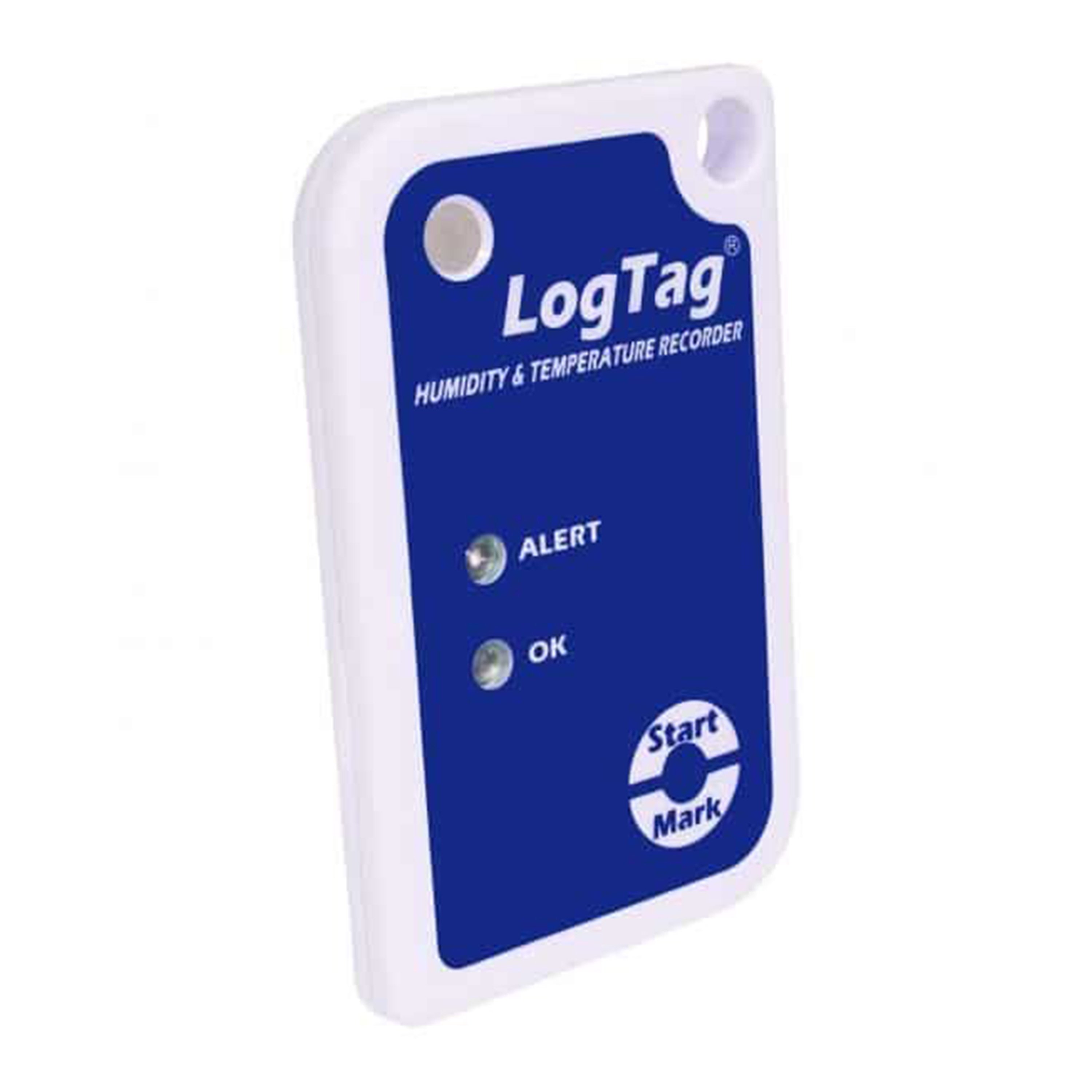

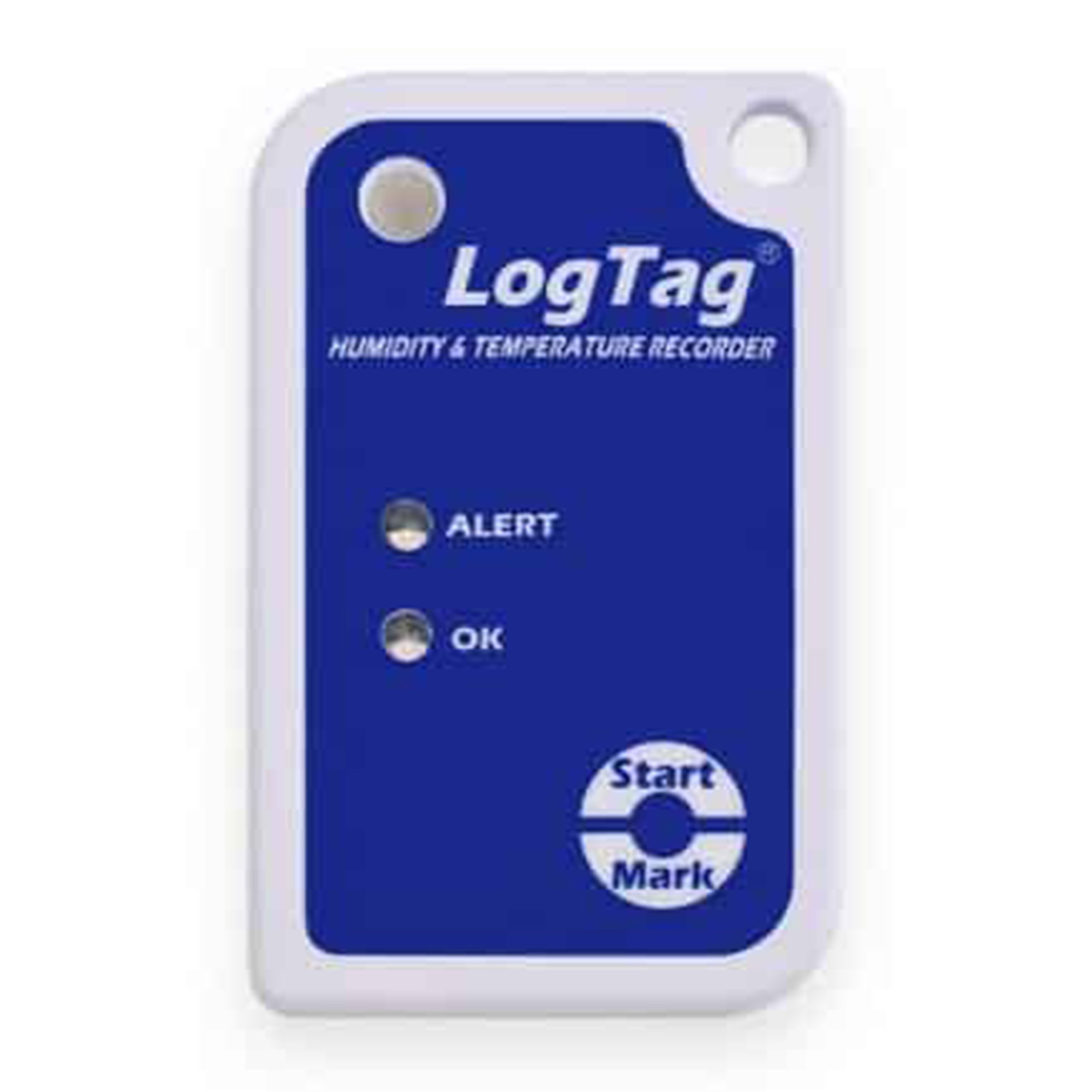

Thermco Multi-Use Temperature and Humidity Data Logger

The Thermco Multi-Use Temperature and Humidity Data Logger is a multi-trip device that records high-resolution temperature and humidity readings simultaneously.

Features:

• Used for multiple applications
• ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms
  • Red Light (ALERT) - Provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured
  • Green Light (OK) - Provides immediate visual confirmation, without access to a PC, that the unit is operating
• Made with a robust and durable polycarbonate case
• Features a unique temperature sensor setup for rapid response to temperature changes
• A real-time clock that timestamps each temperature reading with the date and time

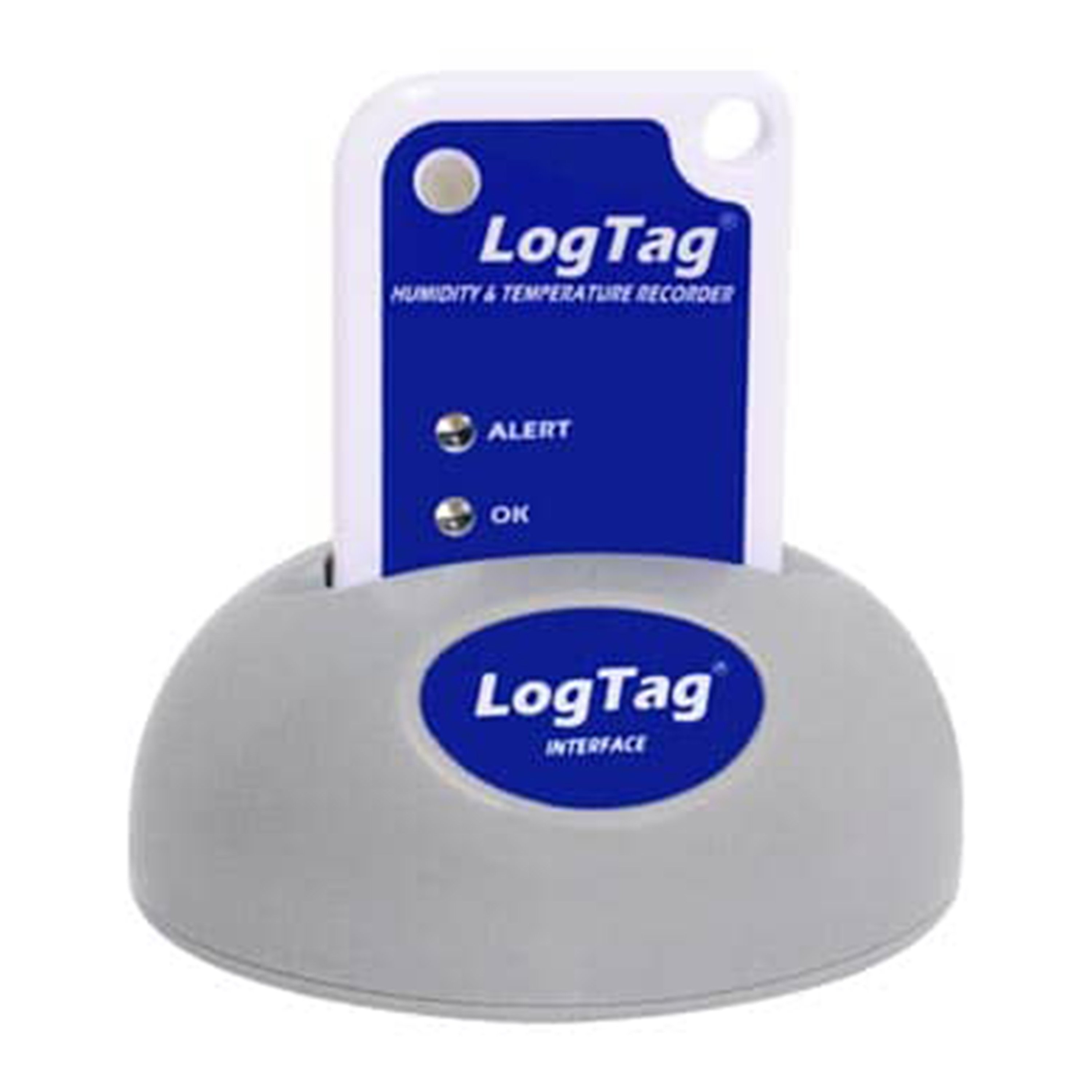

• Using the LogTag interface and free LogTag analyzer software, you can easily configure start delay, sampling rate, reading count, and ALERT settings
• Readings are downloaded with LogTag Analyzer, offering charting, zooming, data statistics, and export options (e.g., Excel)

Technical Specifications:

• Temperature Measurement Range: -40°C to 85°C
• Humidity Measurement Range: 0% RH to 100% RH (non-condensing), with limitations
• Storage Temperature Range: 10°C to 50°C
• Storage Humidity Range: 20% RH to 60% RH.*
• Rated Temperature Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±0.45°C for 0°C to 50°C, typically ±0.3°C
  • Better than ±0.8°C for 50°C to 80°C, typically ±0.5°C
  • Better than ±0.95°C for -40°C to 0°C, typically ±0.6°C
• Rated Humidity Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±5%RH for 10%RH to 80%RH
  • Better than ±6%RH for 0%RH to 10%RH
  • Better than ±7%RH for 80%RH to 100%RH
• Resolution:
  • Temperature: Better than 0.1°C
  • Humidity: Better than 0.1% RH
• Memory: 8,003 pairs of humidity and temperature readings. 53 days at 10-minute logging, 80 days at 15-minute logging
• Sampling Interval: Configurable from 30 seconds to several hours
• Logging Start Options: Push button start or specific date and time. Optional start delay (30 seconds to 18 hours)
• Download Time: Typically less than 10 seconds for full memory, depending on the computer or readout device used
• Power Source: CR2450 3V LiMnO2 Battery (Fixed)
• Battery Life (Fixed battery): 1 year storage, followed by 2-3 years of normal use (based on 15-minute logging, download data monthly)
• Real Time Clock:
  • Rated accuracy ±25 ppm at 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions: 0.5" L x 2.5" W x 3.4" H
