STI EconoMAX Pain Management C-Arm Imaging Table, 2 Motion
Product Description
The STI EconoMAX 2 Motion C-Arm Imaging Table Model EC-2 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.
Motor Driven Motion:
-
Height Adjustment: 28" to 38"
-
Lateral Tilt: (+/-) 17°
Features:
-
Carbon fiber, diving board style for easy C-arm access
-
An 84″ length can accommodate even the tallest of patients
-
A 24″ top eliminates the need for arm boards
-
2" thick, patient comfort pad
-
Facial cut-out for prone procedures
-
(2) patient straps
-
Short, H-style base
-
Extreme low position makes boarding patients fast, easy, and safe
-
Simple to use, high-quality wheel locks
-

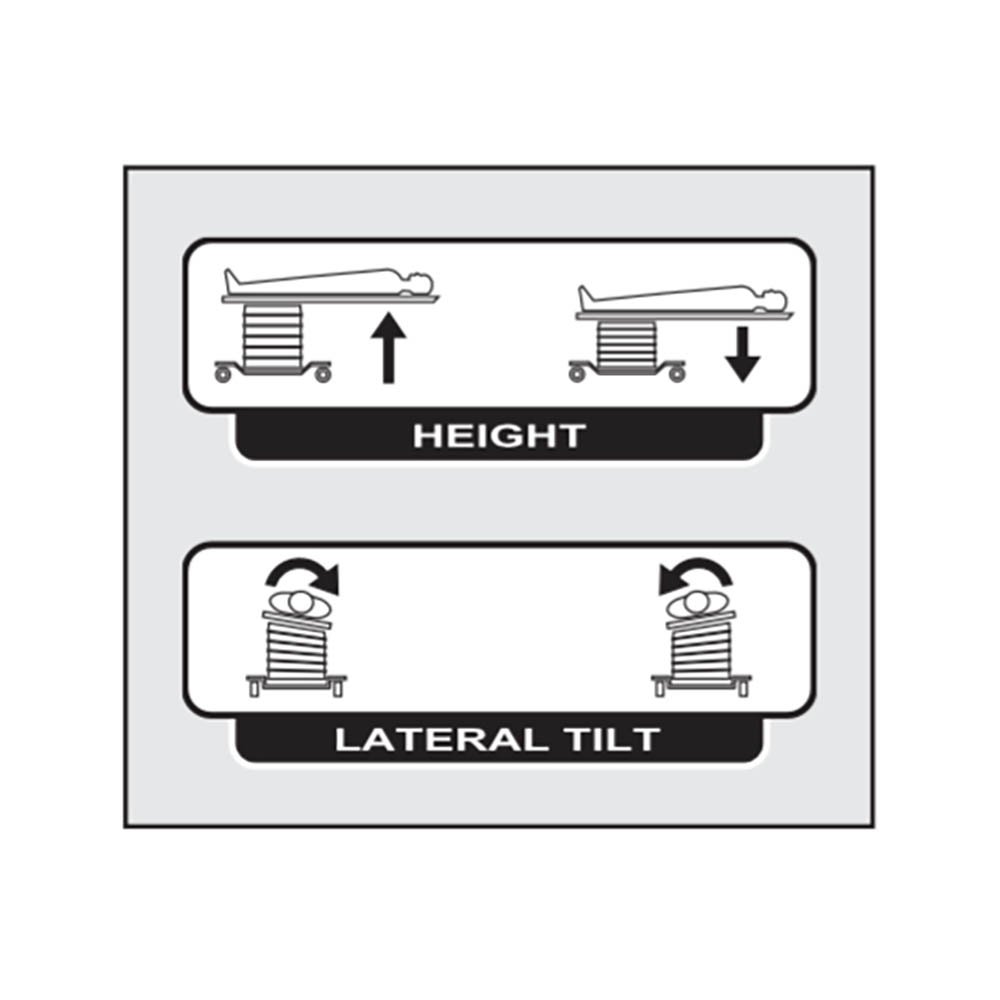

Come with a hand control that features
-
Height buttons for raising and lowering the tabletop
-
Lateral Tilt buttons that control the lateral angle of inclination
-
-
Large patient capacity – high-end actuator motor supports 500-pound loads
-
Light weight – easy to physically move the table within the room or from room to room
The EconoMAX series is available in four additional models: EC-1 (1 motion), EC-3 (3 motion), EC-4 (4 motion), and EC-5 (5 motion).
Specifications:
| Control | Hand control activates all motions |
| Tabletop and Mattress Attenuation | 1.6mm Al.(+/-0.2mm tolerance) |
| Tabletop Material | Carbon fiber skin/foam core with integral facial cut-out |
| Radiolucent Area | 56" L x 24" W unobstructed |
| Tabletop | 84" L x 24" W x 1.62" T |
| Table Dimensions | 86" L x 26" W |
| Mattress | 2" thick |
| Patient Straps | 2 |
| Castors | 5", full swivel & wheel lock |
| Base | H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W |
| AC Voltage | 120V |
| Frequency | 60 Hz |
| AC Current | 2.5A |
| Electric Shock Protection | Class I |
| Applied Part Rating | Type B |
| Mode of Operation | 10% Duty Cycle - 1 min on / 9 minutes off |
Specifications
| Manufacturer | Surgical Tables Inc |
|---|---|
| Actual Product Weight | 550 lbs |
| Overall Height | 38" |
| Overall Width | 26" |
| Overall Length | 86" |
| Weight Capacity | 500 lbs |
| Country of Manufacture | United States |
| Item Ships From | Massachusetts |
Literature
Instructions
Warranty:
Surgical Tables Incorporated warrants that the product is free from defects in material or workmanship. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables offers a 4-year limited warranty on all non-electrical parts and a 1-year warranty on all electrical parts. The warranty period begins on the date of shipment to the original purchaser.
Surgical Tables does not warranty any product with defects or damage caused by failure to provide a suitable environment for the product, defect or damage caused by use of the product for purposes other than those for which it was designed, defect or damage caused by natural or man-made disasters, defect or damage caused by unauthorized attachments or modification, damage during shipment or any other abuse or misuse of the product.
