STI EconoMAX Pain Management C-Arm Imaging Table, 1 Motion
The STI EconoMAX 1 Motion C-Arm Imaging Table Model EC-1 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.
Motor Driven Motion:
Height Adjustment: 28" to 38"
Carbon fiber, diving board style for easy C-arm access
An 84″ length can accommodate even the tallest of patients
A 24″ top eliminates the need for arm boards
2" thick, patient comfort pad
Facial cut-out for prone procedures

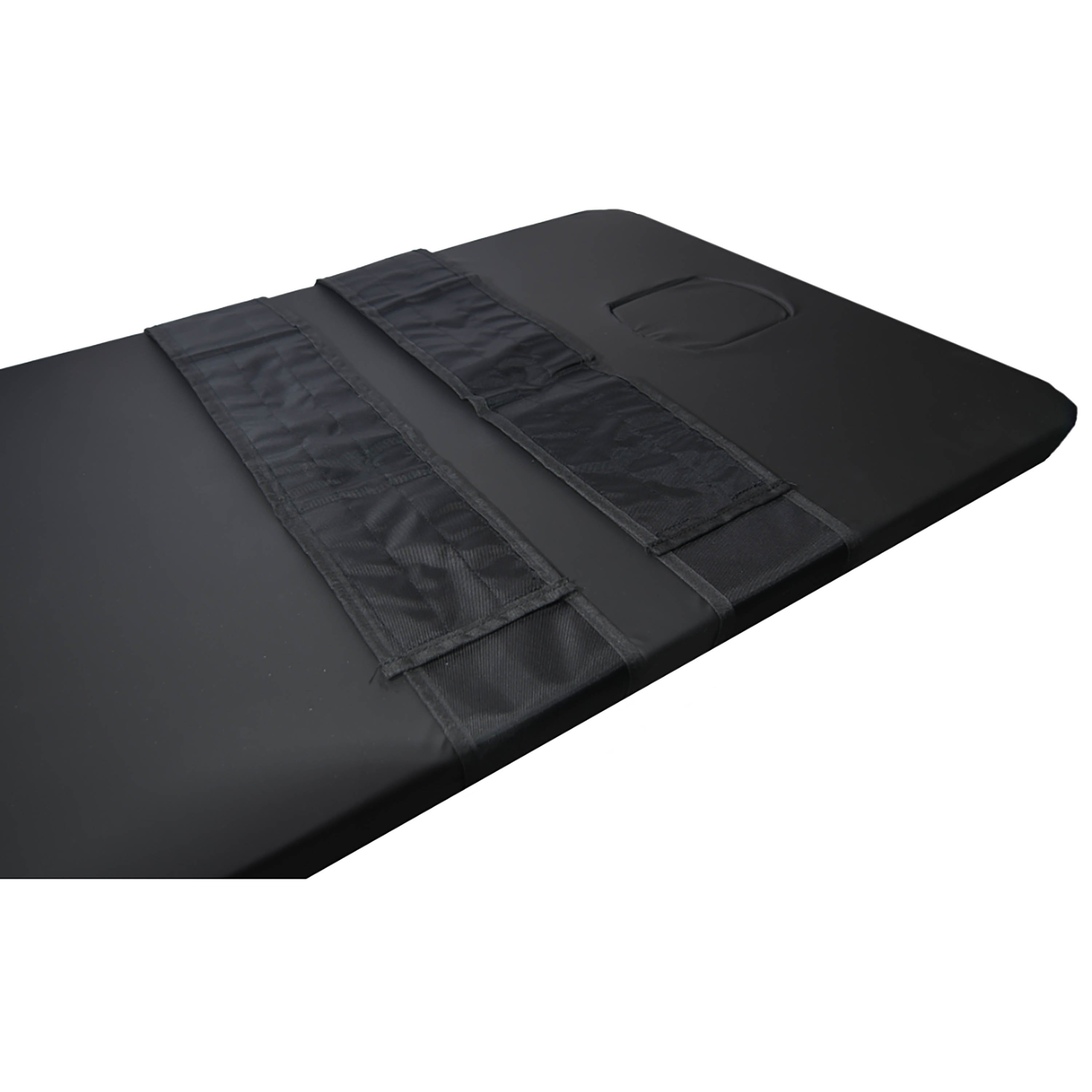

(2) patient straps
Short, H-style base
Extreme low position makes boarding patients fast, easy, and safe
Simple to use, high-quality wheel locks

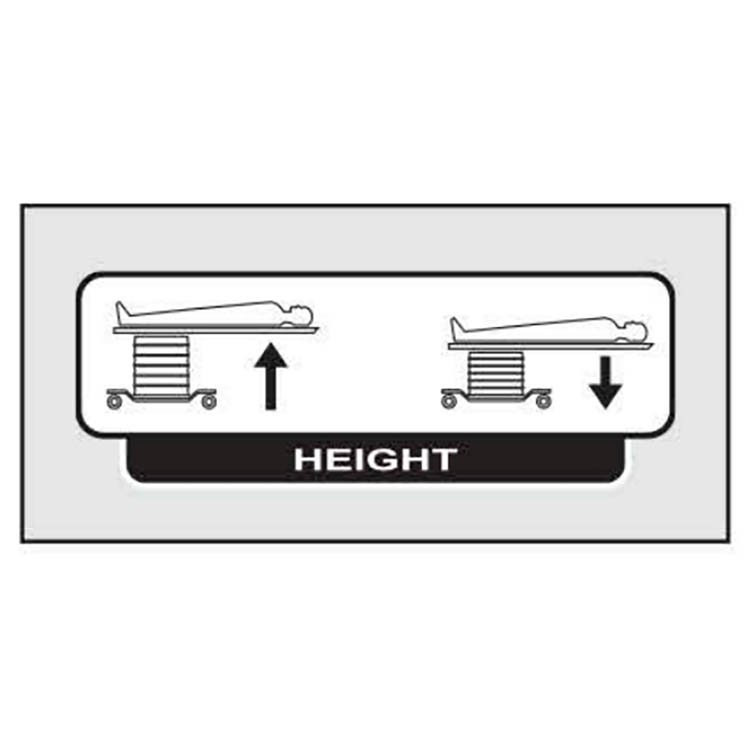

Come with a hand control featuring height buttons for raising and lowering the tabletop
Large patient capacity – high-end actuator motor supports 500-pound loads
Light weight – easy to physically move the table within the room or from room to room
The EconoMAX series is available in four additional models: EC-2 (2 motion), EC-3 (3 motion), EC-4 (4 motion), and EC-5 (5 motion).
|Height motion hand control
|Tabletop and Mattress Attenuation
|1.6mm Al.(+/-0.2mm tolerance)
|Carbon fiber skin/foam core with integral facial cut-out
|56" L x 24" W unobstructed
|84" L x 24" W x 1.62" T
|86" L x 26" W
|5", full swivel & wheel lock
|H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W
|Electric Shock Protection
|Applied Part Rating
|Mode of Operation
|10% Duty Cycle - 1 min on / 9 minutes off
|Surgical Tables Inc
|Actual Product Weight
|Country of Manufacture
|Item Ships From
Surgical Tables Incorporated warrants that the product is free from defects in material or workmanship. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables offers a 4-year limited warranty on all non-electrical parts and a 1-year warranty on all electrical parts. The warranty period begins on the date of shipment to the original purchaser.
Surgical Tables does not warranty any product with defects or damage caused by failure to provide a suitable environment for the product, defect or damage caused by use of the product for purposes other than those for which it was designed, defect or damage caused by natural or man-made disasters, defect or damage caused by unauthorized attachments or modification, damage during shipment or any other abuse or misuse of the product.
Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.
