STI UroMAX Urology/Lithotomy C-Arm Imaging Table, 1 Motion
Product Description
The Surgical Tables Inc. 1 Motion UroMAX Urology/Lithotomy C-Arm Imaging Table Model UROMAX-1 offers flexibility and reliability. The table features a cantilevered carbon fiber radiolucent top allowing for full fluoroscopic visualization and unobstructed c-arm positioning. Also, with the addition of the upper body extension (sold separately), the UroMAX can be used for pain management, GI, and other C-Arm guided procedures.
Motor Driven Motion:
- Height Adjustment: 28" to 38"
Features:
- Carbon fiber, diving board style for easy C-arm access
- A 26″ wide top eliminates the need for arm boards
- 2" thick, high quality patient comfort pad
- (2) patient straps
- Select one of two options for the included Fixed Side Rails: either the Split style, which is preferred for lithotomy procedures, or the Straight style, which runs the entire length of the table
- Short, H-style steel base with Epoxy Finish
- Easy patient transfer to table
- Simple to use, high-quality wheel locks
- Emergency Stop Switch
- Twist-lock removable power cord
- Protective bellows between the base and top to cover and protect table motor components
- Comes with hand control and foot control with the following features:
- Height Buttons: support raising and lowering the table top
- Large patient capacity – high-end actuator motor supports 500-pound loads
- Most standard OR accessories (not included) can be rigidly attached to the table top
The UroMax series is available in four additional models: UROMAX-2 (2 motion), UROMAX-3 (3 motion), the most popular UROMAX-4 (4 motion), and UROMAX-5 (5 motion).
OPTIONAL EXTENSIONS: Another advantage to the URO-MAX is the optional extensions to make the table full length. You can add a Leg Extension/Footboard Extension (URO-FOOTBOARD) which makes the table full length, or a Full Body Extension/Upper Body Extension (FBE) which can quickly turn your urology table into a procedure table for pain management and other C-arm guided procedures. These extensions are easy to remove and lightweight. They can be removed or installed while the fluid catcher is in place.
Specifications:
| Control | Height motion hand control and foot control |
| Tabletop and Mattress Attenuation | 1.6mm Al.(+/-0.2mm tolerance) |
| Tabletop Material | Carbon fiber skin/foam core |
| Radiolucent Area | 27" L x 24" W unobstructed |
| Tabletop | 55" L x 24" W x 1.62" T |
| Table Dimensions | 55" L x 26" W |
| Mattress | 2" thick |
| Patient Straps | 2 |
| Castors | 5", full swivel & wheel lock |
| Base | H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W |
| AC Voltage | 120V |
| Frequency | 60 Hz |
| AC Current | 2.5A |
| Electric Shock Protection | Class I |
| Applied Part Rating | Type B |
| Mode of Operation | 10% Duty Cycle - 1 min on / 9 minutes off |
Please Note:

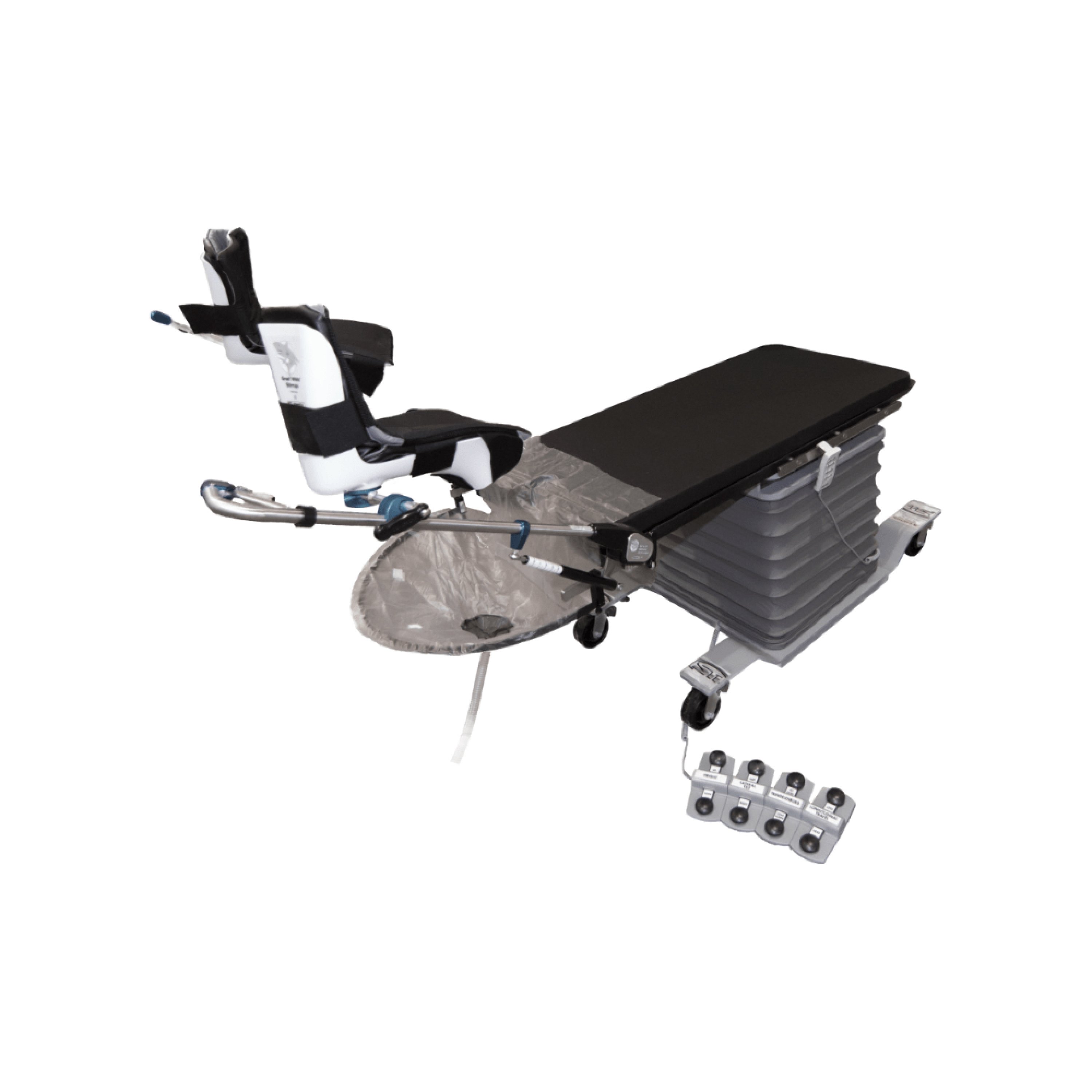

- The UroMAX Urology/Lithotomy C-Arm Imaging Table, 4 Motion model UROMAX-4, is shown in the first image. The photo depicts an optional accessory package that includes Stirrups, Clamps, and a Drain Loop Bag, which is sold separately.
- This table has 1 Motion Foot Control, as shown in the second image.
Specifications
| Manufacturer | Surgical Tables Inc |
|---|---|
| Actual Product Weight | 520 lbs. |
| Overall Height | 38" |
| Overall Width | 26" |
| Overall Length | 55" |
| Weight Capacity | 500 lbs |
| Country of Manufacture | United States |
| Item Ships From | Massachusetts |
Literature
Instructions
Warranty:
Surgical Tables Incorporated warrants that the product is free from defects in material or workmanship. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables offers a 4-year limited warranty on all non-electrical parts and a 1-year warranty on all electrical parts. The warranty period begins on the date of shipment to the original purchaser.
Surgical Tables does not warranty any product with defects or damage caused by failure to provide a suitable environment for the product, defect or damage caused by use of the product for purposes other than those for which it was designed, defect or damage caused by natural or man-made disasters, defect or damage caused by unauthorized attachments or modification, damage during shipment or any other abuse or misuse of the product.
