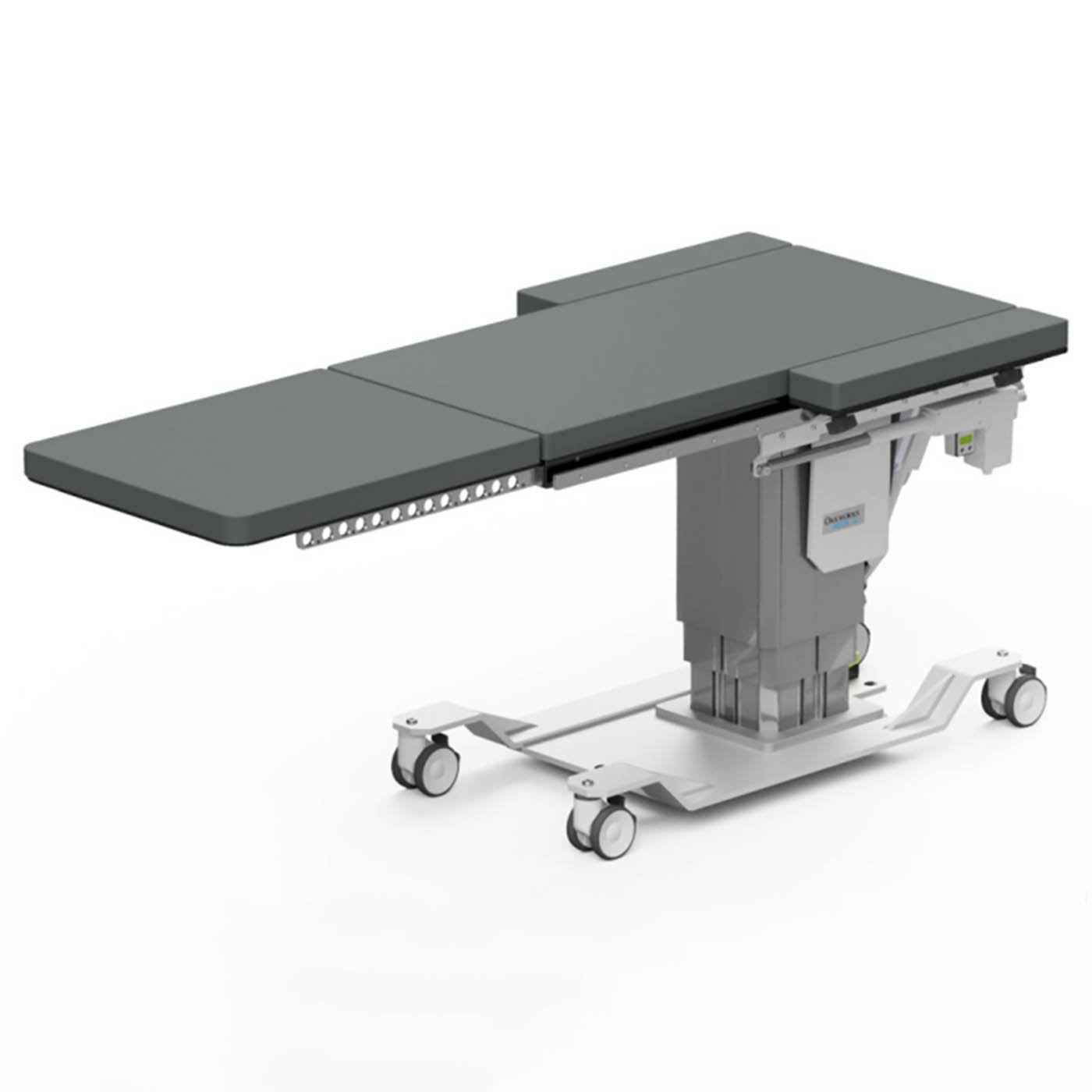

Product Description

Included Features:

  • Carbon fiber top with removable radiolucent Comfort Foam® table top pad
  • (2) Radiolucent Lateral Extension
  • (1) Radiolucent Patient Transfer Extension

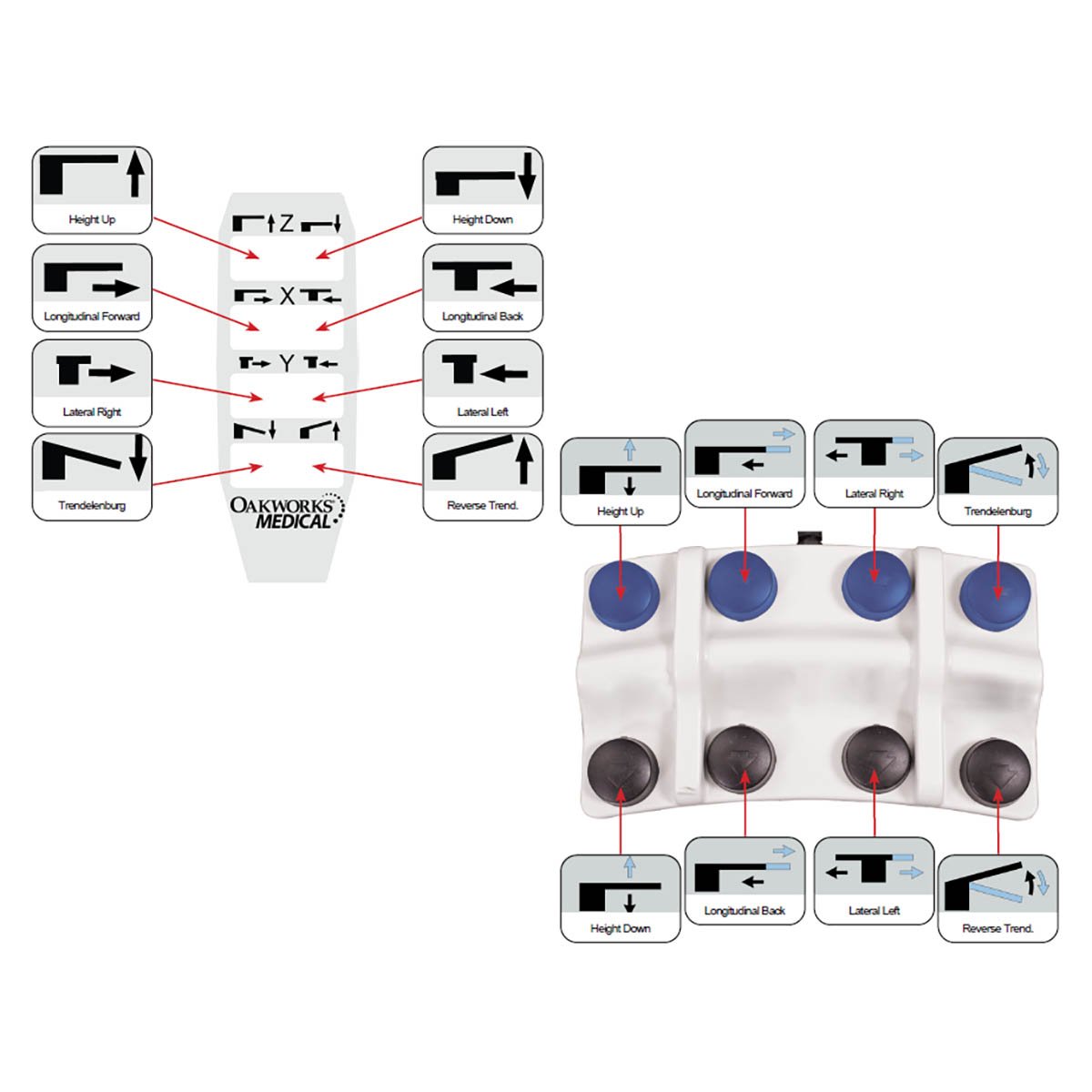

  • Multi-function hand control and foot control
  • Electronic lift tower
  • Emergency stop switch to cut power from the table in an emergency
  • Locking casters for mobile or permanent positioning
  • (2) Patient safety straps
  • Digital angle gauge provides accurate read out of trendlenburg setting
  • Industry standard full length T-rails on each side
  • Urology Bag Hoop clips onto T-rails (bag not included)

Specifications:

Motion 1 Electric Height Range 26.5" - 44.5" without pad
Motion 2 Electric Trendelenburg Tilt +15°/-11°
Motion 3 Electric Longitudinal travel 10"
Motion 4 Electric Lateral travel ±4
Carbon Fiber Top

23" W x 47" L Total Surface Area with 53" Metal free imaging space with Patient Transfer Extension

19" W x 23.7" L Radiolucent Dimensions
Radiolucent Lateral Extension (2) 5" x 24"
Radiolucent Patient Transfer Extension (1) 23" x 28"
Integrated T-rails (2) 0.38" Thick x 1.13" High US Standard
Controls Multi-function hand control and foot control
Locking Casters 4" (SKU #83867) or 5" (SKU #84097)
Electrical System 110V
Table Pad 2" Comfort Foam®
Upholstery Color Pewter
Weight Capacity 500 lbs distributed evenly (Each Extension: 200 lbs)
Product Weight 590 lbs
Warranty 3 years parts, 2 years labor
Safety Listings CE marked, cETLus approved, CB Certificate, FDA listed

Please Note: This item ships via motor freight carrier. Our website estimates freight charges based on delivery to a location with a truck height dock. As every location does not have a truck height dock, shipping fees often have to be re-quoted when purchasing this item. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Specifications

Specifications
Manufacturer Oakworks Inc
Latex Free Yes
Actual Product Weight 590 lbs
Weight Capacity 500 lbs Distributed Evenly (Each Extension: 200 lbs)
Country of Manufacture United States
Item Ships From Pennsylvania

Literature

Instructions

Limited Warranty: Oakworks warrants to the original end user all products manufactured by the company to be free from defects in material and workmanship under normal use and service for the period of three (3) years on manufactured parts and two (2) years on labor from the date of purchase. Normal wear and tear and damage caused by improper set-up, accident, misuse, improper maintenance, harsh operating environments, or neglect (which includes tears in the upholstery and damage caused by harsh chemical-based cleaners) are not covered under this warranty. Failure to follow the preventative maintenance schedule on equipment and instructions for upholstery care will void the warranty. Any unauthorized modifications or repairs will also invalidate the warranty and immediately terminate all liability by the manufacturer for the product or damages caused by its use.

Returns

All returns require return authorization within 15 days of receipt. Please contact Customer Service to request a return authorization. Returned Products must be in original packaging and arrive in new condition. All returns are subject to a minimum 25% restocking charge. The purchaser is responsible for all shipping charges, and the correct re-packing of products when returned to ensure damage does not occur during shipment.
