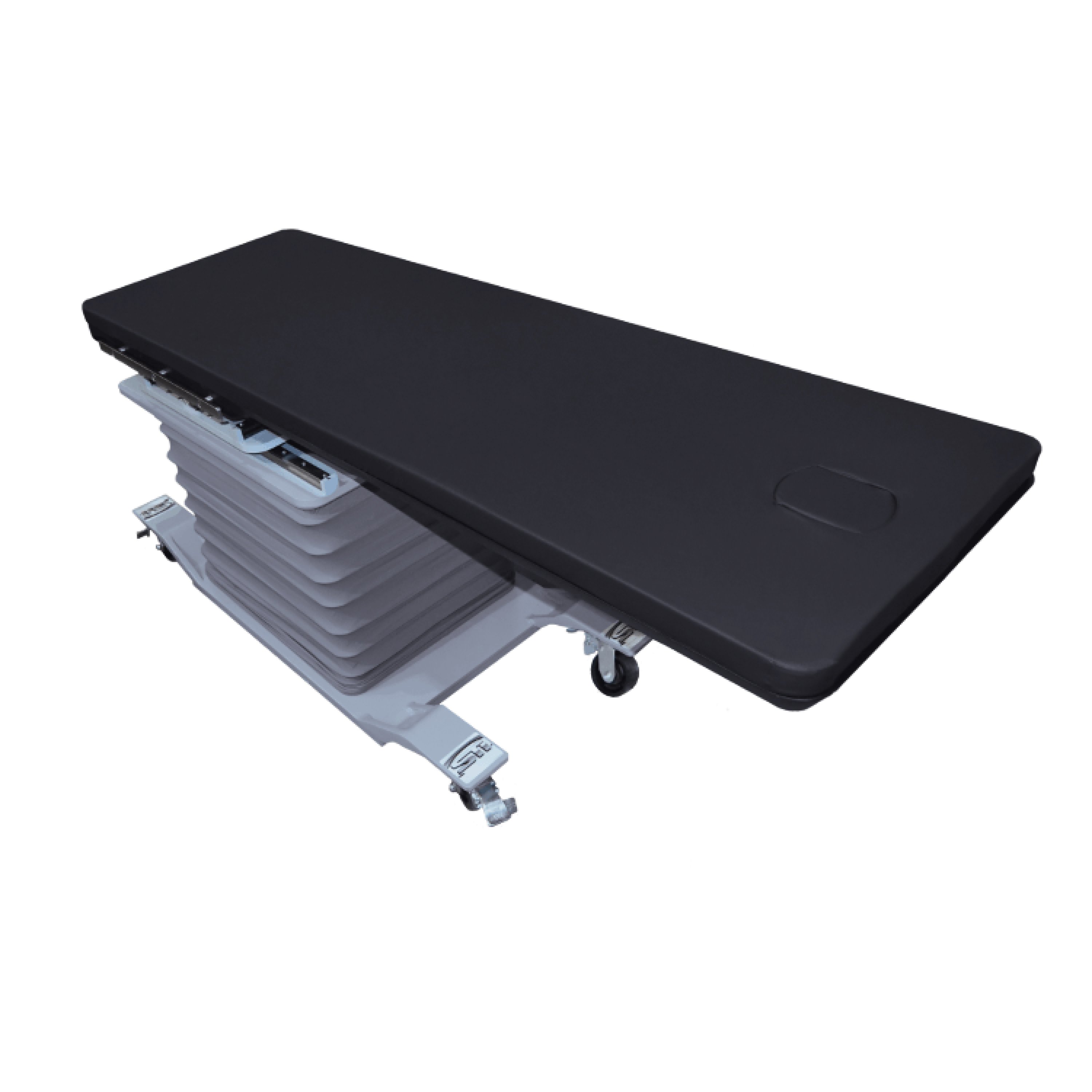

STI Bariatric C-Arm Imaging Table, 3 Motion
Product Description
Bariatric imaging tables are becoming more in demand for surgery on obese patients using fluoroscopic guidance. For these procedures, a special diving board style, carbon fiber imaging tables that can hold up to 1,000 lbs are a must. Surgical Tables Inc. offers the 3 Motion Bariatric C-Arm Imaging Table Model BT-3 that meets the requirements for using fluoroscopic guidance to diagnose and treat overweight and obese patients. This table also can be used for a variety of procedures, including spine and pain management, GI, bariatric surgery, and more.
Motor Driven Motion:
-
Height Adjustment: 29" to 37"
-

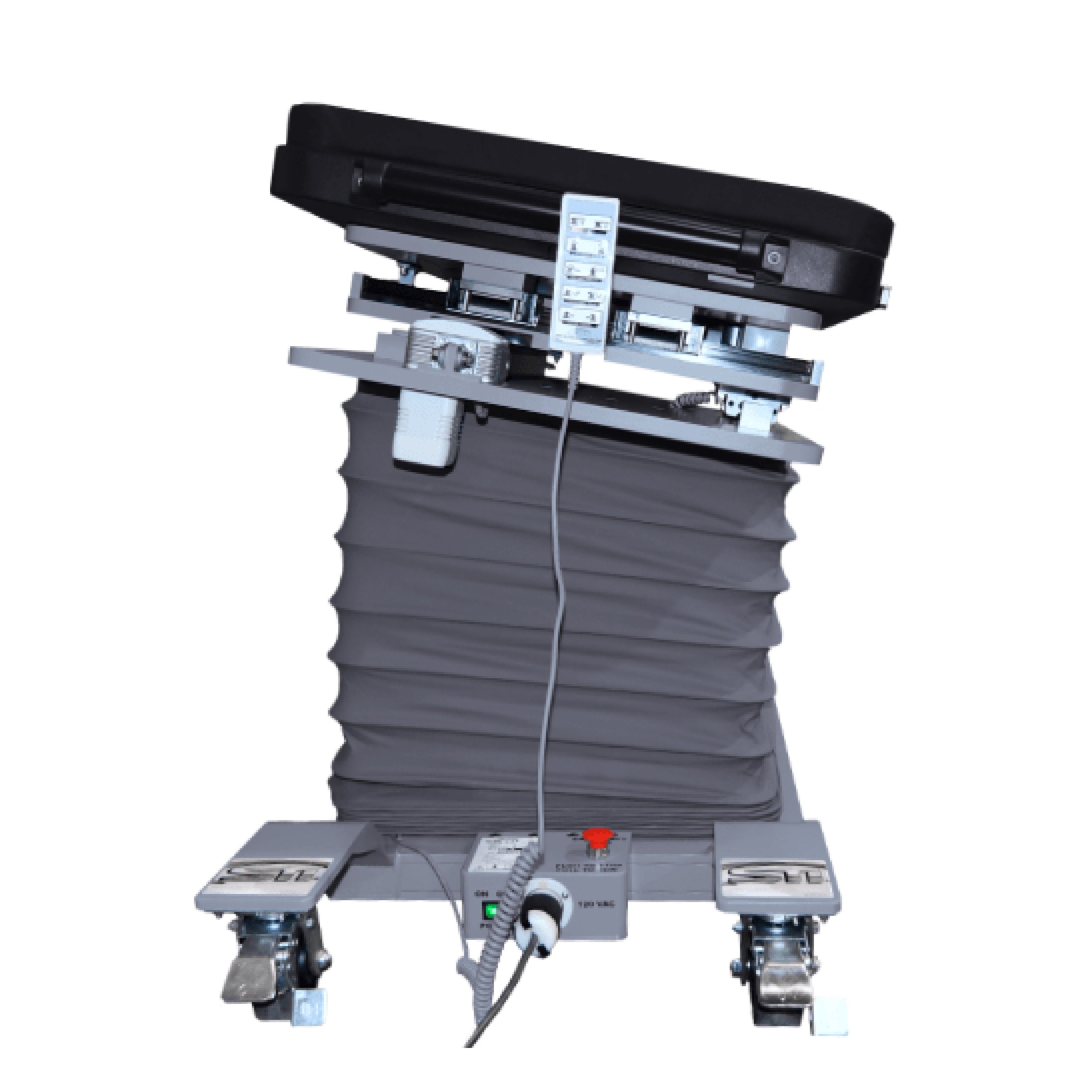

Lateral Tilt: (+/-) 17°
-

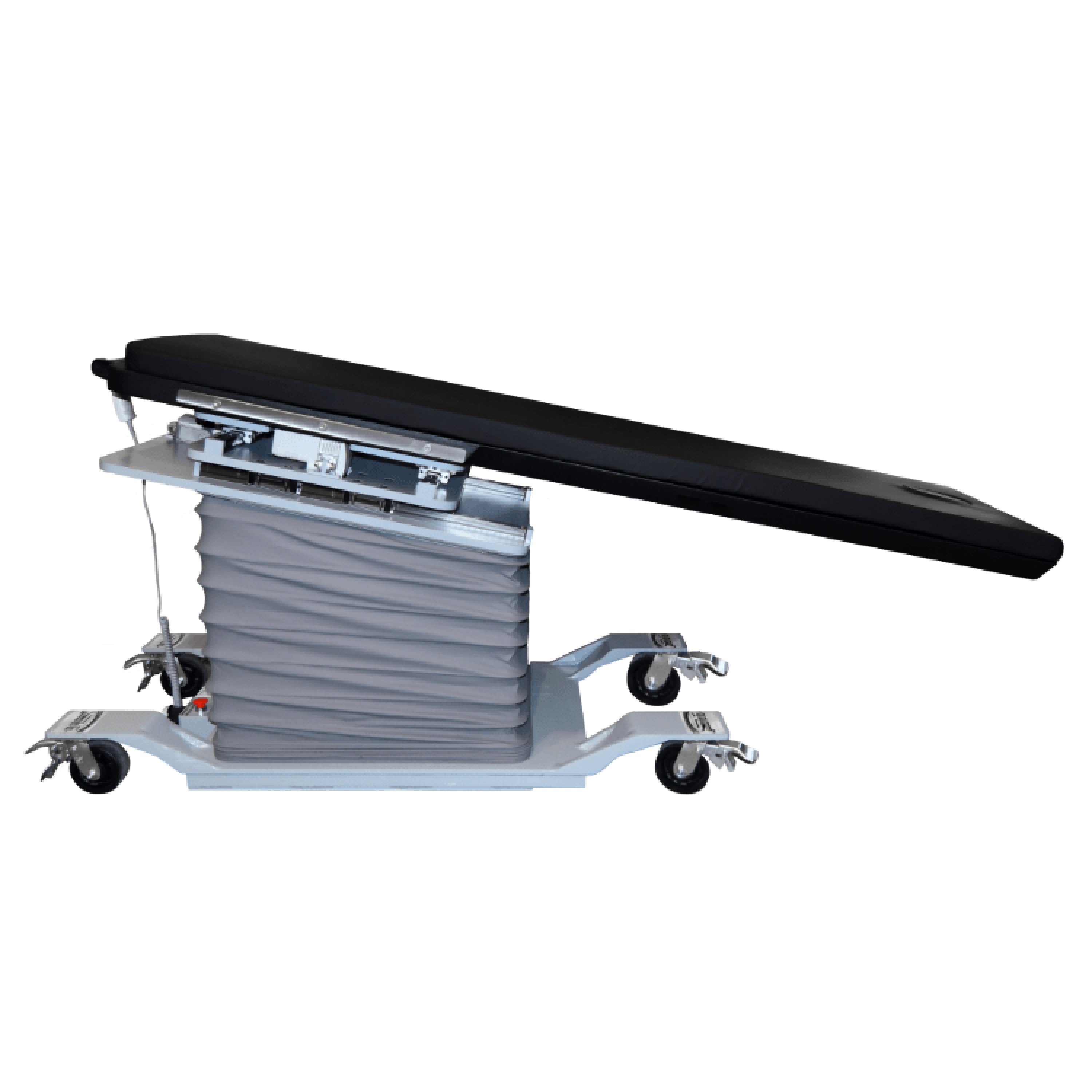

Trendelenburg: (+/-) 12°
Features:
-

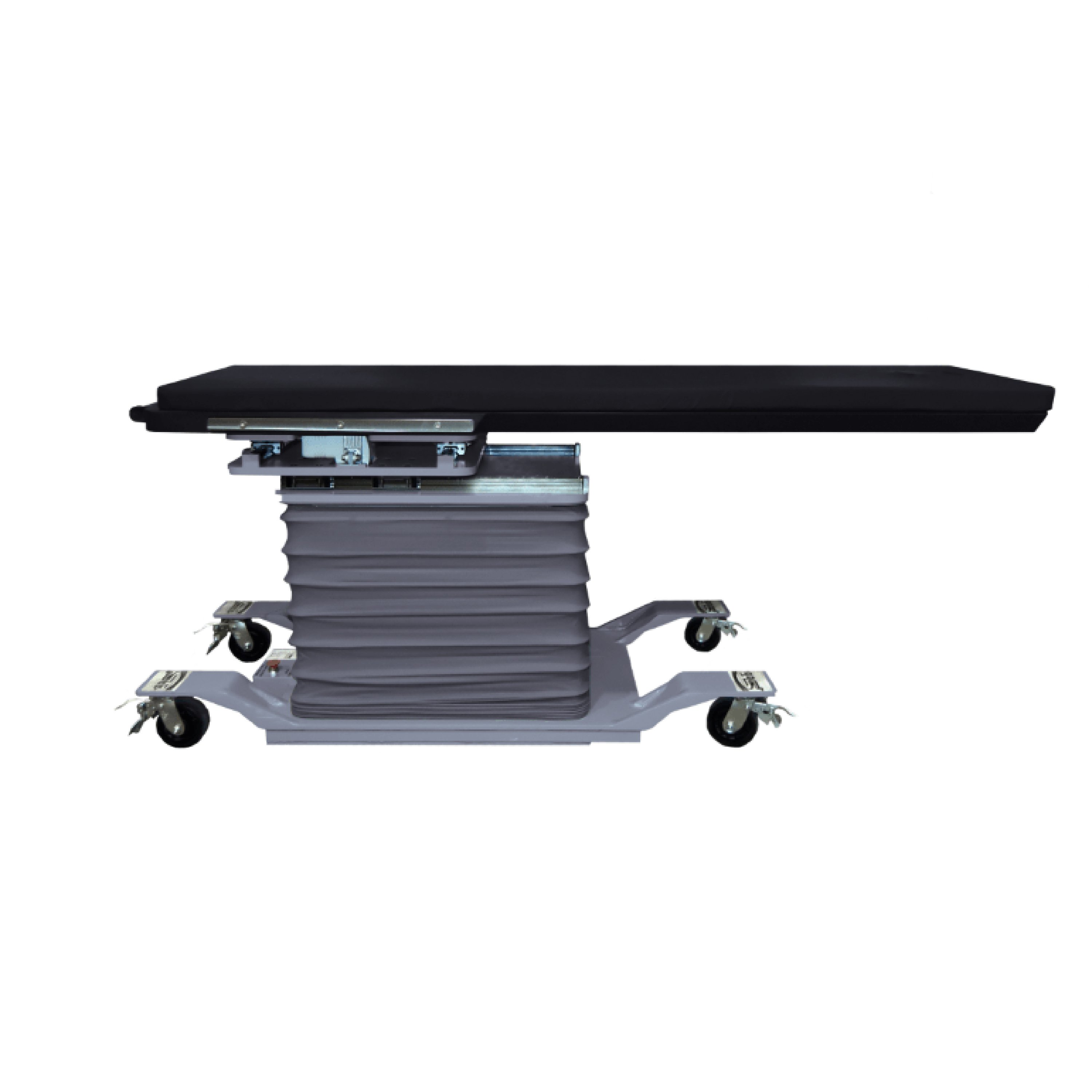

Carbon fiber, diving board style for easy C-arm access
-
An 84″ length can accommodate even the tallest of patients
-
A 27″ top eliminates the need for arm boards
-
2" thick, high quality patient comfort pad
-
Facial cut-out for prone procedures
-

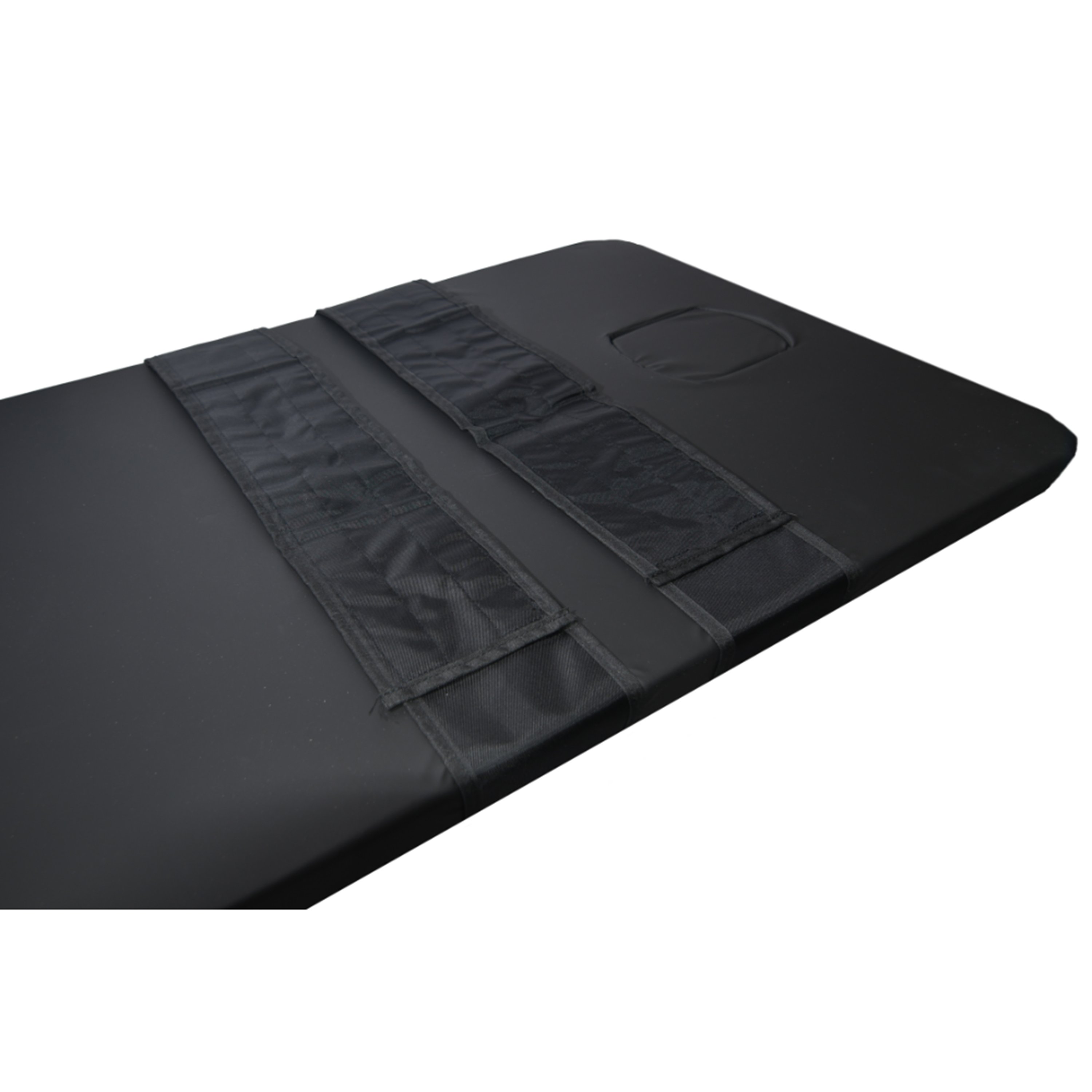

(2) patient straps
-
Fixed side rails
-
Short, H-style square base allowing for excellent c-arm clearance
-
Simple to use, high-quality wheel locks
-
Twist-lock removable power cord
-
Bellows to cover and protect table motor components. They are easily cleaned.
-

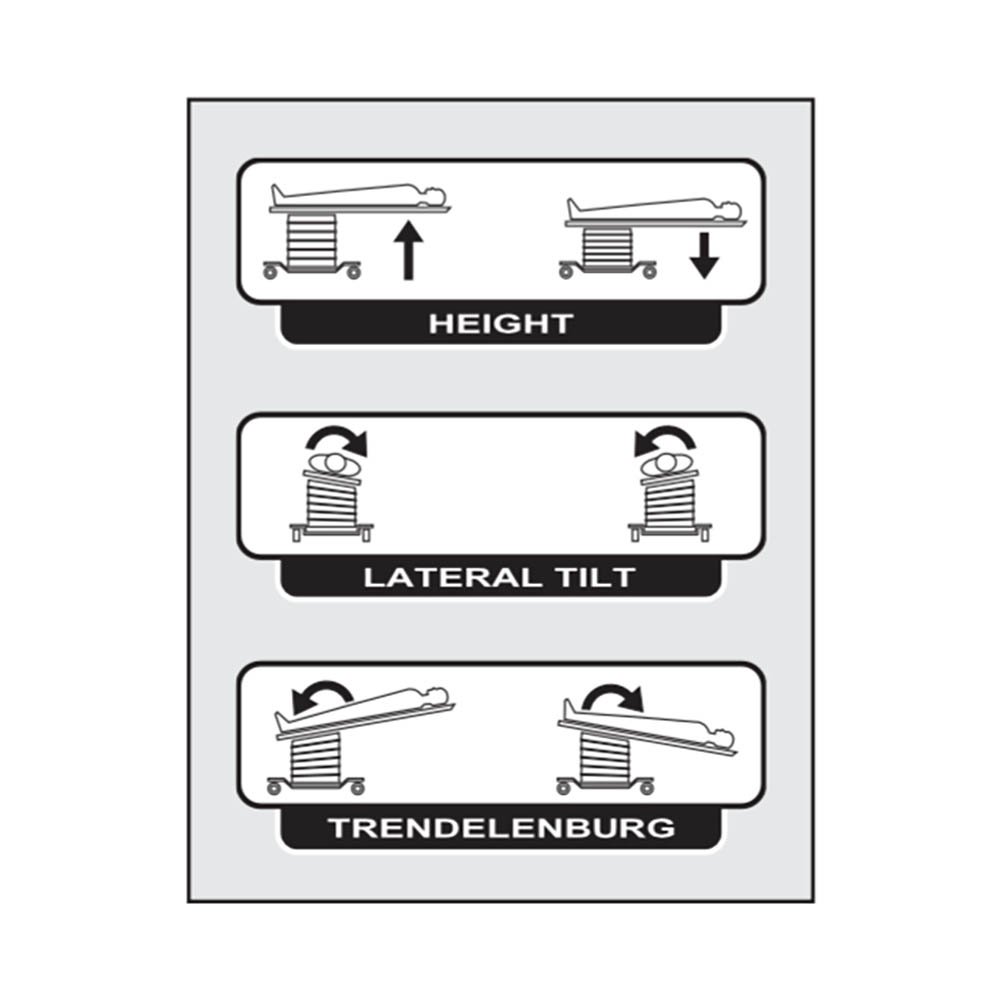

Come with a hand control that features
-
Height Buttons: support raising and lowering the tabletop
-
Lateral Tilt Buttons: control the lateral angle of inclination
-
Trendelenburg Buttons: control the angle of inclination of the head end
-
-
Large patient capacity – high-end actuator motor supports 1000-pound loads
-
Light weight – can be moved from room to room or within room
The Bariatric series is available in two additional models: BT-4 (4 motion) and BT-5 (5 motion).
Specifications:
Control | Hand control activates all motions |
Tabletop and Mattress Attenuation | 2.1mm Al. (+/-0.2mm tolerance) |
Tabletop Material | Carbon fiber skin/foam core with integral facial cut-out |
Radiolucent Area | 56" L x 24" W unobstructed |
Tabletop | 84" L x 27" W x 2" T |
Table Dimensions | 86" L x 29" W |
Mattress | 2" thick |
Patient Straps | 2 |
Castors | 5", full swivel & wheel lock |
Base | H-Shaped Steel Base with Epoxy Finish - 63" L x 26" W |
AC Voltage | 120V |
Frequency | 60 Hz |
AC Current | 6.5A |
Electric Shock Protection | Class I |
Applied Part Rating | Type B |
Mode of Operation | 10% Duty Cycle - 1 min on / 9 minutes off |
Specifications
Manufacturer | Surgical Tables Inc |
---|---|
Actual Product Weight | 785 lbs. |
Overall Height | 37" |
Overall Width | 29" |
Overall Length | 86" |
Weight Capacity | 1000 lbs |
Country of Manufacture | United States |
Item Ships From | Massachusetts |
Literature
Instructions
Warranty:
Surgical Tables Incorporated warrants that the product is free from defects in material or workmanship. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables offers a 4-year limited warranty on all non-electrical parts and a 1-year warranty on all electrical parts. The warranty period begins on the date of shipment to the original purchaser.
Surgical Tables does not warranty any product with defects or damage caused by failure to provide a suitable environment for the product, defect or damage caused by use of the product for purposes other than those for which it was designed, defect or damage caused by natural or man-made disasters, defect or damage caused by unauthorized attachments or modification, damage during shipment or any other abuse or misuse of the product.
