Product Description

The STI Streamline 2 Motion C-Arm Imaging Table Model SL-2 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.

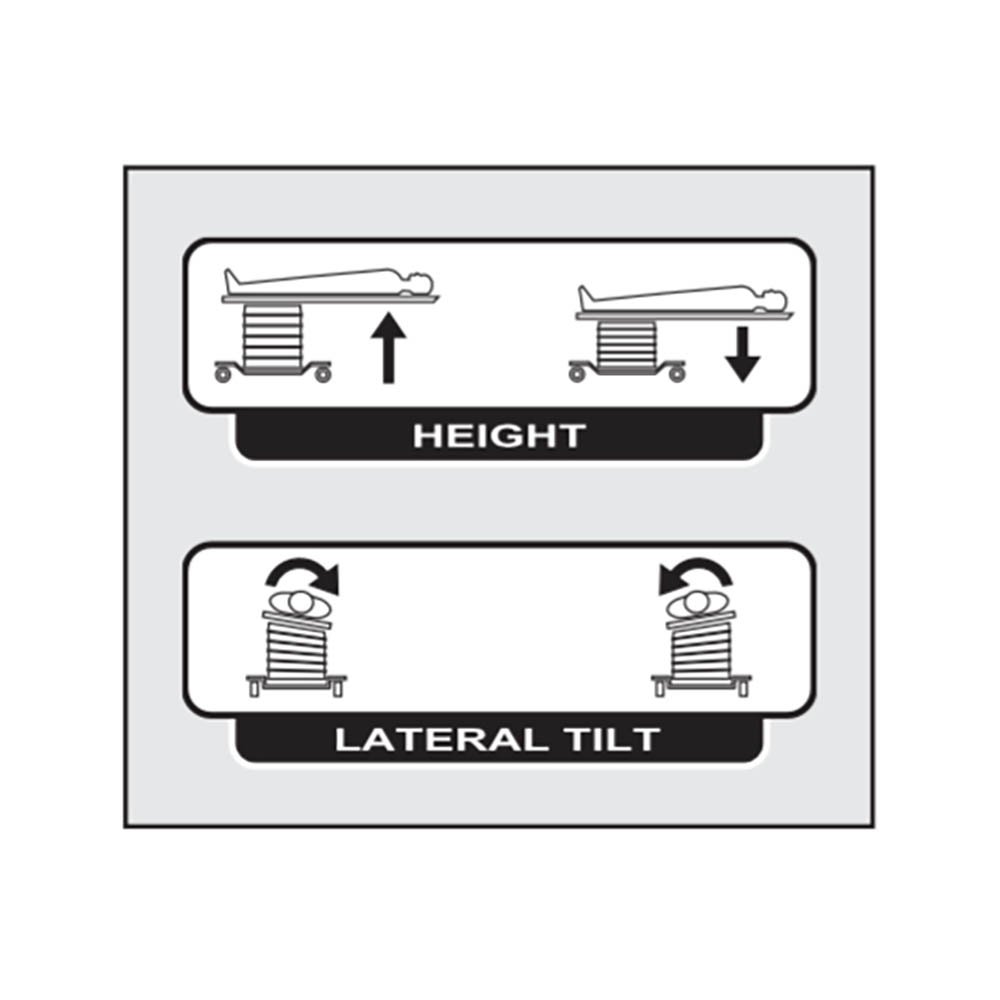

Motor Driven Motion:

  1. Height Adjustment: 28" to 38"

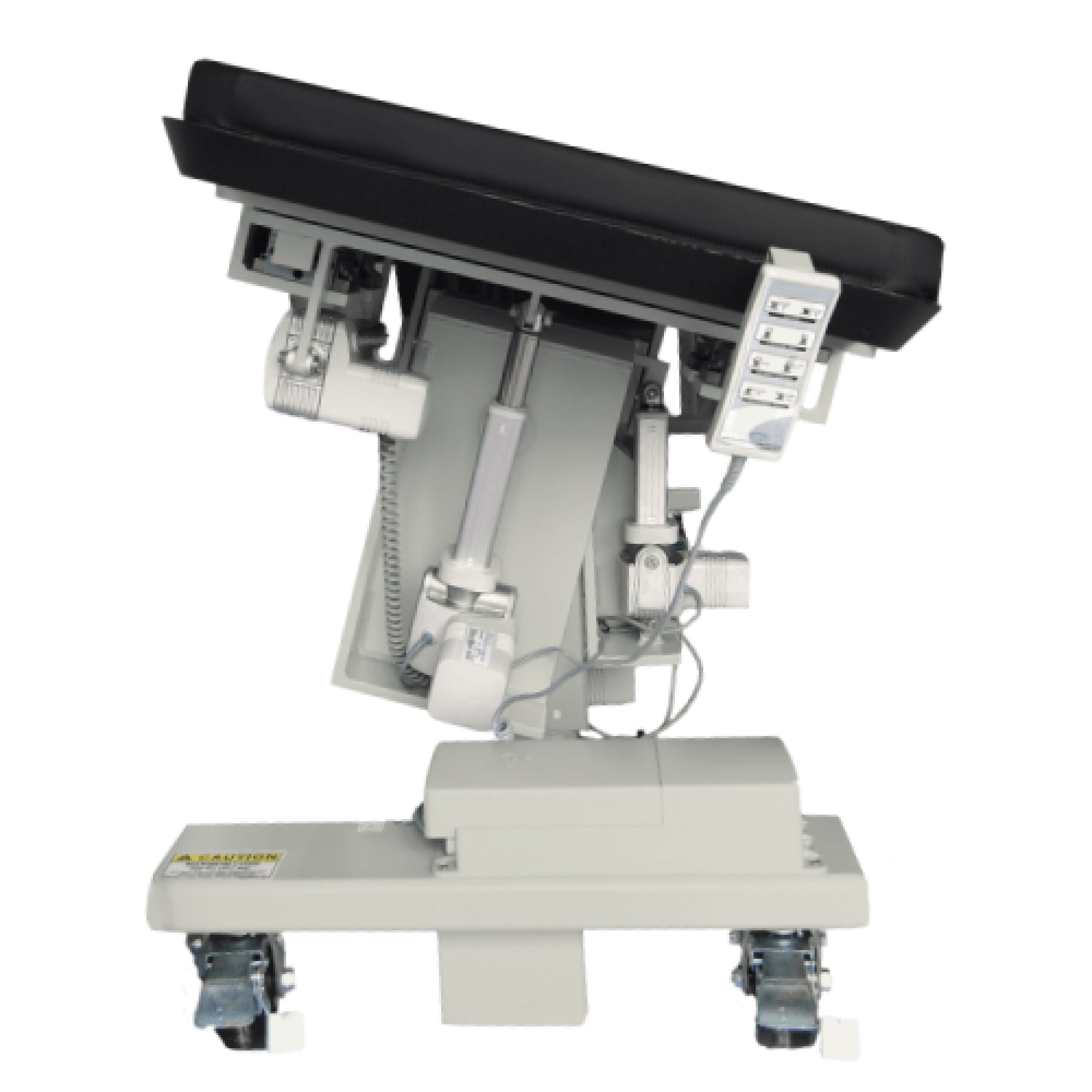

  2. Lateral Tilt: (+/-) 17°

Features:

  • Carbon fiber, diving board style for easy C-arm access

  • An 84″ length can accommodate even the tallest of patients

  • A 24″ top eliminates the need for arm boards

  • 2" thick, high quality patient comfort pad

  • Facial cut-out for prone procedures

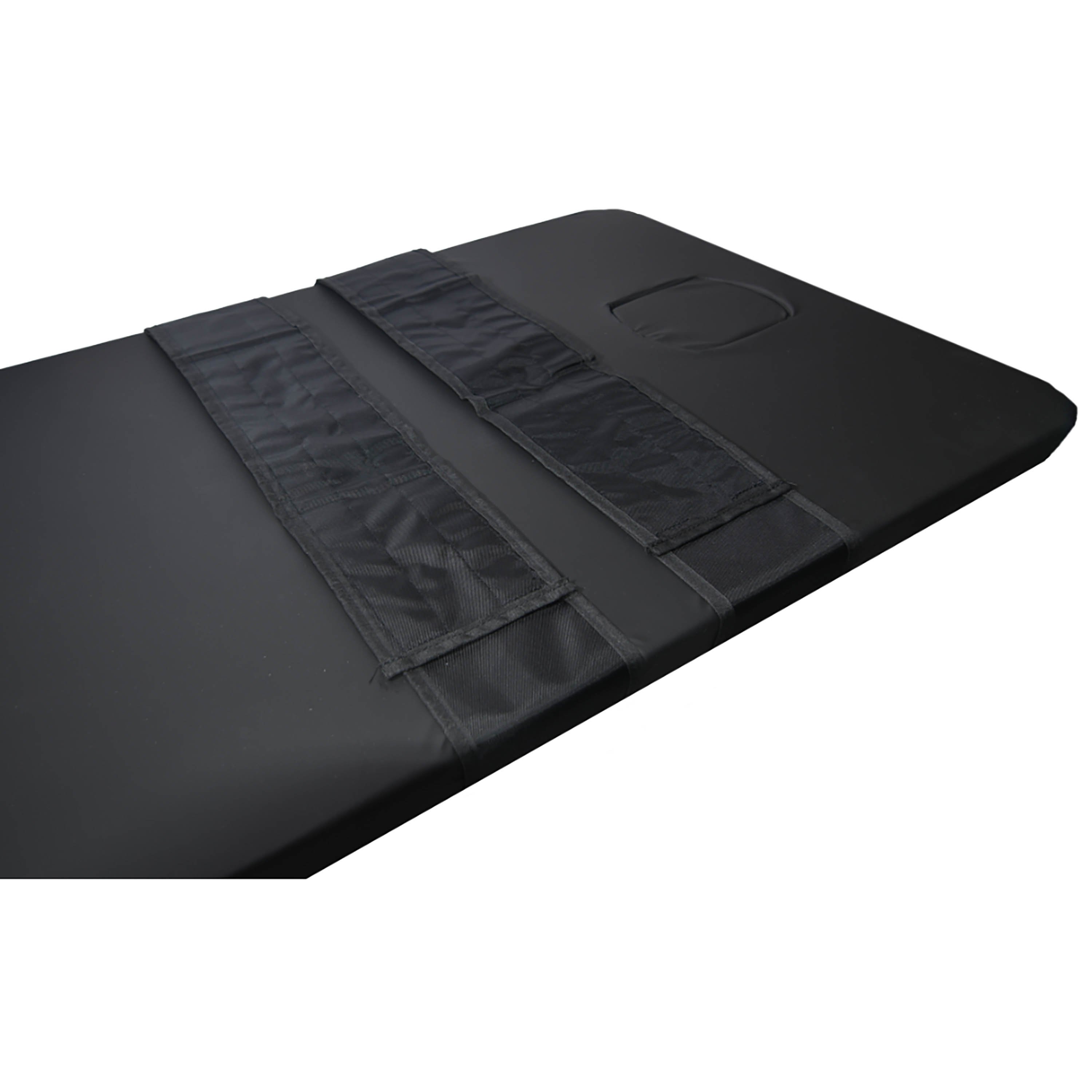

  • (2) patient straps

  • Long, I-style base

  • Extreme low position makes boarding patients fast, easy, and safe

  • Simple to use, high-quality wheel locks

  • Come with a hand control that features

    • Height buttons for raising and lowering the tabletop

    • Lateral Tilt buttons that control the lateral angle of inclination

  • Large patient capacity – high-end actuator motor supports 500-pound loads

  • Light weight – easy to physically move the table within the room or from room to room

The Streamline series is available in four additional models: SL-1 (1 motion), SL-3 (3 motion), SL-4 (4 motion), and SL-5 (5 motion).

Specifications:

Control Hand control activates all motions
Tabletop and Mattress Attenuation 1.6mm Al.(+/-0.2mm tolerance)
Tabletop Material Carbon fiber skin/foam core with integral facial cut-out
Radiolucent Area 56" L x 24" W unobstructed
 Tabletop 84" L x 24" W x 1.62" T
Table Dimensions 86" L x 26" W
Mattress 2" thick
Patient Straps 2
Castors 5", full swivel & wheel lock
 Base I-Shaped Steel Base with Epoxy Finish - 82" L x 26" W
AC Voltage 120V
Frequency 60 Hz
AC Current 2.5A
Electric Shock Protection Class I
Applied Part Rating Type B
Mode of Operation 10% Duty Cycle - 1 min on / 9 minutes off

Specifications

Specifications
Manufacturer Surgical Tables Inc
Actual Product Weight 390 lbs
Overall Height 38"
Overall Width 26"
Overall Length 86"
Weight Capacity 500 lbs
Country of Manufacture United States
Item Ships From Massachusetts

Literature

pdf
(Size: 454 KB)
pdf
(Size: 1.9 MB)

Instructions

Warranty:

Surgical Tables Incorporated warrants that the product is free from defects in material or workmanship. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables offers a 4-year limited warranty on all non-electrical parts and a 1-year warranty on all electrical parts. The warranty period begins on the date of shipment to the original purchaser.

Surgical Tables does not warranty any product with defects or damage caused by failure to provide a suitable environment for the product, defect or damage caused by use of the product for purposes other than those for which it was designed, defect or damage caused by natural or man-made disasters, defect or damage caused by unauthorized attachments or modification, damage during shipment or any other abuse or misuse of the product.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
