Product Description

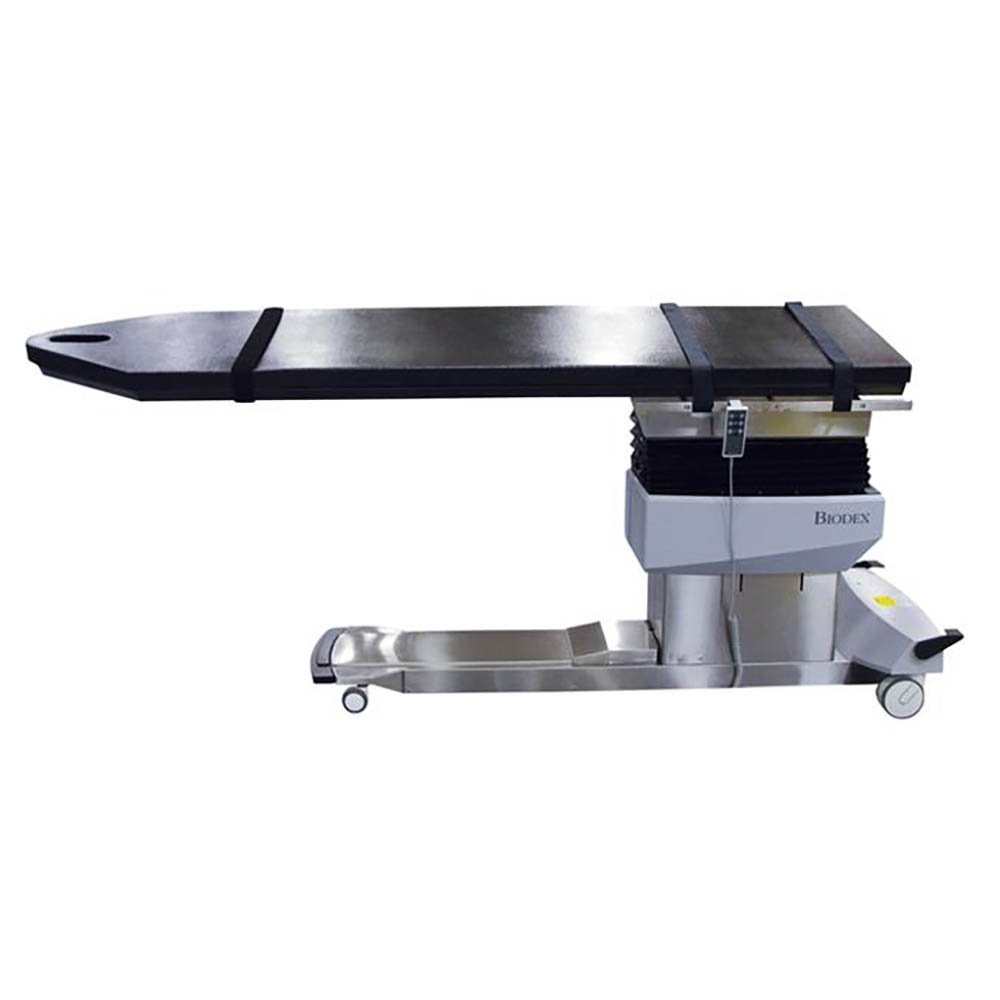

The Pain Management C-Arm Table 870 is designed for image-guided procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon-fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

The large radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

Features:

  • Contoured tabletop features a face cutout for comfortable prone positioning
  • Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
  • Radiolucent Area – Large, 70"

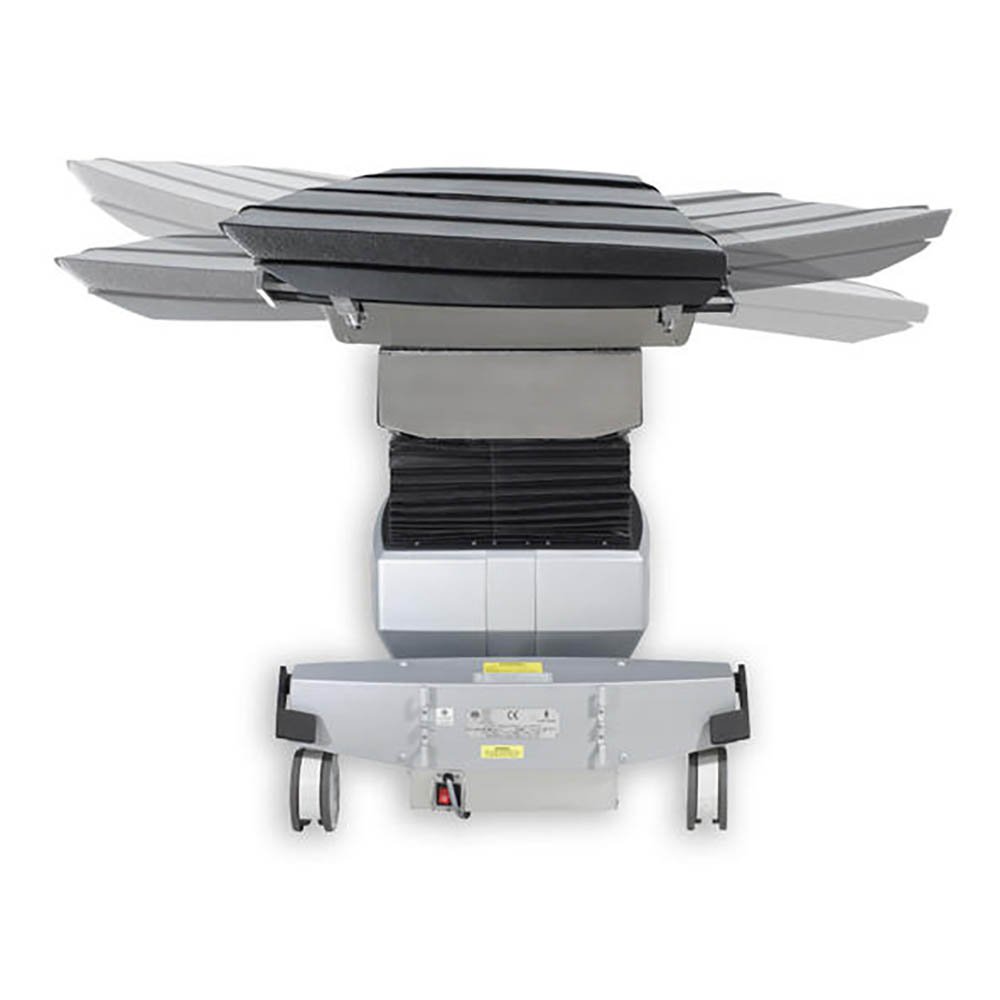

  • Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion
  • High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
  • Table Base – Encased in stainless steel, easy to clean
  • Hand and Foot-Operated Controllers –For convenient positioning
  • Patient Capacity – 500 lb
  • Low Profile Base – For unrestricted C-arm movement
  • Accessory Rails

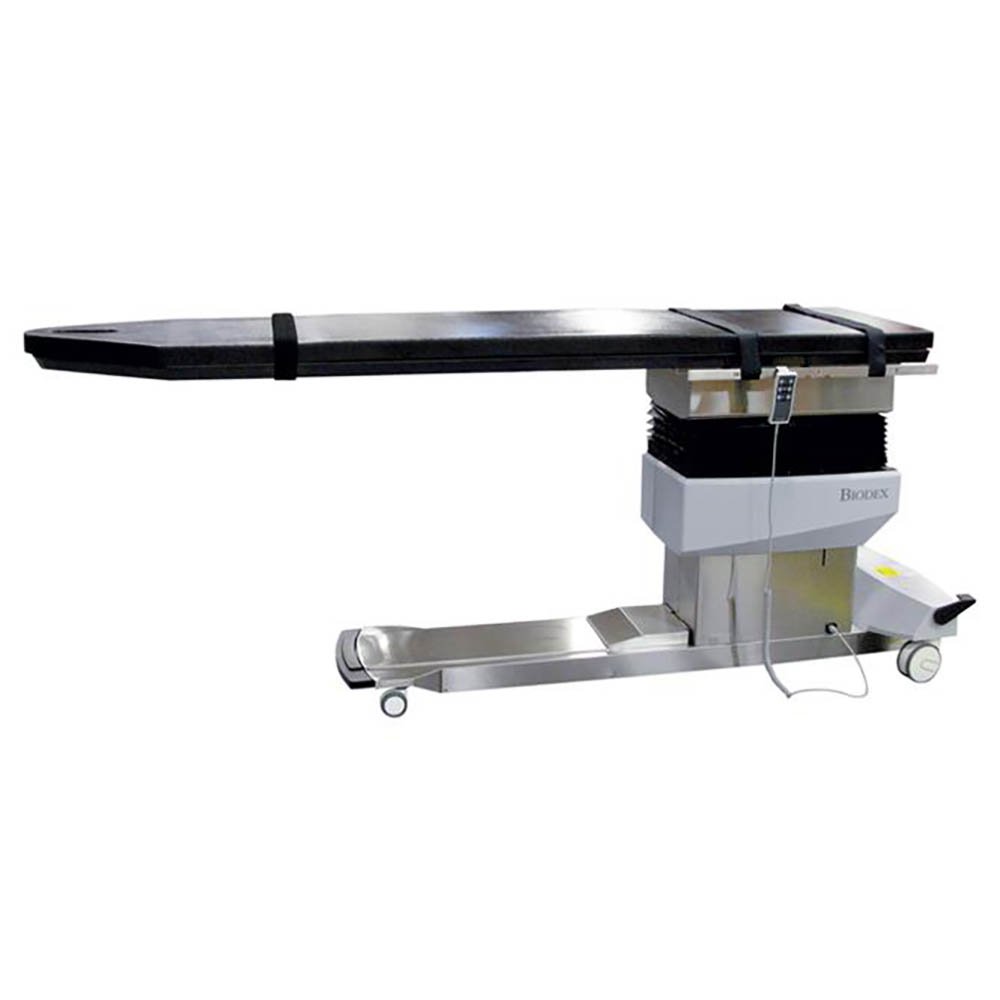

Innovative Contour Design Top: Biodex C-Arm tables feature a uniquely contoured tabletop. This design fully accommodates C-Arm positioning for closest possible access to the cervical spine, achieving optimum image resolution. A second benefit to the contour design is the added workspace at the head end, while maintaining the narrowness required for cervical procedures. A face cutout is provided for prone positioning.

Automatic Positioning: A portable hand-held or optional foot-operated controller can be positioned for convenient access from any point around the table. Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The optional foot-operated controller (#058-877) can be used when hands are busy with other functions.

Optional Accessories are install by the customer.

Specifications:

  • Dimensions:
    • Overall: 97" L x 26" W with OR accessory rails
    • Tabletop: 97" L x 24" W
  • Radiolucent Area: 70" L x 24" W
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2" thick
  • Attenuation: 1.2 mm Aluminum equivalence
  • Motions:
    • Height Adjustable: 29.5" to 39.5"
    • Trendelenburg: 0° to 20°
    • Reverse Trendelenburg: 0° to 20°
    • Isocentric Lateral Roll: 15° clockwise or counterclockwise
  • Controls:
    • Hand Control: activates height, isocentric lateral roll and Trendelenburg motions
    • Foot Control (optional; please refer #058-877): activates height, lateral roll and Trendelenburg motions
  • Wheels:
    • Head End: 3" swivel casters, integral locking system on base
    • Foot End: 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375" mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Stainless Steel
  • Patient Capacity: 500 lb
  • Power: 115 VAC
  • Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016
  • CDRH registered and FDA Device Listed
  • Warranty: Two years parts and labor
