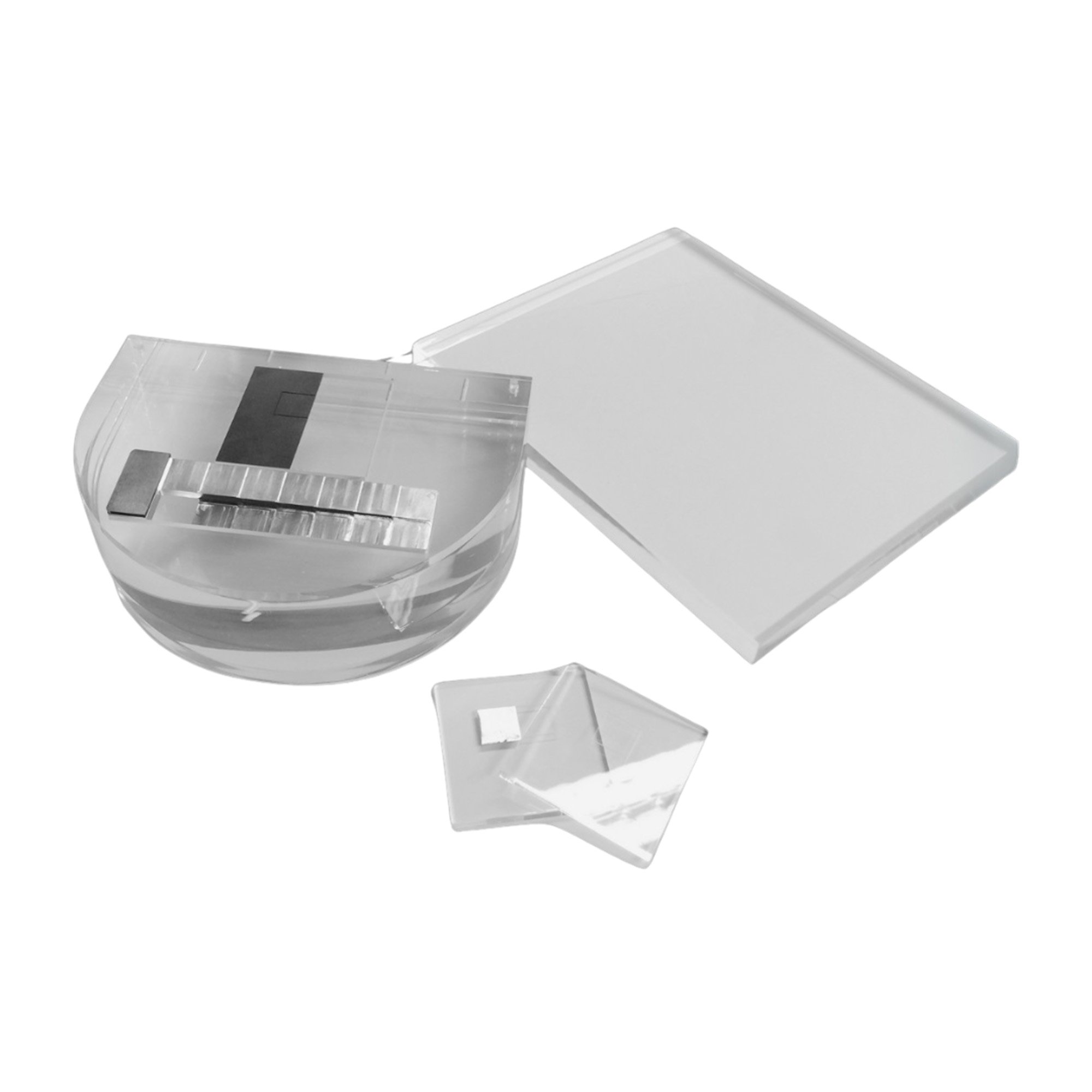

RSD QA-MAM060 PAS Mammo Quality Assurance Phantom

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 6-8 Weeks

In stock

Be the first to review this product

Product Description

The RSD PAS Mammo Quality Assurance Phantom is an essential tool for maintaining high standards in digital mammography imaging, providing a robust, reliable, and efficient solution.

Features:

Comprehensive Testing - Evaluate critical parameters such as contrast-to-noise ratio (CNR), high contrast, and missed tissue detection
Baseline Monitoring - Allows establishment of consistent baselines for routine quality control and performance tracking. Any deviations from the baseline may signal potential deterioration in imaging performance, ensuring timely corrective action
Realistic Simulation - Includes test inserts and steel balls for thorough assessment of imaging accuracy, including missed tissue near the chest wall
Customizable Evaluation - Equipped with multiple inserts and attenuator plates for flexible and detailed testing procedures
Standards Compliance:
- PAS 1054: Requirements and testing of digital mammographic X-ray equipment
Comes Standard With:
- Comprehensive product manual
- Sturdy carrying case

Technical Specifications:

Aluminum Step Wedge: 14 steps (0 mm to 5.20 mm)
Structure Plate Thickness: 6 mm (with recessed areas to accommodate test inserts)
Steel Ball Markers: Strategically placed for detecting missed tissue near the chest wall
PMMA Test Insert: Defined region of interest (ROI) for accurate imaging evaluation
High-Contrast Test Insert: 50% polymethyl methacrylate (PMMA) surface and 50% steel surface for contrast assessment
CNR Test Insert: 0.10 mm aluminum square for contrast-to-noise ratio measurements
Two Attenuator Plates Thickness: 10 mm
Two Attenuator Plates Thickness: 20 mm
Dimensions: 240 mm Diameter (Semi-Circle) x 40 mm Thickness
Actual Product Weight: 6.6 lbs

About this Brand

After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.

Specifications

Specifications
Manufacturer	RSD
Latex Free	Yes
Actual Product Weight	6.6 lbs
Country of Manufacture	United Kingdom
Item Ships From	California

Literature

Product Information

(Size: 2.9 MB)

Warranty Information

(Size: 90.3 KB)

Instructions

Warranty: Radiology Support Devices, Inc. (RSD) warrants this Product (including any accessories) against defects in material or workmanship as follows:

Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.

For Complete Warranty Details, please see the literature above.
