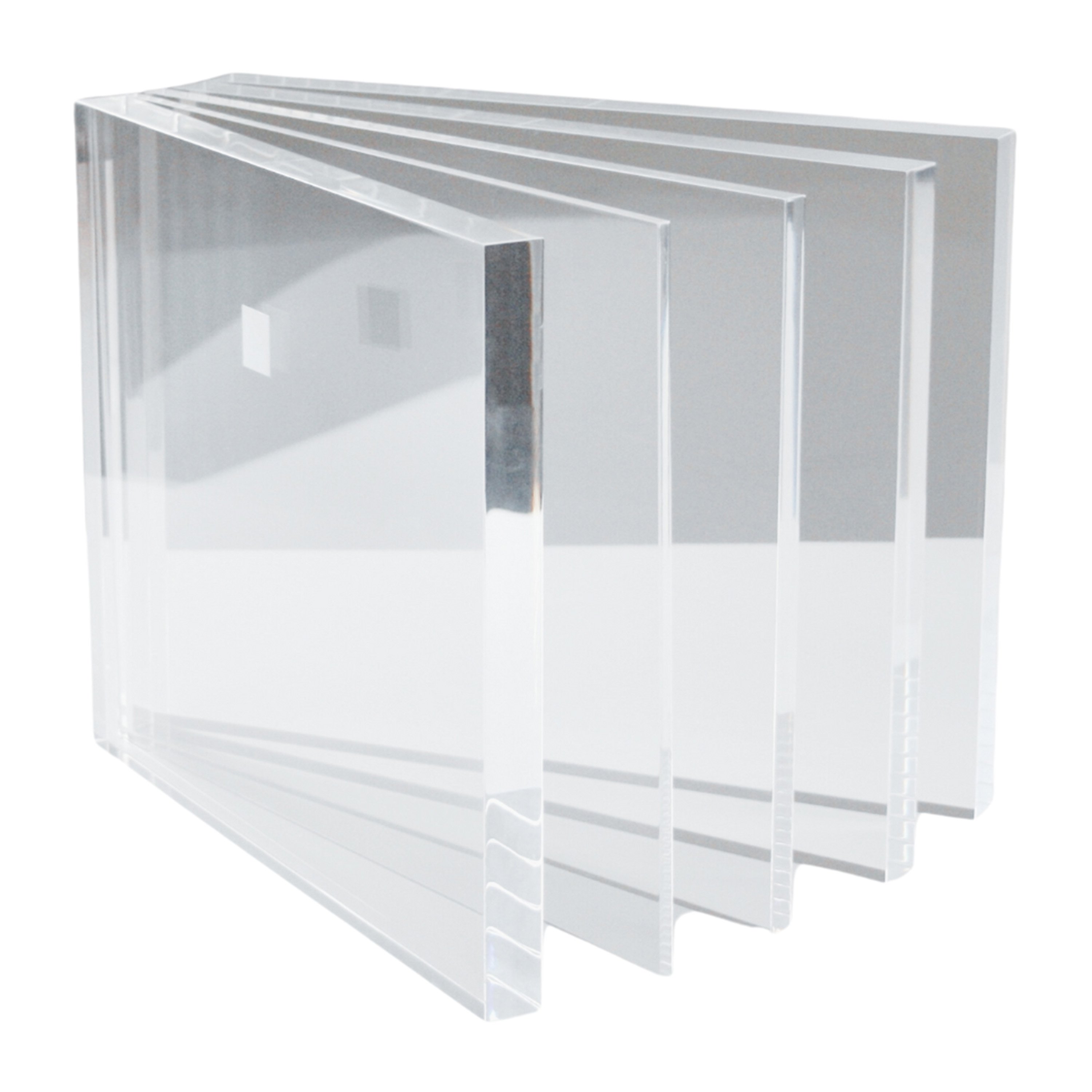

RSD Mammo/Tomo Automatic Exposure Control and Uniformity Slab
Product Description
The RSD Mammo/Tomo Automatic Exposure Control and Uniformity Slab is an essential tool for routine quality assurance of digital mammography and breast tomosynthesis systems. It enables comprehensive evaluation of imaging parameters and system performance, helping maintain high diagnostic standards.
Features:
- Automatic Exposure Control (AEC) - Perform accurate checks to optimize imaging parameters
- Geometric Distortion - Validate imaging system accuracy for undistorted, high-fidelity results
- Signal-to-Noise Ratio (SNR) - Assess image clarity and minimize noise interference
- Contrast-to-Noise Ratio (CNR) - Ensure optimal differentiation of subtle tissue contrasts
- Homogeneity - Confirm uniform image quality across the field of view
- Z-Resolution - Evaluate depth resolution for enhanced 3D imaging performance
- High-Purity Polymethyl Methacrylate (PMMA) Material - Built for precision and durability in demanding clinical environments
- Plate with Embedded Spheres:
- Used for testing Z-resolution in tomosynthesis systems
- Embedded spheres allow for the evaluation of depth resolution and system reconstruction accuracy in 3D imaging
- Plate with Embedded Aluminum Foil:

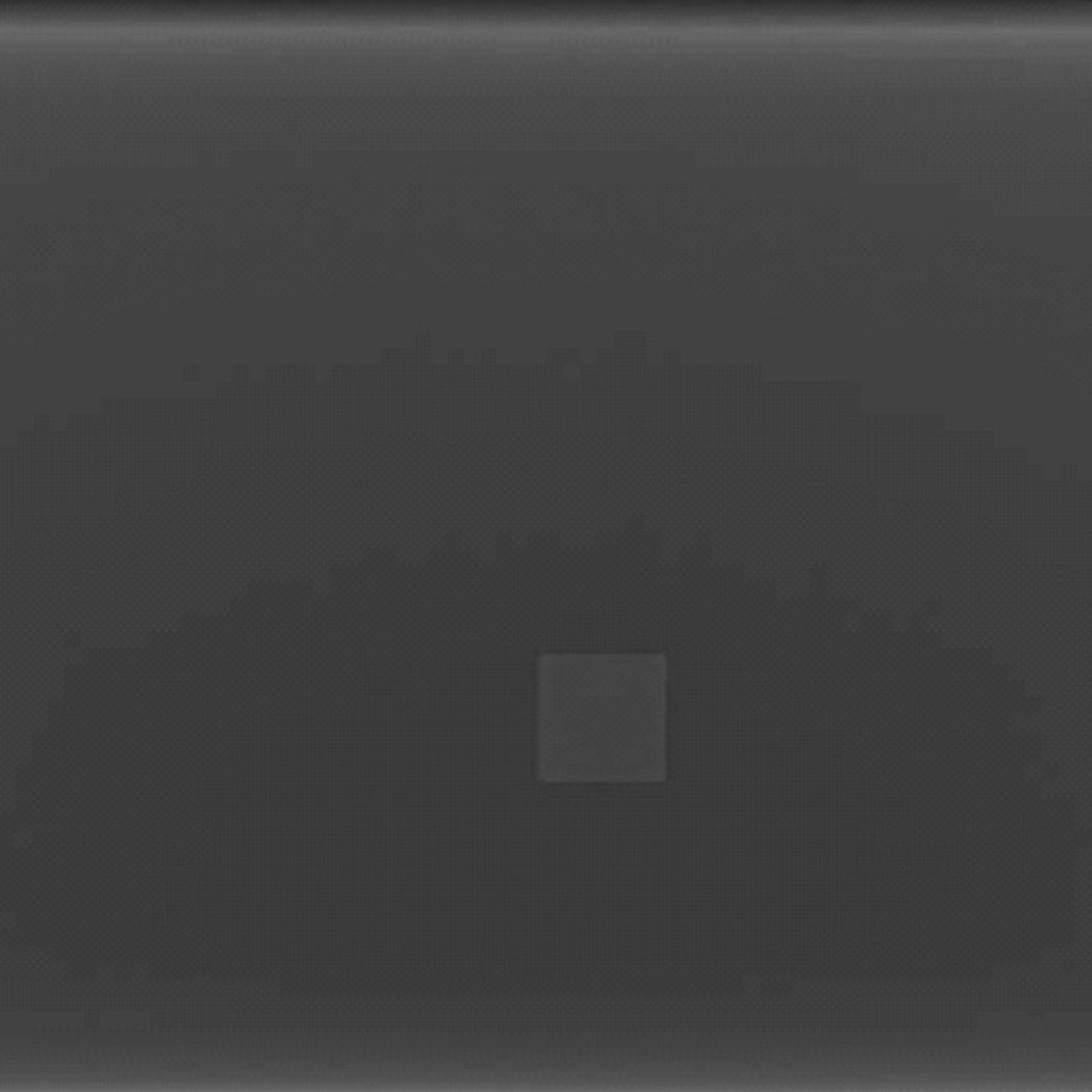

- Used to assess contrast-to-noise ratio (CNR) and signal-to-noise ratio (SNR)
- High-purity (99.9%) aluminum foil serves as a contrast element to evaluate the system’s ability to differentiate between tissues of varying densities
- Plain Plates:
- Used to simulate varying breast thicknesses for testing Automatic Exposure Control (AEC) accuracy and imaging performance
- It can also help assess system homogeneity and geometric distortion, ensuring consistency across different imaging conditions
- Standards Compliance:
- EUREF Protocol - Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems
- Comes Standard With:
- Comprehensive product manual
- Sturdy carrying case
Technical Specifications:
- One Plate Dimensions:
- 300 mm L x 240 mm W x 20 mm Thickness
- Embedded Aluminum Foil: 10 mm L x 10 mm W
- 300 mm L x 240 mm W x 5 mm Thickness
- 25 Embedded Spheres: 1 mm Diameter
- 300 mm L x 240 mm W x 20 mm Thickness
- 300 mm L x 240 mm W x 10 mm Thickness
- 300 mm L x 240 mm W x 5 mm Thickness
- 300 mm L x 240 mm W x 20 mm Thickness
- Overall Dimensions: 300 mm L x 240 mm W
- Actual Product Weight: 22 lbs
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 22 lbs |
| Overall Width | 240 mm |
| Overall Length | 300 mm |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
