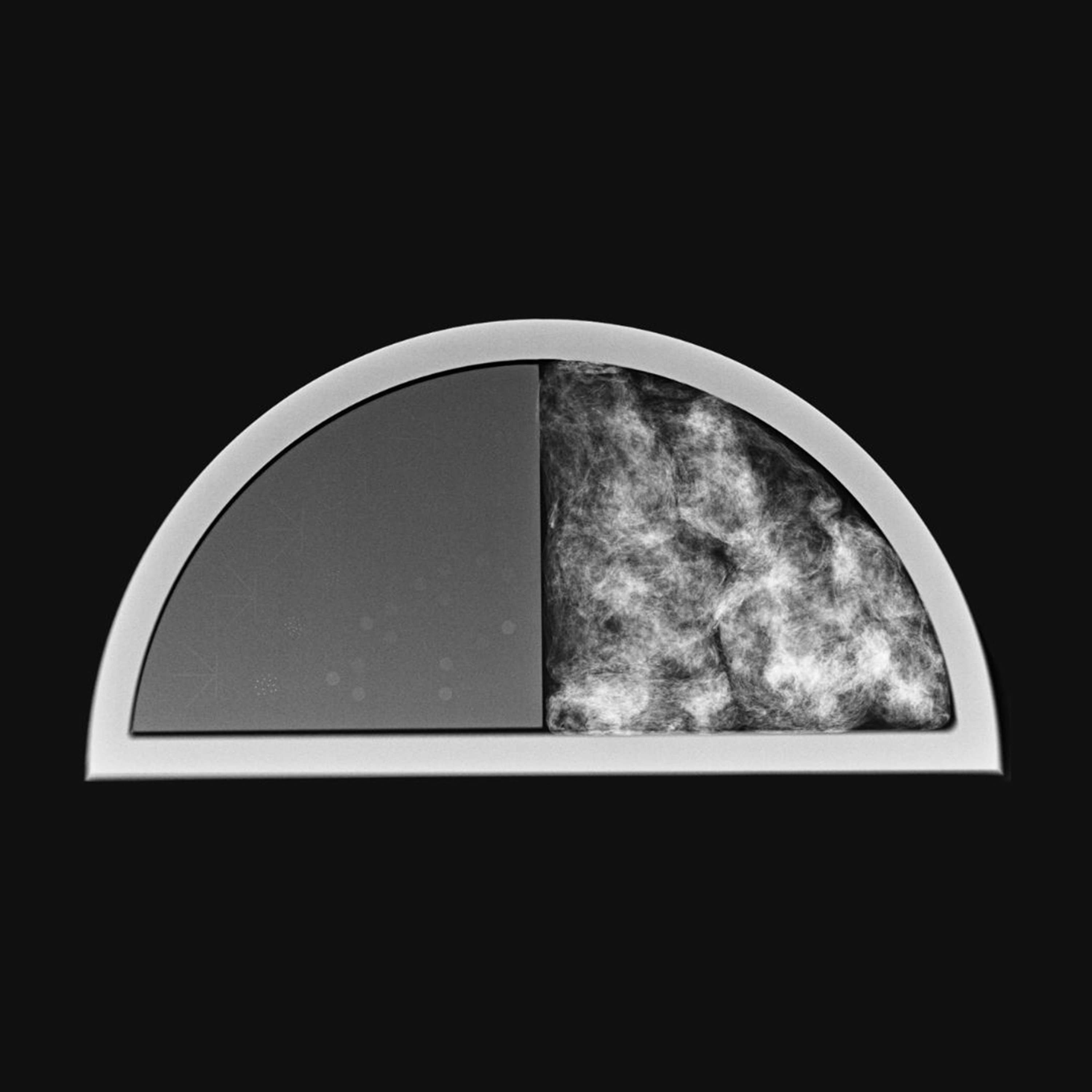

RSD QA-MAM040 Mammo/Tomo 1-Shot - Clinical Image

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 6-8 Weeks

In stock

Be the first to review this product

Product Description

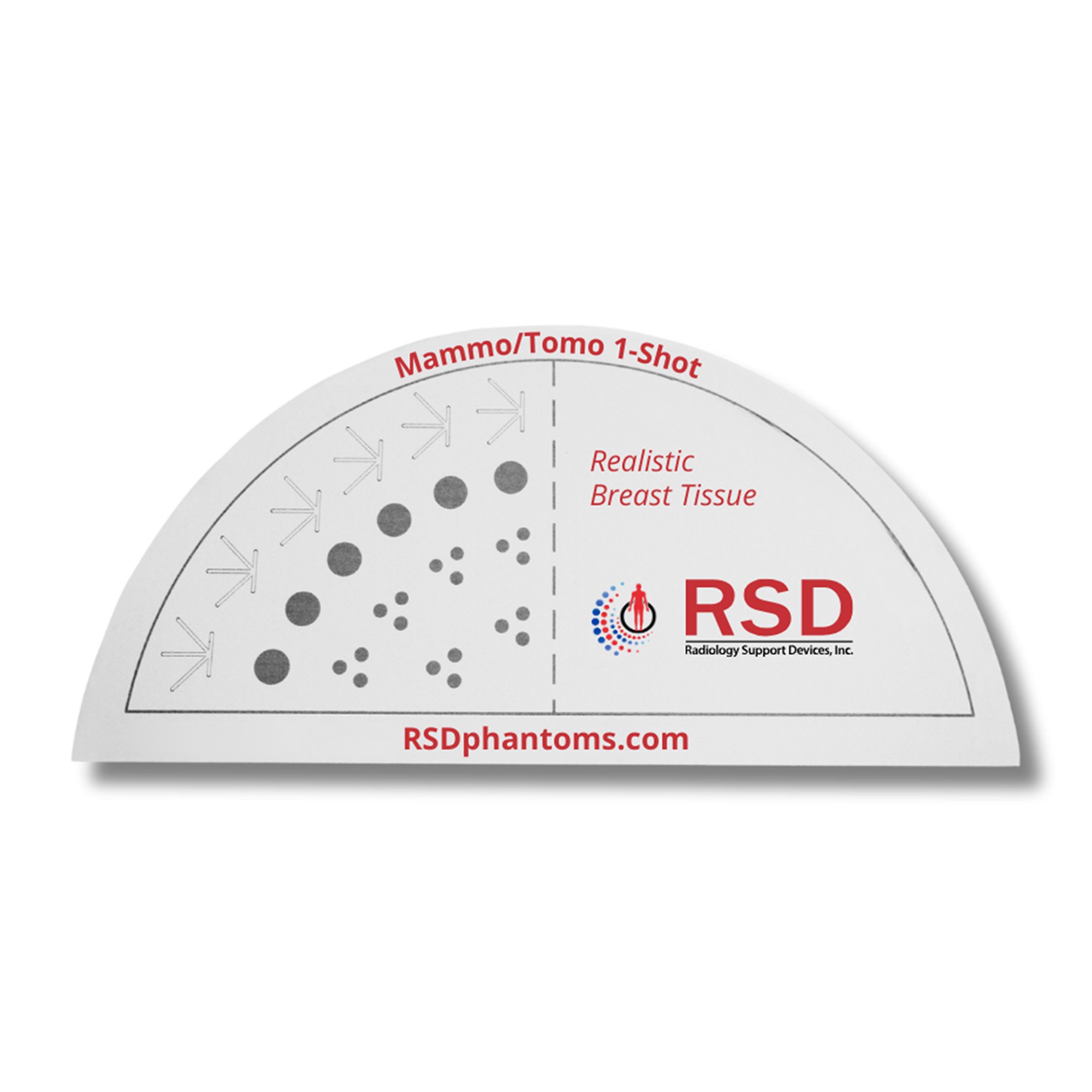

The RSD Mammo/Tomo 1-Shot is a versatile and easy-to-use tool designed for daily quality assurance of mammography systems. It is an essential tool for ensuring consistent image quality, providing accurate assessments of system performance, and maintaining high diagnostic standards in mammography.

Features:

Breast Tissue Simulation - Mimics breast tissue with realistic representations of micro-calcifications and features for pathology simulation
Mammography Support - Evaluates 2D imaging capabilities, including depth resolution and contrast
Filaments - Six groups for evaluating resolution and fine detail detection
Micro-Calcifications - Six groups ranging from 354-224, 283-180, 226-150, 177-106, 141-90, and 106-93 microns
Low-Contrast Threshold Details - Six groups of three low-contrast detail sets for evaluating subtle feature visibility
Early Detection of System Issues - Helps detect deviations from baseline performance, as it may indicate potential deterioration in image quality
Standards Compliance:
- IEC 61223-3-2: Evaluation and routine testing in medical imaging departments – Part 3-2: Acceptance tests – Imaging performance of mammographic X-ray equipment
Comes Standard With:
- Comprehensive product manual

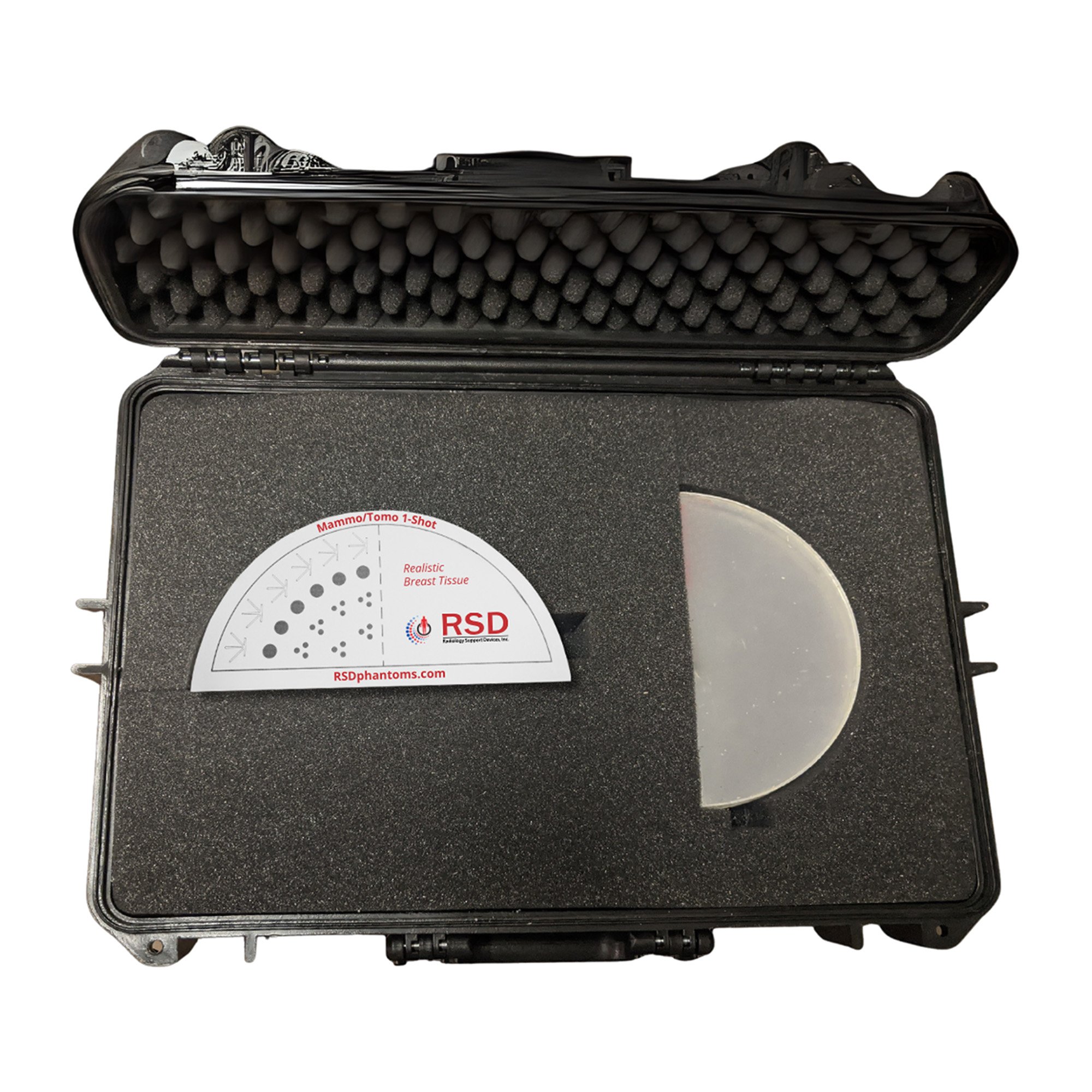

- Sturdy carrying case

Technical Specifications:

Two Polymethyl Methacrylate (PMMA) Plates Dimensions: 240 mm Diameter (Semi-Circle) x 5 mm Thickness
Six Polymethyl Methacrylate (PMMA) Plates Dimensions: 240 mm Diameter (Semi-Circle) x 10 mm Thickness
Dimensions: 240 mm Diameter (Semi-Circle) x 10 mm Thickness
Actual Product Weight: 1.98 lbs

About this Brand

After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.

Specifications

Specifications
Manufacturer	RSD
Latex Free	Yes
Actual Product Weight	1.98 lbs
Country of Manufacture	United Kingdom
Item Ships From	California

Literature

Product Information

(Size: 3 MB)

Warranty Information

(Size: 90.3 KB)

Instructions

Warranty: Radiology Support Devices, Inc. (RSD) warrants this Product (including any accessories) against defects in material or workmanship as follows:

Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.

For Complete Warranty Details, please see the literature above.
