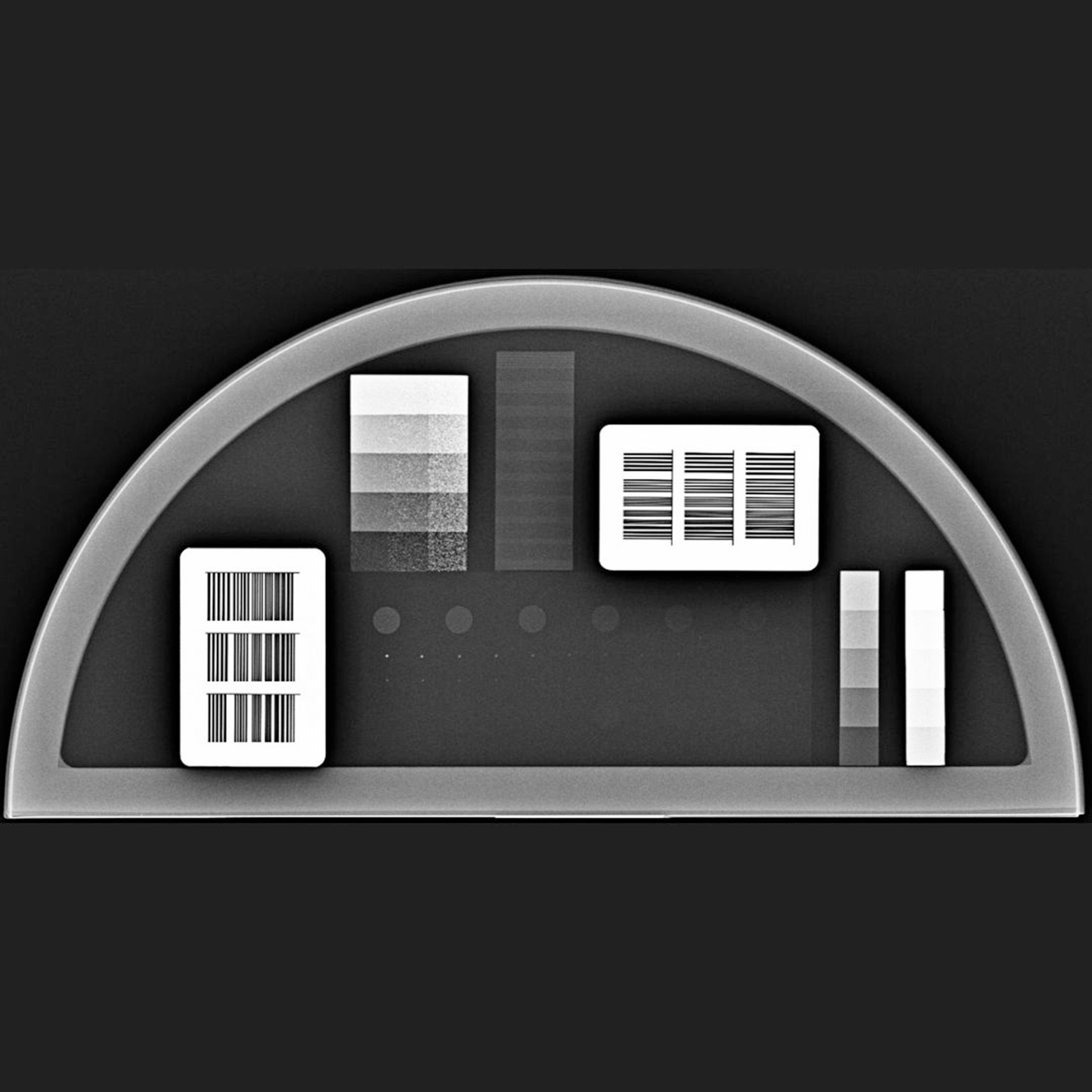

RSD QA-MAM070 Mammo/Tomo 1-Shot+ - Clinical Image

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 6-8 Weeks

In stock

Be the first to review this product

Product Description

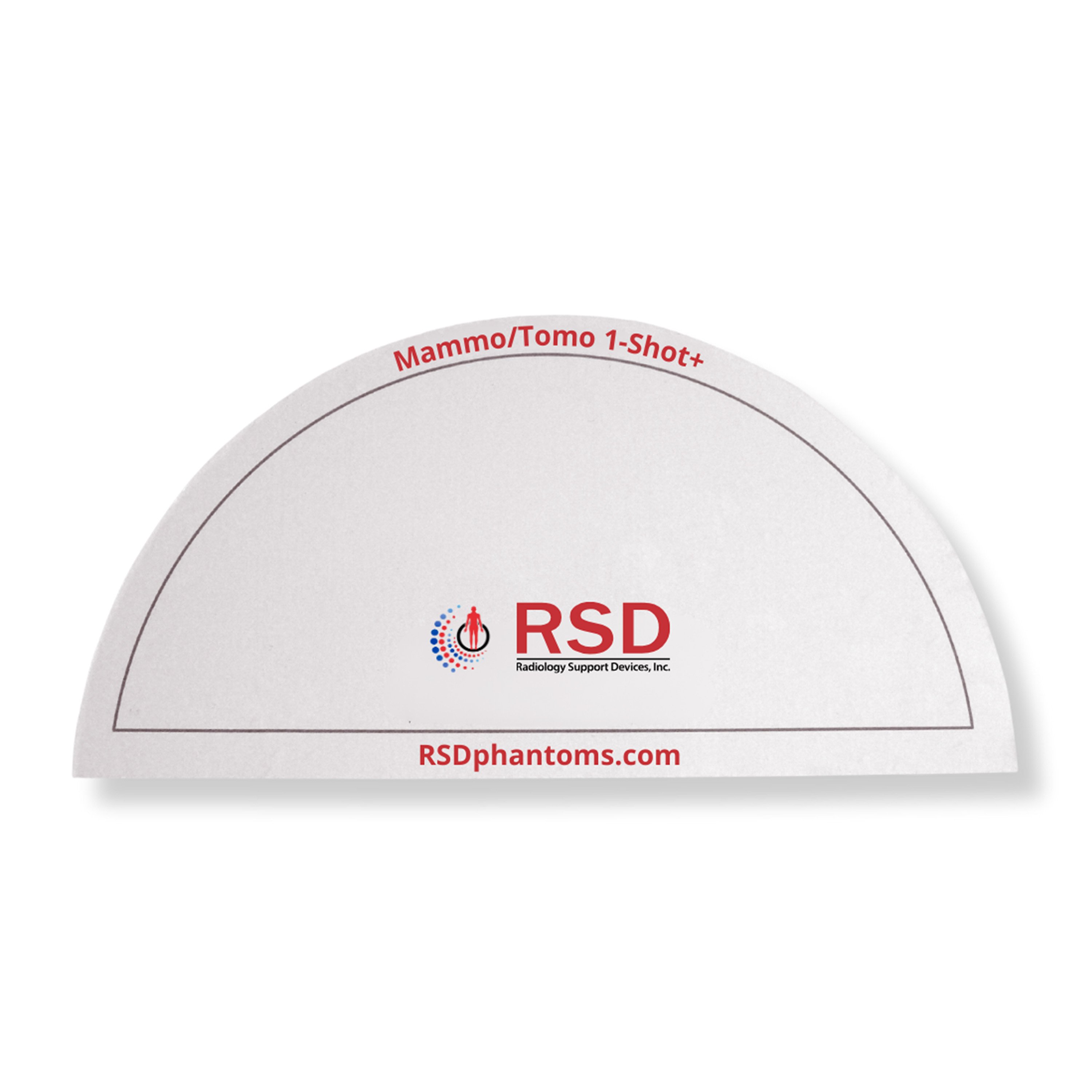

The RSD Mammo/Tomo 1-Shot+ is an easy-to-use, comprehensive tool for routine evaluation of mammography systems. It is essential for ensuring consistent imaging performance in both 2D and 3D mammography, maintaining high diagnostic standards for breast imaging.

Features:

Mammography and Tomosynthesis Support - Comprehensive image quality testing, particularly in advanced modalities like tomosynthesis and full-field digital mammography (FFDM), ensuring optimal system performance
Brightness and Contrast Adjustment - Assess system calibration and optimize image quality
Imaging Contrast - Low-contrast resolution at 1.8 to 5.0 line pairs/mm; High-contrast resolution at 1.0 to 20.0 line pairs/mm
Greyscale and Sensitometric Measurements - Evaluate tonal consistency and sensitivity
Resolution Limits - Test system capability across a wide range of line pairs (1.0 to 20.0)
Detail Detectability - Low-contrast: 12 details with a diameter of 5.6 mm; High-contrast: 11 details ranging from 0.25 to 0.5 mm
Micro-Calcifications Simulation - Realistic replication of sizes 125, 225, and 325 microns
Homogeneity - Ensure even image quality across the field of view
Free Area for Signal Calibration - Provides flexibility for system adjustments and testing
Standards Compliance:
- IEC 61223-3-2: Evaluation and routine testing in medical imaging departments – Part 3-2: Acceptance tests – Imaging performance of mammographic X-ray equipment
Comes Standard With:
- Comprehensive product manual
- Sturdy carrying case

Technical Specifications:

Two Polymethyl Methacrylate (PMMA) Plates Dimensions: 240 mm Diameter (Semi-Circle) x 5 mm Thickness
Six Polymethyl Methacrylate (PMMA) Plates Dimensions: 240 mm Diameter (Semi-Circle) x 10 mm Thickness
Dimensions: 240 mm Diameter (Semi-Circle) x 10 mm Thickness
Actual Product Weight: 6.6 lbs

About this Brand

After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.

Specifications

Specifications
Manufacturer	RSD
Latex Free	Yes
Actual Product Weight	6.6 lbs
Country of Manufacture	United Kingdom
Item Ships From	California
