LW Scientific Innovation Trinocular Biological Microscope with BioVID 4K Camera and 13.3" Monitor

Name: LW Scientific Innovation Trinocular Biological Microscope with BioVID 4K Camera and 13.3" Monitor
Brand: LW Scientific
SKU: INS-T4BV-IPL3
Price: 4662 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LW Scientific Innovation Microscope: How To Mount a Camera

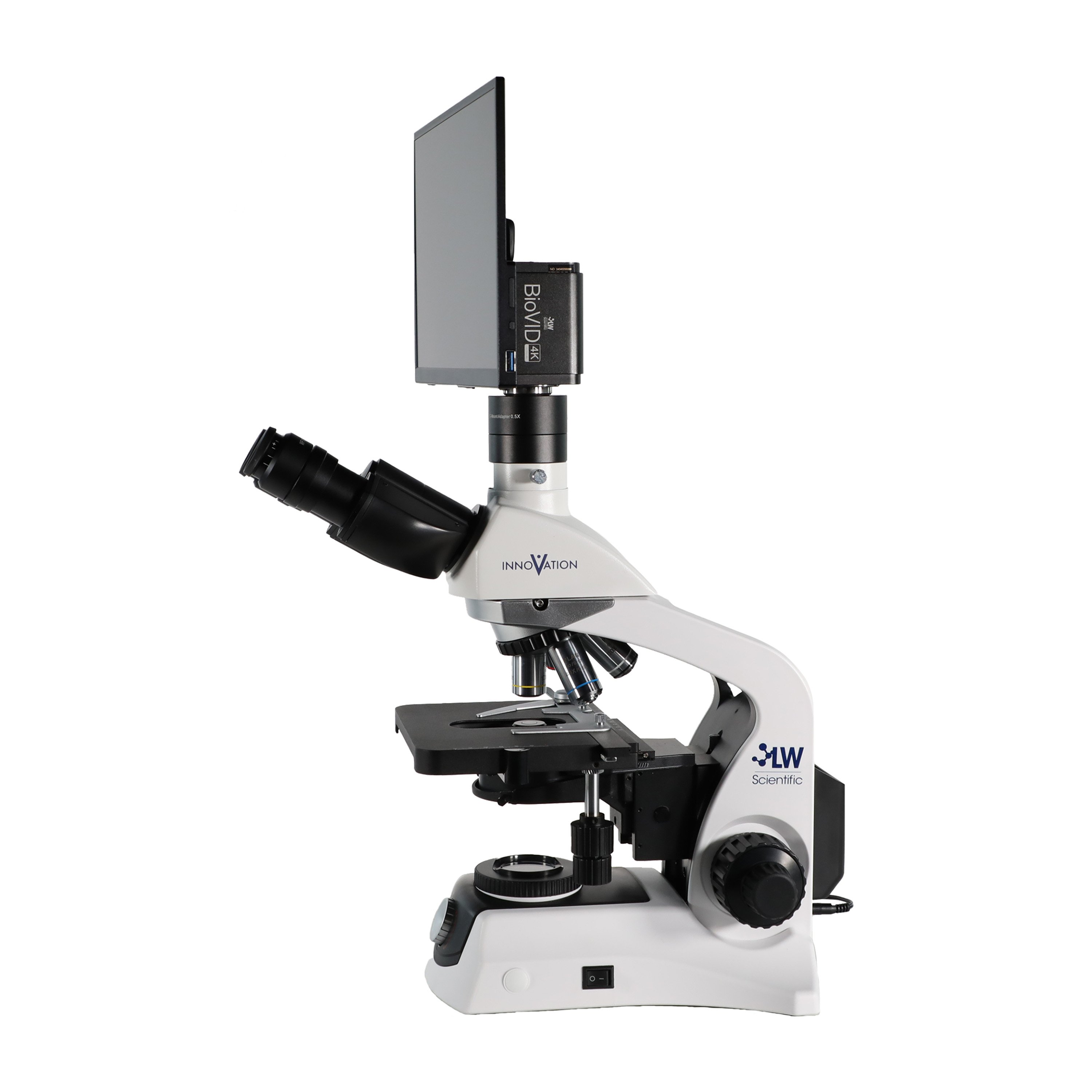

LW Scientific INS-T4BV-IPL3 Innovation Trinocular Biological Microscope with BioVID 4K Camera and 13.3" Monitor

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Be the first to review this product

Product Description

The LW Scientific Innovation Trinocular Biological Microscope with BioVID 4K Camera and 13.3" Monitor is an ideal choice for clinical diagnostics, research, and educational laboratories with its high-performance imaging and complete video system.

Features:

BioVID 4K Camera - Fastest and most sensitive camera for low-light microscopy
13.3 Inches Display Monitor - Best for live teaching via HDMI to a monitor or USB to a computer
Infinity Plan Optics - Provides sharp, high-contrast, and flat-field images across the entire field of view for detailed analysis of biological specimens
Largest and Widest-Viewing Eyepieces - A 22 mm field number allows for a much broader view under each objective power
High Focal Point Eyepieces - Allow users to keep their eyeglasses on while using the microscope
Reverse Nosepiece - For greater access to slides for quick changes
Rackles, Belt-Drive System - Enables the stage to operate smoothly, comfortably, and safely by eliminating left and right projection of the gear track, as on traditional microscopes
Ergonomic Tilting Head - Reduces strain during long observation periods and provides adjustable viewing angles for user comfort
Narrow Front and Low Controls - Allows for arms and hands to rest flat on the table, reducing arm and shoulder strain
Rubber Feet and Wide Rear Footprint - Keeps the microscope stable and reduces vibration for steady viewing
Built-In Cord Wrap and Handle - Keeps the lab counter neat and makes the microscope easy to move and store
Energy-Efficient Cool LED Illumination - Ensures consistent, bright lighting with long lifespan and without the heat of traditional halogen bulbs
Calibrated Indicator Marks on Condenser - Helps the user set the sub-stage iris diaphragm to the perfect numerical aperture to match each objective for the best resolution
Modular and Expandable Design - Allows for easy customization to meet the needs of various laboratory applications
Durable Construction - Built for long-term use in medical, veterinary, and educational laboratories
Superior Optical Performance - High-resolution imaging for clear and accurate specimen observation
Comes standard with C-mount, eyetube pipes, and two pairs of rubber eye-guards

Technical Specifications:

Head	Trinocular head for mounting any C-mount or eyetube-type camera Inclined at 30° and rotates 360° Can be rotated 180° upward to a higher position for taller users Diopter adjustment ± 5 (built into each eyepiece) Eyepieces: 10X/22 mm super-wide field high-point Eyetube Diameter: 30 mm Interpupillary Distance Range: 50 mm – 75 mm
Nosepiece	Reverse quadruple nosepiece Multiple ball bearing mounted
Objectives	Infinity High Contrast Plan Objectives: 4X, 10X, 40XR, and 100XR (oil) Anti-fungal, parfocal, parcentric, color-coded
Stage	Double-layer mechanical stage Graphite-coated surface X-Y coaxial drive controls, rackless Slow-close hydraulic slide finger Range of Traverse: 75 mm (X-axis) x 55 mm (Y-axis)
Focus	Tension control knob Coarse Adjustment: Range of 18 mm Fine Adjustment: Graduation of 0.001 mm
Illumination	LED provides 50,000 hours of light and consistent, even brightness Variable light adjustment Simple Kohler illumination
Condenser	Movable Abbe condenser (N.A. 1.25) Iris Diaphragm
Power	12V DC / 2 amp input with 90V – 240V / 50 Hz – 60 Hz automatic-switching power adapter
Physical Specifications	Monitor Length: 13.3" Mechanical Stage Dimensions: 8.50" L x 5.91" W

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Country of Manufacture	China
Item Ships From	Georgia

Literature

Product Brochure

(Size: 657.5 KB)

Warranty Information

(Size: 56.3 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
