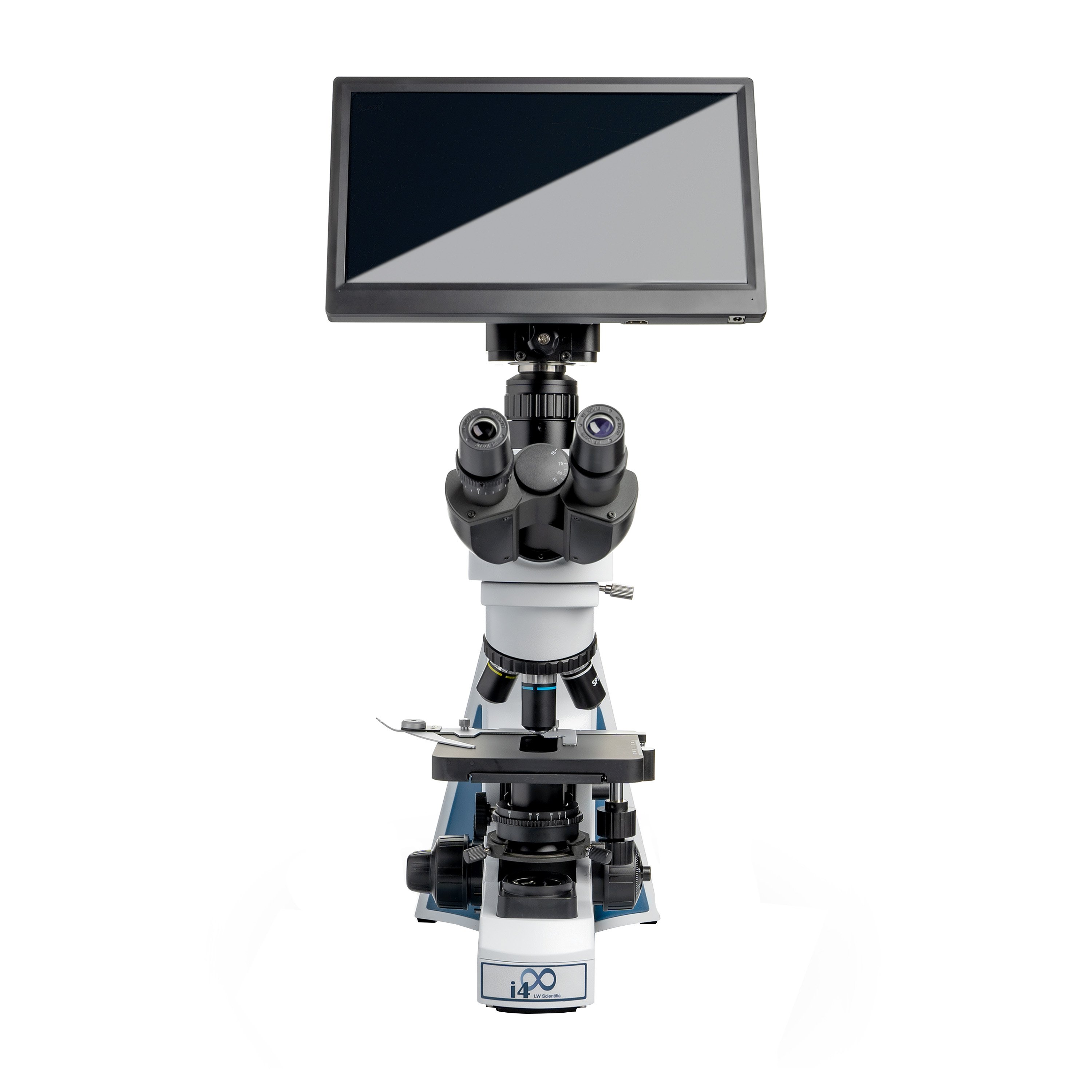

LW Scientific i4 Infinity Trinocular Microscope with BioVID 4K Camera and 13.3" Monitor

Name: LW Scientific i4 Infinity Trinocular Microscope with BioVID 4K Camera and 13.3" Monitor
Brand: LW Scientific
SKU: I4S-T4BV-IPL3
Price: 4517 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LW Scientific i4 Microscope: How to Mount a Camera

LW Scientific I4S-T4BV-IPL3 i4 Infinity Trinocular Microscope with BioVID 4K Camera and 13.3" Monitor

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Be the first to review this product

Product Description

The LW Scientific i4 Infinity Trinocular Microscope with BioVID 4K Camera and 13.3" Monitor is the ideal choice for durability, dependability, and superior imaging in the laboratory.

Features:

BioVID 4K Camera with the 13.3" HD Monitor - Provides crystal clear 8MP images and 4K video when connected to any 4K-compatible monitor
Extremely Sensitive Sony IMX334(C) Sensor Chip - Helps maintain 4K resolution and a fast frame rate in low-light and high magnification settings
Store Images and Videos - Save, edit, and view with side-by-side comparisons when connected to a monitor (via HDMI) or utilize the image capture software when connected to a computer (via USB)
Designed for professionals who require exceptional optical performance, versatility, and long-term reliability
Infinity Plan Optics - Delivers sharp, distortion-free images for detailed analysis and accurate results in laboratory diagnostics, research, and clinical applications
Equipped with a Rotating Head - Adjusts height for comfortable viewing by users of all statures during extended use
Ergonomic Narrow Design - Allows users to rest their arms flat on the table and easily operate all controls
30-Year Anti-Fungal Lens Coating - Protects against fungal growth, maintaining optical clarity
Energy-Efficient LED Illumination - Ensures bright, cool, and consistent lighting without overheating, with an extended lifespan
Durable and Cost-Effective - High-quality performance at an affordable price for clinics, laboratories, and research facilities

Technical Specifications:

Head	Trinocular head Inclined at 30° and rotates 360° Diopter adjustment Eyepieces: 10X/18 WF Interpupillary Distance Range: 48 mm – 75 mm
Nosepiece	Reverse quadruple nosepiece Multiple ball bearing mounted
Objectives	Infinity Plan objectives: 4X, N.A. 0.10 10X, N.A. 0.25 40XR, N.A. 0.65 100XR, N.A. 1.25 (oil) Anti-fungal, parfocal, parcentric, color-coded
Stage	Mechanical Stage X-Y coaxial drive controls, metal rack, and pinion Stage locking lever Slow-close hydraulic slide finger Acid and reagent-resistant finish Range of Traverse: 78 mm (X-axis) x 50 mm (Y-axis)
Focus	Tension control knob Coarse Adjustment: Range of 30 mm Fine Adjustment: Graduation of 2µm
Illumination	LED "daylight" long-life light source Variable light adjustment Blue and green filters
Condenser	Moveable Abbe condenser (N.A. 1.25) Iris Diaphragm
Power	3-prong UL-listed power cord Input: AC 100V – 240V, 50 Hz – 60 Hz automatic-switching electronics Lamp: S-LED W1 Fuse: T250V 500mA
Operating Environment	Indoor use only Ambient Temperature: 5°C to 40°C
Construction	Rugged alloy
Physical Specifications	Monitor Length: 13.3" Mechanical Stage Dimensions: 5.63" L x 5.24" W

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Country of Manufacture	China
Item Ships From	Georgia

Literature

Warranty Information

(Size: 56.3 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
