Product Description

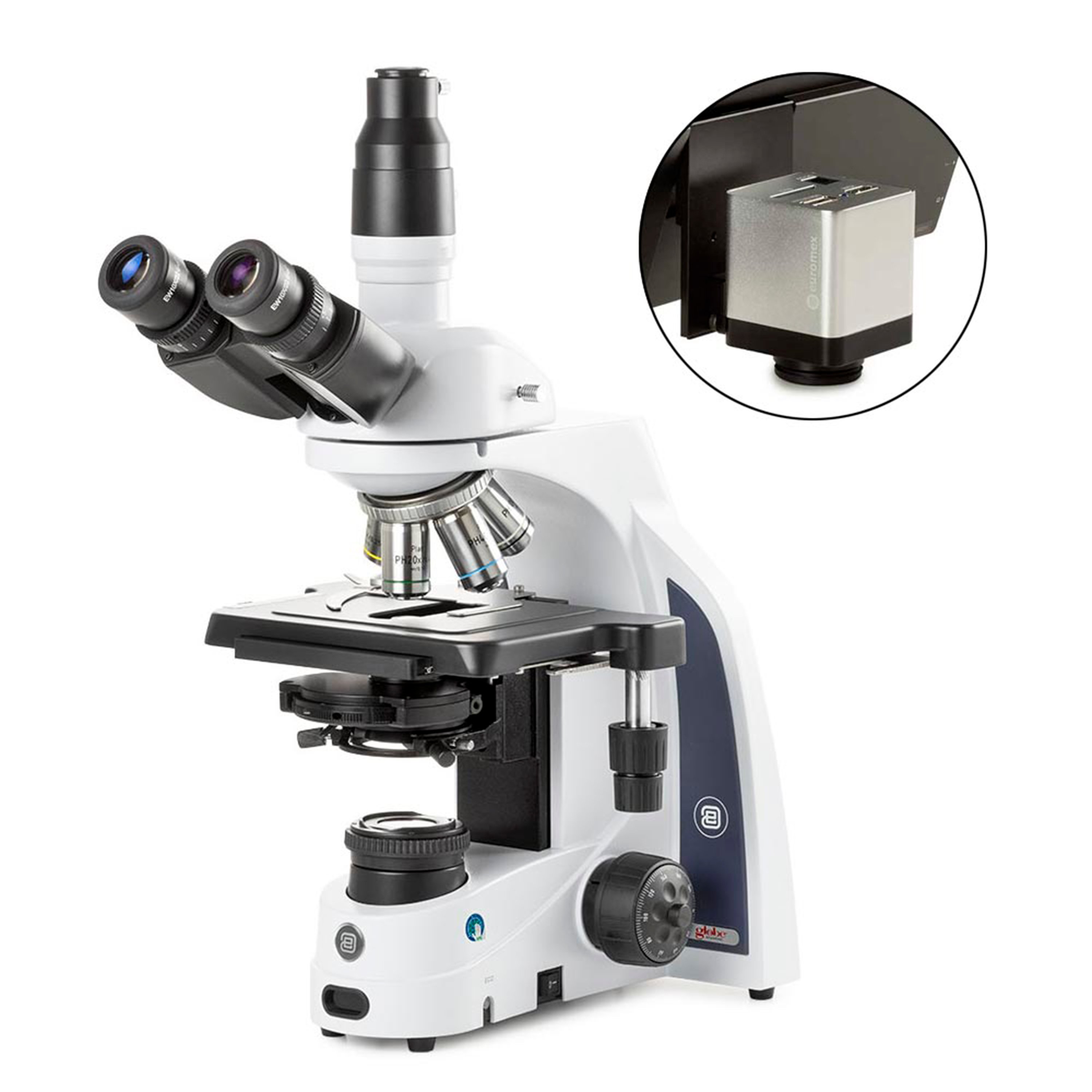

The iScope Trinocular Compound Microscope, EWF 10x/22mm Eyepieces, Quintuple Nosepiece with Plan Phase PLPHi, HD-Mini Camera delivers clear and vivid images at every level of magnification. The sleek and compact design of iScope® microscopes not only enhances your workspace but also ensures safer operation and easy storage. Whether you are in high schools, universities, or engaged in life and biomedical sciences, we have various configurations to meet your needs.

Features:

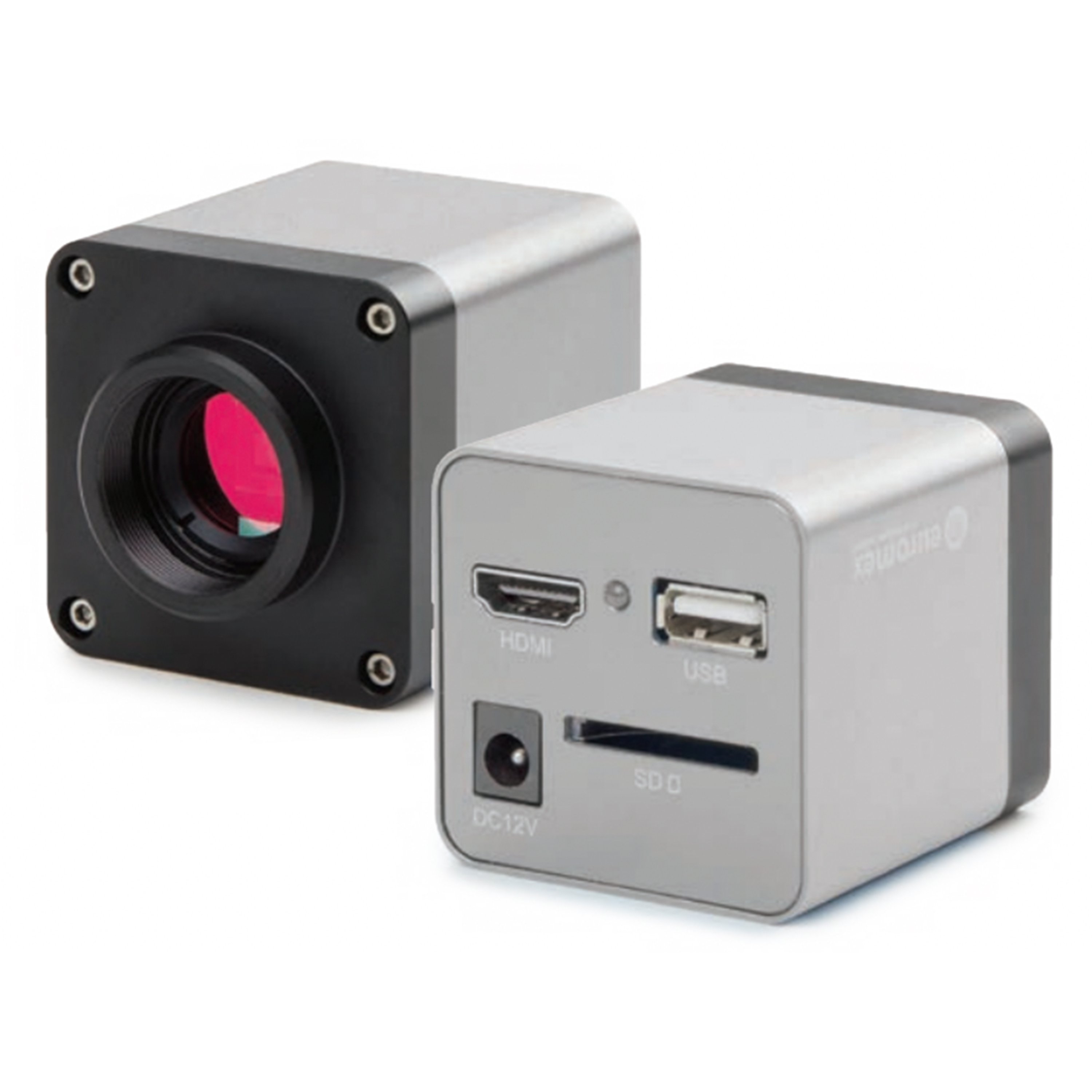

Includes HD-Mini Camera, color High definition 2MP high-speed camera with 13-inch HD screen, 1280 x 1080p, stand-alone usage with standard 4GB SD card, HDMI output. With built-in mouse-driven capture software. The real-time images generated with this camera provide excellent color rendering at high frame rates and is user friendly. For more information about the camera, see item # EVC-3024-HDS.

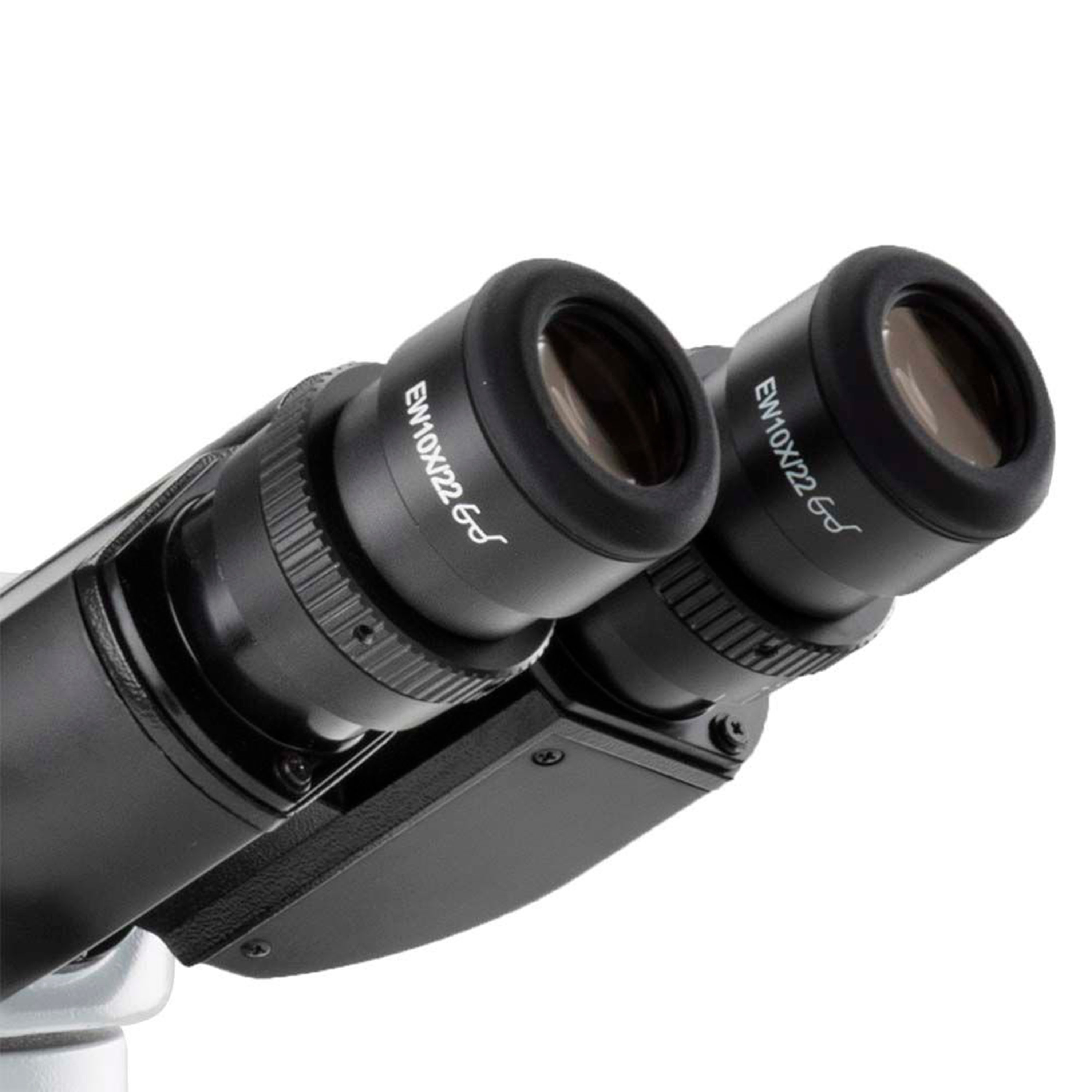

EWF 10x/22mm eyepieces for enhanced viewing comfort.
Rackless integrated X-Y mechanical stage.
Quintuple (5) reversed nosepiece for seamless objective change.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Coaxial Coarse and Fine Adjustments with Rack Stop achieve precise focusing and control, ensuring accurate and smooth image manipulation. The rack stop prevents damage to samples and objectives.
Intensity adjustable 3W NeoLED™ Köhler illumination.
APL (Antimicrobial Protection Layer): Developed with a protective microbe-resistant coating, the iScope® microscope utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment.
These microscopes meet the stringent quality and safety standards of CE certification.

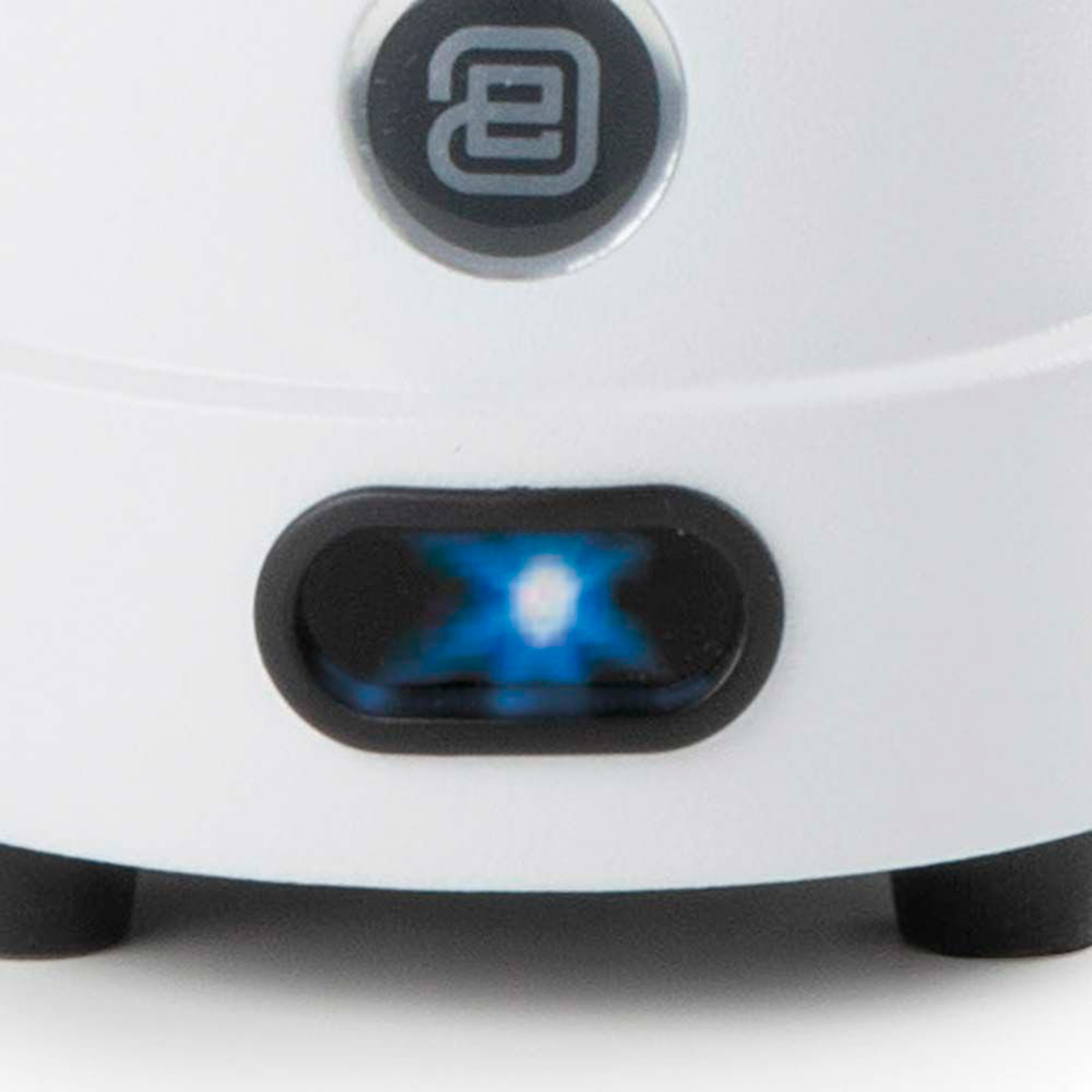

The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.
Cable Storage System (CSS) allows users to easily insert the power cable into the back of the instrument, which enables easy storage.
The Integrated Carrying Grip at the back of the microscope ensures safe transportation of the microscope.
10-Year Warranty

Technical Information:

Head	Trinocular equipped with a Siedentopf type head, 360° rotatable. 30° inclined, Ø30mm tubes, and +/-5mm diopter adjustment on both eyepieces tube. Adjustable interpupillary distance between 48 to 76mm. Optical path selector (100:0 / 50:50).
Eyepieces	Extended plan widefield EWF10x/22mm eyepieces with 22mm field of view and adjustable diopter on both eyepieces tube for infinity corrected IOS Plan Phase Contrast System.
Nosepiece	Reverse quintuple (5) nosepiece on ball bearings.
Objectives (45mm parfocal)	Plan Phase Contrast IOS infinite PLPHI 10x/0.25 WD 10.2mm PLPHI 20x/0.40 WD 5.1mm PLPHI S40x/0.65 spring WD 0.5mm PLPHI S100x/1.25 spring, oil immersion, WD 0.13mm Total magnification: 1000x
Stage	Designed for 2 slides. 187/230 x 140mm rackless stage equipped with double slide holder and integrated 79 x 52mm XY mechanical stage. The iScope® rackless stage has no protruding parts, enables smoother movements, and is safer.
Condenser for Zernike Phase Contrast	Height adjustable Zernike N.A. 1.25 phase contrast disc condenser with plan phase 10/20/S40x and S100x objectives and dry darkfield stop position up to 400x magnification.
Focusing	Coaxial coarse and fine adjustments, 200 graduations, 1μm per graduation, 200μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.
Illumination	Intensity adjustable 3W Kohler NeoLED™ illumination with internal 100-240VAC power supply. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the iScope® to produce images at higher resolutions. Other benefits of NeoLED™ are low energy consumption, no heating and long operating lifetime. The Kohler settings provide homogeneous illumination and high contrast.
Microscope Package Contents	Supplied with power cord, dust cover, a spare fuse, green filter, alignment telescope, 5mL immersion oil bottle, and user manual. All packed in polystyrene boxes.
Camera Package Contents	Supplied HD-Mini color camera, 13-inch HD screen, HDMI cable, DC 2VDC/1A power supply, 32GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2 to 30.0 / 30.5mm adapter rings.
Camera Compatibility	Suitable for all HDMI screens, monitors and beamers. Note: Do not use HDMI cable on laptop or PC. The HDMI connection is for direct view on TV monitors or screens only.

Specifications

Specifications
Manufacturer	Globe Scientific
Country of Manufacture	China
Item Ships From	New Jersey

Literature

Microscope Objectives

(Size: 90.1 KB)

Product Information

(Size: 383.9 KB)

Product Information

(Size: 290.6 KB)

HD-Mini Camera Item #EVC-3024-HDS

Returns

No return will be accepted by the seller for any reason without prior written authorization. Returns will be accepted within 30 days of shipment, only if products are in new and unused condition (must be in original, unopened carton/packaging) and accompanied by a health and safety declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 20 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.

NOTE: Discontinued items, sterile products, and prefilled containers are NOT returnable. Also, Special Order Items are non-cancellable and not able to be returned as these are made to order.
