Product Description

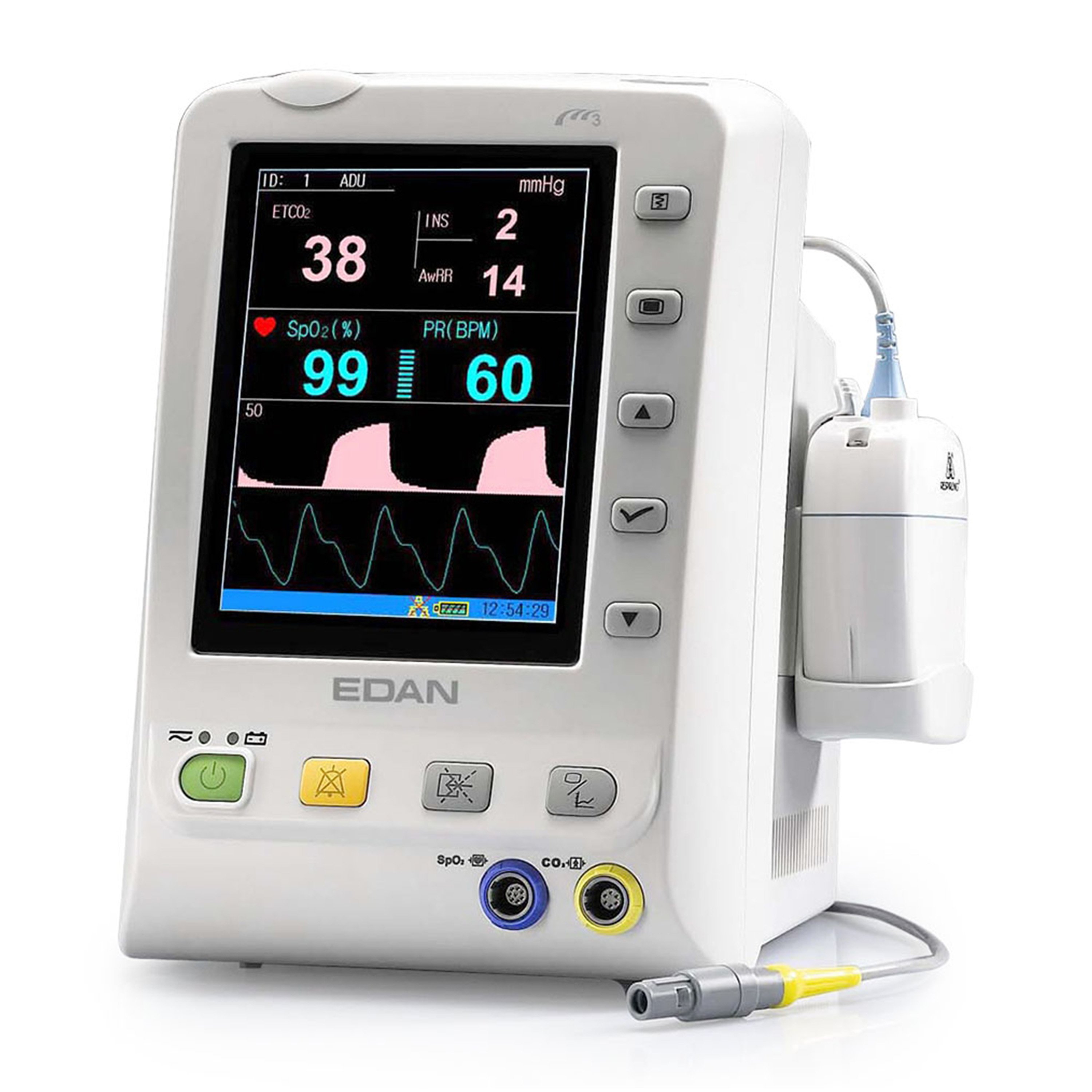

The Edan M3B Capnography Monitor delivers effective capnography monitoring for both intubated and non-intubated patients for continuous long-term monitoring. It is specifically designed for use with mechanically ventilated and non-intubated patients.

Features:

  • 5.6" high-resolution color TFT display
  • Lightweight & portable design
  • Flexible configurations to meet different clinical needs
  • User-friendly interface
  • Auto/Manual/Continuous/Average BP mode
  • Real-time measurements and trend table display
  • Built-in rechargeable Lithium-ion battery for 8 working hours
  • Nurse call
  • Bi-directional communication with the MFM-CMS central monitoring system
  • Compatible with Patient Care Viewer PC data management software
  • Wired LAN/WiFi Support
  • USB flash disk support
  • Barcode scanner support
  • Suitable for adult, pediatric, and neonatal patients
  • Accessories Included:

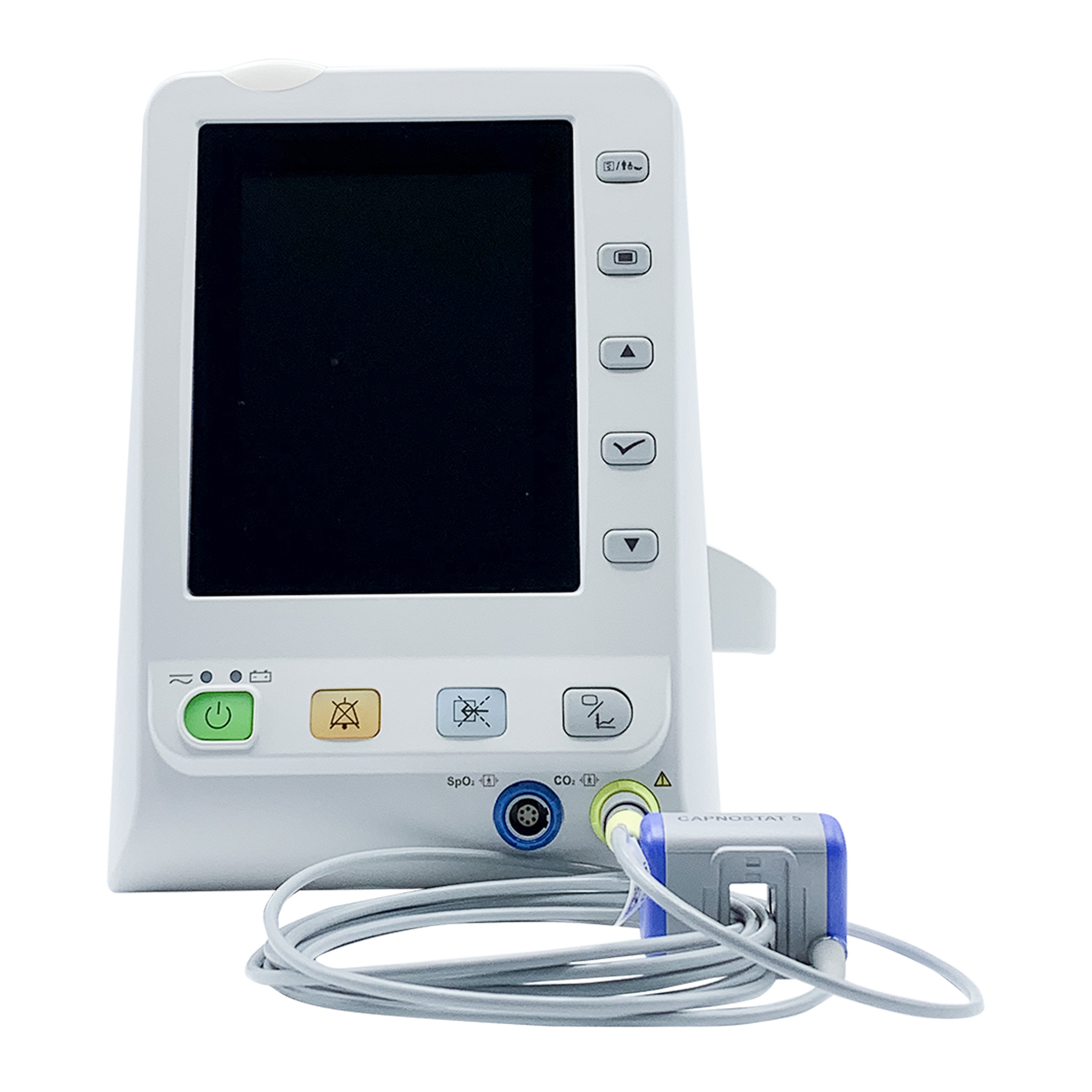

    • Edan M3B Capnography Monitor - Respironics Mainstream (M3B-M):

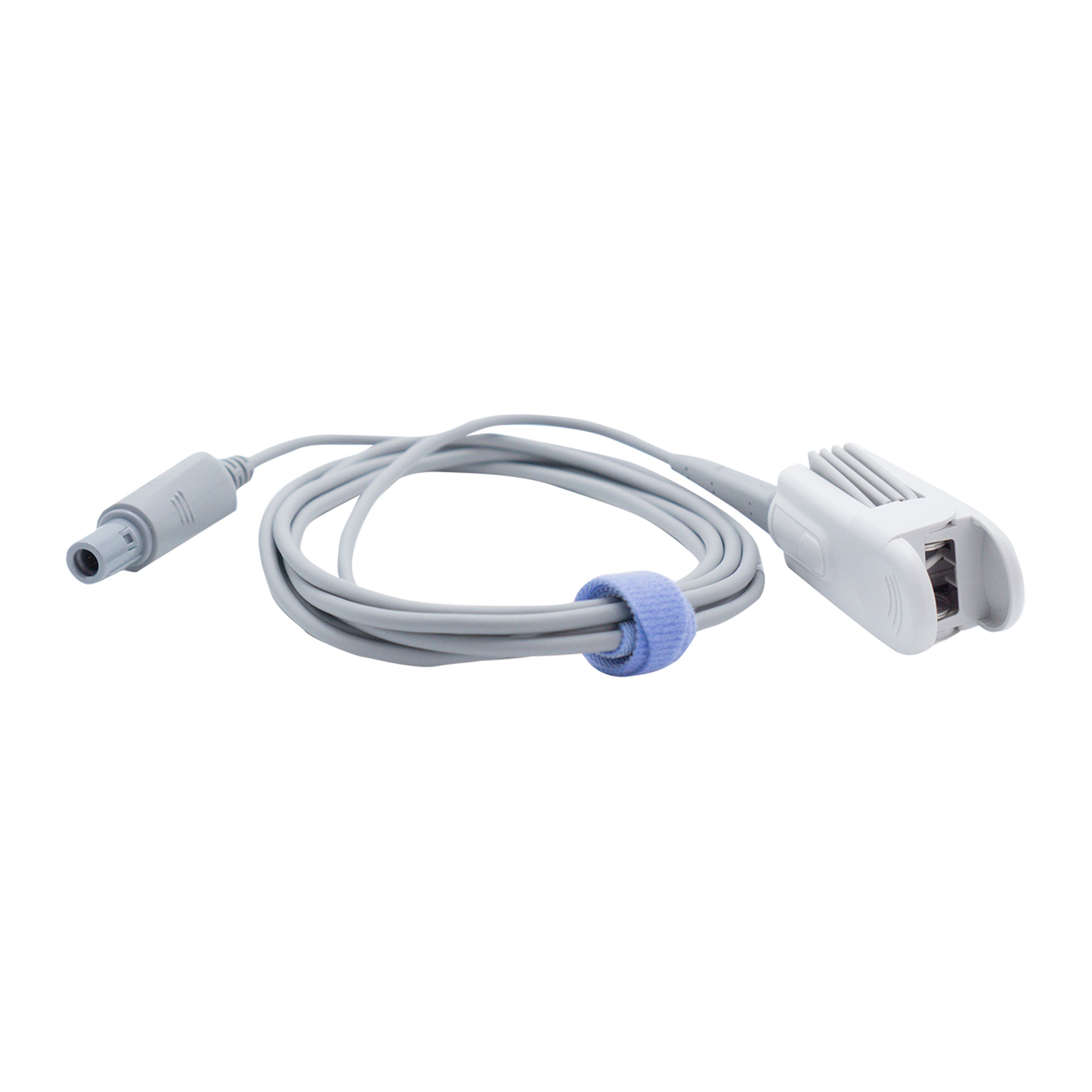

      • Edan Adult Reusable SpO2 Sensor

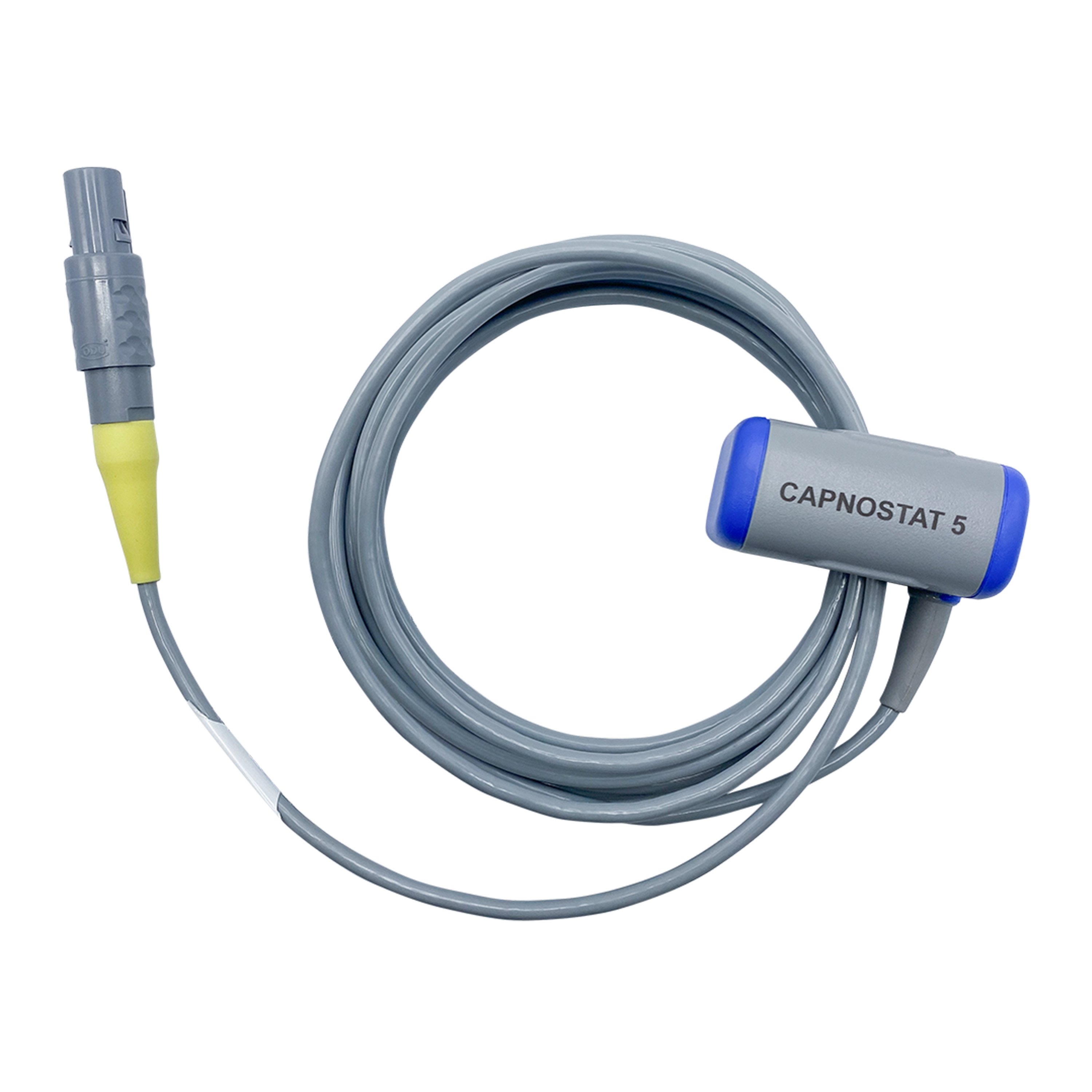

      • Capnostat 5 EtCO2 Mainstream
      • Disposable Adult Airway Adapter
      • Disposable Neonatal Aiwray Adapter
      • Power Cord (USA Standard)

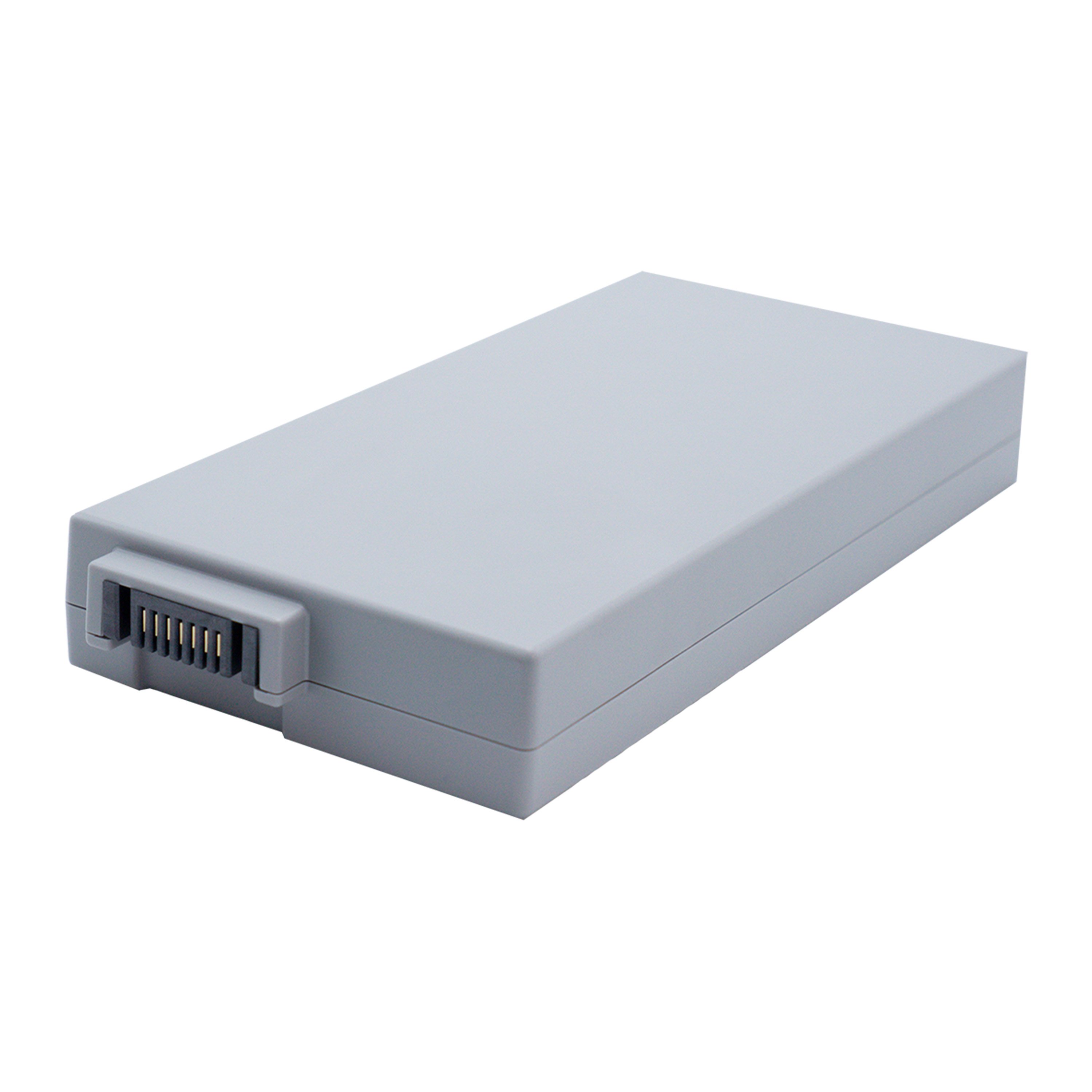

      • Rechargeable Lithium-Ion Battery
      • Ground Cable
      • User Manual

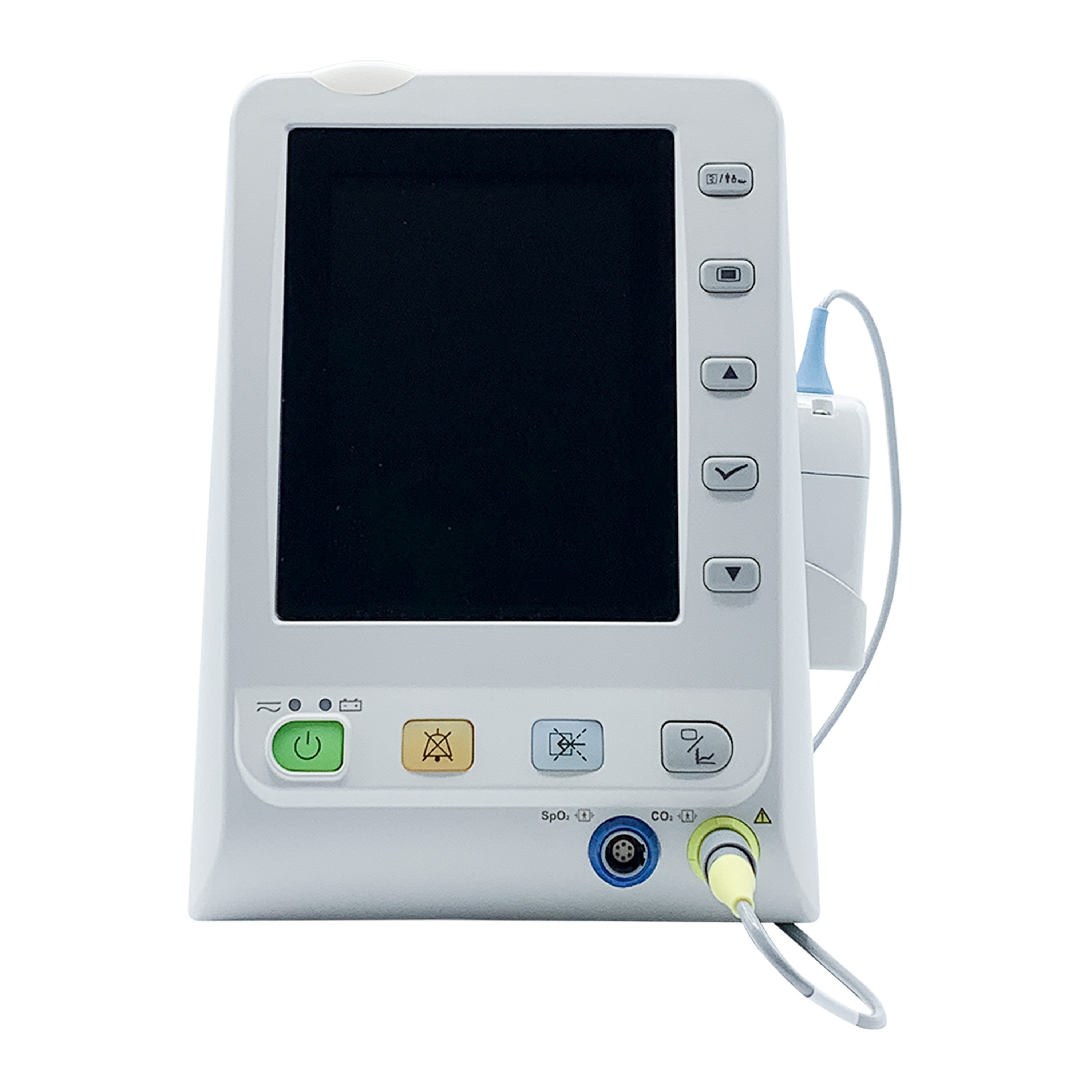

    • Edan M3B Capnography Monitor - Respironics Sidestream (M3B-S):
      • Edan Adult Reusable SPO2 Sensor

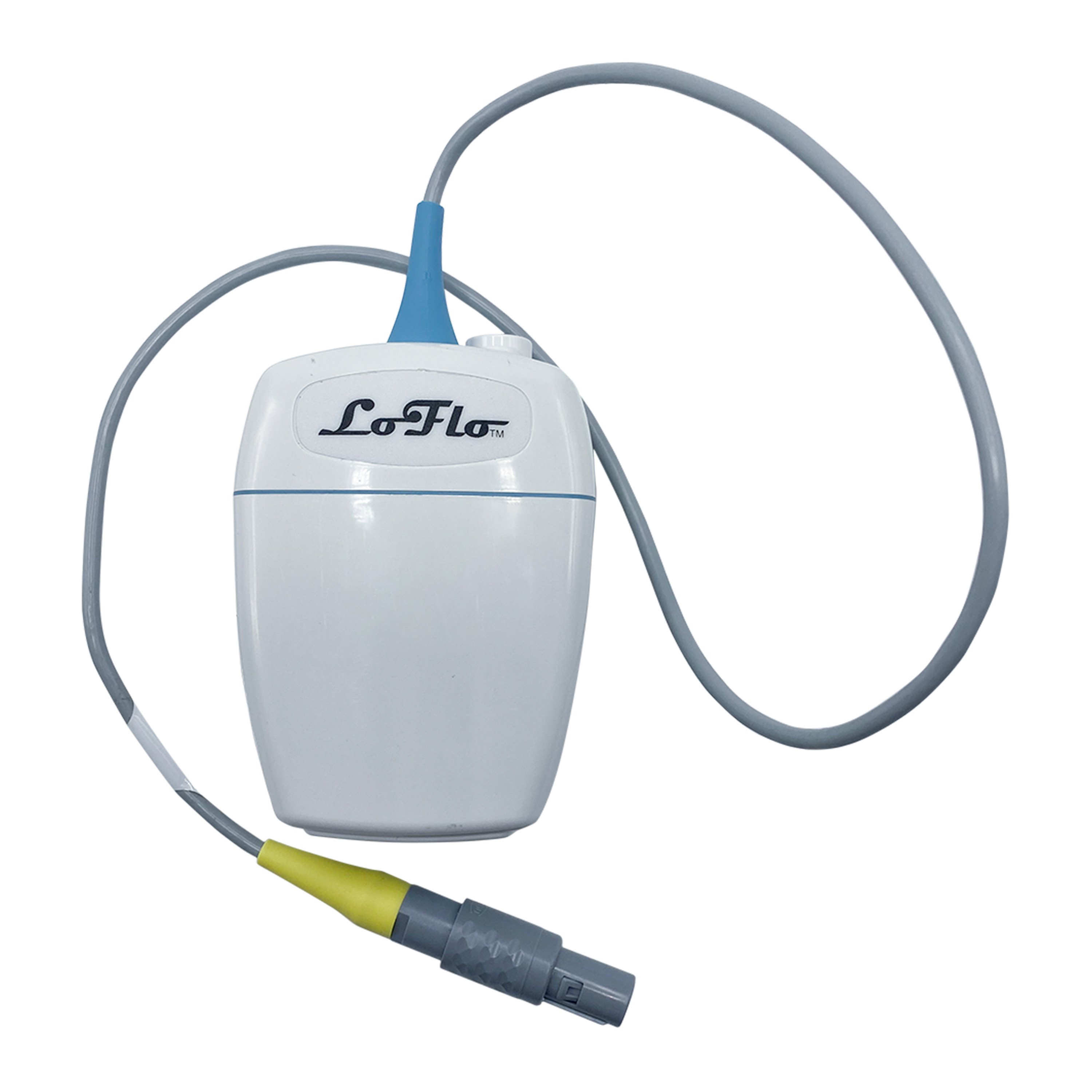

      • LoFlo EtCO2 (Sidestream) Module
      • Disposable CO2 Nasal Cannula
      • Adult/Pediatric Airway Adapter Set
      • Disposable Sampling Line Kit
      • Power Cord (USA Standard)
      • Rechargeable Lithium-Ion Battery
      • Ground Cable
      • User Manual
  • Available in Respironics Mainstream (M3B-M) or Respironics Sidestream (M3B-S) options

Technical Specifications:

  • Display:
    • Color TFT LCD: 5.6"
    • Resolution: 640 x 480
  • Power Supply: 100 V-240 V, 50 Hz/60 Hz
  • Pmax: 70 VA
  • Battery Type: Rechargeable Lithium-Ion
  • Capacitance: 2500 mAh, 5000 mAh
  • Typical Working Period:
    • 2500 mAh: 7 hours
    • 5000 mAh: 14 hours
  • Maximum Rechargeable Period:
    • 2500 mAh: 3.5 hours
    • 5000 mAh: 7 hours
  • Recorder:
    • Record Width: 48 mm
    • Paper Speed: 12.5 mm/s, 25 mm/s
    • Recording Types: Current Displayed Parameter List, Current Displayed Alarm List, Real-time 8-second Waveform, and Recording of all the Parameters of Current Patient ID
  • Data Storage:
    • Trend List: 72 hours, 1-minute resolution
    • Alarm List: 800 groups
  • Interface and Others:
    • USB Port: 1
    • Network Interface: 1
    • Nurse Call: RJ-45 Network Interface
    • Wireless Network: WiFi
  • Compliant with Standards:
    • IEC 60601-1: 2005+A1:2012
    • EN 60601-1: 2006+A1: 2013: IEC 60601-1-2:2007
    • EN 60601-1-2: 2007; IEC 80601-2-30: 2009
    • ISO 80601-2-61: 2011; ISO 80601-2-56: 2009; IEC 60601-2-49:2011
  • Anti-electroshock Type: Class I equipment and internally powered equipment
  • Anti-electroshock Degree:
    • BF: SpO2, CO2
    • Ingress Protection: IPX1
  • Temperature:
    • Working Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
    • Transport and Storage: -20 °C ~ 55 °C (-4 °F ~ 131 °F)
  • Humidity:
    • Working: 15%RH ~ 95%RH (Non-condensing)
    • Transport and Storage: 15%RH ~ 95%RH (Non-condensing)
  • Altitude:
    • Working: 86 kPa ~ 106 kPa
    • Transport and Storage: 70 kPa ~ 106 kPa
  • Warranty: 2 Years
  • Overall Dimensions: 7.44" D x 6.85" W x 9.49" H
  • Actual Product Weight (Excluding Battery): < 7.72 lbs
Parameters

SpO2

  • Measuring Range: 0% to 100%
  • Resolution: 1%
  • Data Update Period: 1 second
  • Accuracy:
    • Adult/Pediatric: ±2% (70% to 100% SpO2) Undefined (0% to 69% SpO2)
    • Neonatal: ±3% (70% to 100% SpO2) Undefined (0% to 69% SpO2)
  • PI (Perfusion Index):
    • Measuring Range: 0 - 10
    • Resolution: 1

Nellcor Module SpO2

  • Measuring Range: 1% to 100%
  • Resolution: 1%
  • Data Update Period: 1 second
  • Accuracy:
    • DS-100A, OXI-A/N(Adult): ±3% (70% to 100% SpO2)
    • OXI-A/N(Neonatal): ±4% (70% to 100% SpO2)



PR (SpO2):

  • Measuring Range:
    • Edan: 25 bpm to 300 bpm
    • Nellcor: 0 bpm to 300 bpm
  • Accuracy:
    • Edan: ±2 bpm
    • Nellcor: ±3 bpm (20 bpm to 250 bpm)
  • Resolution
    • Edan: 1 bpm
    • Nellcor: 1 bpm

PR (NIBP):

  • Measuring Range (Edan): 40 bpm to 240 bpm
  • Accuracy: ±3 bpm or 3.5%, whichever is greater
  • Resolution: 1 bpm

CO2

  • Applicable Patient Type: Adult, pediatric, and neonatal patients
  • Technique: Infra-red Absorption Technique
  • Unit: mmHg, %, kPa
  • Measuring Range:
    • EtCO2: 0 mmHg ~ 150 mmHg
    • FiCO2: 3 mmHg ~ 50 mmHg
    • AwRR: 0 rpm ~ 150 rpm (Mainstream)
                  2 rpm ~ 150 rpm (Sidestream)
  • Resolution:
    • EtCO2: 1 mmHg
    • FiCO2: 1 mmHg
    • AwRR: 1 rpm
  • EtCO2 Accuracy:
    • ±2 mmHg, 0 to 40 mmHg
    • ±5% of reading, (41 ~ 70) mmHg
    • ±8% of reading, (71 ~ 100) mmHg
    • ±10% of reading, (101 ~ 150) mmHg
    • ±12% of reading, RR is over 80 rpm (Sidestream)
    • There will be no degradation in performance due to
      Respiration Rate. (Mainstream)
  • AwRR Accuracy: ±1 rpm
  • Sample Gas Flowrate: 50 ±10 ml/minute
  • CO2 Rise Time/Response Time: < 60 ms
  • Sensor Response Time (Sidestream): < 3 seconds (Including transport time and rise time)
  • Barometric Pressure Compensation: User setup
  • Apnea Alarm Delay: 10 s, 15 s, 20 s (Default), 25 s, 30 s, 35 s, 40 s, 45 s

Respironics Mainstream CO2 (M3B-M)

  • CO2 Measurement Range:
    • 0 to 150 mmHg
    • 0 to 19.7, 0 to 20 kPa (at 760 mmHg)
  • Rise Time:
    • Less than 60 ms - Adult/Infant
    • Reusable or Single Parent
    • Use Airway Adapter
  • CO2 Resolution:
    • 0.1 mmHg: 0 to 69 mmHg
    • 0.25 mmHg: 70 to 150 mmHg
  • CO2 Accuracy:
    • 0 - 40 mmHg: ±2 mmHg
    • 41 - 70 mmHg: ±5% of reading
    • 71 - 100 mmHg: ±8% of reading
    • 101 - 150 mmHg: ±10% of reading
    • Above 80 bpm: ±12% of reading

Respironics Sidestream CO2 (M3B-S)

  • Sample Rate: 50 mL/minute
  • CO2 Measurement Range: 0 to 150 mmHg, 0 to 19.7%, 0 to 20 kPa (at 760 mmHg) Barometric Pressure supplied by Host
  • CO2 Resolution:
    • 0.1 mmHg: 0 to 69 mmHg
    • 0.25 mmHg: 70 to 150 mmHg
  • CO2 Accuracy:
    • 0 - 40 mmHg: ±2 mmHg
    • 41 - 70 mmHg: ±5% of reading
    • 71 - 100 mmHg: ±8% of reading
    • 101 - 150 mmHg: ±10% of reading
    • Above 80 bpm: ±12% of reading
  • Respiratory Rate Range: 2 to 150 bpm
  • Respiratory Rate Accuracy: ± breath





About this Brand

edanusa logo Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer EdanUSA
Latex Free Yes
Actual Product Weight 6.61 lbs
Overall Height 9.49"
Overall Width 6.85"
Overall Depth 7.44"
Country of Manufacture China
Item Ships From California
