Product Description

The Edan iM3 Vital Signs Monitor, Quick Oral Temperature features advanced technology for vital signs monitoring. It is built to improve everyday usability, features internal WiFi, simplified data storage, and easy review, making it our most user-friendly vital signs monitor.

Features:

  • 8" Color TFT touch screen
  • Lightweight and ultra-slim design
  • An innovative design with a 360° alarm light, a barcode scanner support, USB, OTG, LAN, and DHCP, and a built-in Wi-Fi
  • Supports hard key and knob operation
  • Unique cable-receiving design
  • Integrates with Point Click Care with VitalsXChange and Health o meter® Professional Scales
  • Continuous Adaptive Work Modes:
    • Round mode with 8GB memory
    • Monitoring mode with real-time data
    • Spot mode for spot-check applications TEMP module options
  • Standard Parameters: SpO2, NIBP, and PR
  • Optional Parameters: Nellcor OxiMaxTM SpO2, SunTech NIBP, Covidien Oral Temp, Infrared Ear Temp, Quick Oral Temp, Non-Contact Temp, and Exergen Temporal Temp
  • Accessories Included:
    • Standard:
      • Edan SpO2 Finger Sensor, Adult Hard-Shell for Vital Sign Monitors (SH1-DB9)

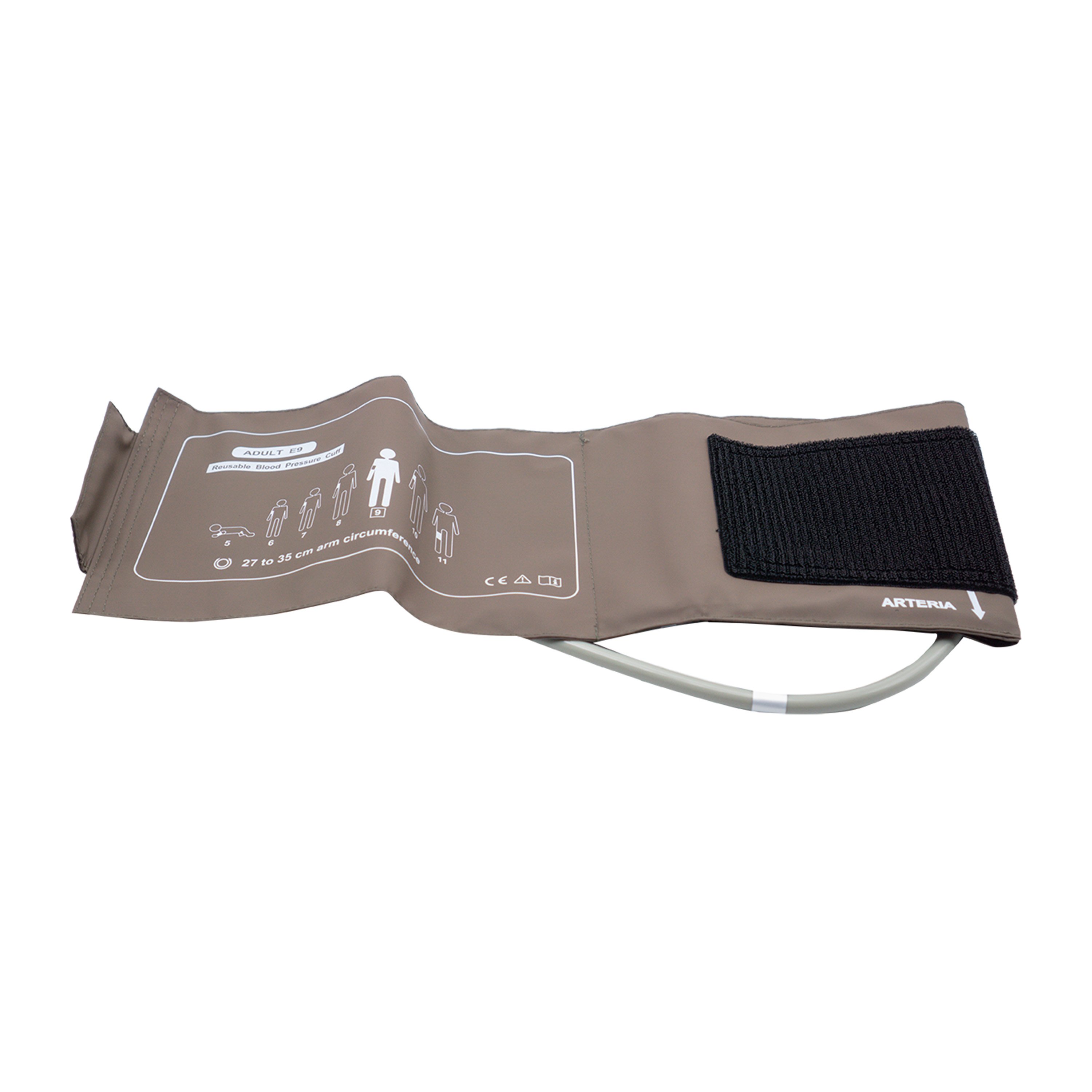

      • Adult Cuff (27 cm - 35 cm)
      • NIBP Tube (3m) with connector
      • Power Cord (USA Standard)

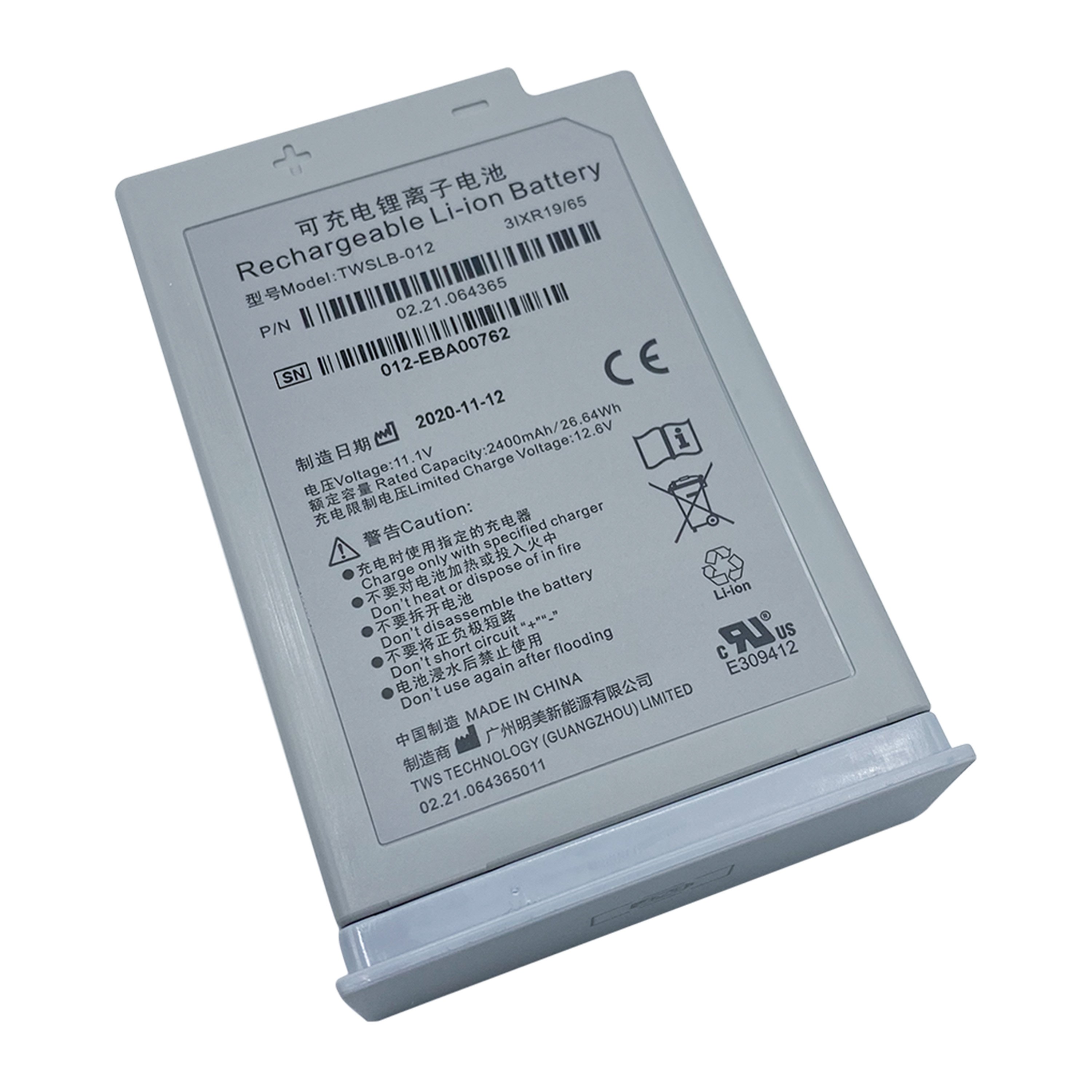

      • Rechargeable Lithium-Ion Battery
      • Potential Equalization Conductor

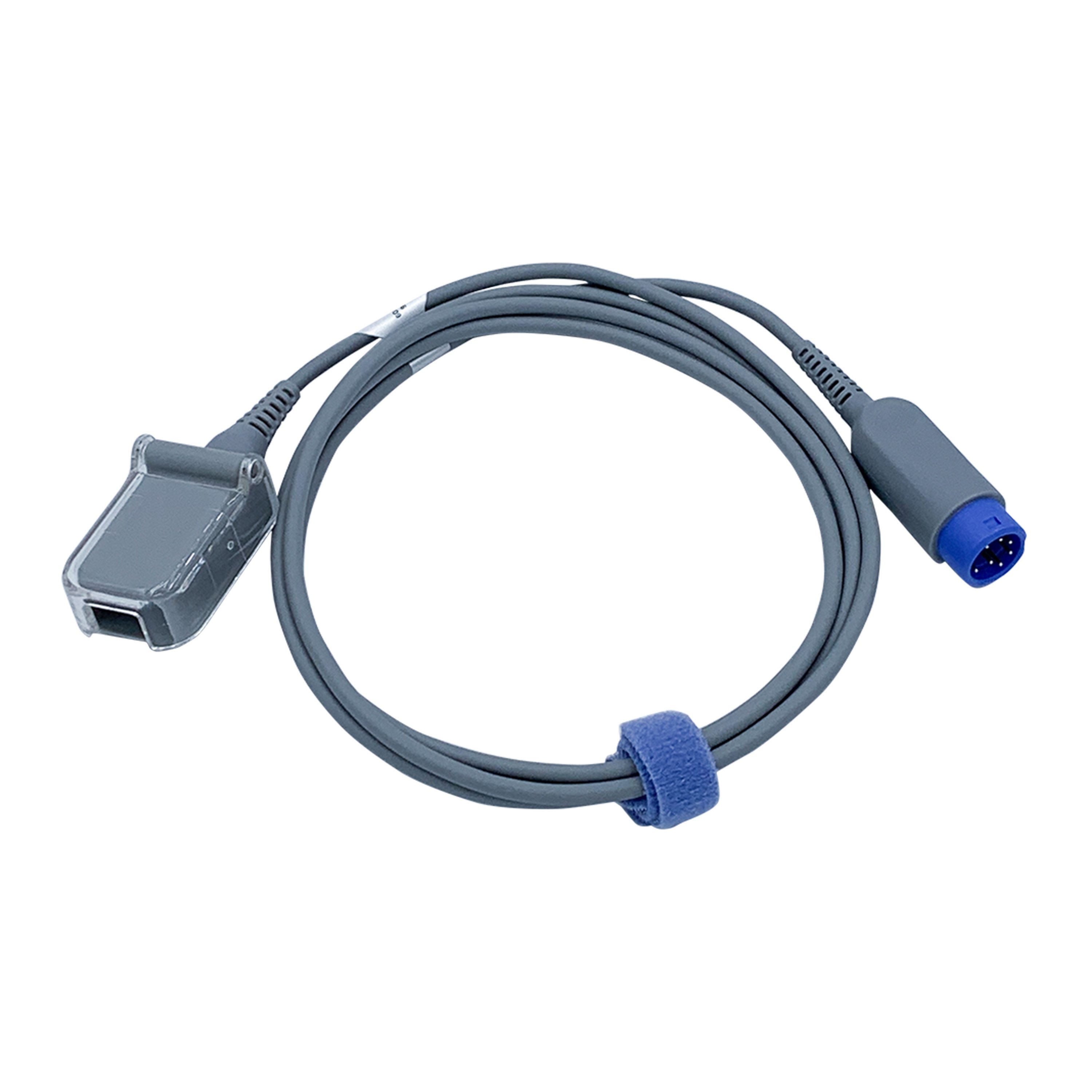

      • SpO2 7-Pin Extension Cable, 2m
      • Edan Oral Temp Kit

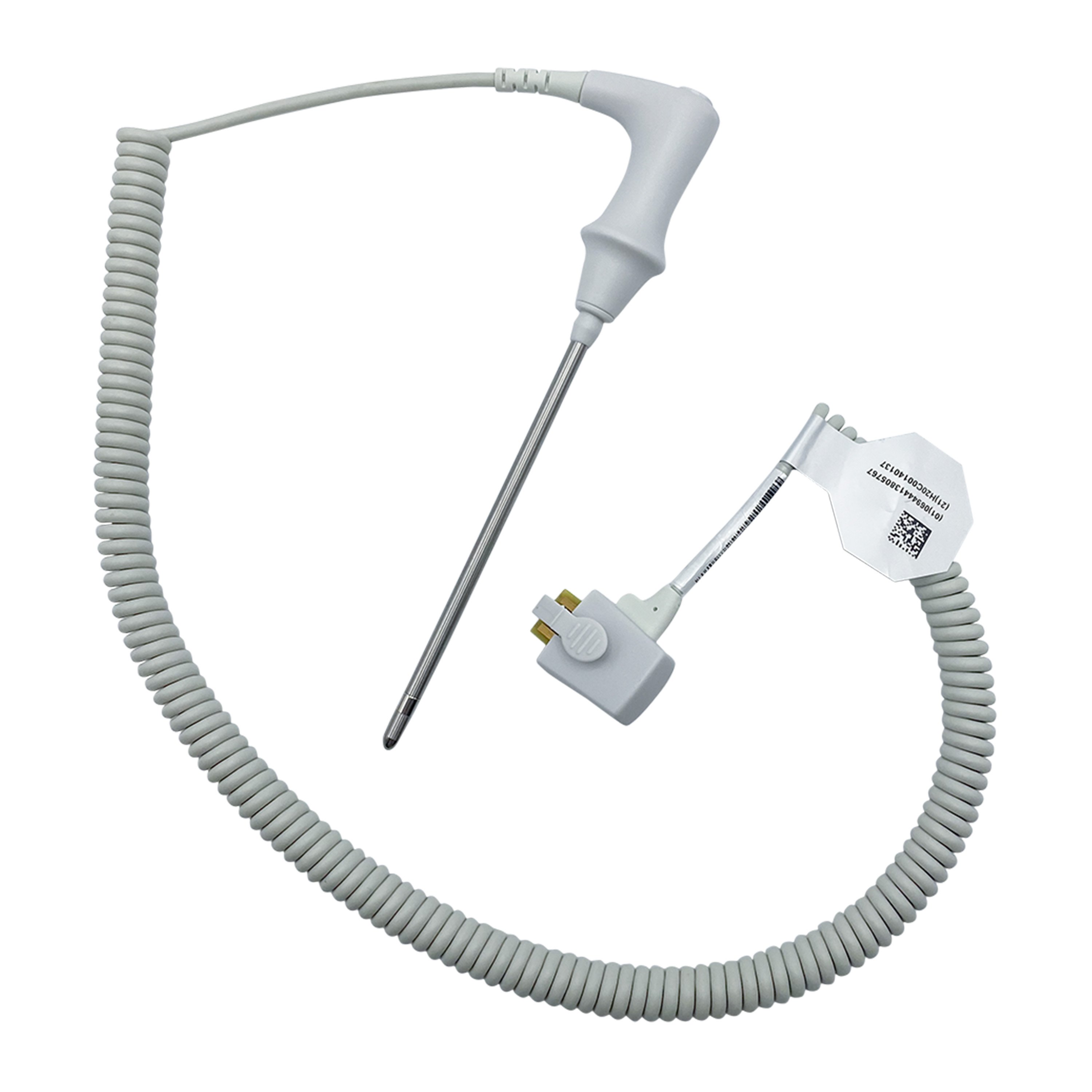

      • Edan Oral Probe
  • Available without printer (IM3-NST-O) or with printer (IM3-NST-O-P) options

Technical Specifications:

  • Display:
    • Color TFT LCD: 8"
    • Resolution: 800 x 600
  • Power Supply: 100 V-240 V, 50 Hz/60 Hz
  • Current: 0.7 A-0.35 A; Fuse: T2.5AH, 250VAC
  • Battery 1:
    • Battery Type: Rechargeable Lithium-Ion
    • Capacitance: 2400 mAh
    • Operating Time: 3.5 hours
    • Fast Changing Time: 3 hours
    • Charging Time (Monitor on): 10 hours
  • Battery 2:
    • Capacitance: 4800 mAh
    • Operating Time: 10 hours
    • Fast Changing Time: 6 hours
    • Charging Time (Monitor on): 20 hours
  • Recorder:
    • Record Width: 49 mm ~ 50 mm
    • Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
    • Trace: 1
    • Recording Types: Continual real-time, 8-second real-time, Manual, Physiological Alarm, Trend Graph, Trend Table, NIBP Review, Alarm Review, and NIBP Auto Triggered
  • Wi-Fi:
    • IEEE: 802.11 B/G/N
    • Frequency Band: 2.4 GHz ISM Band
  • E-Link Bluetooth:
    • Trasmt Frequency: 2402 ~ 2480MHz Frequency
    • Band: 2402 ~ 2480 MHz
    • Modulation: FHSS, GFSK, DPSK, and DQPSK
  • Interface and Others:
    • USB Port: 1
    • Micro USB Port: 1
    • Network Interface: 1
    • Nurse Call: Micro USB Port
    • Built-in Barcode Scanner: Optional
  • Warranty: 2 Years
  • Overall Dimensions: 6.54" D x 6.26" W x 10.31" H
  • Actual Product Weight: 5.51 lbs

PARAMETERS

NIBP

  • Technique: Oscillometry
  • Operation Modes: Manual/Automatic/Continuous
  • Measuring Interval in AUTO Med (in minutes): 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 360, and 480
  • Continuous: 5 minutes, Interval is 5 seconds
  • Measuring Parameter: Systolic, Diastolic, MAP
  • Measuring Range:
    • Adult Mode:
      • Systolic: 25 mmHg ~ 290 mmHg
      • Diastolic: 10 mmHg ~ 250 mmHg
      • MAP: 15 mmHg ~ 260 mmHg
    • Pediatric Mode:
      • Systolic: 25 mmHg ~ 240 mmHg
      • Diastolic: 10 mmHg ~ 200 mmHg
      • MAP: 15 mmHg ~ 215 mmHg
    • Neonate Mode:
      • Systolic: 25 mmHg ~ 140 mmHg
      • Diastolic: 10 mmHg ~ 115 mmHg
      • MAP: 15 mmHg ~ 125 mmHg
  • Alarm Types: SYS, DIA, MAP, PR (NIBP)
  • Cuff Pressure Measuring Range: 0 mmHg ~ 300 mmHg
  • Pressure Resolution: 1 mmHg
  • Maximum Mean Error: ±5 mmHg
  • Maximum Standard Deviation 8 mmHg
  • Maximum Measuring Period:
    • Adult/Pediatric: 120 seconds
    • Neonate: 90 seconds
  • Typical Measuring Period: 20 seconds to 35 seconds (Depending on HR/Motion Disturbance)
  • Overpressure Protection:
    • Adult: 297 mmHg ± 3 mmHg
    • Pediatric: 245 mmHg ± 3 mmHg
    • Neonatal: 147 mmHg ± 3 mmHg

SPO2

  • Measuring Range: 0% to 100%
  • Resolution: 1%
  • Data update period: 1 second
  • Accuracy:
    • Adult/ Pediatric: ±2% (70% to 100% SpO2 Undefined (0% to 69% SpO2)
    • Neonate: ±3% (70% to 100% SpO2 Undefined (0% to 69% SpO2)
  • PI (Perfusion Index)
    • Measuring Range: 0 ~ 10
    • Resolution: 1
  • Pulse Rate:
    • Measuring Range: 25 bpm ~ 300 bpm
    • Resolution: 1 bpm
    • Accuracy: 2 bpm

PR

  • Measuring Range: 40 bpm to 240 bpm
  • Accuracy: 3 bpm or 3.5%, whichever is greater





TEMP (T2A Module: Oral Temp)

  • Measuring Range:
    • Monitor Mode: 25 °C ~ 45 °C
    • Predict Mode: 35.5 °C ~ 42 °C
  • Sensor Type: Oral/Axillary/Rectal
  • Accuracy: ±3 bpm (20 bpm to 250 bpm)
  • Resolution: 0.1 °C
  • Accuracy (Monitor mode): ±0.1 °C (25 °C ~ 45 °C)
  • Response Time: < 60 seconds
  • Time for predicting: < 30 seconds
  • Monitor Mode: ±0.1 °C (25 °C ~ 45 °C)
  • Measuring Mode: Direct Mode/Adjusted Mode

About this Brand

edanusa logo Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer EdanUSA
Latex Free Yes
Actual Product Weight 5.51 lbs
Overall Height 10.31"
Overall Width 6.26"
Overall Depth 6.54"
Country of Manufacture China
Item Ships From California
