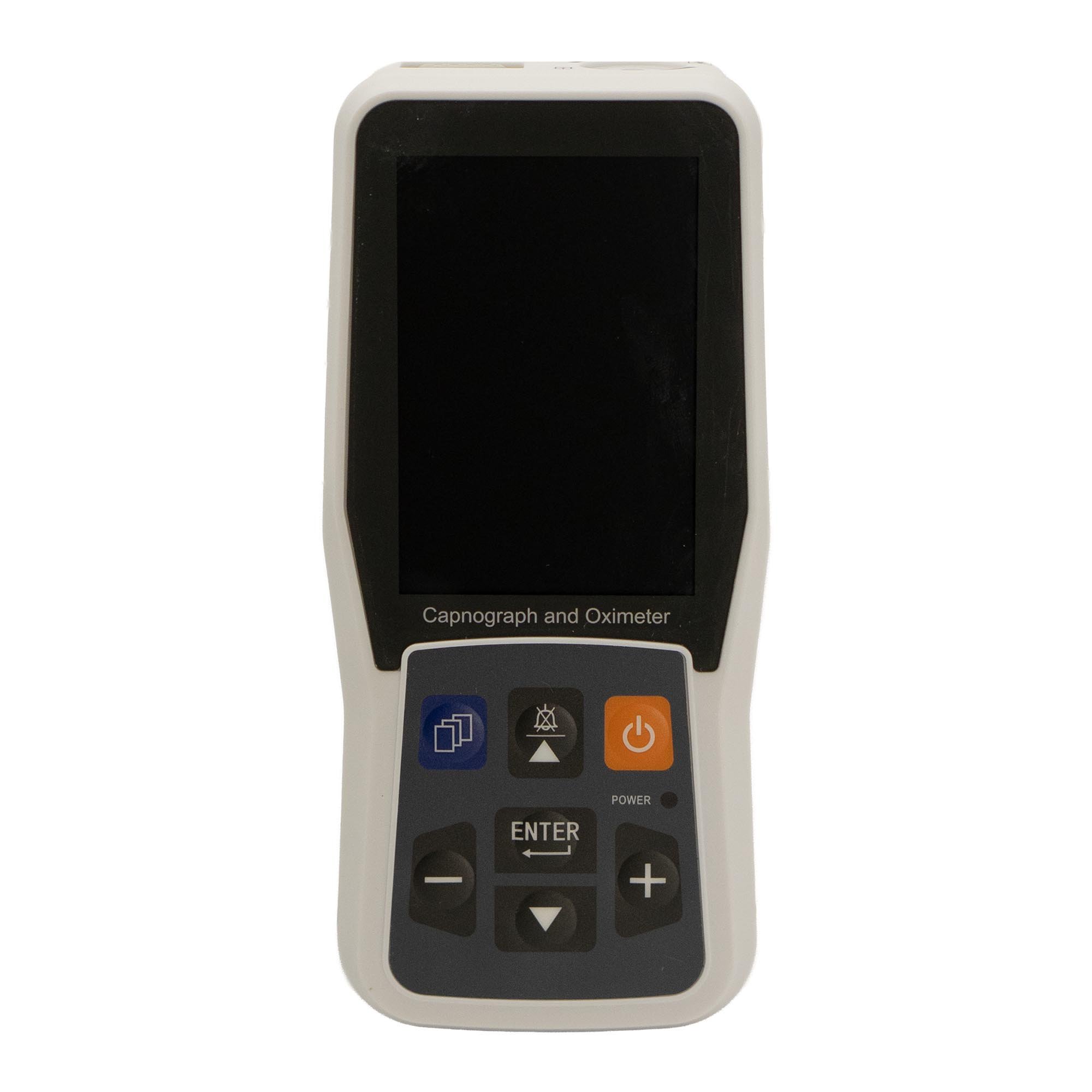

MDPro MicroCap9 Handheld Capnograph and Oximeter

The MDPro MicroCap9 Handheld Capnograph and Oximeter measures EtCO2/CO2, respiratory rate, SpO2, and pulse rate for intubated and non-intubated patients, and is well-suited for EMS use.

Features:

• 3.50" TFT display, monitoring EtCO2/CO2, respiratory rate, SpO2, and pulse rate
• Temperature and pressure compensation system
• Zero readjustment system
• Balance gas compensation, minimizing influence against other gases
• Lung pressure and temperature (BTPS) compensation available
• Applicable for intubated or non-intubated patients
• Pump flux for adult and infant
• Water filter specifically designed for heavy, humid environments
• Audio and visual alarms for exceeding limits and apnea
• A 24-hour graphic trend can be stored after powering off
• USB connectivity to PC for data transfer
• MoveOxy™ advanced digital (SpO2) pulse oximetry
  • Accurate monitoring even with weak signals
  • Reliable monitoring in a motion situation and severe monitoring conditions
  • Provides graphical trends and plethysmographic waveform
  • Gives reliable SpO2 and pulse rate measurements
• Comes Standard With:
  • (1) Main Set
  • (2) Reusable Water Filter T3
  • (1) Sampling Line
  • (1) Airway Adapter
  • (1) Adult SpO2 Sensor
  • (1) USB Data Cable
  • (1) AC/DC Power Adapter
  • (1) User Manual

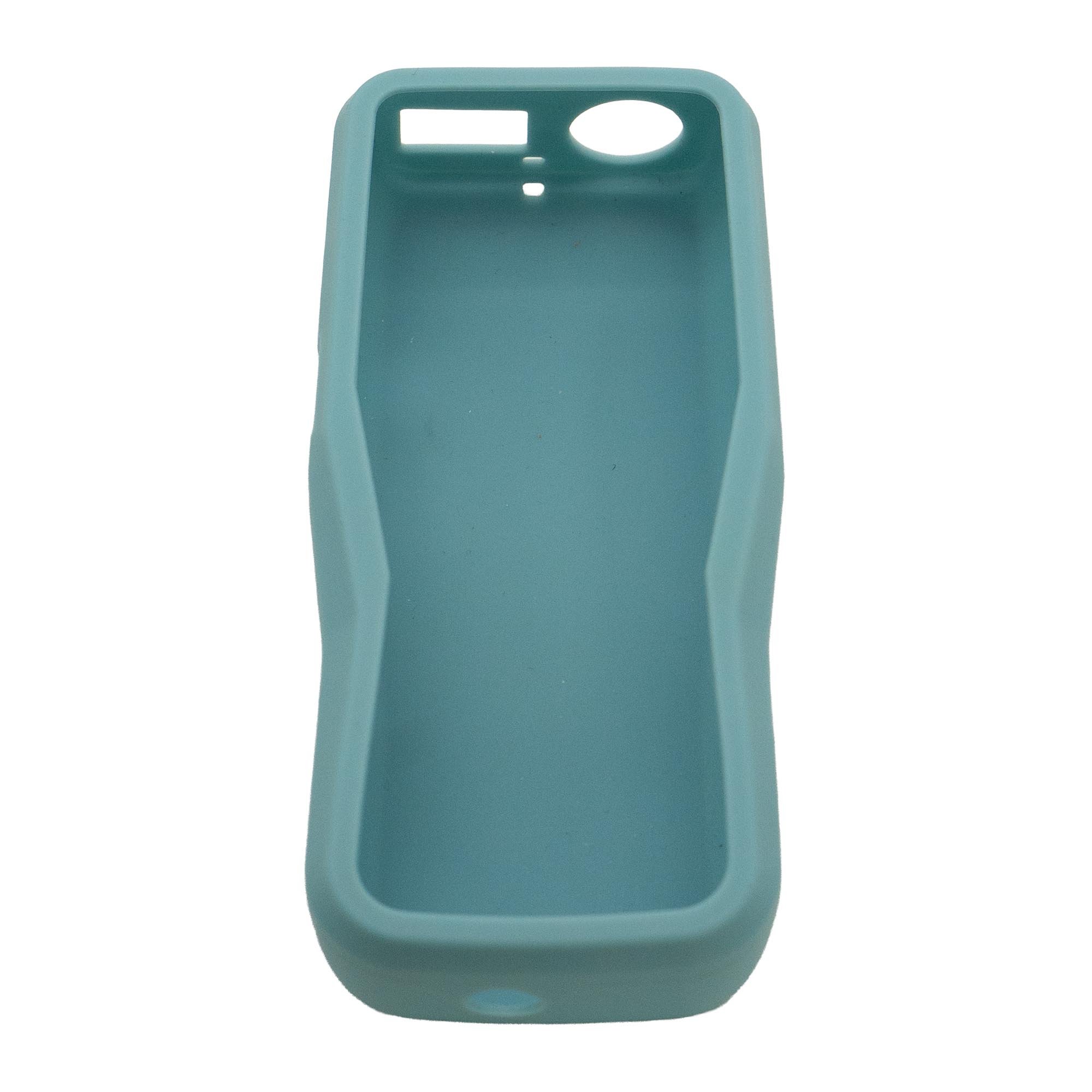

  • (1) Silicon Cover
  • (1) Canvas Bag
  • (1) Support Base
  • (1) Nasal Cannula

Technical Specifications:

• EtCO2/CO2
  • Range: 0-150 mmHg, 0-20 kPa, or 0-20% (V/V)
  • Accuracy:
    • ±2 mmHg when 0-40 mmHg
    • ±5% (Reading) when > 41-70 mmHg
    • ±8% (Reading) when > 71-100 mmHg
    • ±10% (Reading) when > 101-150 mmHg
  • Update: Every Breath, 10 sec, 20 sec, or 30 sec Selectable
  • Trend Length: 24 hours
• Respiration Rate
  • Range: 3-150 breaths/min
  • Accuracy: ±1% (Reading) or ±1 breaths/min, Whichever is Greater
  • Trend Length: 24 hours
  • Flux: 50-250 cc/min Selectable
• SpO2
  • Oximetry Saturation Range: 0-100%
  • Accuracy:
    • ±2% when 70-100%
    • ±3% when 50-69%
  • Trend Length: 24 hours
• Pulse Rate
  • Range: 30-250 BPM
  • Accuracy: ±2 BPM or ±2% (Reading) when 30-250 BPM
  • Trend Length: 24 hours
• Operation
  • Working Temperature: 5ºC to 40ºC
  • Humidity: 30% to 75% (Non-Condensing)
  • Atmospheric Pressure: 86 kPa to 106 kPa
• Language: English, Spanish, Dutch
• Battery
  • Type: Built-In Rechargeable Lithium Battery
  • Voltage: 3.6 V
  • Capacity: 3000 mAh
  • Working Time: 10 hours
• Power
  • AC Input: 100-250 V, 50/60 Hz
  • AC Power Consumption: 5 W
• Overall Dimensions: 2.76" W x 1.57" D x 6.30" H
• Actual Product Weight: 1.32 lbs
• Warranty: 1 Year
