Product Description

The Edan iM3s Portable Vital Signs Monitor, Exergen Temporal Temperature features advanced technology for vital signs monitoring. It is the most compact vital signs monitor in its class, and it boasts a distinctive pocket-size design, ensuring unparalleled portability for on-the-go spot checks.

Features:

  • With built-in infrared temperature
  • 5" HD touch screen
  • Boasts portability, weighing less than 1 lb
  • Internal data storage of over 20,000 readings
  • Adult, neonate, and pediatric settings
  • Shock resistance up to 1 meter
  • IP44 water and dust proof
  • AA batteries for 5-6 hours of scanning time
  • Touchscreen gesture operation
  • Integrates with Point Click Care with VitalsXChange
  • Standard Parameters: SpO2, NIBP
  • Optional Parameters: Temperature and Barcode Scanner
  • Accessories Included:
    • Standard:

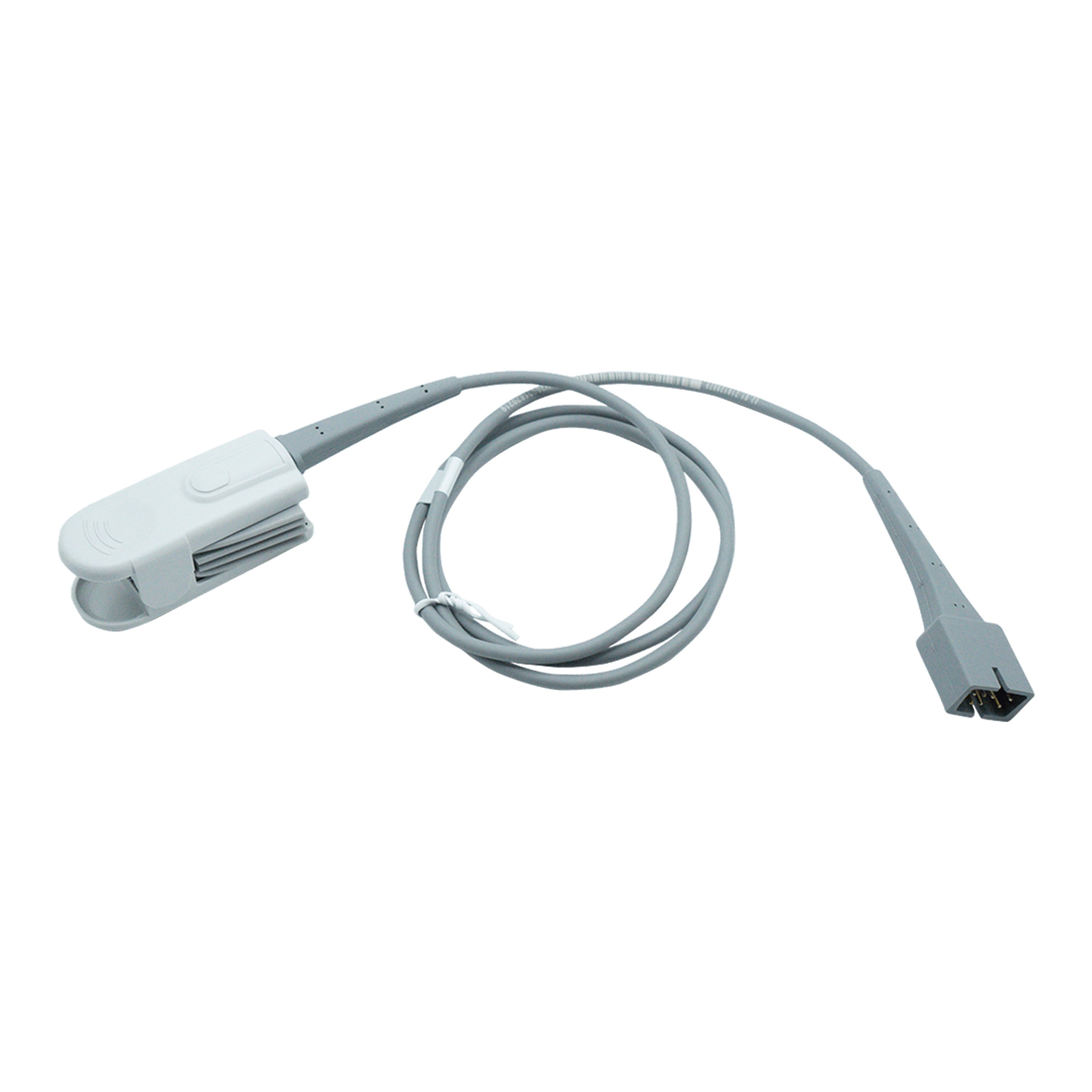

      • Edan Sp02 Finger Sensor, Adult Hard-Shell for Vital Sign Monitors (SH1-DB9)

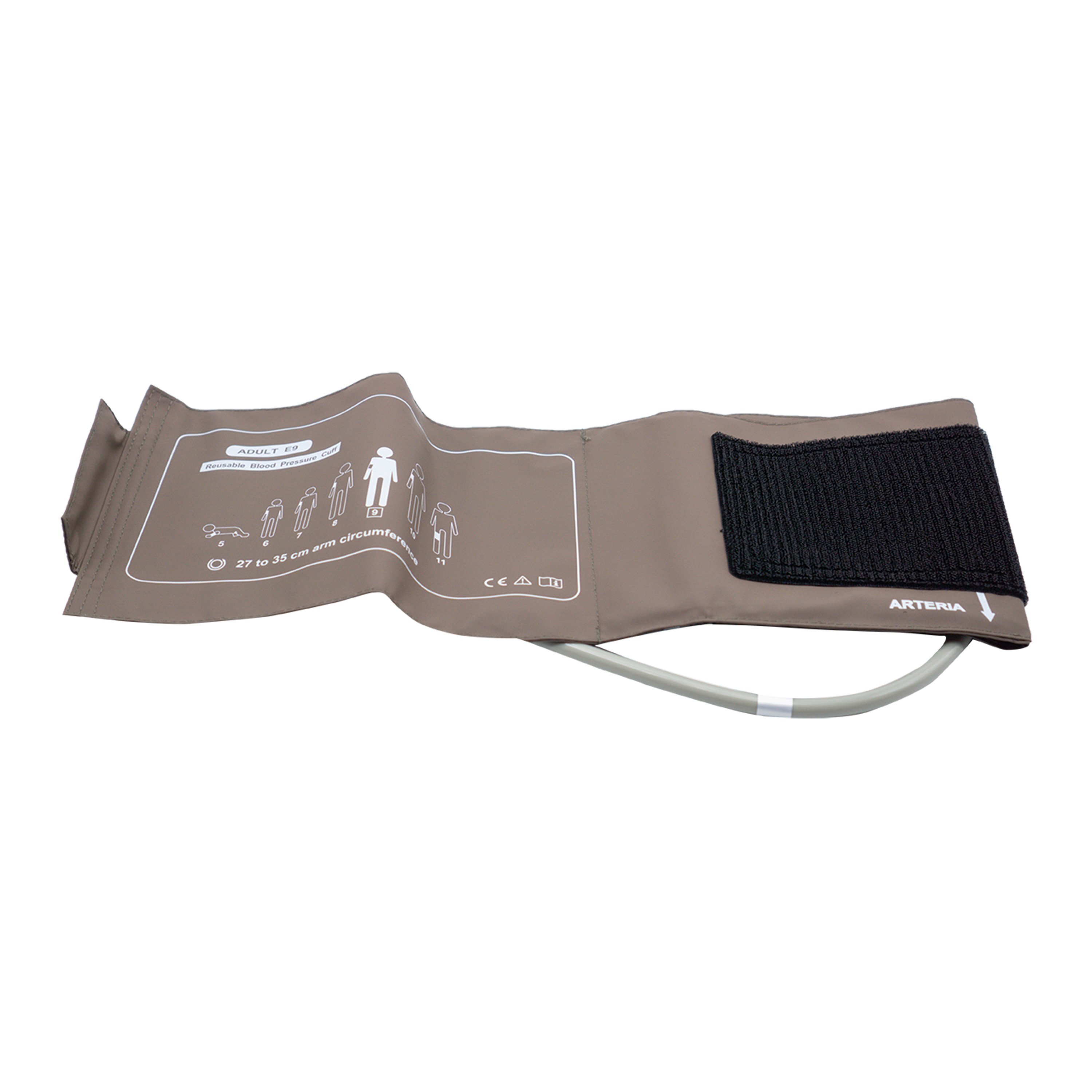

      • Adult Cuff (25 cm - 35 cm)

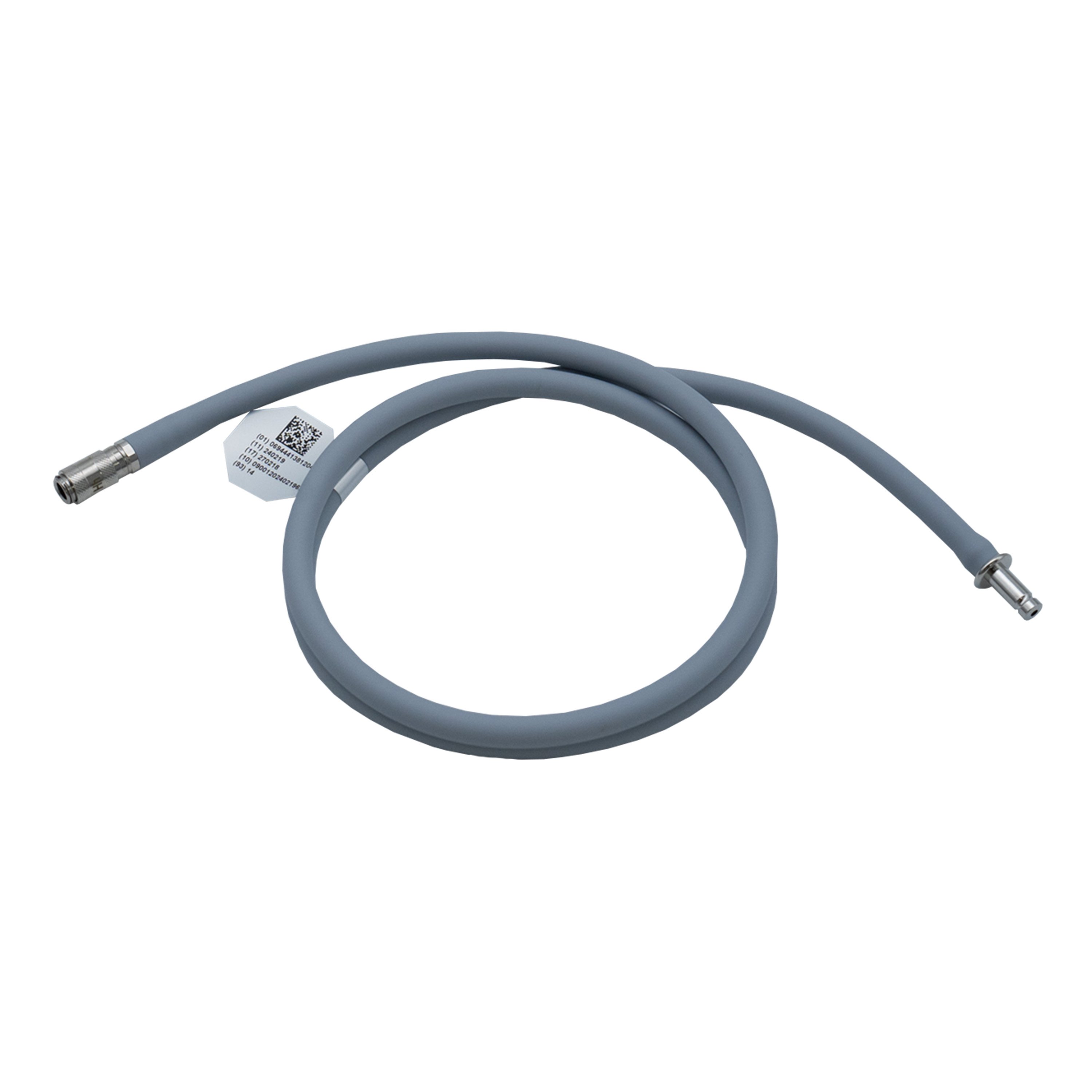

      • NIBP Tube

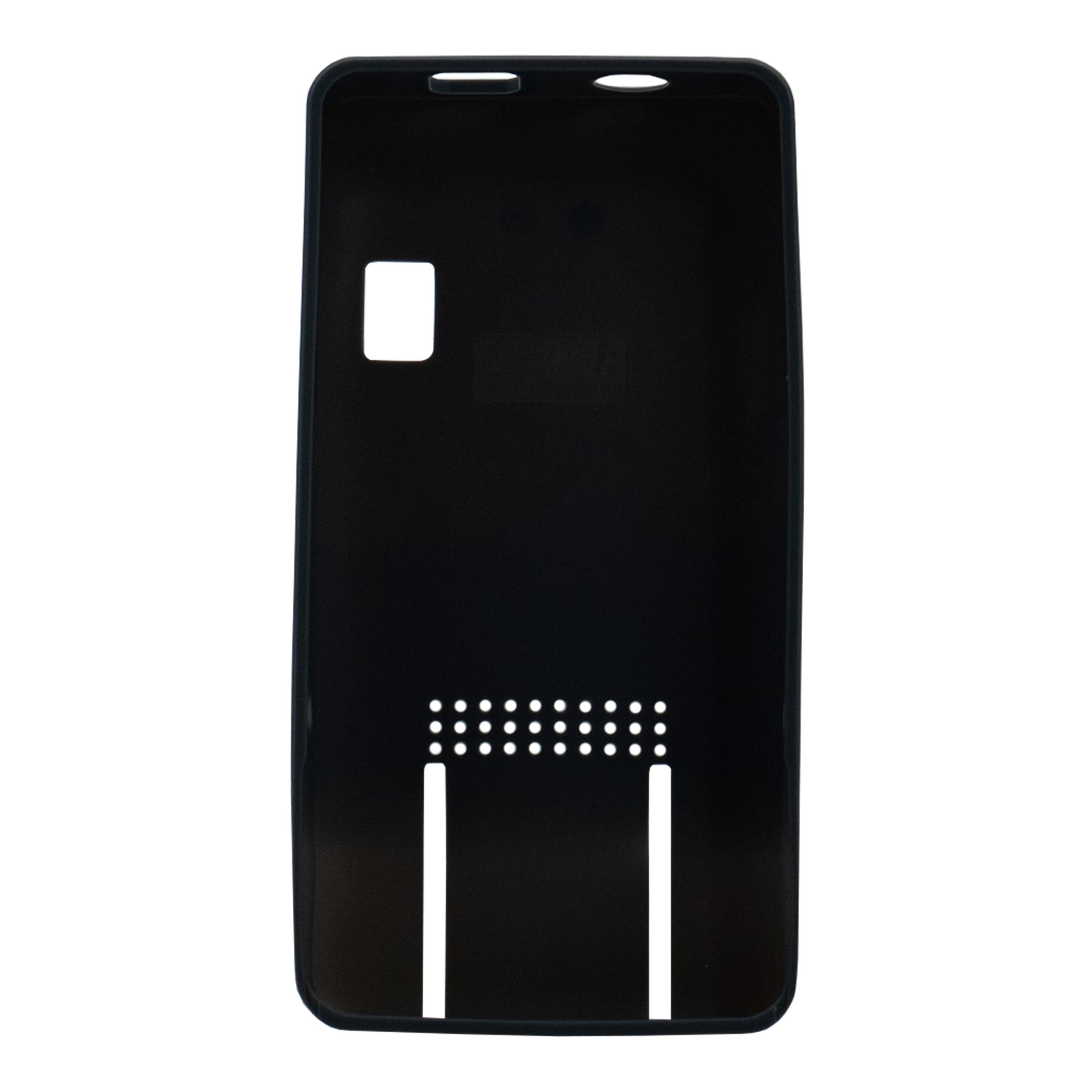

      • Protective Cover
      • Rechargeable Battery
      • User Manual

Technical Specifications:

  • Display:
    • Color TFT LCD: 5"
    • Resolution: 720 x 1280
  • Power Supply:
    • CS-04 Charger Stand: 100 V - 240 V, 50 Hz/60 Hz
    • CS-05 Extended Stand: 100 V - 240 V, 50 Hz/60 Hz
  • Current:
    • CS-04 Charger Stand: 0.5 A-0.25 A
    • CS-05 Extended Stand: 0.5 A-0.3 A
  • Monitor Battery:
    • Battery Type: Rechargeable Lithium-Ion or 3 AA Batteries
    • Capacitance: 2700 mAh
    • Operating Time:
      • Rechargeable Lithium-Ion Battery: 12 hrs (Standby), 8 hrs (Normal working status)
      • AA Battery: 10 hrs (Standby), 6 hrs (Normal working status)
    • Fast Changing Time: 4 hrs when the monitor is off
    • Charging Time (Monitor on): 14 hrs
  • Extended Stand Battery (CS-05):
    • Battery Type: Rechargeable Lithium-Ion
    • Capacitance: 2400 mAh
    • Operating Time:
      • 20 hrs (Without the external module used)
      • 8 hrs (With external module used)
    • Fast Changing Time: 3.5 hrs in off status, not connected to the monitor
  • Data Storage:
    • Round Mode: Minimum 20,000 sets in internal storage
    • Spot-checking Mode: Minimum 20,000 sets of spot-checking data for multiple patients
  • Wi-Fi:
    • IEEE: 802.11 A/B/G/N
    • Bandwidth: 2.4 GHz and 5 GHz, 20 MHz
  • E-Link Bluetooth:
    • Radio Technology: BR, EDR, BLE
    • Frequency Range: 2402 MHz - 2480 MHz
    • Modulation: GFSK, ₶/4-DQPSK, 8-DQPSK
  • Interface and Others:
    • USB Ports: 2
    • Built-in Barcode Scanner: Optional
  • Warranty: 2 Years

PARAMETERS



NIBP

  • Technique: Oscillometry
  • Operation Modes: Manual, Continuous, Average
  • Average Measurement (in minutes):
    • Interval, 1, 2, 3, 4, 5
    • Times: 3/5
  • Continuous: 5 minutes, Interval is 5 seconds
  • Measuring Parameter: Systolic, Diastolic, MAP
  • Measuring Range:
    • Adult Mode:
      • Systolic: 25 mmHg - 290 mmHg
      • Diastolic: 10 mmHg - 250 mmHg
      • MAP: 15 mmHg - 260 mmHg
    • Pediatric Mode:
      • Systolic: 25 mmHg - 240 mmHg
      • Diastolic: 10 mmHg - 200 mmHg
      • MAP: 15 mmHg - 215 mmHg
    • Neonate Mode:
      • Systolic: 25 mmHg - 140 mmHg
      • Diastolic: 10 mmHg - 115 mmHg
      • MAP: 15 mmHg - 125 mmHg
  • Cuff Pressure Measuring Range: 0 mmHg - 300 mmHg
  • Pressure Resolution: 1 mmHg
  • Maximum Mean Error: ±5 mmHg
  • Maximum Standard Deviation 8 mmHg
  • Maximum Measuring Period:
    • Adult/Pediatric: 120 seconds
    • Neonate: 90 seconds
  • Typical Measuring Period: 30 seconds to 45 seconds (Depending on HR/Motion Disturbance)
  • Overpressure Protection:
    • Adult: 297 mmHg ± 3 mmHg
    • Pediatric: 245 mmHg ± 3 mmHg
    • Neonatal: 147 mmHg ± 3 mmHg
  • Pre-inflation Pressure:
    • Adult:
      • Default: 160 mmHg
      • Range: Auto/80/100/120/140/150/160/180/200/220/240 mmHg
    • Pediatric:
      • Default: 140 mmHg
      • Range: Auto/80/100/120/140/150/160/180/200 mmHg
    • Neonatal:
      • Default: 100 mmHg
      • Range: Auto/60/70/80/100/120 mmHg





SPO2

  • Measuring Range: 0% to 100%
  • Resolution: 1%
  • Data update period: 1 second
  • Accuracy:
    • Adult/ Pediatric: ±2% (70% to 100% SpO2 Undefined (0% to 69% SpO2)
    • Neonate: ±3% (70% to 100% SpO2 Undefined (0% to 69% SpO2)







T100A (Edan Infrared Forehead TEMP) TEMP

  • Measuring range: 34° C - 43° C (93.2° F - 109.4° F）
  • Accuracy: 34.0° C - 34.9° C: ±0.3° C
                     35.0° C - 42.0° C: ±0.2° C
                     42.1° C - 43.0° C: ±0.3° C
                     33.0° C - 43.0° C
  • Measuring site: Forehead
  • Resolution: 0.1° C (0.1° F)
  • Response time: < 2 seconds



About this Brand

edanusa logo Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer EdanUSA
Latex Free Yes
Country of Manufacture China
Item Ships From California

Literature

pdf
Data Sheet
(Size: 570.1 KB)
pdf
Product Brochure
(Size: 242.3 KB)
