Edan M3 Vital Signs Monitor, Quick Oral Temperature

The Edan M3 Vital Signs Monitor, Quick Oral Temperature is designed with a sleek, user-friendly interface, and functions as both a spot-check and continuous vital signs monitor, offering a comprehensive solution for medical professionals.

Features:

• 5.6" high-resolution color TFT-LCD screen
• Lightweight & portable design
• Flexible configurations to meet different clinical needs
• User-friendly interface
• Auto/Manual/Continuous/Average BP mode
• Real-time measurements and trend display
• Built-in rechargeable Lithium-ion battery for 8 working hours
• Nurse call
• Spot and continuous monitoring
• Bi-directional communication with the MFM-CMS central monitoring system
• Compatible with CMS Lite PC data management software
• HL7/AIP
• Wired LAN/WiFi Support
• USB port for flash drive or pocket router for optional WiFi
• Barcode scanner support
• Export trends as XML or PDF in the central monitoring system
• Accessories Included:
  • Standard:
    • Edan SH1 Adult Reusable SpO2 Sensor

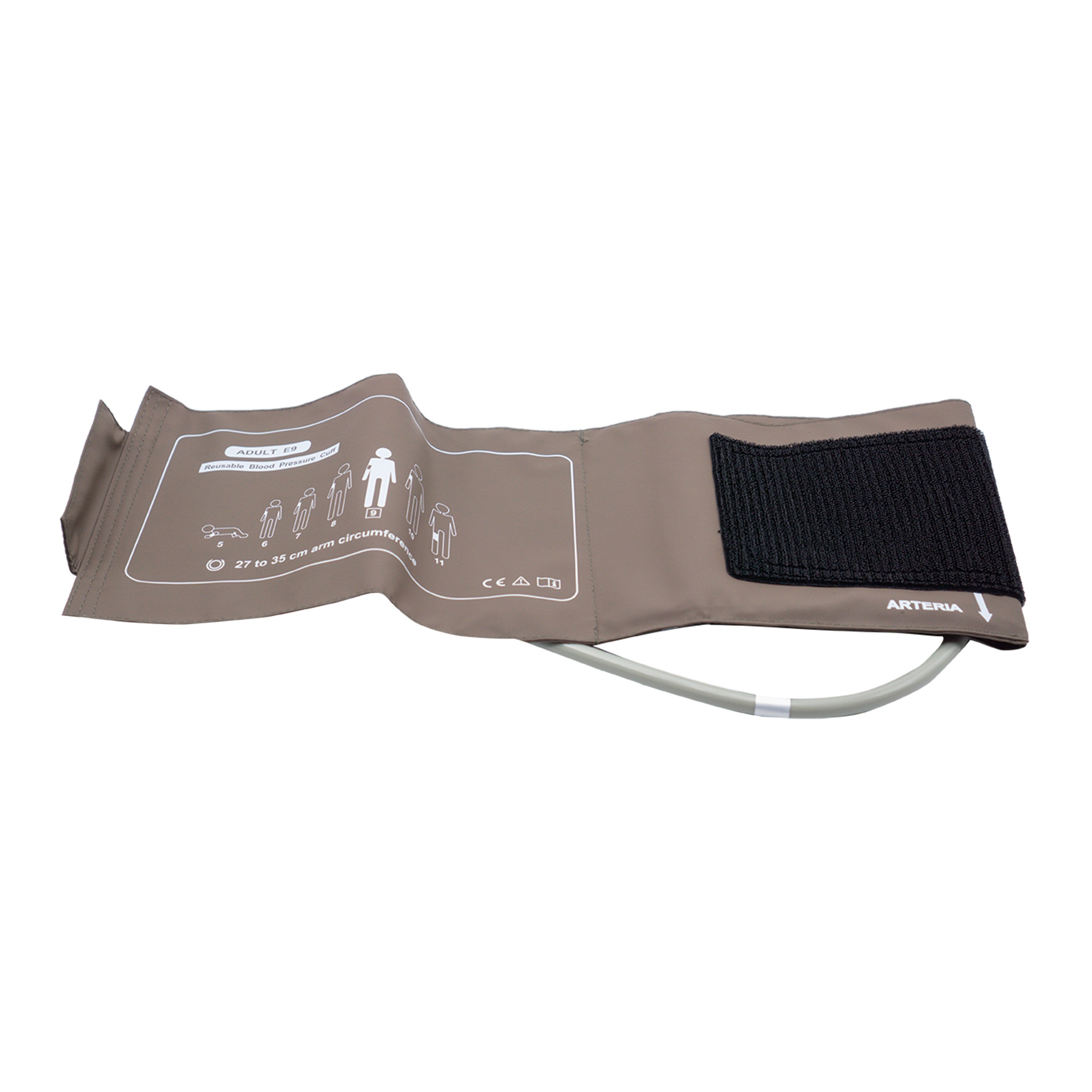

    • Adult Cuff (25 cm - 35 cm)
    • NIBP Tube (3m) with connector

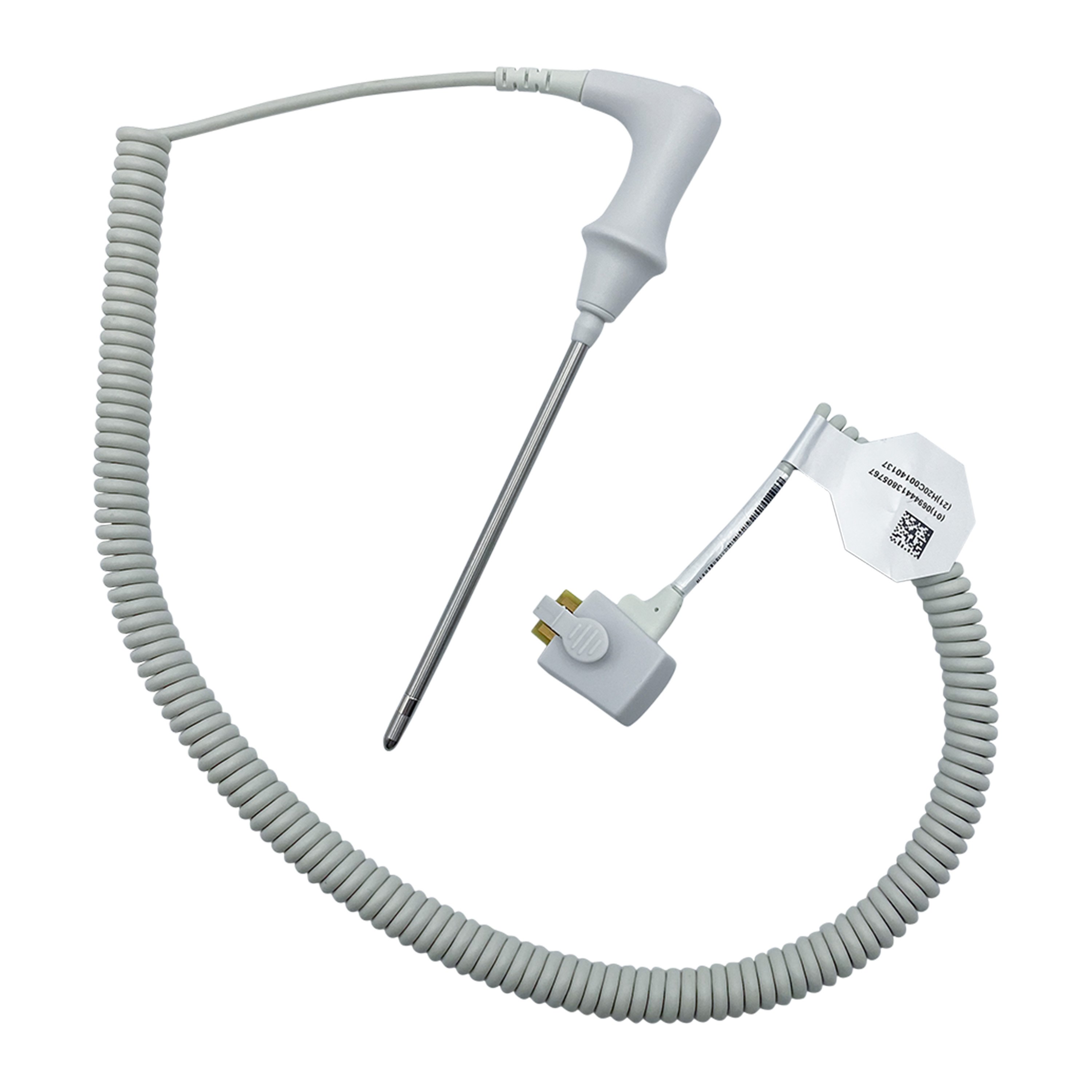

    • Edan Oral Temperature Kit
    • Power Cord (USA Standard)

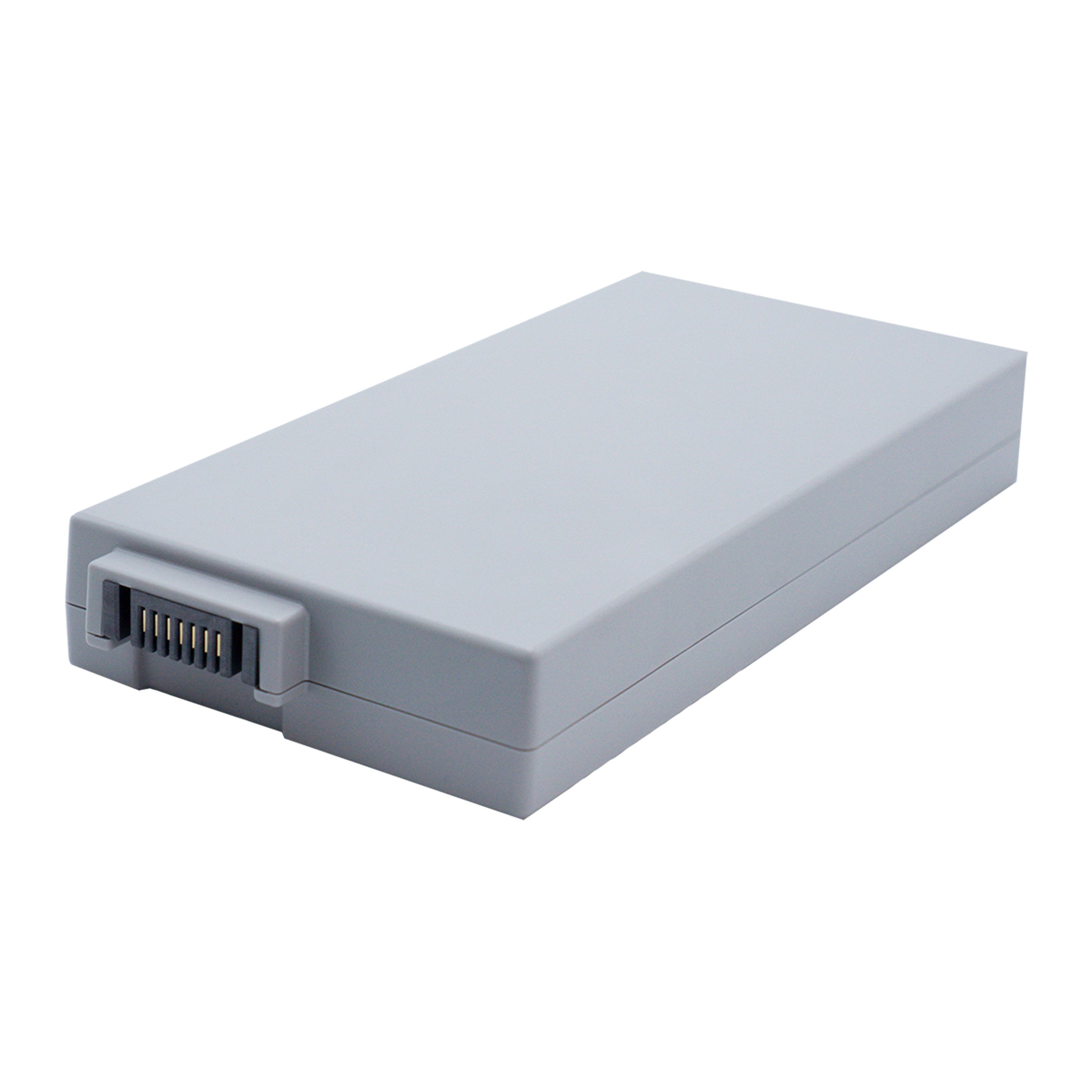

    • Rechargeable Lithium-Ion Battery
    • Ground Cable
    • User Manual
• Available without printer (M3-NST-O) or with printer (M3-NST-O-P) options

Technical Specifications:

• Display:
  • Color TFT LCD: 5.6"
  • Resolution: 640 x 480
• Power Supply: 100 V-240 V, 50 Hz/60 Hz
• Pmax: 70 VA
• Battery Type: Rechargeable Lithium-Ion
• Capacitance: 2500 mAh, 5000 mAh
• Typical Working Period:
  • 2500 mAh: 7 hours
  • 5000 mAh: 14 hours
• Maximum Rechargeable Period:
  • 2500 mAh: 3.5 hours
  • 5000 mAh: 7 hours
• Recorder:
  • Record Width: 48 mm
  • Paper Speed: 12.5 mm/s, 25 mm/s
  • Recording Types: Parameter List, Trend Graph Review, Alarm List, Real-time 8s Waveform, Recording of all the Data of the Current Patient ID, and Real-time Alarm
• Wireless Network:
  • Compliant with Standard and Directive: IEEE802.11b/g, R&TTE Directive (99/5/EEC)
  • Frequency Range: 2.412 GHz ∼ 2.462 GHz
• Interface and Others:
  • USB Port: 1
  • Micro USB Port: 1
  • Network Interface: 1
  • Nurse Call: RJ-45 Network Interface
• Compliant with Standards:
  • IEC 60601-1: 2005+A1:2012
  • EN 60601-1: 2006+A1: 2013: IEC 60601-1-2:2007
  • EN 60601-1-2: 2007; IEC 80601-2-30: 2009
  • ISO 80601-2-61: 2011; ISO 80601-2-56: 2009; IEC 60601-2-49:2011
• Anti-electroshock Type: Class I equipment and internally powered equipment
• Anti-electroshock Degree:

  • BF: SpO2, NIBP, TEMP (TH module, F3000 module)
  • CF: TEMP (T2 module)
• Ingress Protection: IPX1
• Temperature:
  • Working Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
                                        With TEMP: 10 °C ~ 40 °C (50 °F ~ 104 °F)
  • Transport and Storage: -20 °C ~ 55 °C (-4 °F ~ 131 °F)
                                        With TH TEMP module: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
• Humidity:
  • Working: 15%RH ~ 95%RH (Non-condensing)
  • Transport and Storage: 15%RH ~ 95%RH (Non-condensing)
• Altitude:
  • Working: 86 kPa ~ 106 kPa
  • Transport and Storage: 70 kPa ~ 106 kPa
• Warranty: 2 Years
• Overall Dimensions: 7.44" D x 6.85" W x 9.25" H
• Actual Product Weight (Excluding Battery): < 7.72 lbs

Parameters:

• Measuring Range:
  • Monitor Mode: 25 °C ~ 45 °C
  • Predict Mode: 35.5 °C ~ 42 °C
• Sensor Type: Oral/Axillary/Rectal
• Resolution: 0.1 °C
• Accuracy (Monitor Mode): ±0.1 °C (25 °C ~ 45 °C)
• Response Time: < 60 seconds
• Time for Predicting: < 30 seconds
• Measuring Mode: Direct Mode/Adjusted Mode
