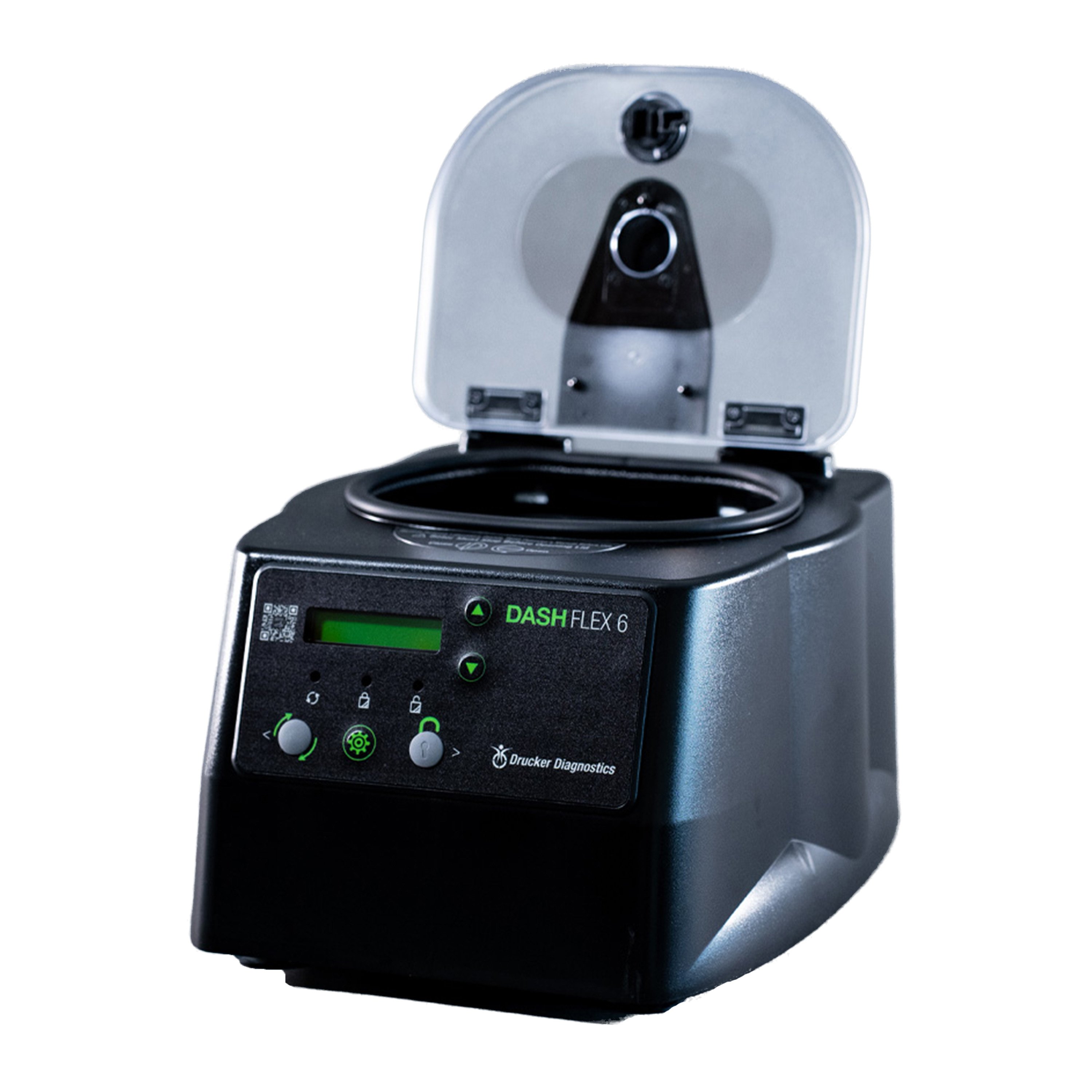

Drucker DASH Flex 6 STAT Centrifuge

The Drucker DASH Flex 6 STAT Centrifuge brings the flexible controls and digital display of the DASH Flex 12 to a more compact design. It saves you valuable bench space and allows you to customize cycle parameters based on your IFUs and unique validation needs.

Features:

• Fits tight spaces with a compact 1.16 ft² footprint
• Includes three pre-programmed settings for STAT chemistry, coag, and PPP
• It features a digital display that clearly shows custom parameters and the time left in each cycle
• Fully Programmable - Easily set and save up to 10 custom time, RPM, and g-force settings
• LED lid lighting that indicates cycle status
• Shortens TAT by using a centrifuge array in accessioning
• Safe and durable for worry-free operation with its brushless DC motor and reinforced carbon fiber components
• A shatterproof lid that locks until the centrifuge has stopped completely and opens
• Positive Lid Latching - Firm mechanical latching of the lid prevents the escape of debris
• 2-Stage Horizontal Rotor - Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
• Cool Operation - Unique design of the convection-based cooling system protects the samples even under the heaviest workloads
• Certified to US, Canadian, and European Safety regulations and standards
• It includes a rotor and the Drucker Carrier, Carbon Fiber - 1 x 10 mL (03-1-0007-0046K)

Technical Specifications:

• Maximum Capacity: Up to 6 tubes
• Tube Sizes: Up to 16 x 100 mm or 10 mL
• Maximum RPM: 5,400 RPM
• Maximum G-Force: 4,150 xg
• Centrifuge Motor: 1/2 H.P. Brushless DC
• Maximum Acceleration Time: 20 seconds
• Maximum Deceleration Time: 20 seconds
• Sound Level: 61 dBA
• Factory Setting Range: 1 to 30 minutes (± 1%)
• Voltage: 100 - 240 (+/- 10%) VAC
• Current Consumption: 2.2 A at 115 VAC, 1.1 A at 230 VAC
• Frequency: 50/60 Hz
• Maximum Power Requirement: 220 W
• Standard Preset Cycles:
  • Cycle 1: 3 minutes / 5,300 RPM / 4,000 xg
  • Cycle 2: 5 minutes / 5,300 RPM / 4,000 xg
  • Cycle 3: 10 minutes / 3,800 RPM / 2,000 xg
• Set-up Site: Indoor use only
• Altitude: Up to 2,000 m from sea level
• Ambient Temperature: 5°C to 40°C
• Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
• Overvoltage Category: II
• Pollution Degree: 2
• Applications: Blood Chemistry, Pediatric Samples, PPP/Coag, STAT Processing
• Overall Dimensions: 14" D x 12" W x 9" H
• Actual Product Weight: 12 lbs
