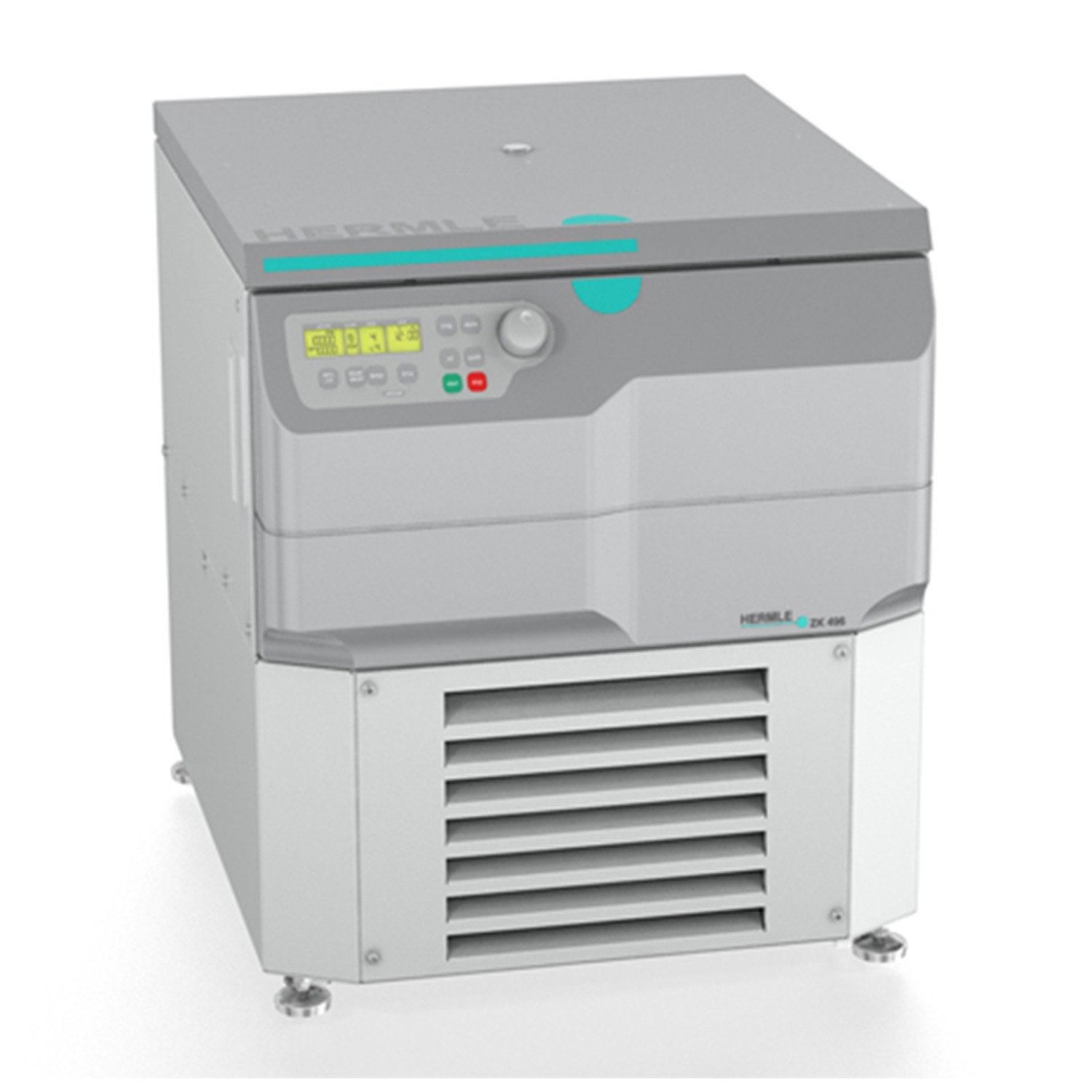

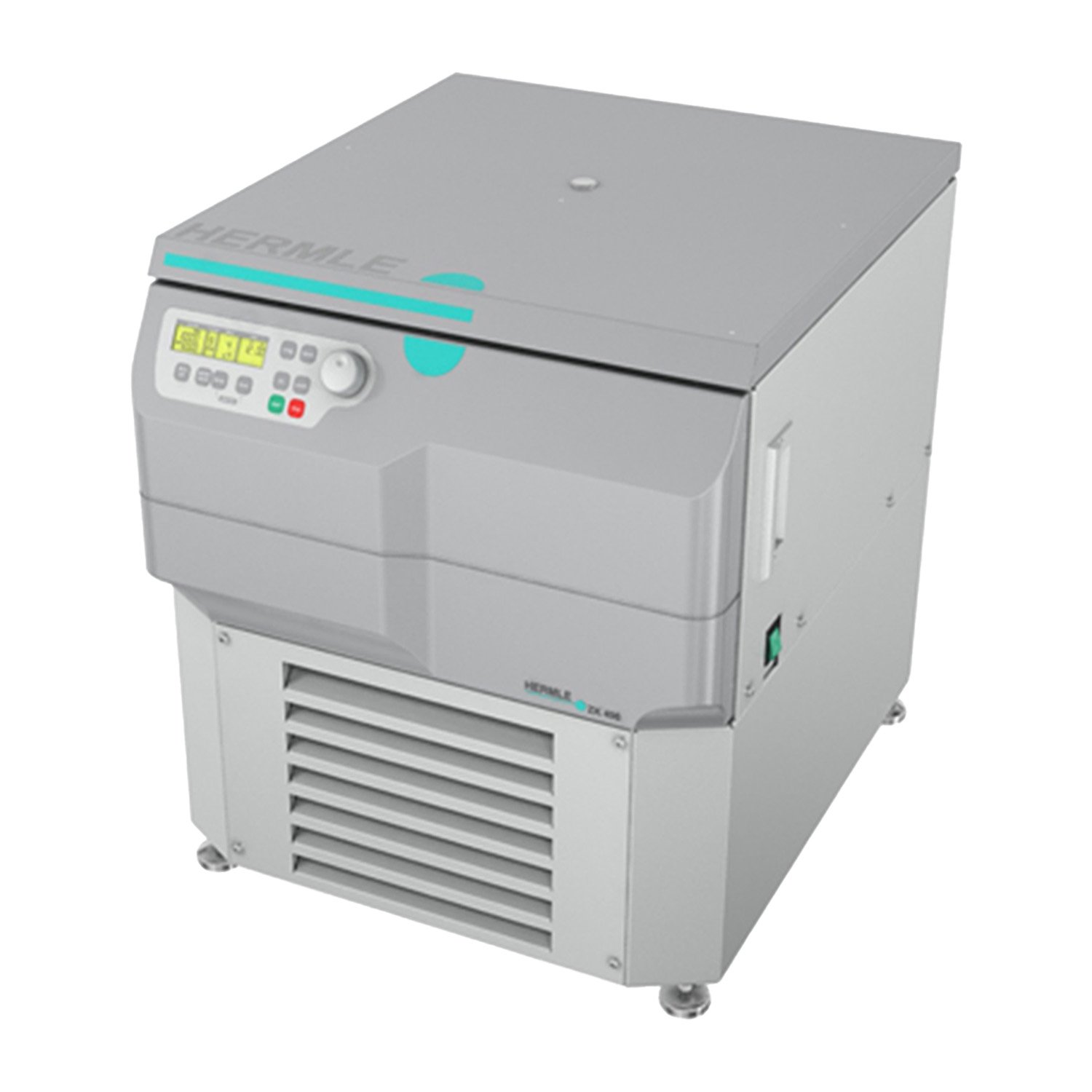

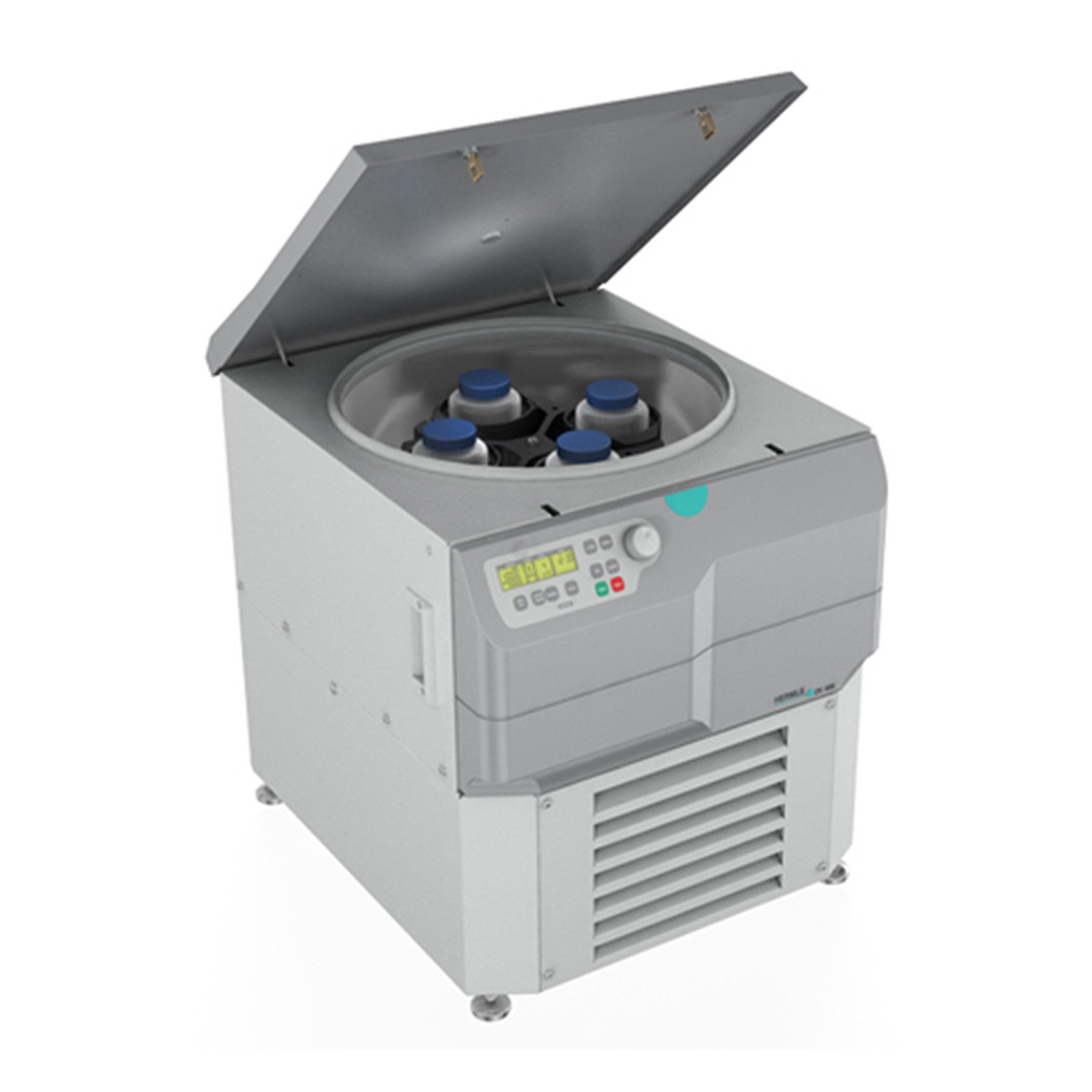

Hermle Ultra High-Capacity Underbench Centrifuge

The Hermle Ultra High-Capacity Underbench Centrifuge features a stable, robust steel construction that ensures excellent mechanical reliability and protection. It is compatible with various rotors and adapters, and offers the highest capacity for tubes, bottles, plates, and blood bags. It is ideal when under-counter storage is preferred.

Features:

• Space Saving - It is easily placed below a standard laboratory table
• Ultra High Capacity - Accommodates as many as 4 x 1000 mL, 98 x 15 mL, or 40 x 50 mL per run. Also accepts 500 mL or 750 mL blood bags
• Motor-Driven Lid Lock - An electromagnetic lid lock closes the lid. The centrifuge will not start until the lid is locked
• Automatic Radio-Frequency Rotor Identification System (RFID) - With over-speed protection, activated immediately upon rotor insertion. There is over-speed protection incorporated for each rotor
• Automatic Imbalance Shut-Off System - If the rotor is not equally loaded, the drive will turn off during acceleration. The rotor decelerates to a standstill
• Error Code System - For quick issue detection
• "Pre-cooling" Function - Specific to each rotor for maximum efficiency. Depending on the inserted rotor, the pre-cooling lasts between 10 minutes and 20 minutes
• Standstill Cooling - Ensures continued temperature control after the rotor stops
• Ergonomic, User-Friendly Panel - Allowing simple one-handed operation
• Glove-Friendly Controls - Easy to program with gloves on, so there’s no need to remove them during operation
• Permanent Indication of Preset and Current Values - All values will be shown permanently in the display before, during, and after the run
• Storage of up to 99 Different Programs - All relevant parameters, including rotor selection
• "Quick" Key for Short Runs - Accelerates up to the pre-selected revolution and will stop by releasing it
• Selection of Speed - Both RPM and G-Force, in increments of 10
• 10 Acceleration and Deceleration Rates - Possibility of unbraked deceleration
• Timer - Allows the centrifuge to start at the preselected time
• Audible Signal at the End of Each Run - With several melody options
• Equipped with Wheels - Easy maneuverability around the laboratory, and can also be set in place on its feet when needed
• Hermetically Sealed Buckets - Safely contain harmful aerosols, protecting users and the lab environment
• Manufactured according to International Safety Regulations, i.e., IEC 61010
• Holds tubes and bottles up to 1000 mL in size
• Maintenance-free induction drive
• Microprocessor with a large LCD
• CFC-free refrigeration system
• Splash-proof

Technical Specifications:

• Maximum Speed: 10500 RPM
• Maximum RCF: 16022 xg
• Maximum Volume: 4 x 1000 mL
• Speed Range: 200 RPM - 10500 RPM
• Temperature Range: -20°C to 40°C, in increments of 1°C
• Running Time:
  • 10 seconds up to 59 minutes 50 seconds/10 seconds increments
  • 1 hour up to 99 hours 59 minutes/1 minute increments
  • Continuous run
• Power Input: 2.3 KW
• Power Supply: 230V, 50-60Hz
• Material: Stainless steel chamber
• Warranty: 1 Year
• Overall Dimensions: 24.4" W x 27.5" H x 27" D
• Actual Product Weight: 346 lbs

*Please Note: Rotors, buckets, adapters, and tubes are sold separately.
