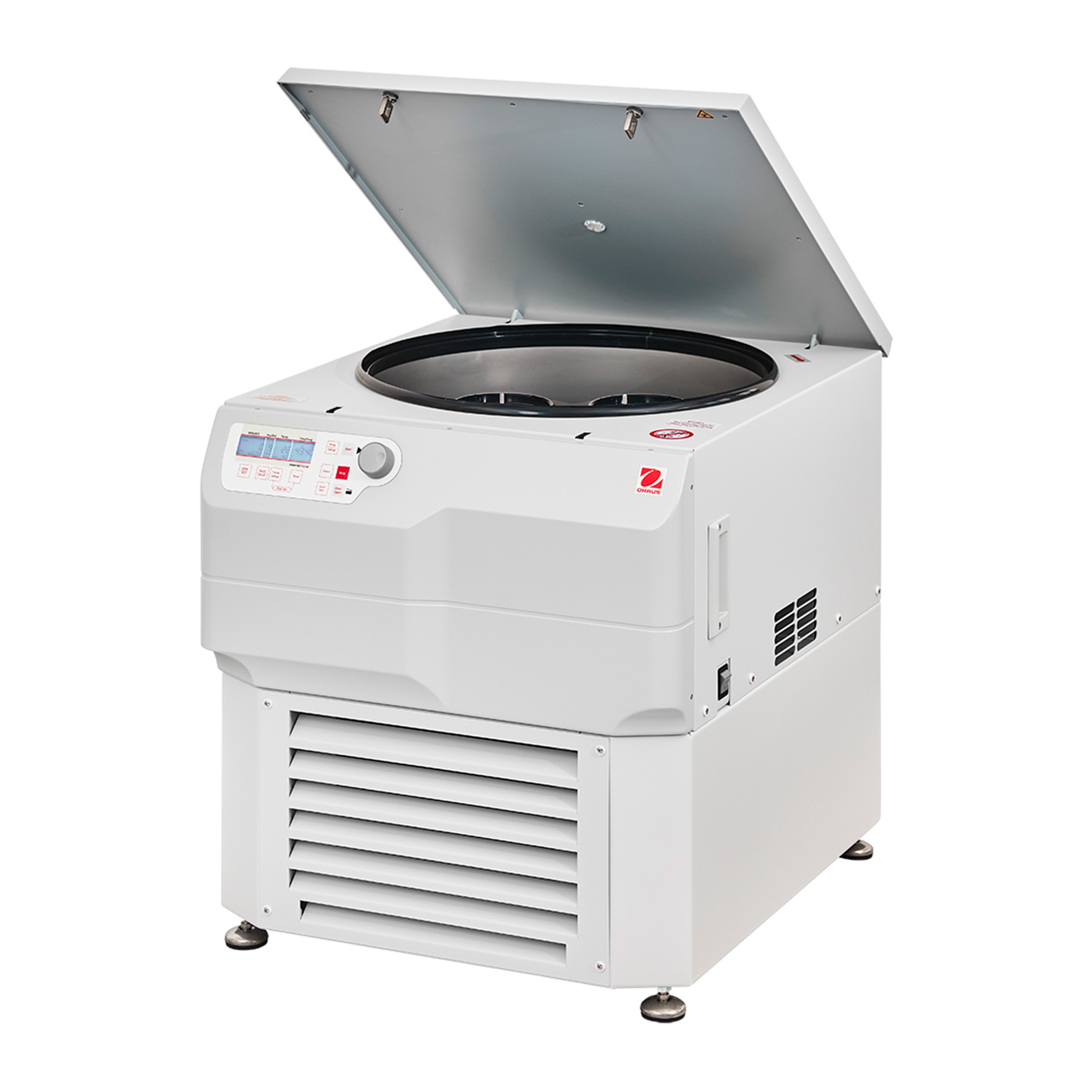

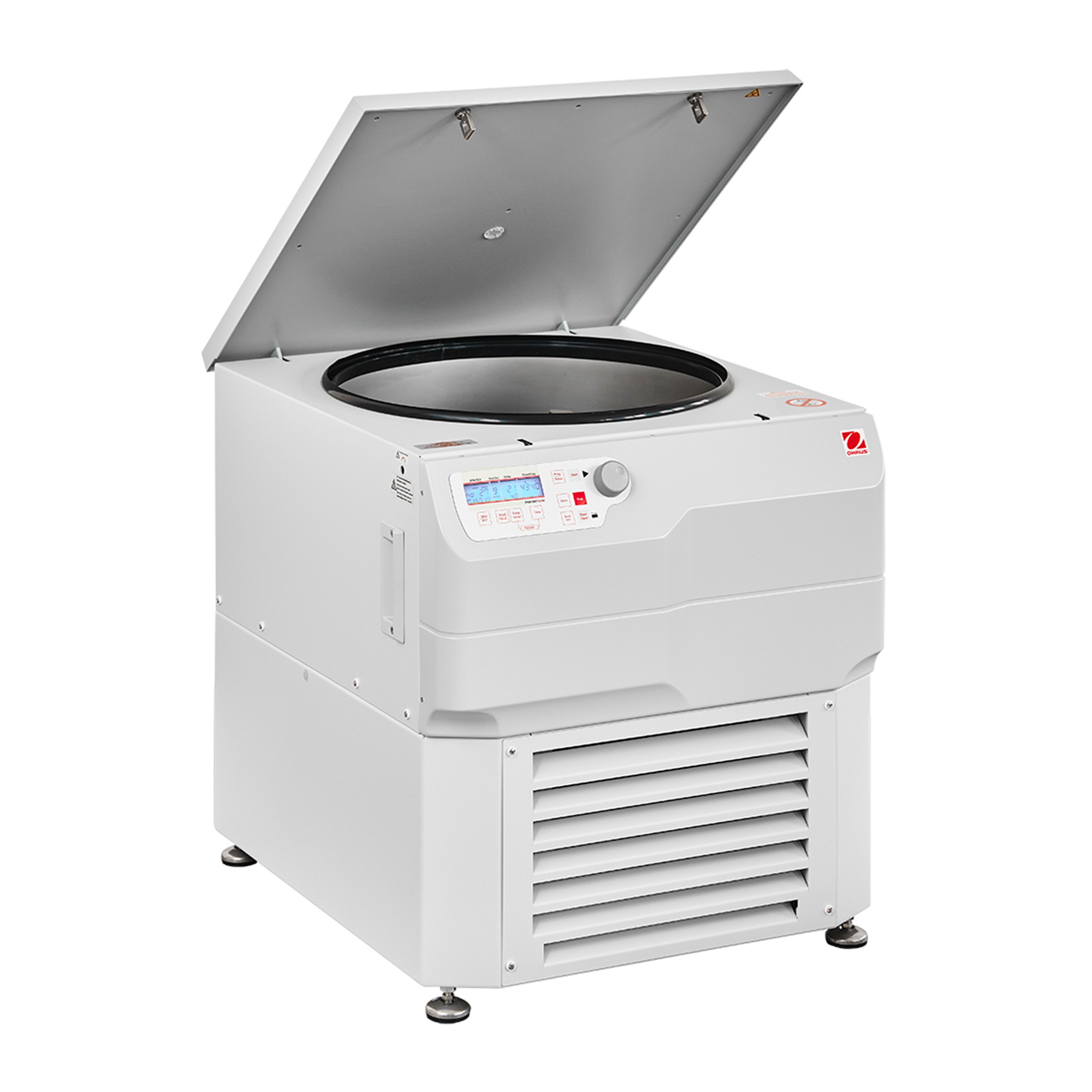

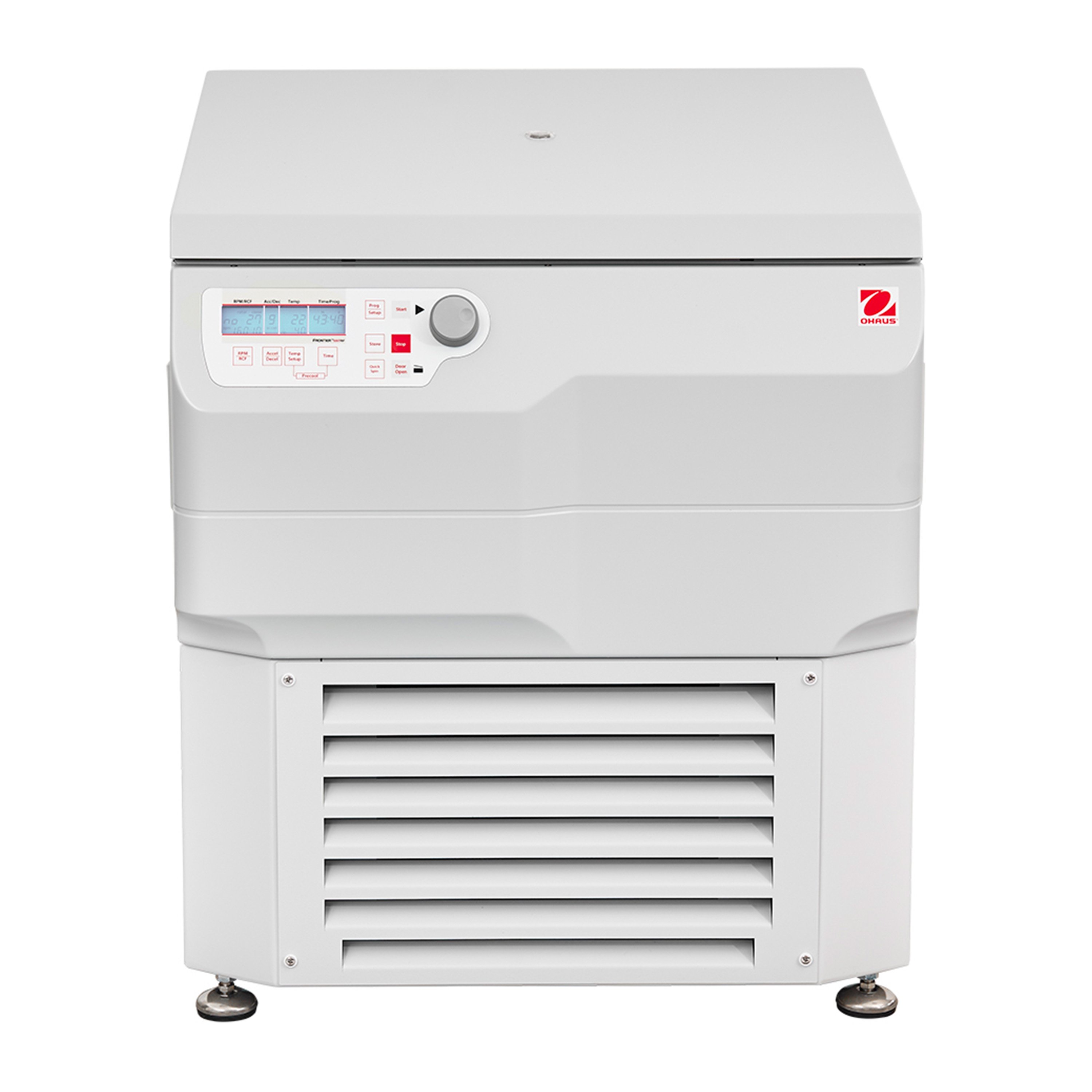

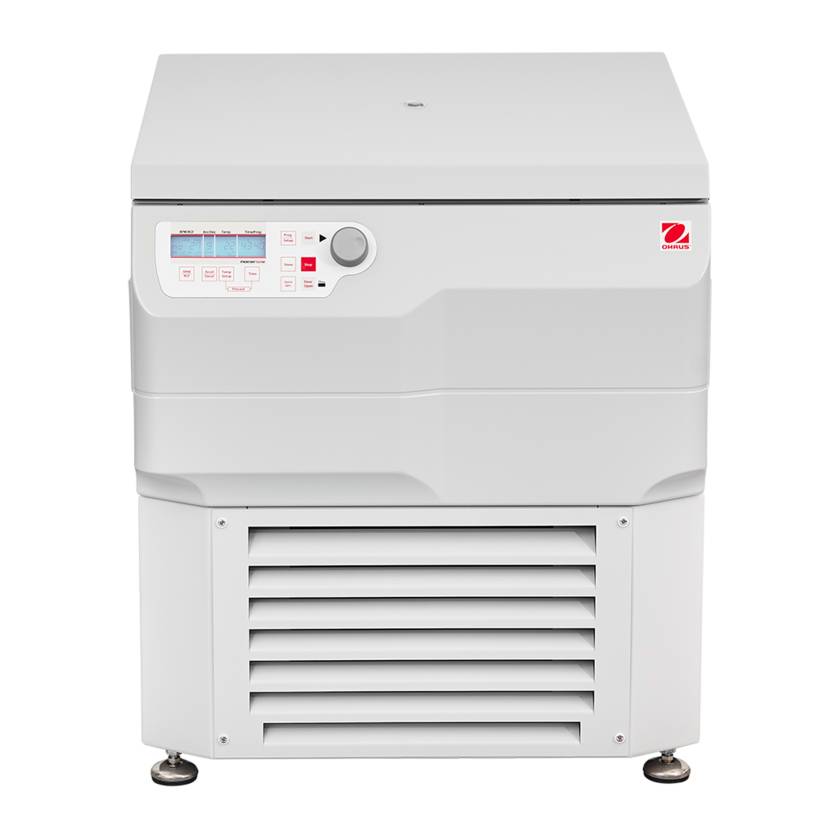

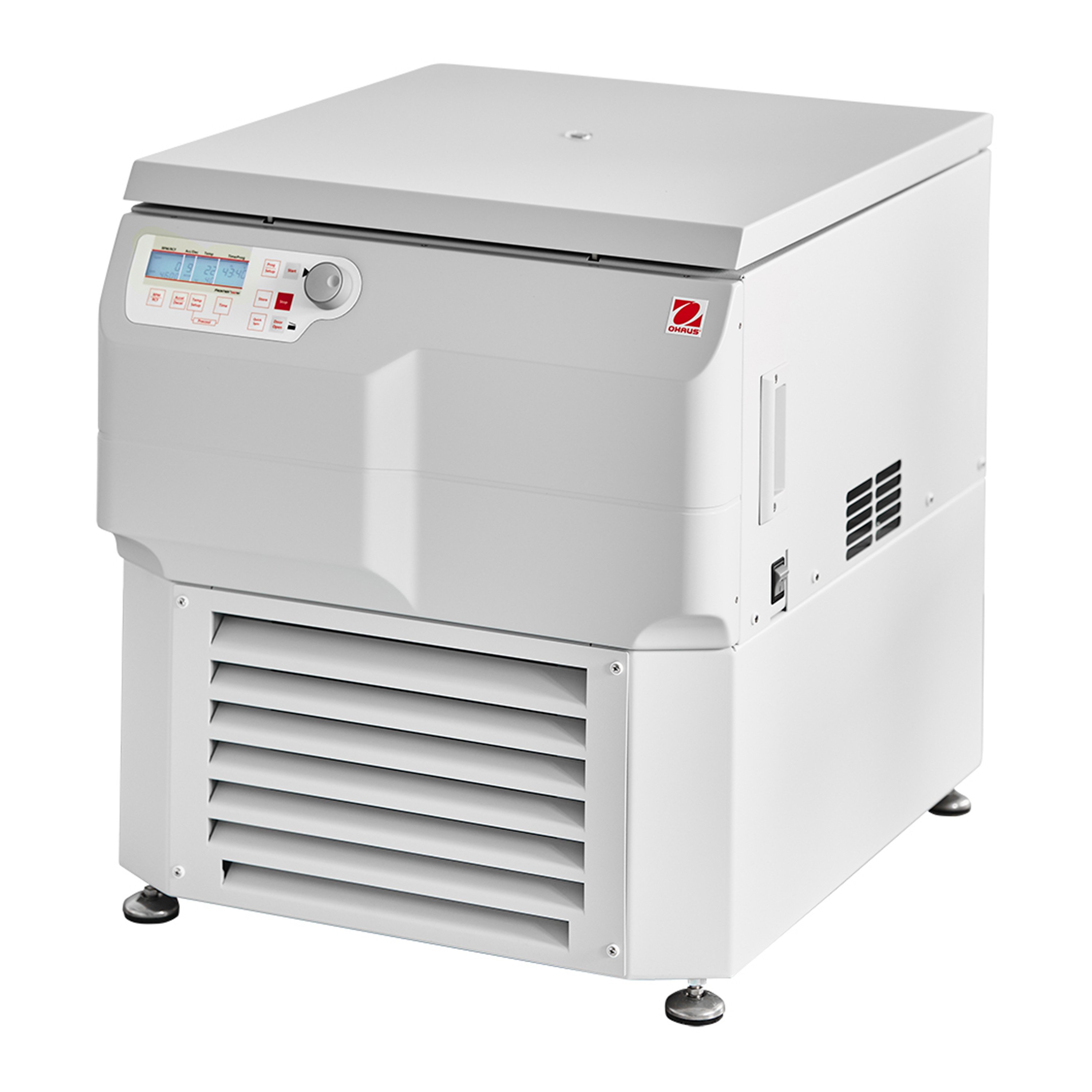

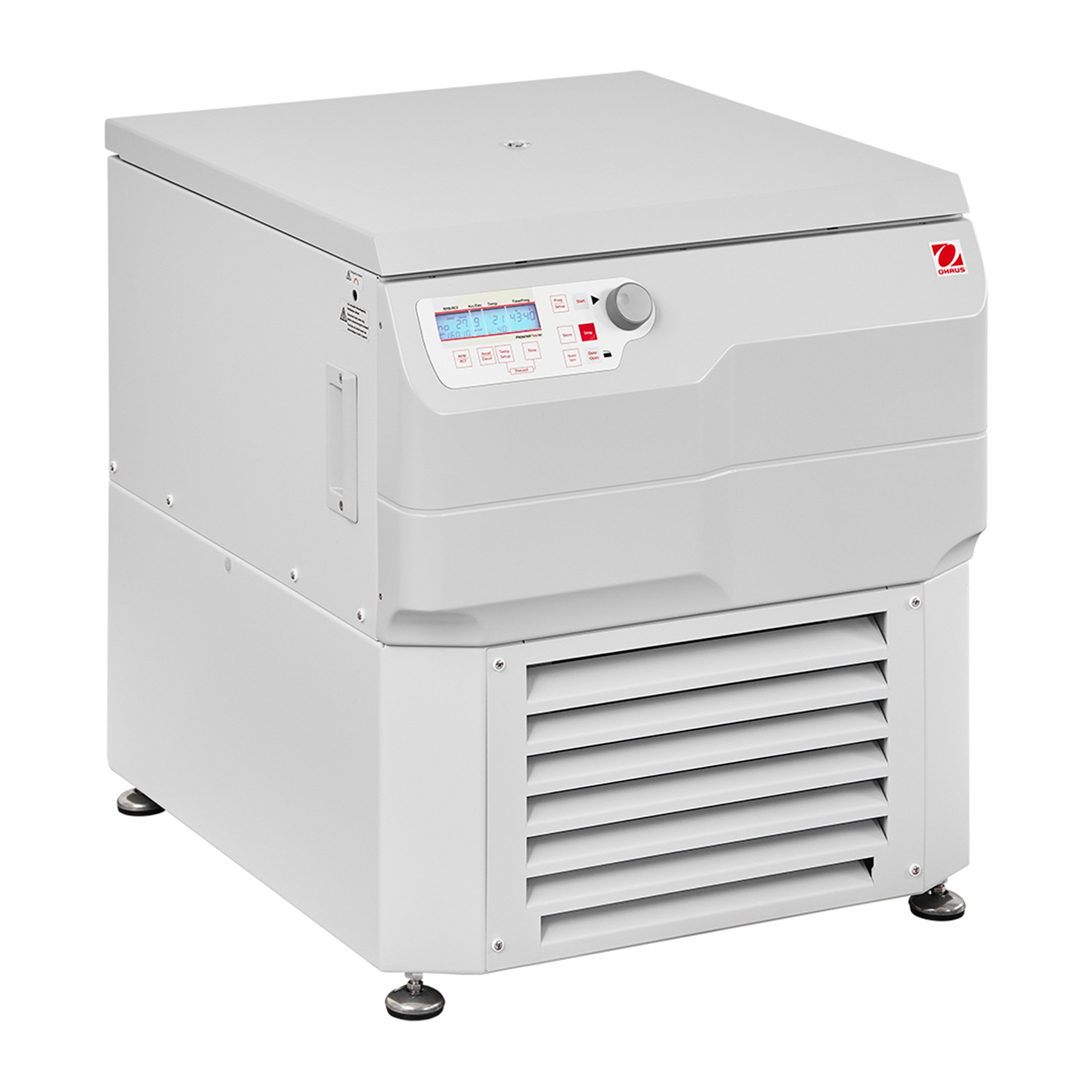

OHAUS FC5917RF Short Frontier™ 5000 Series Multi Pro Centrifuge

The OHAUS FC5917RF Short Frontier™ 5000 Series Multi Pro Centrifuge is designed for universal use across research, industrial, and clinical applications. It features high-speed performance at maximum volume, automatic rotor identification, and safety features.

Features:

• It is considered the under-bench unit of the FC5917RF series centrifuge
• Less Environmental Impact - R290 refrigerant is a 99% reduction in global warming potential as compared to R452A
• Performance without Compromise - Reduced environmental footprint without giving up current performance
• R models offer refrigeration capabilities ranging from 104°F to -4°F/40°C to -20°C
• Ability to spin a variety of bottles, tubes, and plates in either fixed-angle or swing-out rotors
• Ergonomically designed height, allowing for easy loading and unloading of samples
• Integrated wheels make it easy to move around, lending to even more flexibility
• 6 rotor configurations for a broad spectrum of applications and workflows. From high-throughput samples all the way to cell and blood separation
• Can spin up to 192 blood tubes or 96 15ml conical tubes and 40 to 50 mL conical tubes
• Provide a high-speed centrifugation platform that can be customized to your workflow using a wide range of rotors and accessories
• Intuitive, easy-to-read backlit LCD shows centrifugation settings and real-time parameters on one interface
• Pre-cooling program to quickly reach the desired temperature
• Program storage up to 99 runs, including parameter settings and rotor types
• Engineered in Germany with high-quality components for reliable use
• Made of chemical-resistant stainless steel to ensure durability in laboratory use
• Equipped with protective features, including automatic over-speed protection, imbalance detection, and a self-diagnostic system to ensure reliable use and operator safety
• Maintenance-free induction drive and a thread-free rotor locking mechanism
• Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
• Over-speed protection, immediately upon rotor insertion

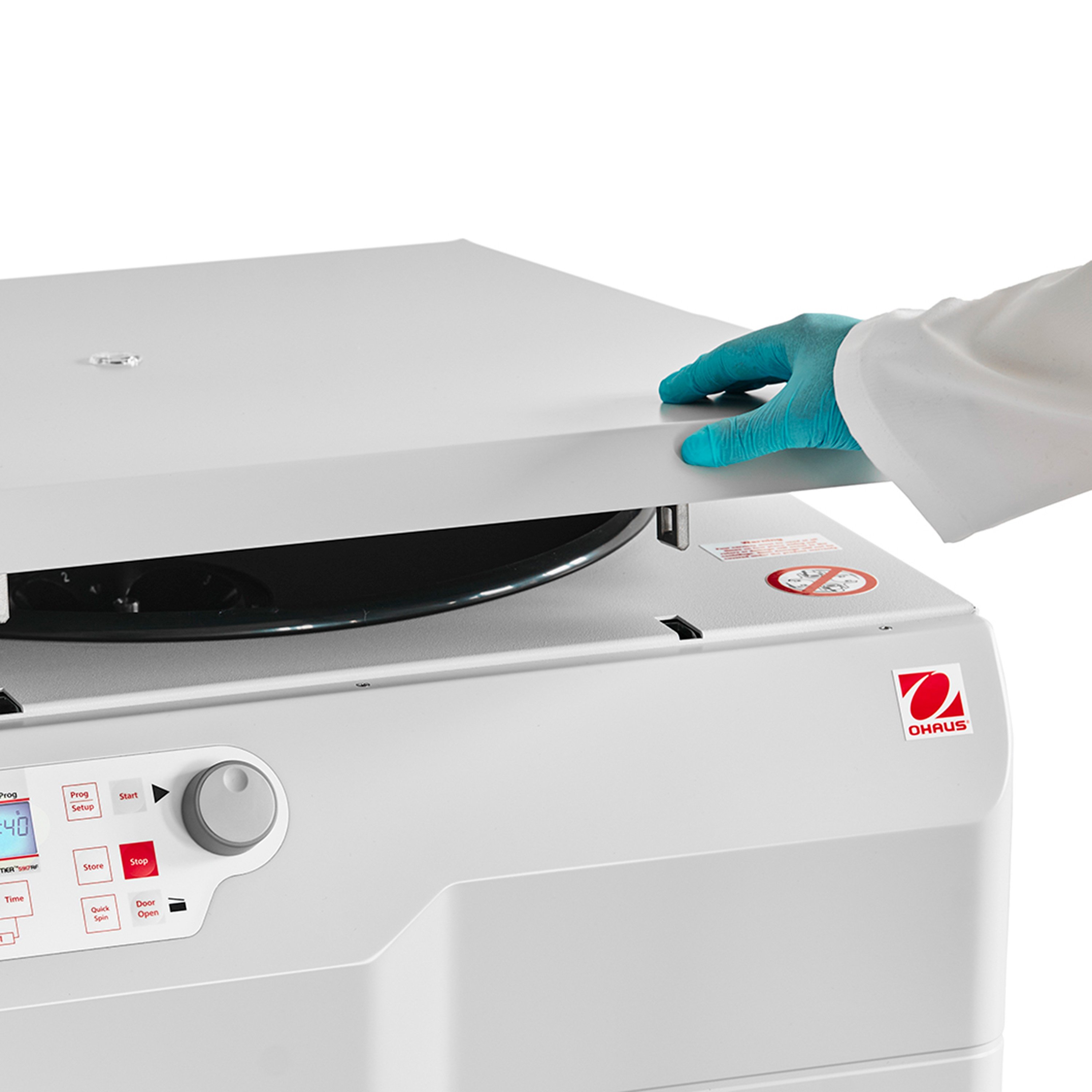

• Motorized Lid-locking System - It prevents the centrifuge from opening during operation
• Active imbalance-detection with individual imbalance tolerances set for each rotor
• Sealed and TUV certified, BIOSEALS rotors safeguard operators from harmful aerosols

Technical Specifications:

• Speed Range: 200 RPM - 16,010 RPM; 10 RPM/set
• Maximum RCF: 26,361 x g; 10 x g/set
• Maximum Capacity (Rotor): 4 x 1000 mL
• Program Memories: 99
• Acceleration Gear: 10
• Deceleration Gear: 10
• Display: LCD with backlight
• Lid Lock: Motor Driven
• Rotor Recognition Method: Auto
• Temperature Range: -20 °C - 40 °C
• Working Environment Temperature: 5°C – 35°C, 80% RH, non-condensing
• Altitude: Use up to an altitude of 2,000 m
• Rotor Compatibility: Angle 4 x 85 mL RB ID Hi, Angle 6 x 250 mL FB ID, Angle 10 x 50 mL FA ID, Swing out 4 x 1000 mL ID Sealable, Swing out 4 x 750 mL ID Sealable, Rotor Angle 4 x 500 mL ID
• Running Time: 10 sec to 99 hr 59 min 59 sec or continuous
• Noise Level (Varies by rotor): ≤ 63±2 dB(A)\
• Allowable Density at Maximum Speed: 1.2 g/mL
• Allowable Kinetic Energy: 70,412 Nm
• AC Power: 230V, 50-60 Hz
• Fluctiation: ± 10%
• Current Composition: 13 A
• Power Consumption: 2300 W
• ECM: EN/IEC 61326-1 Class B emissions, Basic immunity FCC Class B emissions
• Applications: Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
• Overall Dimensions: 27.20" L x 27.60" H x 24.40" W
• Actual Product Weight: 346 lbs

*Please Note: Rotors, buckets, racks, adapters, tubes, and other accessories are sold separately.
