Product Description

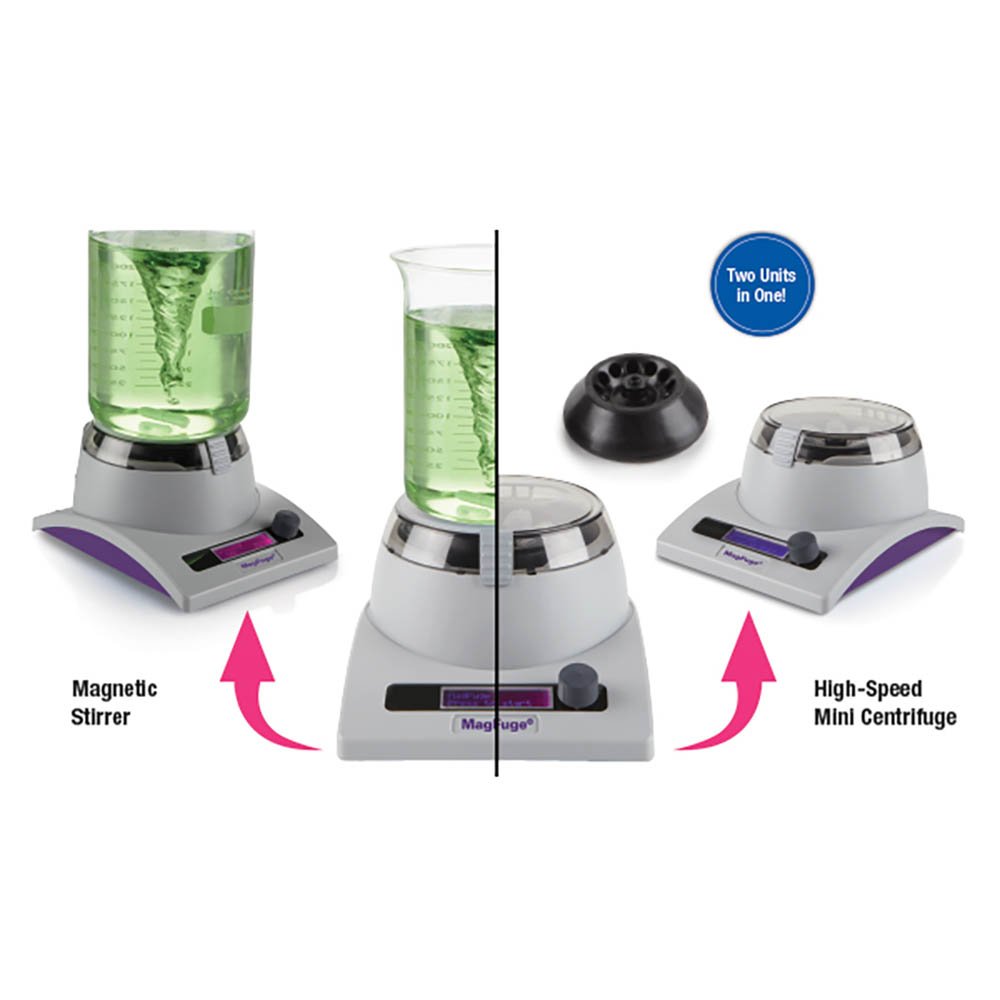

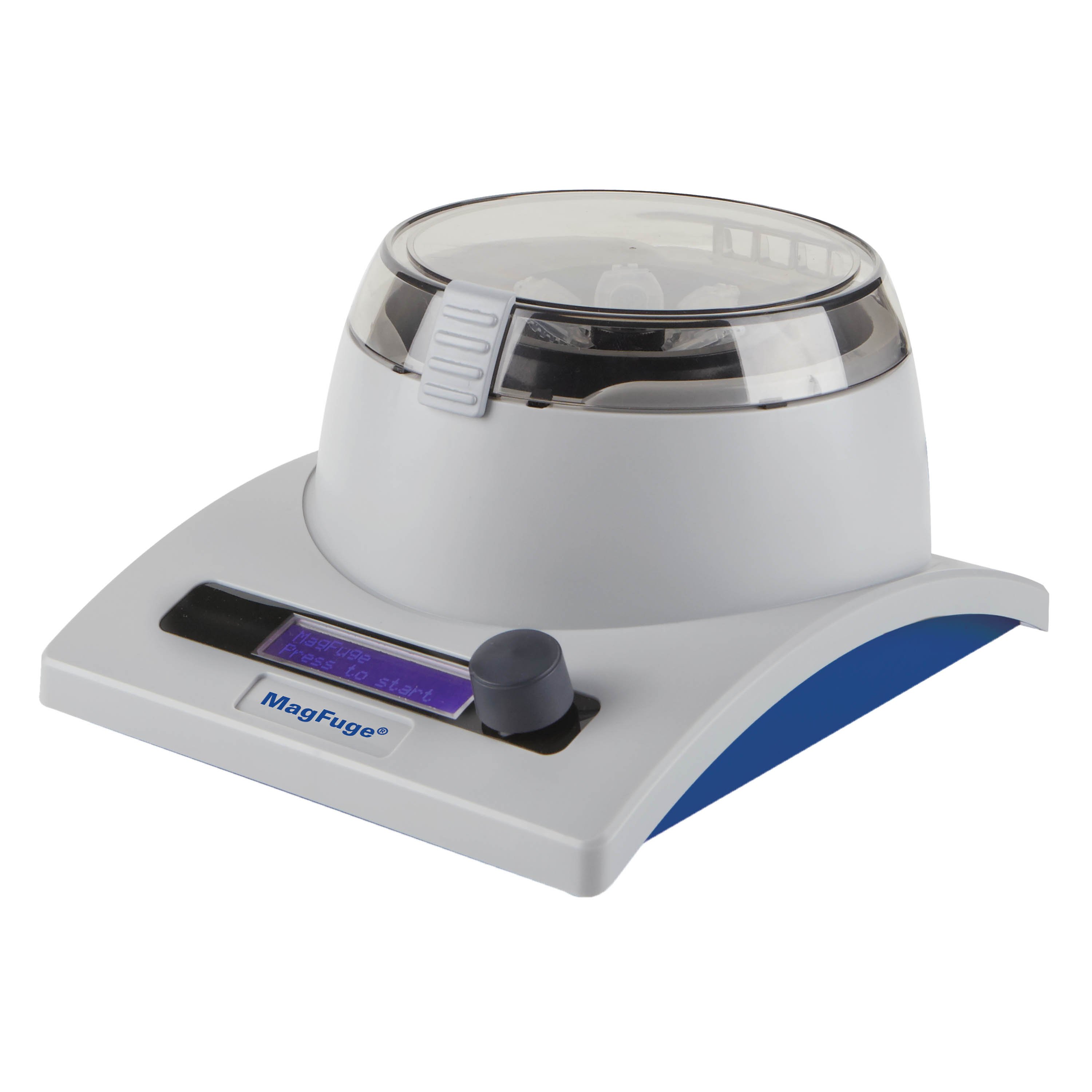

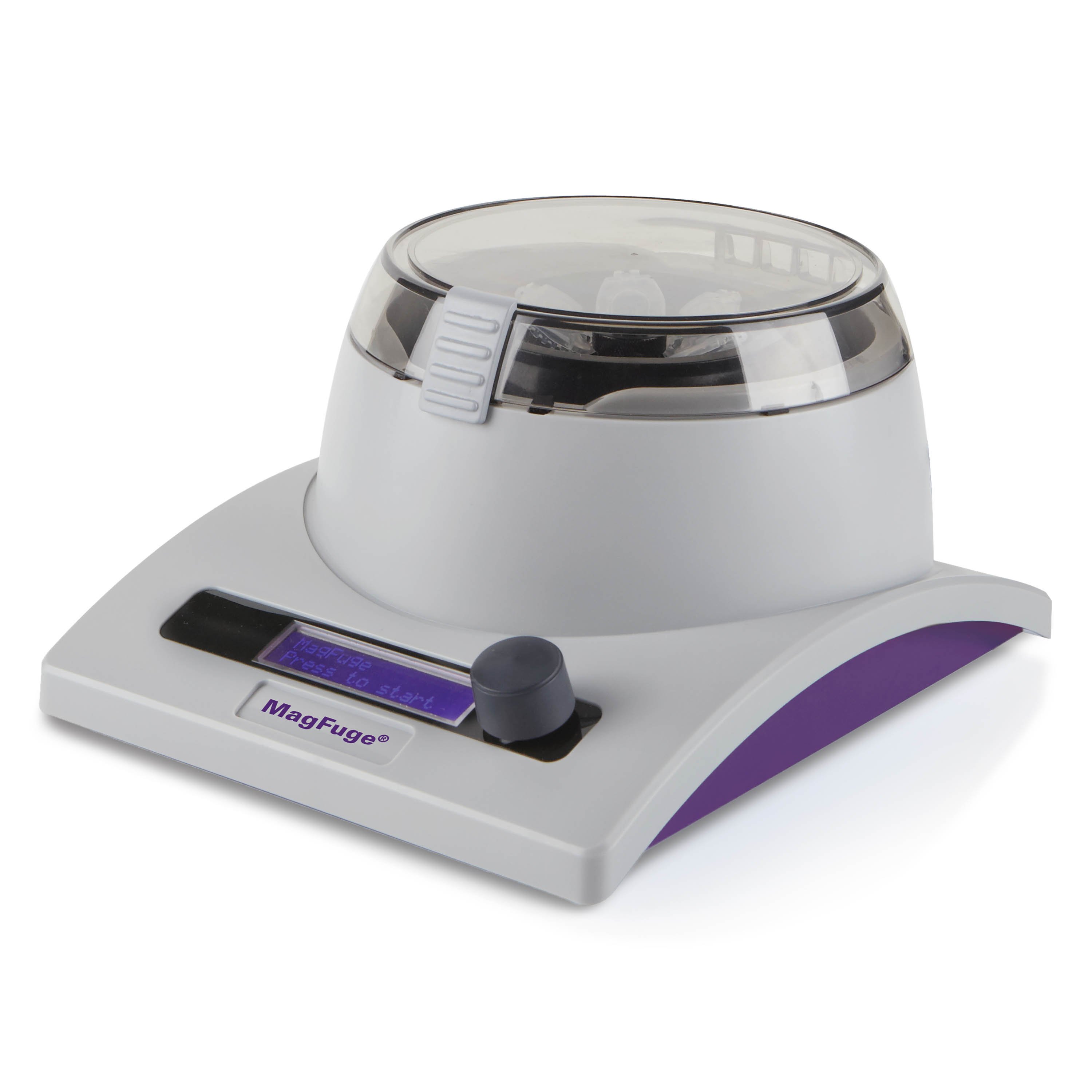

MagFuge® - The Industry’s first High-speed Centrifuge and Magnetic Stirrer in ONE unit!

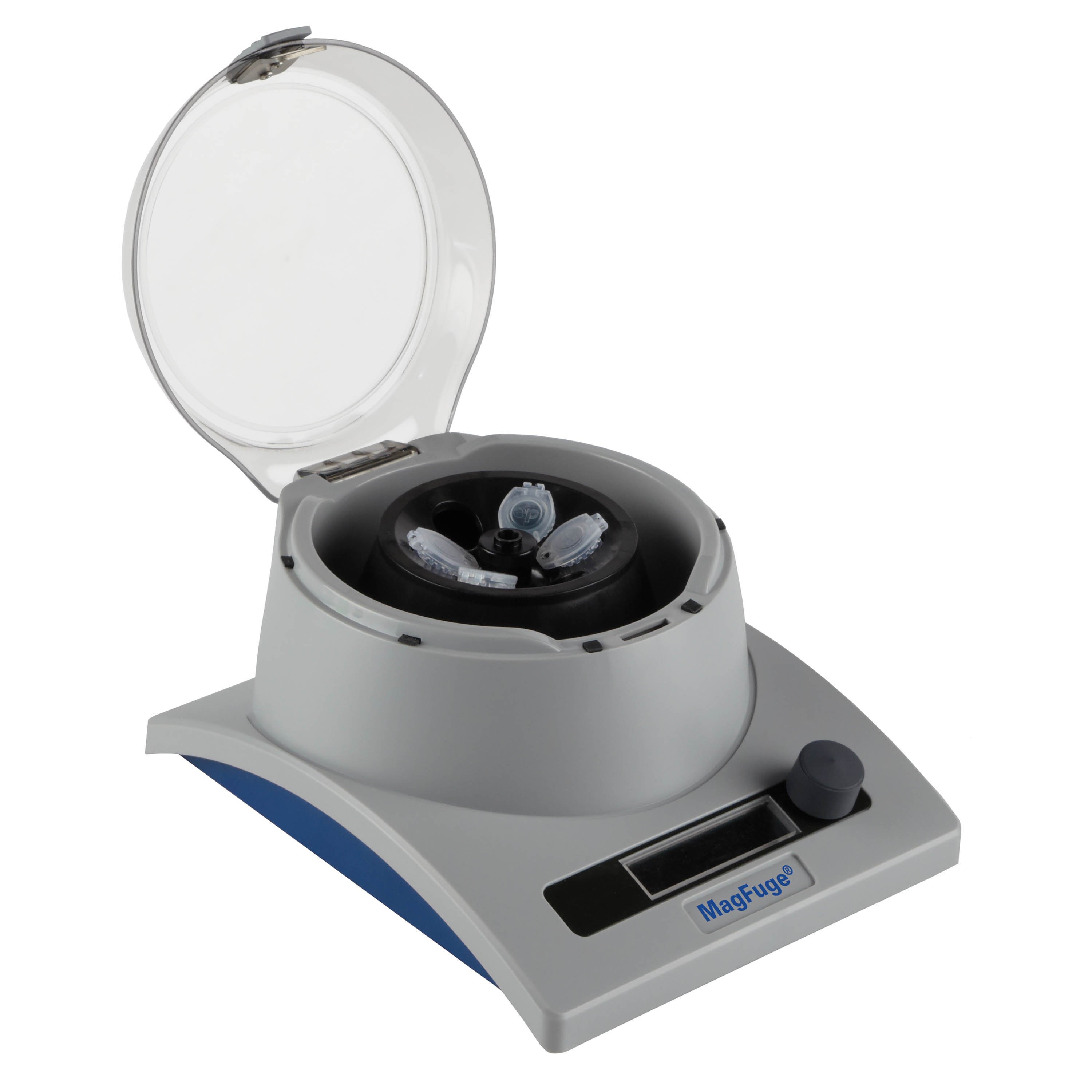

High-speed Centrifuge is easy to use and designed to deliver maximum speed (12,500rpm/9,783x g) and flexibility with rapid acceleration and fast controlled breaking. Ideal for most protocols requiring fast spins including PCR, micro- filter cell separation and HPLC. Versatility to handle 0.2, 0.5, 1.5, 2.0 and 5.0 mL tube sizes.

  • Speed Range:
    • 500 – 999 rpm (increments of 1); 1,000
    • 5,000 rpm (increments of 5)
    • 5,000 – 12,500 rpm (increments of 25)
  • RCF: 16 – 9,783 x g (max RCF calculated)
  • Run Time Ranges: 30 seconds – 60 minutes (5 second increments)
  •  Capacity:
    • 12 place 1.5/2.0 mL tube rotor: 24 mL total maximum liquid volume (Including tube adapters for 0.2/0.5 mL tubes)
    • 6 place 5 mL tube rotor: 30 mL total maximum liquid volume

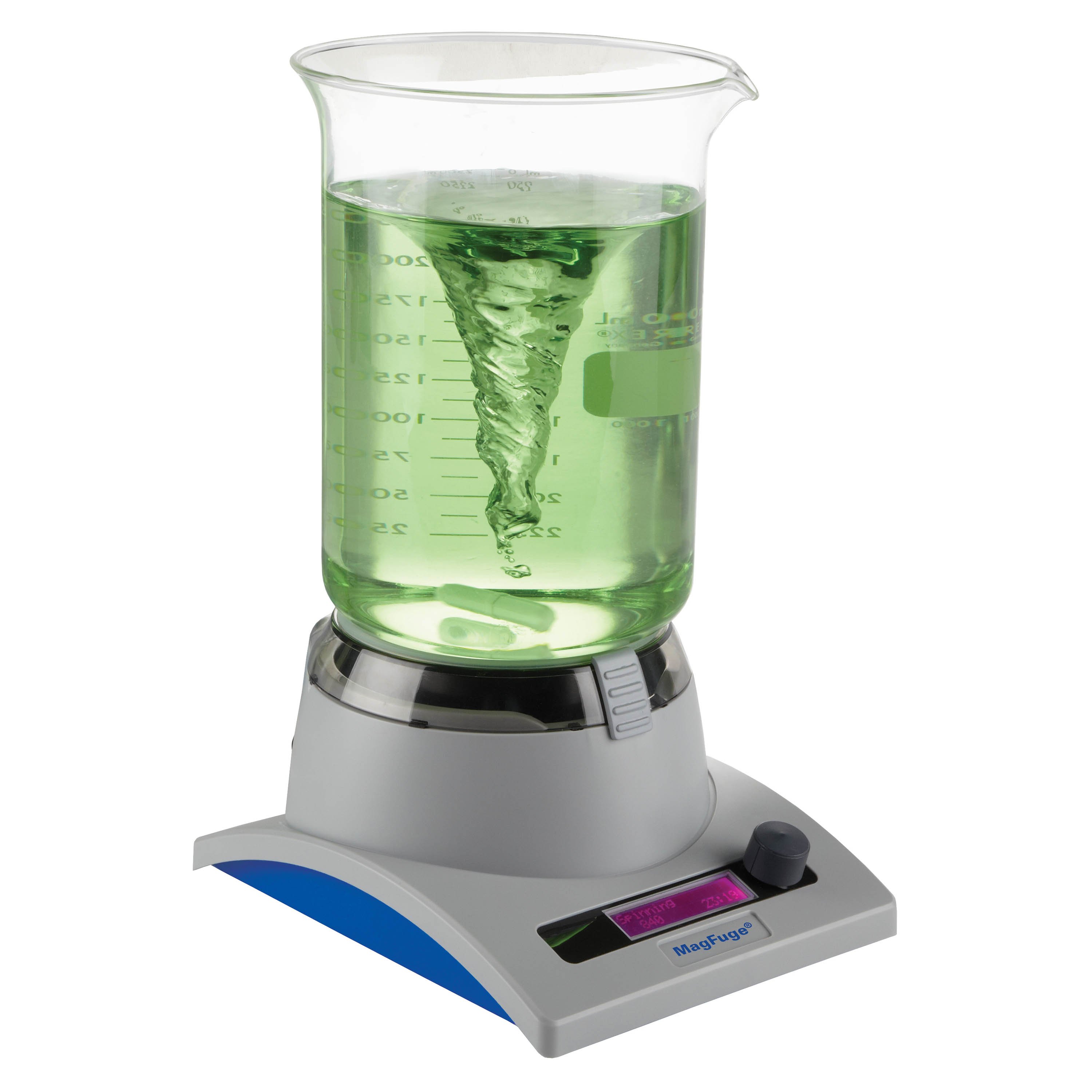

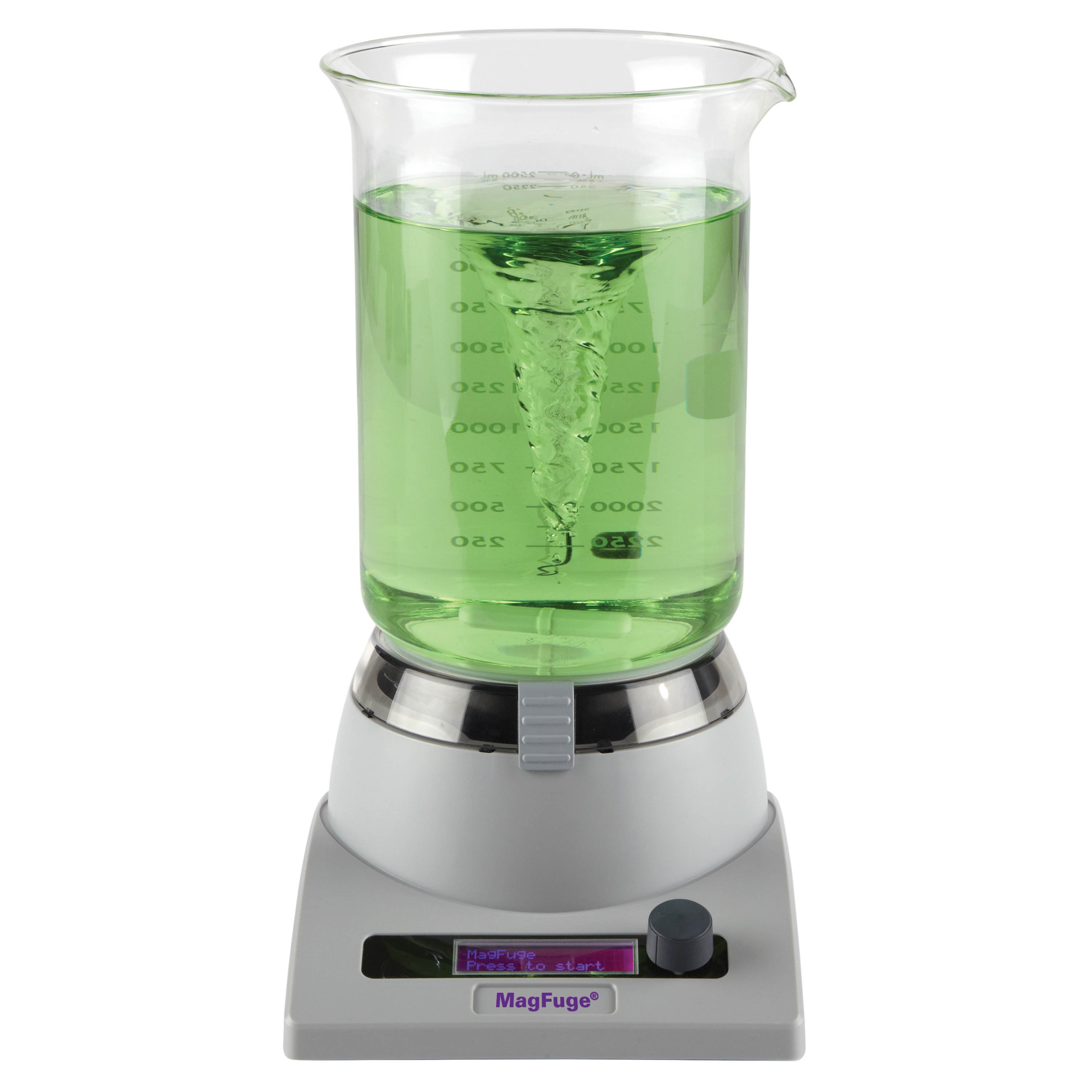

High-performance Magnetic Stirrer is designed using high quality rare earth magnets creating a robust magnetic coupling that significantly reduce the chance of spin-outs. Perfect for work with sensitive samples and protocols up to 3L requiring aggressive mixing for full dilution.

  • Speed Range:
    • 50 – 999 rpm (increments of 1)
    • 1,000 – 2,500 rpm (increments of 5)
  • Run Time Range:
    • Stirrer Mode: 30 seconds to 60 minutes or continuous (5 second increments)
    • Oscillating Stirrer Mode: 1 second – 60 minutes or continuous
    • Oscillating Period: 30 seconds – 15 minutes
  • Capacity: 3 L plus, Diameter of vessel not to exceed 130mm
  • Plate Dimensions: Approx. 130mm diameter

Specifications

  • Power: Low Voltage, Double Insulated Power Adapter (100-240 VAC, 50/60 Hz) with 4 Interchangeable Plugs
  • Weight: 1.85 kg (4.08 lb)
  • Certifications: CE, SGS, RoHS3, WEEE
  • Operating Temp: Range 2°C to 40°C
  • Warranty: Five Year

Package Includes

  • MagFuge® Centrifuge/Stirrer
  • Three Rotors: 5 mL Tube Rotor, 1.5/2.0 mL Tube Rotor, Stirrer Rotor
  • 12 Tube adapters for 0.2 mL
  • 12 Tube adapters for 0.5 mL
  • 2 Silicone mats for stirrer lid
  • 2 Rare-Earth PTFE coated Stir Bars, 35 x 12mm cylindrical shape
  • 1 Low voltage, double insulated power adapter with 4 interchangeable plugs

Intuitive One-Dial Programming

  • Set speed and time with ease
  • Adjustable speed from 500 to 12,500 rpm
  • Speed setting for RPM or RCF
  • Adjustable time from 30 seconds to 60 minutes

Safe to Use - Safety features help ensure it will not operate when the lid is open, a rotor is jammed, or the unit is out of balance

Easy to Use

  • Set stir mode, speed and time with easy one-dial programming
  • Select Mode: clockwise, c. clockwise and oscillate
  • Adjustable speed from 50 to 2,500 rpm
  • Continuous and adjustable time settings from 30 seconds to 60 minutes

Specifications

Specifications
Manufacturer Heathrow Scientific
Actual Product Weight 4.08 lbs
Overall Height 4.7"
Overall Length 9.2"
Overall Width 7.3"
Country of Manufacture China
Item Ships From Illinois
