LW Scientific Zip-IQ TT Centrifuge

The LW Scientific Zip-IQ TT Centrifuge is a 6-place test tube centrifuge designed for compact, rapid, and efficient sample processing of blood, urine, and other fluids in 0.5 mL to 15 mL tubes.

Features:

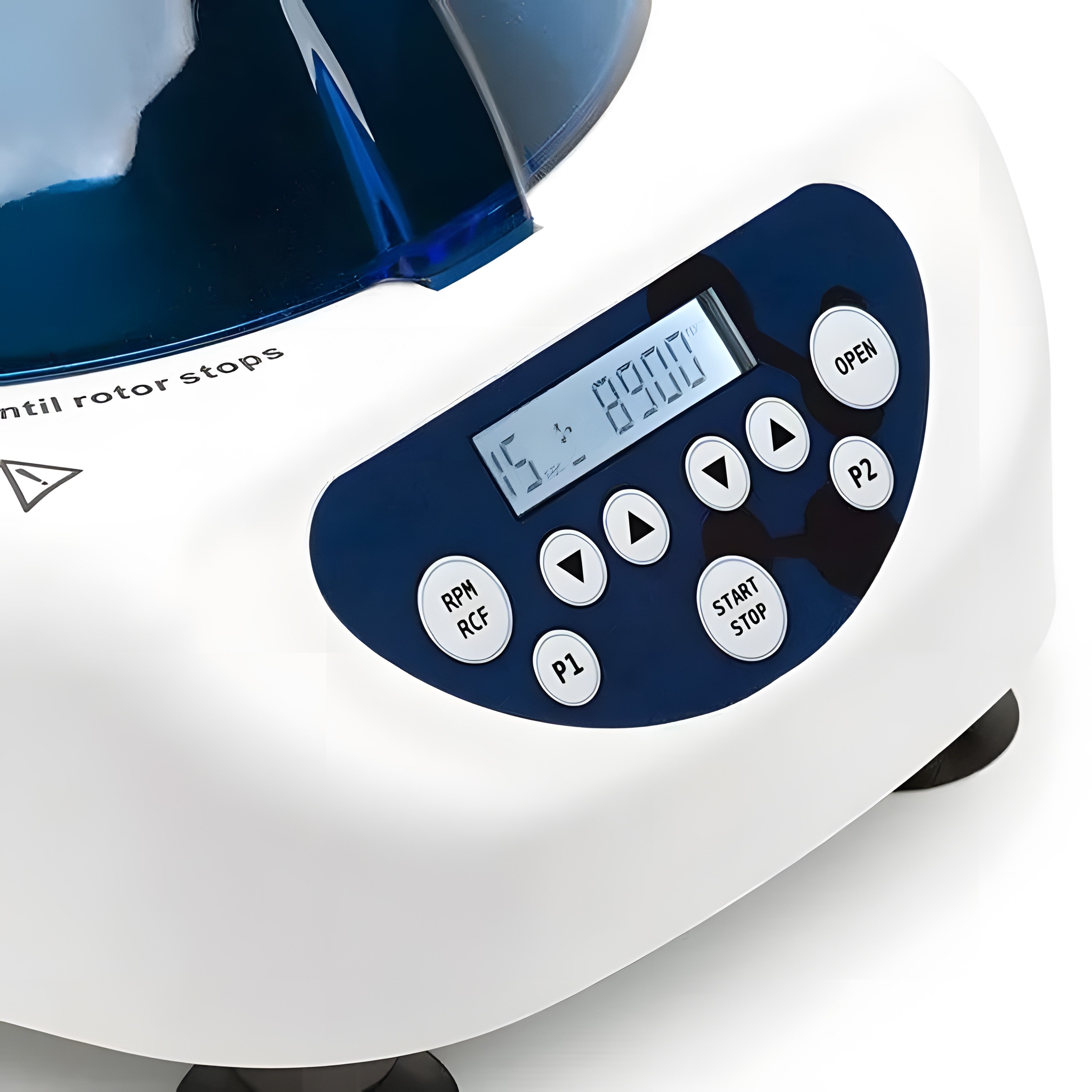

• Intelligent Digital Interface:
  • Programmable Buttons: Includes two dedicated buttons (P1 and P2) for setting quick and easy speed and time selections
  • RPM/RCF Button: Toggles between displaying RPM or RCF (g-force)
  • Digital LCD Display: Provides real-time monitoring of speed and time, with indicators for open and closed lid position
  • User-Friendly Operation: Digital controls ensure precise speed and time adjustments with the touch of a finger
• Variable Speed Control: Adjustable settings for blood separation, PRP, urine sedimentation, and customized sample processing
• Versatile Tube Compatibility: Features an angled 6-place rotor that accepts microtubes and test tubes up to 16.8 mm in diameter and 123 mm in length for different applications
• High-Speed Performance:
  • Delivers fast and efficient sample separation
  • Processes serum samples in as little as 5 minutes at 5,000 RPM (2,500g) and urine samples at 2,000 RPM (400g)
• Advanced Safety Protocols:

  • Zero-RPM Interlock: Prevents the lid from being opened until the rotor has come to a complete stop
  • Auto-Lid Release: Opens the lid upon cycle completion for hands-free convenience
  • Rapid Braking: Integrated auto-brake system brings the rotor to a full stop in 10 seconds
• Multi-Purpose Use: Ideal for medical, veterinary, research, and industrial laboratories
• Durable and Low Maintenance: The high-performance brushless motor delivers smooth, maintenance-free, whisper-quiet operation, increasing longevity and reducing laboratory downtime.
• Enhanced Stability: Equipped with suction-cupped feet to prevent slipping during centrifugation
• Compact and Space-Saving Design:
  • Delivers precise and reliable results while maximizing workspace efficiency
  • Ideal for small laboratories and busy workstations
• Comes Standard With:
  • 6-Place Angled Rotor for 7 mL to 15 mL Tubes (Maximum Tube Size: 16.9 mm Diameter x 129 mm L)
  • 6 Black Inserts for 5 mL to 6 mL Tubes (Maximum Tube Size: 13 mm Diameter x 129 mm L)
  • 6 White Inserts for 3 mL to 4 mL Tubes (Maximum Tube Size: 13 mm Diameter x 85 mm L)
  • 6 Green Inserts for 0.5 mL to 2 mL Microtubes (Maximum Tube Size: 10.3 mm Diameter x 47 mm L)
  • 24 V DC, 4 A Power Adapter

Technical Specifications:

• Operating Speed: 300 RPM to 5,000 RPM (in Steps of 100 RPM)
• Maximum RCF: 2,500g
• Processing Capacity: 6 Samples up to 15 mL
• Input Voltage: 100-240 V AC, 50/60Hz (Auto-Switching)
• Output Voltage: 24 V Brushless DC Motor, 4 A
• Noise Level: 53 dBa ± 3 dBa, at 18" to 24" Distance
• Digital Timer: 15 Seconds to 99 Minutes
• Display: LCD Digital
• Lid Open Height: 11.75"
• Overall Dimensions: 10.60" L x 8.30" W x 6.20" H
• Actual Product Weight: 9.90 lbs
