Product Description

Utilize diaphragm vacuum technology for totally dry operation. There is no oil to change or monitor!

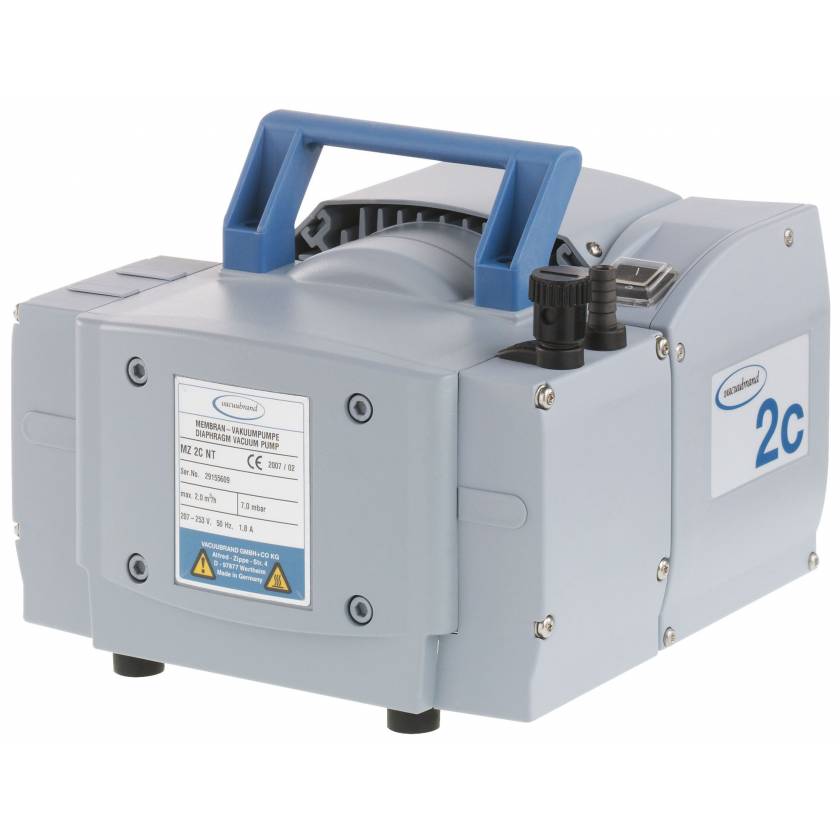

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The pump MZ 2C NT is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. This pump is our most popular chemistry diaphragm pump, and is the heart of a family of VACUUBRAND pumping systems. The NT-series features further improved performance data and superior vapor tolerance.



Performance Features:

  • Outstanding chemical resistance and superior vapor tolerance
  • High performance even at low vacuum levels
  • Optimized vacuum even with gas ballast for condensate purge
  • Whisper quiet and low vibration
  • Long diaphragm life, maintenance-free drive system



Technical Data Unit MZ2C NT
Number of Heads / Stages   2 / 2
Max. Pumping Speed at 50/60 Hz m3/h 2.0 / 2.3
Max. Pumping Speed at 50/60 Hz cfm 1.2 / 1.4
Ultimate Vacuum (abs.) mbar/torr 7 / 5
Ultimate Vacuum (abs.) with Gas Ballast mbar/torr 12 / 9
Ambient Temperature Range (Operation) °C 10 to 40
Ambient Temperature Range (Storage) °C -10 to 60
Max. Back Pressure (abs.) bar 1.1
Inlet Connection   Hose nozzle DN 8-10mm
Outlet Connection   Hose nozzle DN 8-10mm
Rated Motor Power kW 0.18
Rated Motor Speed at 50/60 Hz min-1 1500/1800
Degree of Protection   IP 40
Noise Level at 50Hz, Typ. dBA 45
NRTL Certification   Yes
Dimensions (LxWxH) Inch 9.60 x 9.60 x 7.80
Item Supplied   Pump completely mounted, ready for use, with manual

Specifications

Specifications
Manufacturer Brandtech Scientific
Actual Product Weight 24.3 lbs
Overall Height 7.80"
Overall Width 9.60"
Overall Length 9.60"
Country of Manufacture Germany
Item Ships From Connecticut

Literature

pdf
(Size: 203.2 KB)

Instructions

Seller warrants that its Products are free from defects in materials and workmanship as set forth in applicable operating instructions at the date of shipment to the original Buyer and will conform to the Contract specifications or such other specifications which constitute technical improvements to the Product.* The exclusive remedy of the Buyer in the event of a breach of the foregoing warranty is replacement or repair (at Seller's option) of any defective Product. No goods shall be returned to Seller for repair or replacement pursuant to this warranty without prior written approval and accompanied by a completed health and safety declaration (as specified in Paragraph 7). All cleaning, decontamination, and shipping costs shall be the sole responsibility of the Buyer together with any damage to the goods that might occur in transit to or from Seller. Under no circumstances does Seller's responsibility or warranty extend to Products other than those manufactured or distributed by Seller; nor does Seller's liability extend to any Products, articles or parts which are furnished by Buyer or obtained from other manufacturers or suppliers at Buyer's request and/or in accordance with Buyer's specifications. In the event that Seller is unwilling or unable to repair or replace any defective or nonconforming Product due to change in technical standards, technical modifications, unavailability of material or parts, or any other reason, Buyer shall be entitled to a return of the purchase price paid for such Product as its sole and exclusive remedy. Seller assumes no responsibility for the effective performance of any specific scientific application relying on Products supplied under this Contract beyond published Product specifications at the time of sale. Seller assumes no responsibility for conformance with local building codes as they may apply in the installation of Products supplied by the Seller. Seller assumes no responsibility whatsoever for the accuracy of designs, specifications or materials furnished or specified by Buyer.

Returns

No return will be accepted by the seller for any reason without prior written authorization within 30 days of product shipment date. Returns will be accepted only if products are in new, unused, resalable condition in the original packaging, and accompanied by a Health and Safety Declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 25 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.
