Product Description

BrandTech VACUUBRAND MD1C+AK+EK Oil-Free Diaphragm Vacuum Pump is a dual voltage pump 100-115V/200-230V 50-60Hz, 120V 60Hz. Supplied with a US power cord.

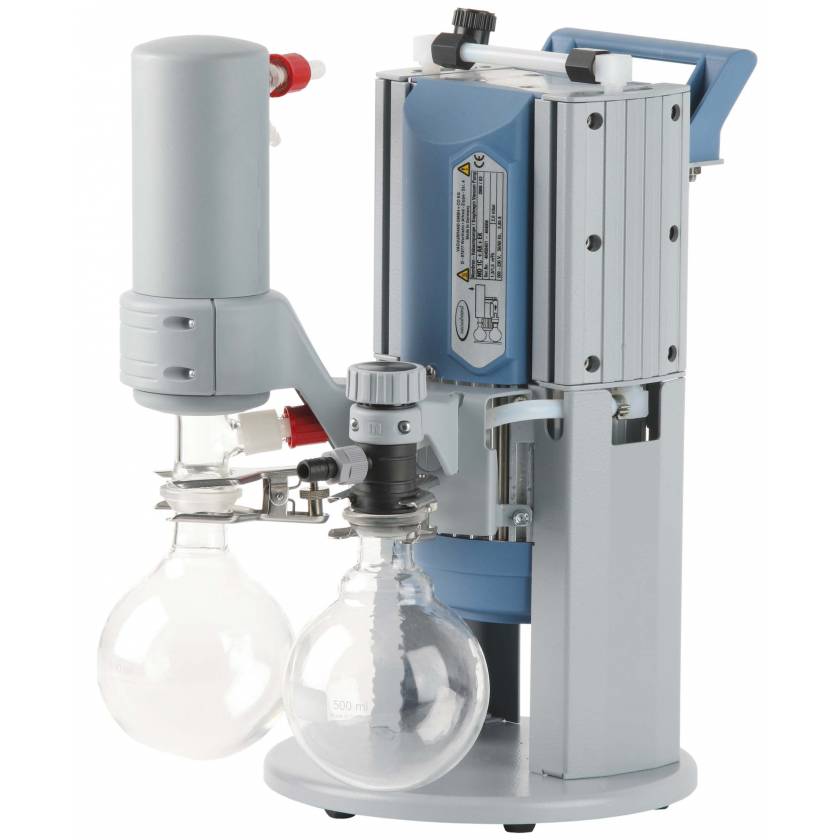

MD 1C chemistry diaphragm pump with separator at the inlet and exhaust vapor condenser

This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. This system is usable for increased vacuum requirements with high boiling solvents and often replaces rotary vane pumps. Typical applications are rotary evaporators and vacuum drying ovens. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.

Performance Features:

  • Outstanding chemical resistance and superior vapor tolerance
  • Exceptionally high performance even at low vacuum
  • Excellent ultimate vacuum even with gas ballast
  • Whisper quiet and low vibration
  • Excellent environmental friendliness due to efficient solvent recovery
Technical Data Unit MD 1C + AK + EK
Number of Heads / Stages   4 / 3
Max. Pumping Speed at 50-60Hz m3/h 1.3 / 1.5
Max. Pumping Speed at 50-60Hz cfm 0.8 / 0.9
Ultimate Vacuum (abs.) mbar/torr 2 / 1.5
Ultimate Vacuum (abs.) with Gas Ballast mbar/torr 4 / 3
Ambient Temperature Range (Operation) °C 10 - 40
Ambient Temperature Range (Storage) °C -10 - 60
Max. Back Pressure (abs.) bar 1.1
Inlet Connection   Hose nozzle DN 8-10mm
Outlet Connection   Hose nozzle DN 8-10mm
Coolant Connection   2 x Hose nozzle DN 6-8mm
Rated Motor Power kW 0.08
Rated Motor Speed at 50/60 Hz min-1 1500 / 1800
Protection Class   IP 40
Noise Level at 50Hz, Typ. dBA 45
NRTL Certification   Yes
Dimensions (LxWxH) Inch 12.4 x 9.4 x 15.9
Product Weight Lb 24.3
Items Supplied   Pumping unit completely mounted, ready for use, with manual


Manufacturer Brandtech Scientific
Actual Product Weight 22.3 lbs
Overall Height 15.9"
Overall Width 9.4"
Overall Length 12.4"
Country of Manufacture Germany
Item Ships From Connecticut
