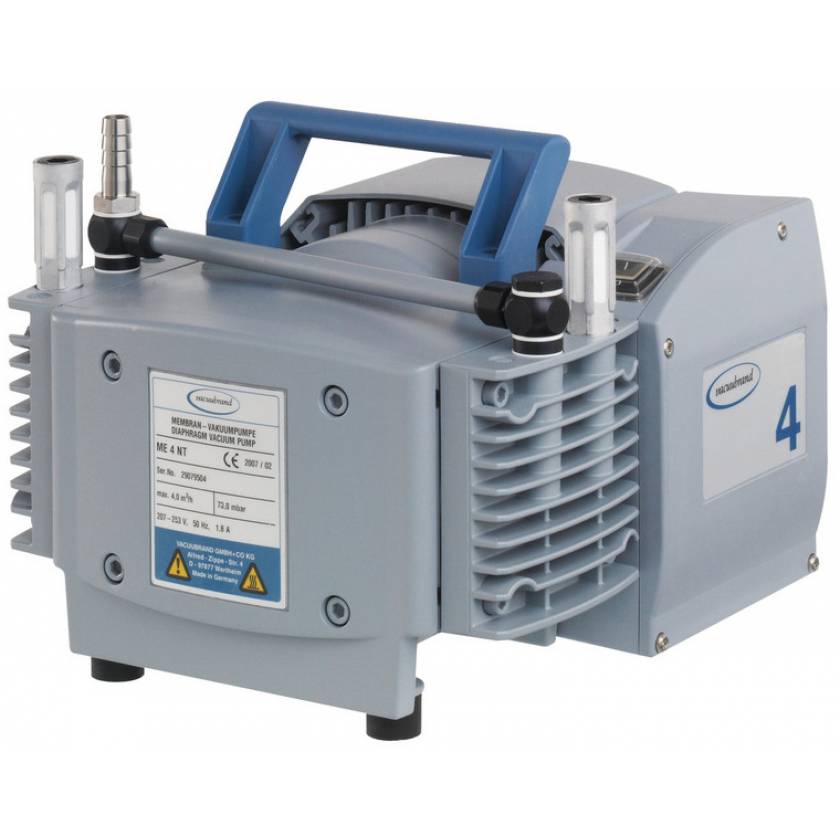

Product Description

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data.

Performance Features:

  • Contamination-free pumping and evacuation
  • High flow rate even near ultimate vacuum
  • Whisper quiet
  • Low vibration and higher pumping speed
  • Exceptionally long diaphragm life and maintenance free drive system for low lifetime costs



Technical Data Unit ME4 NT
Number of Heads / Stages   2 / 1
Max. Pumping Speed at 50/60 Hz m3/h 4.0 / 4.4
Max. Pumping Speed at 50/60 Hz cfm 2.4 / 2.6
Ultimate Vacuum (abs.) mbar/torr 70 / 52
Ambient Temperature Range (Operation) °C 10 to 40
Ambient Temperature Range (Storage) °C -10 to 60
Max. Back Pressure (abs.) bar 2
Inlet Connection   Hose nozzle DN 8-10mm
Outlet Connection   2 x Silencer / G1/4"
Rated Motor Power kW 0.18
Rated Motor Speed at 50/60 Hz min-1 1500/1800
Degree of Protection   IP 40
Noise Level at 50Hz, Typ. dBA 45
NRTL Certification   Yes
Dimensions (LxWxH) Inch 9.57 x 9.40 x 7.80
Items Supplied   Pump completely mounted, ready for use, with manual

Specifications

Specifications
Manufacturer Brandtech Scientific
Actual Product Weight 24.2 lbs
Overall Height 7.80"
Overall Width 9.40"
Overall Length 9.57"
Country of Manufacture Germany
Item Ships From Connecticut
