Product Description

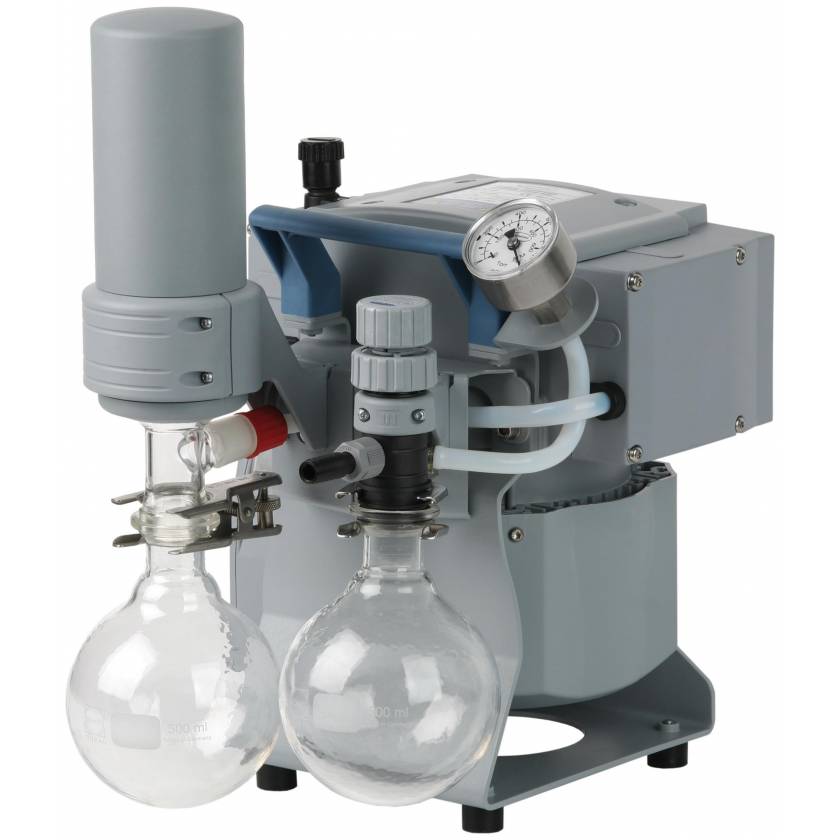

Chemistry pumping unit with vacuum dial gauge, manual flow control and vapor capture

This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators and vacuum drying ovens. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.

Performance Features:

  • Outstanding chemical resistance and superior vapor tolerance
  • High performance even at low vacuum levels
  • Optimized vacuum even with gas ballast for condensate purge
  • Excellent environmental friendliness due to efficient solvent recovery
  • Manual vacuum control, analog vacuum display
Technical Data Unit PC101 NT
Vacuum Controller   Manometer
Number of Heads / Stages   2 / 2
Max. Pumping Speed at 50-60Hz m3/h 2.0 / 2.3
Max. Pumping Speed at 50-60Hz cfm 1.2 / 1.4
Ultimate Vacuum (abs.) mbar/torr 7 / 5
Ultimate Vacuum (abs.) with Gas Ballast mbar/torr 12 / 9
Ambient Temperature Range (Operation) °C 10 to 40
Ambient Temperature Range (Storage) °C -10 to 60
Max. Back Pressure (abs.) bar 1.1
Inlet Connection   Hose nozzle DN 8-10mm
Outlet Connection   Hose nozzle DN 8-10mm
Coolant Connection   2 x Hose nozzle DN 6-8mm
Rated Motor Power kW 0.18
Rated Motor Speed at 50/60 Hz min-1 1500/1800
Degree of Protection   IP 40
Noise Level at 50Hz, Typ. dBA 45
NRTL Certification   Yes
Dimensions (LxWxH) Inch 12.83 x 9.57 x 15.83
Items Supplied   Pumping unit completely mounted, ready for use, with manual

Specifications

Specifications
Manufacturer Brandtech Scientific
Actual Product Weight 32 lbs
Overall Height 15.83"
Overall Width 9.57"
Overall Length 12.83"
Country of Manufacture Germany
Item Ships From Connecticut
