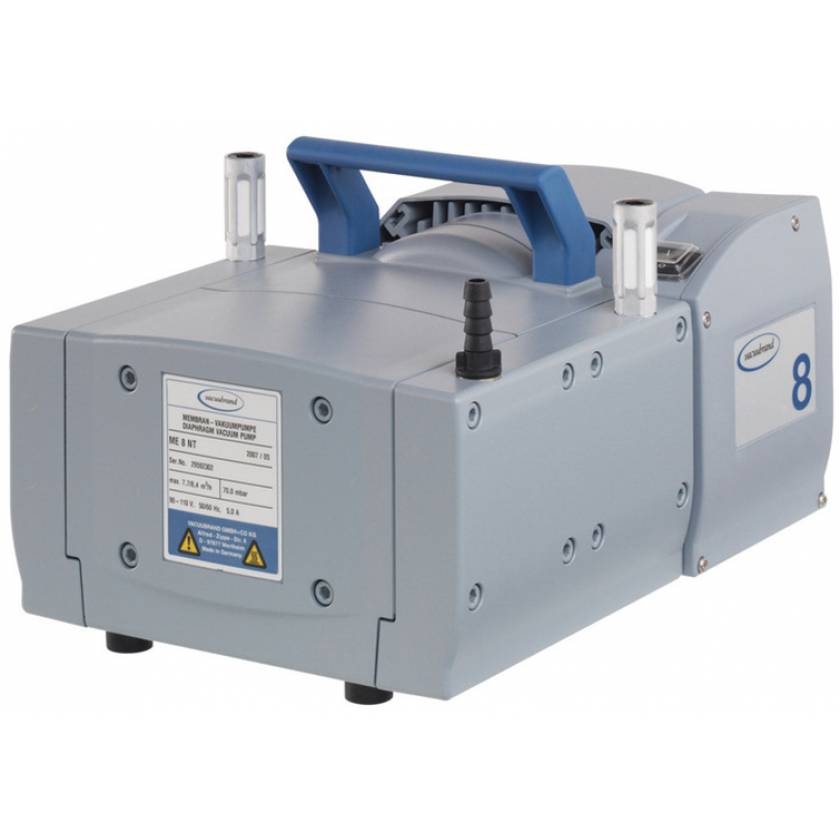

Product Description

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. The one-stage design provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of aluminum and selected plastics allowing a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragms made of FKM are ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data.



Performance Features:

  • Contamination-free pumping and evacuation
  • Very high flow rate even near ultimate vacuum
  • Quiet operation
  • Very low vibration
  • Exceptionally long diaphragm life and maintenance free drive system for low lifetime costs



Technical Data Unit ME8 NT
Number of Heads / Stages   4 / 1
Max. Pumping Speed at 50/60 Hz m3/h 7.3 / 8.1
Max. Pumping Speed at 50/60 Hz cfm 4.3 / 4.8
Ultimate Vacuum (abs.) mbar/torr 70 / 52
Ambient Temperature Range (Operation) °C 10 to 40
Ambient Temperature Range (Storage) °C -10 to 60
Max. Back Pressure (abs.) bar 2
Inlet Connection   Hose nozzle DN 8-10mm
Outlet Connection   2 x Silencer / G 1/4"
Rated Motor Power kW 0.25
Rated Motor Speed at 50/60 Hz min-1 1500/1800
Degree of Protection   IP 40
Noise Level at 50Hz, Typ. dBA 45
NRTL Certification   Yes
Dimensions (LxWxH) Inch 11.80 x 9.40 x 7.80
Items Supplied   Pump completely mounted, ready for use, with manual

Specifications

Specifications
Manufacturer Brandtech Scientific
Actual Product Weight 36.2 lbs
Overall Height 7.80"
Overall Length 11.80"
Overall Width 9.40"
Country of Manufacture Germany
Item Ships From Connecticut

Literature 1

pdf
(Size: 191.9 KB)

Instructions

Seller warrants that its Products are free from defects in materials and workmanship as set forth in applicable operating instructions at the date of shipment to the original Buyer and will conform to the Contract specifications or such other specifications which constitute technical improvements to the Product.* The exclusive remedy of the Buyer in the event of a breach of the foregoing warranty is replacement or repair (at Seller's option) of any defective Product. No goods shall be returned to Seller for repair or replacement pursuant to this warranty without prior written approval and accompanied by a completed health and safety declaration (as specified in Paragraph 7). All cleaning, decontamination, and shipping costs shall be the sole responsibility of the Buyer together with any damage to the goods that might occur in transit to or from Seller. Under no circumstances does Seller's responsibility or warranty extend to Products other than those manufactured or distributed by Seller; nor does Seller's liability extend to any Products, articles or parts which are furnished by Buyer or obtained from other manufacturers or suppliers at Buyer's request and/or in accordance with Buyer's specifications. In the event that Seller is unwilling or unable to repair or replace any defective or nonconforming Product due to change in technical standards, technical modifications, unavailability of material or parts, or any other reason, Buyer shall be entitled to a return of the purchase price paid for such Product as its sole and exclusive remedy. Seller assumes no responsibility for the effective performance of any specific scientific application relying on Products supplied under this Contract beyond published Product specifications at the time of sale. Seller assumes no responsibility for conformance with local building codes as they may apply in the installation of Products supplied by the Seller. Seller assumes no responsibility whatsoever for the accuracy of designs, specifications or materials furnished or specified by Buyer.

Returns

No return will be accepted by the seller for any reason without prior written authorization. Returns will be accepted only if products are in new and unused condition and accompanied by a health and safety declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a 25 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.
