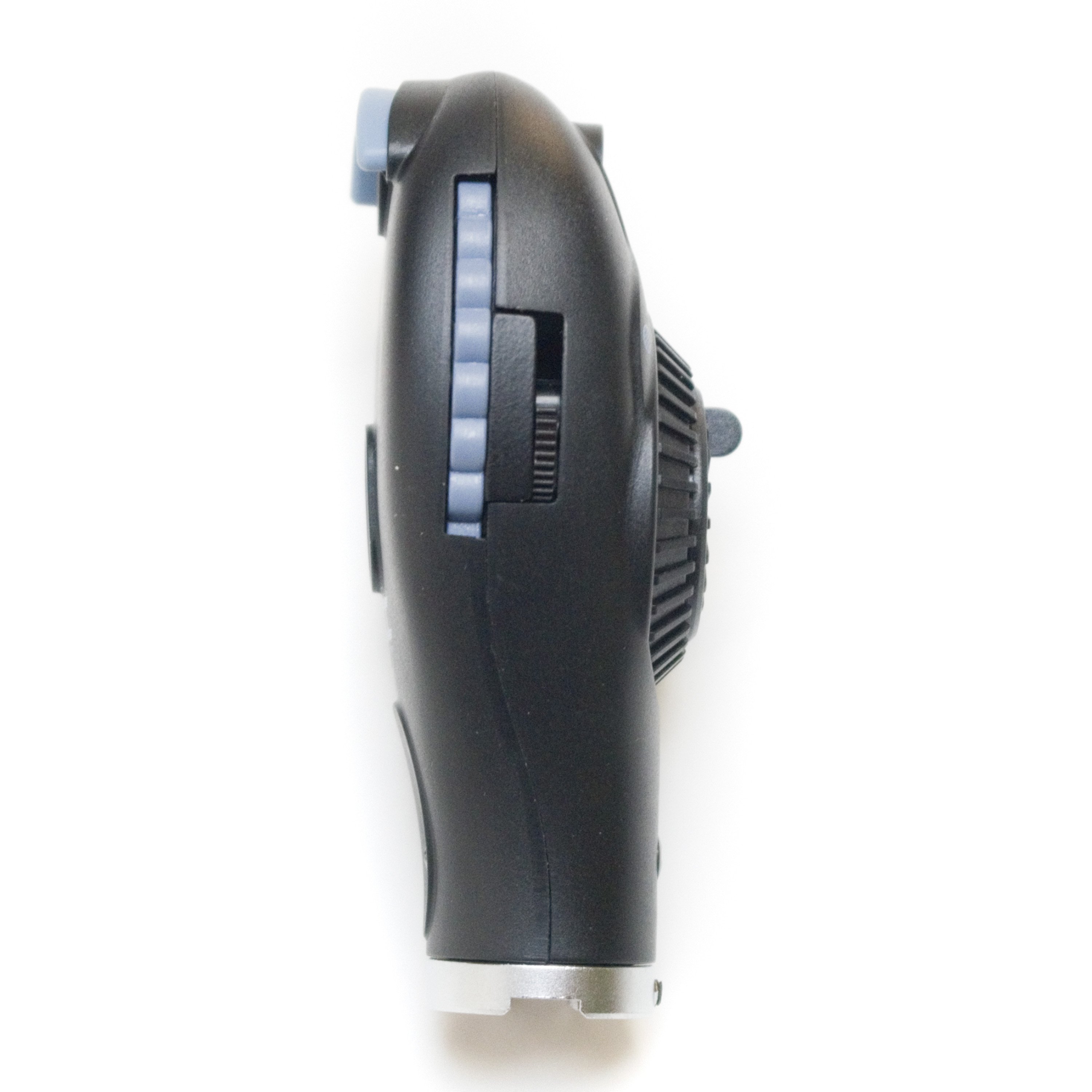

ADC Diagnostix™ Coax Plus Ophthalmoscope Head with LED Lamp for 3.5V Battery Handles
Usually Ships in 2-3 Business Days
In stock
You May Also Need
Checked products are added to the cart with this item.
Product Description
The ADC Diagnostix™ Coax Plus Ophthalmoscope Head with LED Lamp for 3.5V Battery Handles is compatible with ADC's 5460, 5463, and 5560 handles.
Features:
- 3.5V head has a high-performance aspherical condenser lens, which reduces corneal reflection
- Further reduction is provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s principle)
- Ergonomic design and integral thumb rest improve stability and allow one-finger control of all functions
- Synthetic rubber brow rest facilitates use with practitioner eyeglasses
- Dust proof
- Magnified/illuminated aperture viewing window
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
- Anti-theft locking feature is standard
- High-performance AdLED illumination provides 4200K temperature, a CRI>90, 17,000 lumens, and 100,000-hour life
- Secondary focusing wheel with zero retention for quick correction of ametropias. Use this to provide virtually unlimited fine focus, or as a fast focus instead of the 89 viewing lenses
- 89 viewing lenses
- Plus single step from 1-45
- Minus single step from 1-44
- 28 aperture/filter combinations for improved versatility
- 7 Apertures Include:
- Karo - A grid-like overlay that allows for easier transfer of observations to standard Karo (graph) paper
- Slit - Used to help determine the levels of tumors and lesions
- Fixation - Has graduated cross-hairs for measuring eccentric fixation or locating lesions
- Large - Standard aperture for a dilated pupil and general examination of the eye
- Small - Provides an excellent view of the fundus through an undilated pupil
- Micro Spot - Allows quick entry into small, undilated pupils
- Half Moon - Provides a combination of depth perception and field of view
- 3 Filters (Plus Neutral) Include:
- Red Free - Excludes red rays from the examination field for easy identification of veins, arteries, and nerve fibers
- Cobalt - Used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
- Polarizing - Virtually eliminated corneal reflection
- 7 Apertures Include:
- Warranty:
- Instrument Head: 5 Years
- AdLED Lamp: Lifetime
About this Brand
For over 40 years, American Diagnostic Corporation (ADC) has been a leading manufacturer of diagnostic medical products, personal instruments, and accessories for the healthcare industry. The company is ISO 13485:2016 certified for quality management under the Medical Device Single Audit Program (MDSAP). With a focus on producing durable products at a value price, their product line features stethoscopes, blood pressure instruments, thermometry, and other core diagnostic products including: ophthalmoscopes, otoscopes, dermascopes, laryngoscopes, and pulse oximeters.
Specifications
| Manufacturer | American Diagnostic Corporation (ADC) |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Germany |
| Item Ships From | New York |
