ADC Diagnostix™ 5480 3.5V Portable Diagnostic Set with LED Lamp and Plug-In Battery Handle

The ADC Diagnostix™ 5480 3.5V Portable Diagnostic Set with LED Lamp and Plug-In Battery Handle helps practitioners perform fast, accurate, and efficient exams due to its innovative optics, advanced lighting technologies, and long-lasting power sources.

Diagnostic Set Comes Standard with:

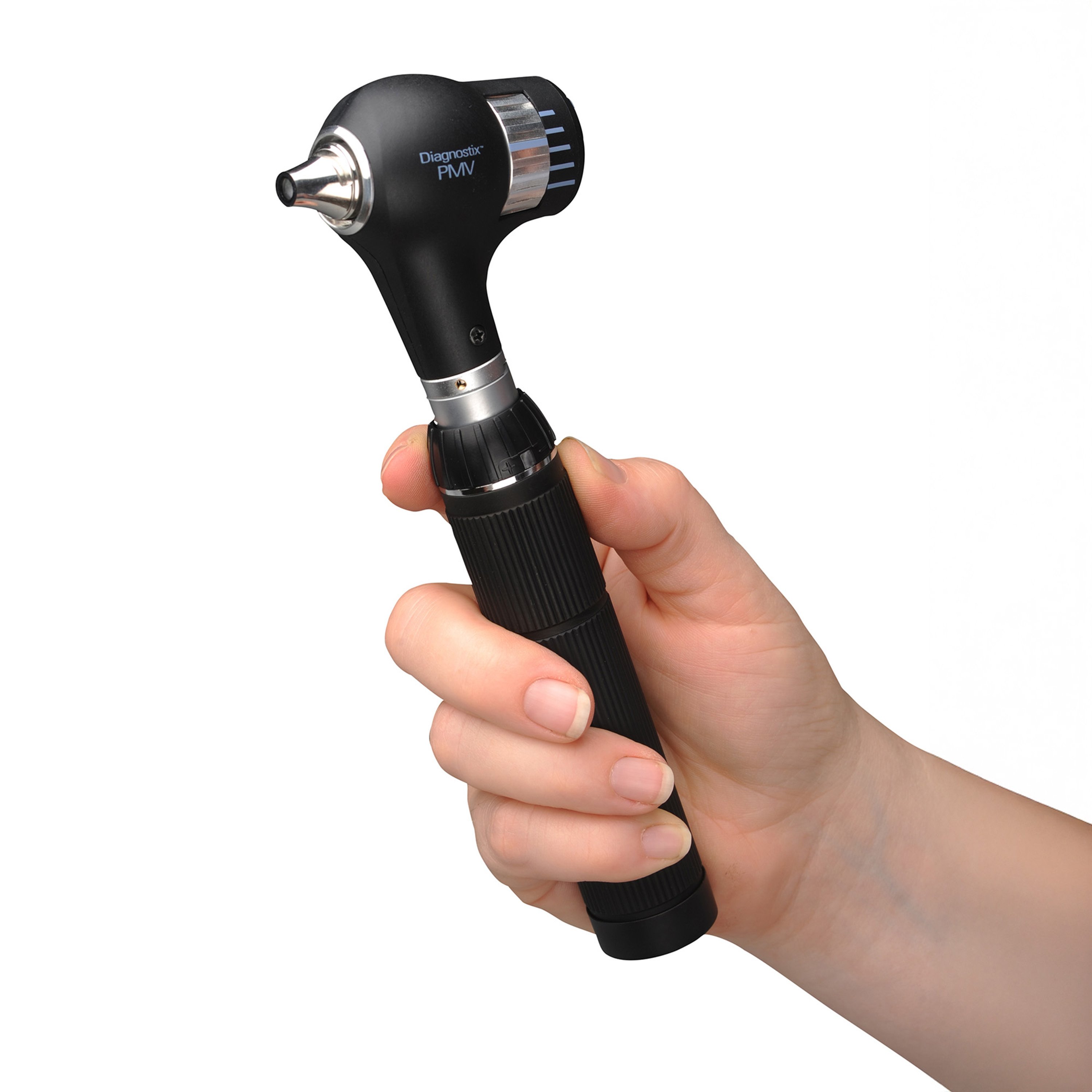

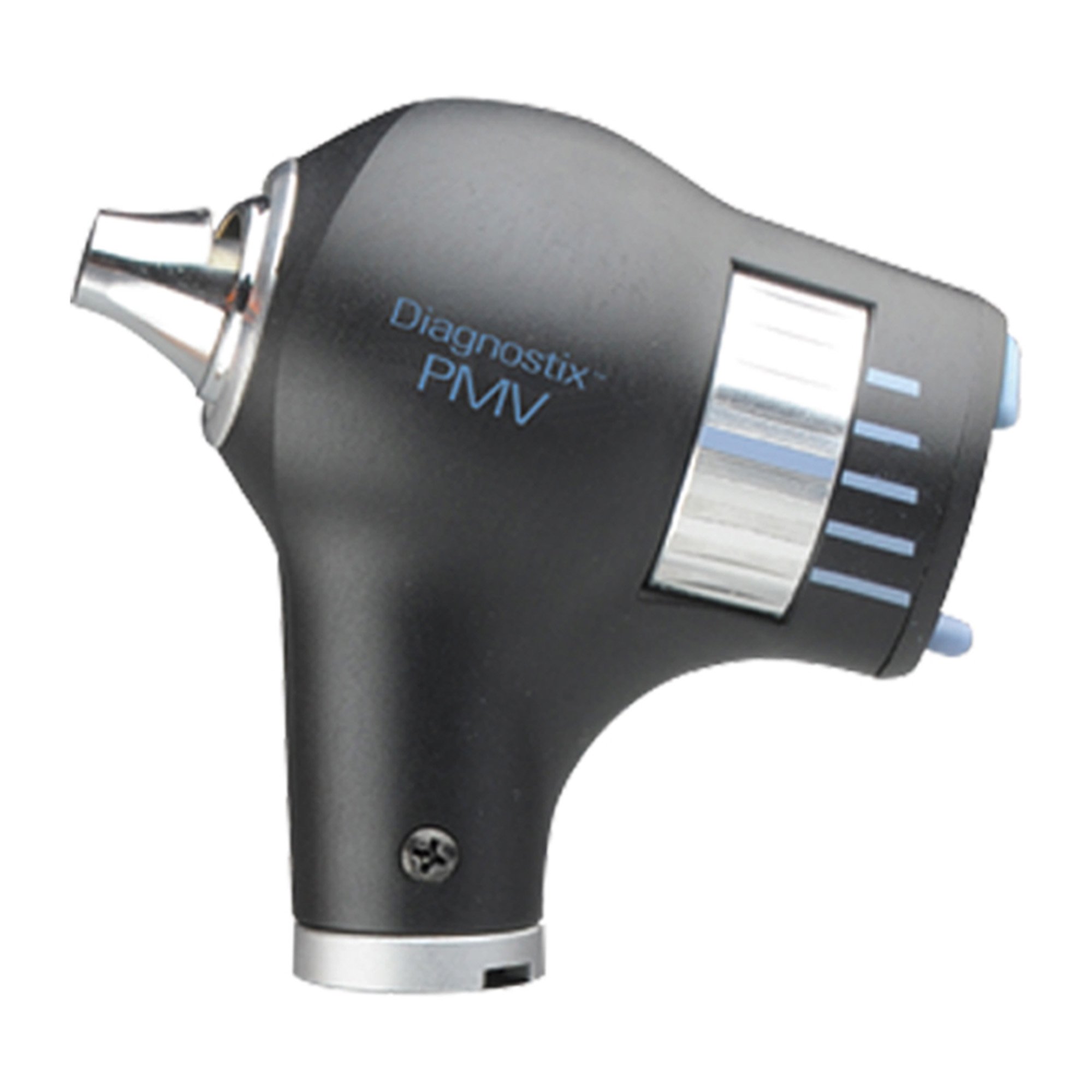

• One 3.5V PMV (Panoramic Magnified View) Otoscope Head
  • Uses advanced optical technology to create a panoramic magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5x magnification) compared to the standard otoscope
  • Significantly improved view of the auditory canal and tympanic membrane
  • Fiber-optic light transmission for an unobstructed view
  • High-performance LED illumination (4,200 Kelvin, CRI = 92)
  • Reflection-optimized, high-performance glass optics
  • Adjustable focal depth
  • Suitable for throat illumination and pneumatic otoscopy
  • Compatible with Welch Allyn specula
  • The anti-theft locking feature is standard
  • Universal bayonet mount is compatible with other brands of 3.5V handles

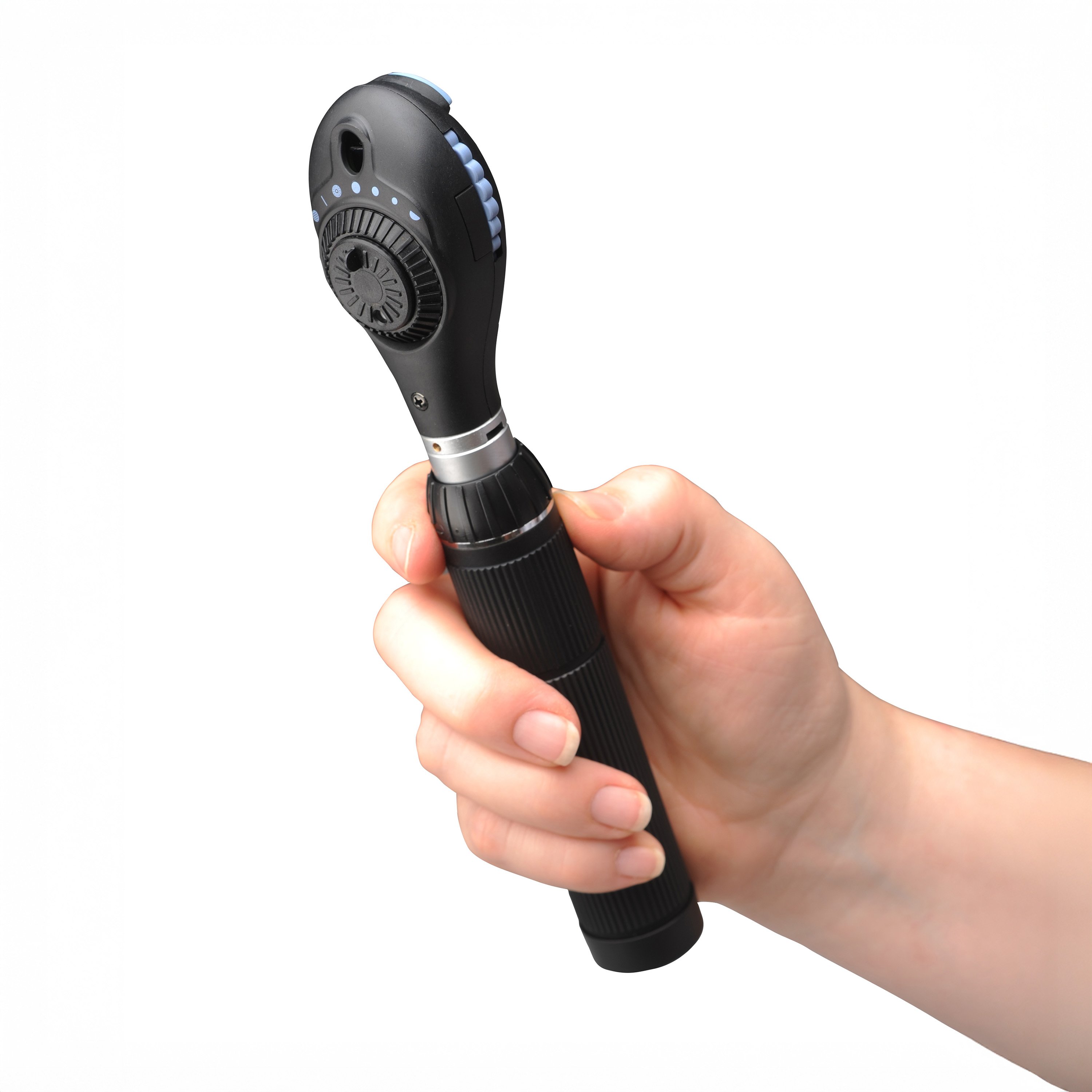

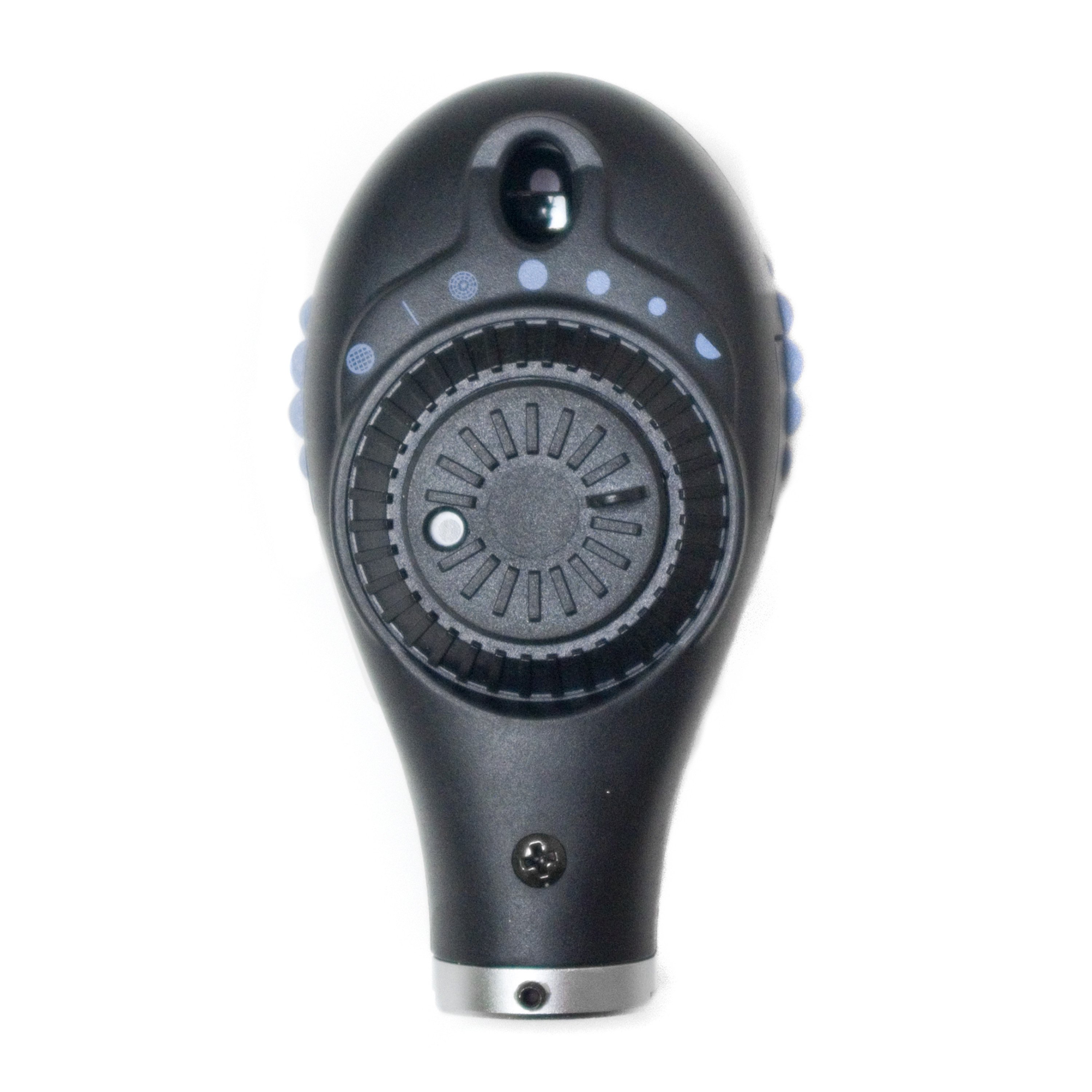

• One 3.5V Coax or Coax Plus Ophthalmoscope Head (Depending on Models)
  • High-performance aspherical condenser lens reduces corneal reflection
  • Further reduction is provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s principle)
  • Ergonomic design and integral thumb rest improve stability and allow one-finger control of all functions
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses
  • Dust proof
  • Magnified/illuminated aperture viewing window
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
  • The anti-theft locking feature is standard
  • High-performance AdLED illumination provides 4200K temperature, a CRI>90, 17,000 lumens, and 100,000-hour life
  • 3 Filters (Plus Neutral) Include:
    • Red Free - Excludes red rays from the examination field for easy identification of veins, arteries, and nerve fibers
    • Cobalt - Used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
    • Polarizing - Virtually eliminates corneal reflection

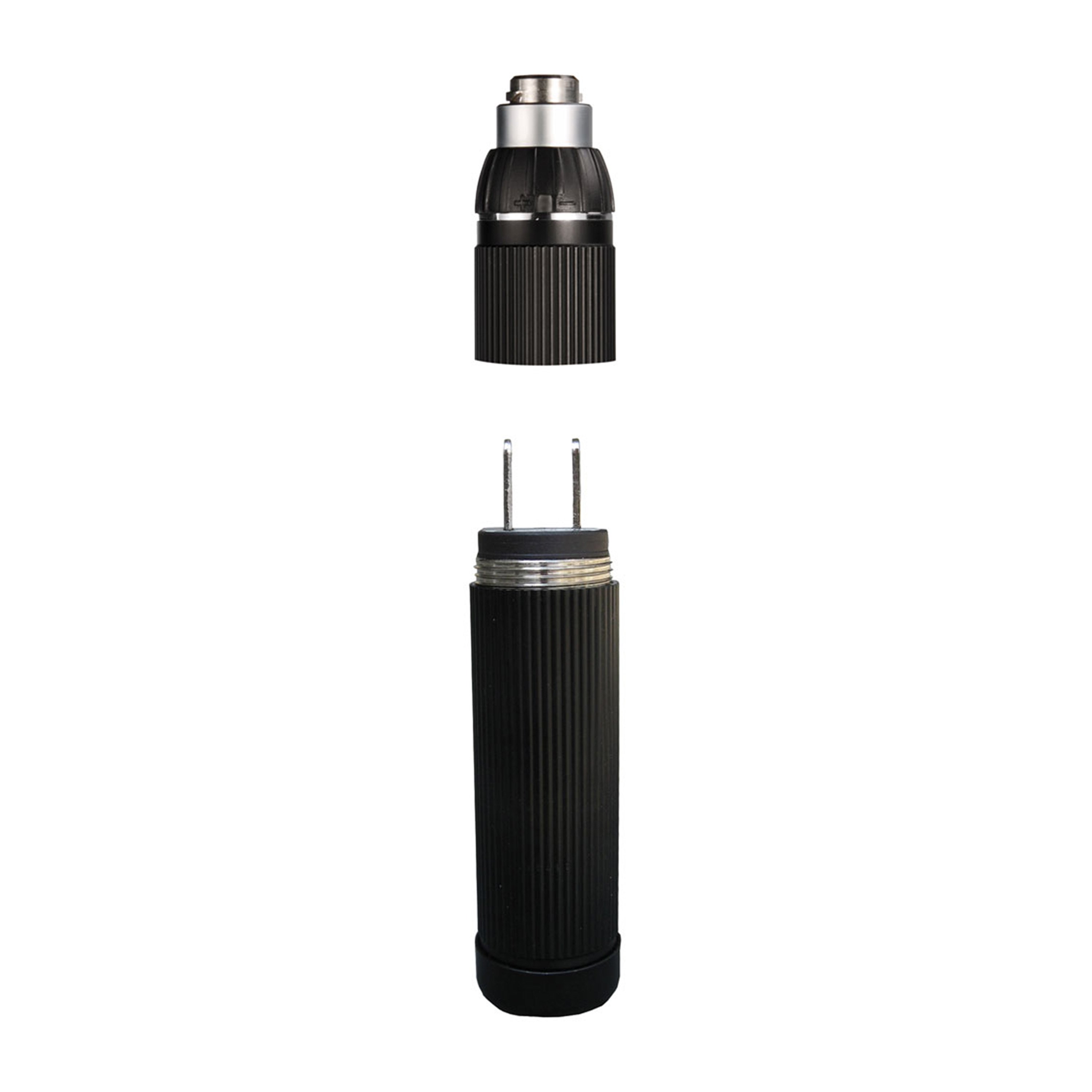

• One 3.5V Plug-In Rechargeable Battery Handle
  • C-sized handle with 1400 mAh rechargeable Lithium-Ion battery
  • CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip

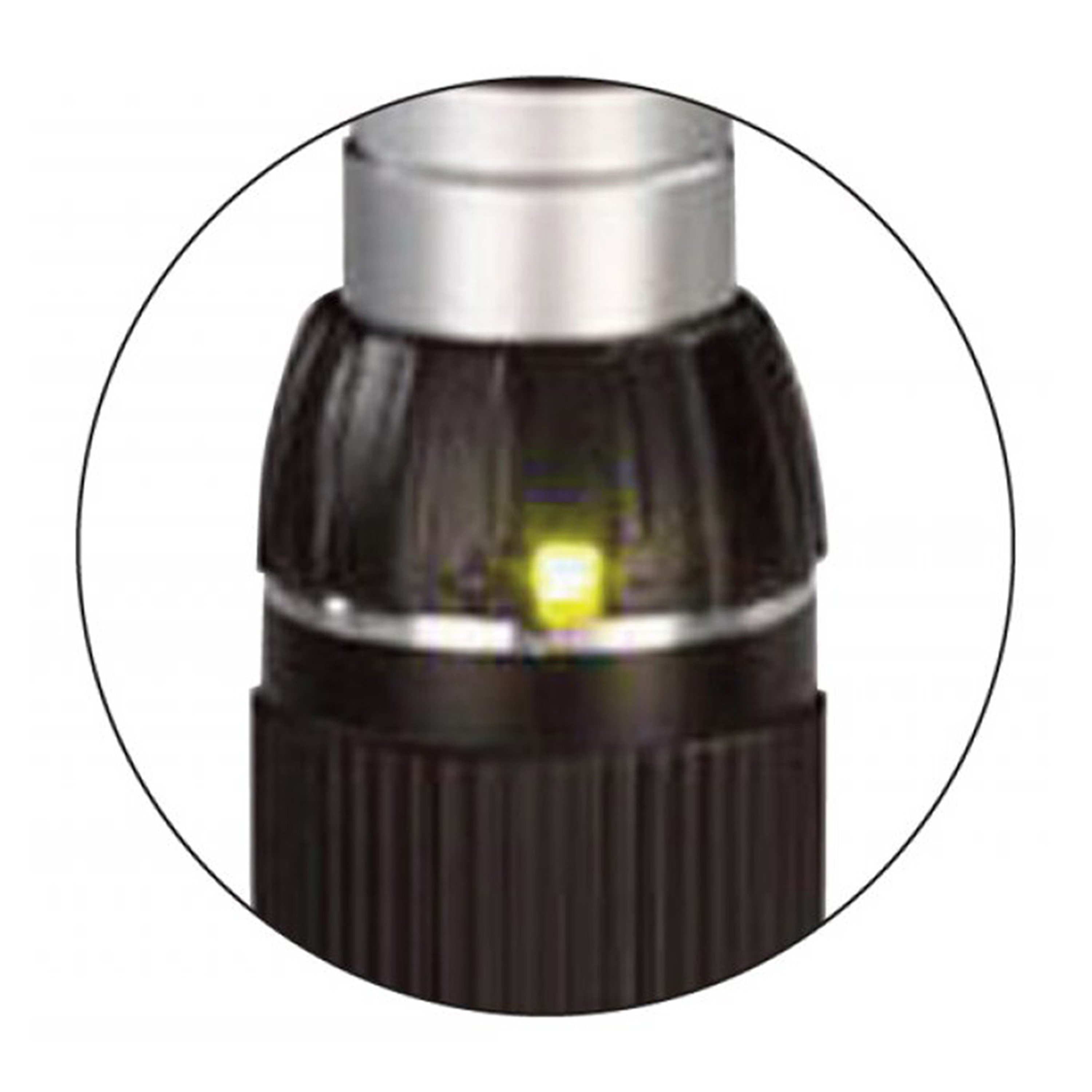

  • Adtronic electronic rheostatic light intensity control provides infinite continuous control and an auto-off feature after 2 minutes to conserve battery life
  • The top half of the handle unscrews to access the U.S. wall plug
  • The Lithium-Ion battery provides 6.5 hours of use with the LED
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
• One Hard or Soft Case (Depending on Models)
  • For secure portability
  • All-new hard case features a durable woven fabric finish and a zipper closure
• Welch Allyn Disposable Specula: Five (5) 2.75 mm and five (5) 4.25 mm

Available in Four Configurations:

• 5480L: PMV Otoscope and Coax Ophthalmoscope with Hard Case
• 5480LS: PMV Otoscope and Coax Ophthalmoscope with Soft Case
• 54802L: PMV Otoscope and Coax Plus Ophthalmoscope with Hard Case
• 54802LS: PMV Otoscope and Coax Plus Ophthalmoscope with Soft Case

Warranty:

• Instrument Heads and Handle: 5 Years
• AdLED Lamps: Lifetime
• Soft Case/Hard Case: 1 Year
•
