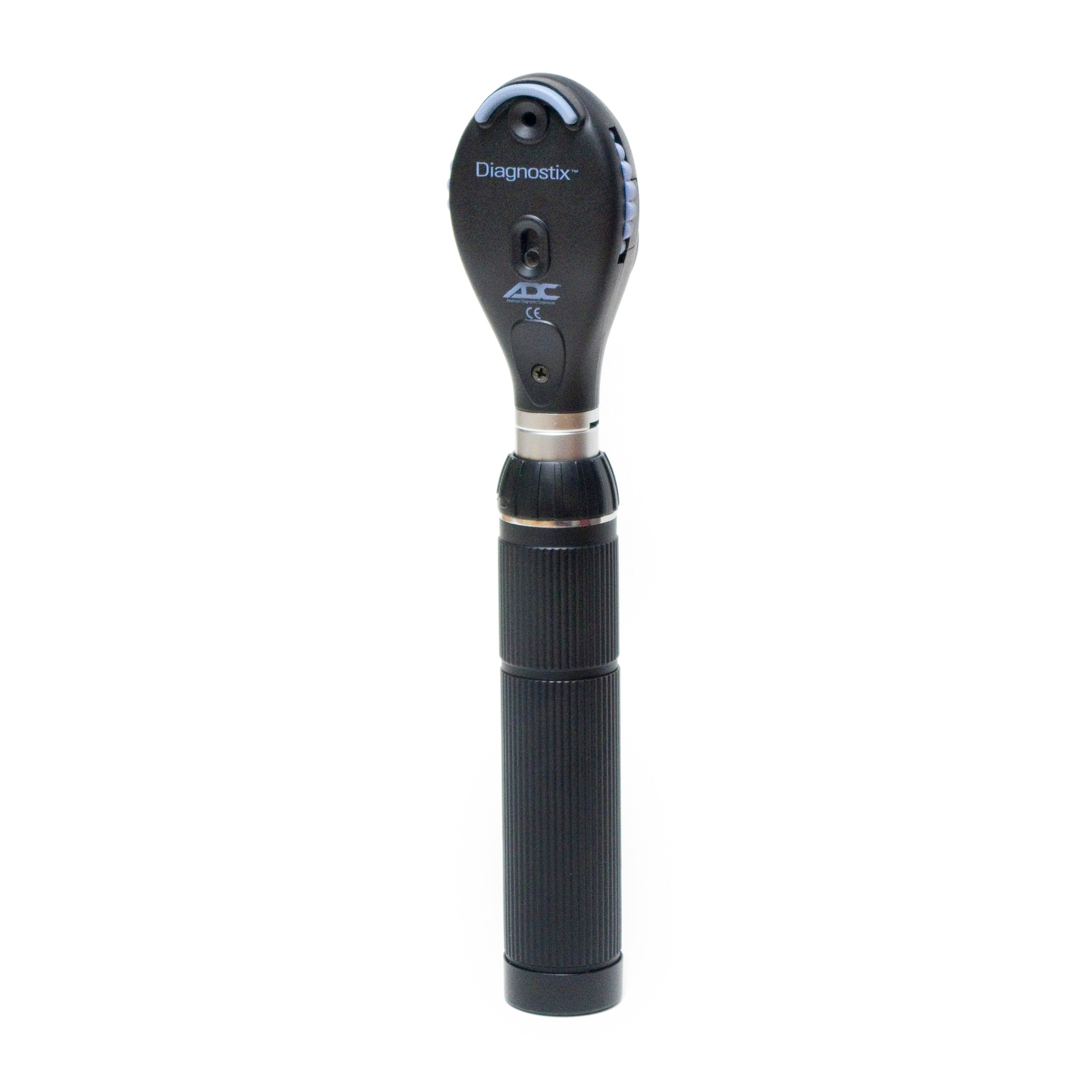

ADC Diagnostix™ 3.5V Portable Coax Plus Ophthalmoscope with LED Lamp and Plug-In Battery Handle

The ADC Diagnostix™ 3.5V Portable Coax Plus Ophthalmoscope with LED Lamp and Plug-In Battery Handle is a complete portable diagnostic tool that comes standard with a 3.5V coax plus ophthalmoscope head and a 3.5V plug-in rechargeable Lithium-Ion battery handle, supplied in a padded zippered nylon case.

Features:

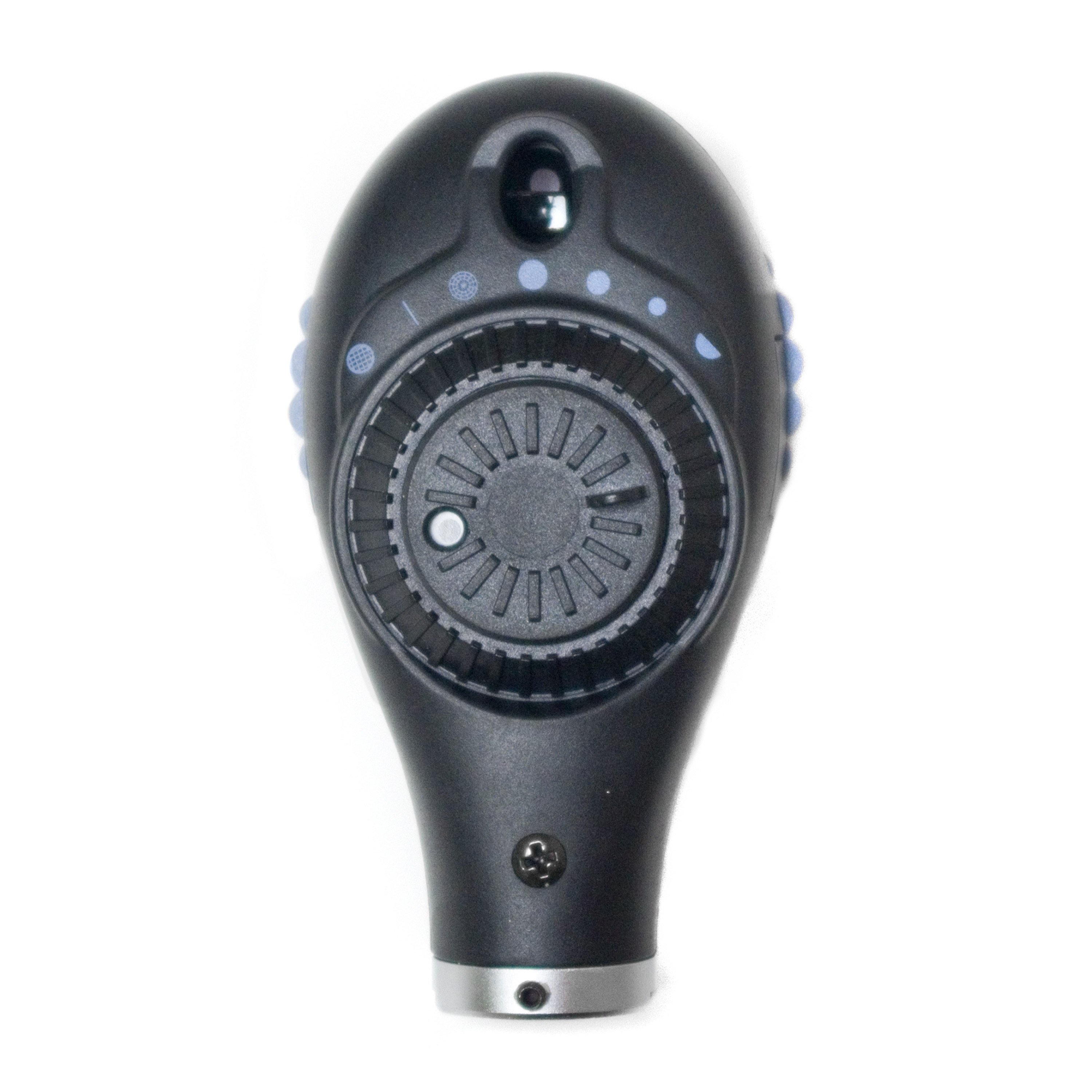

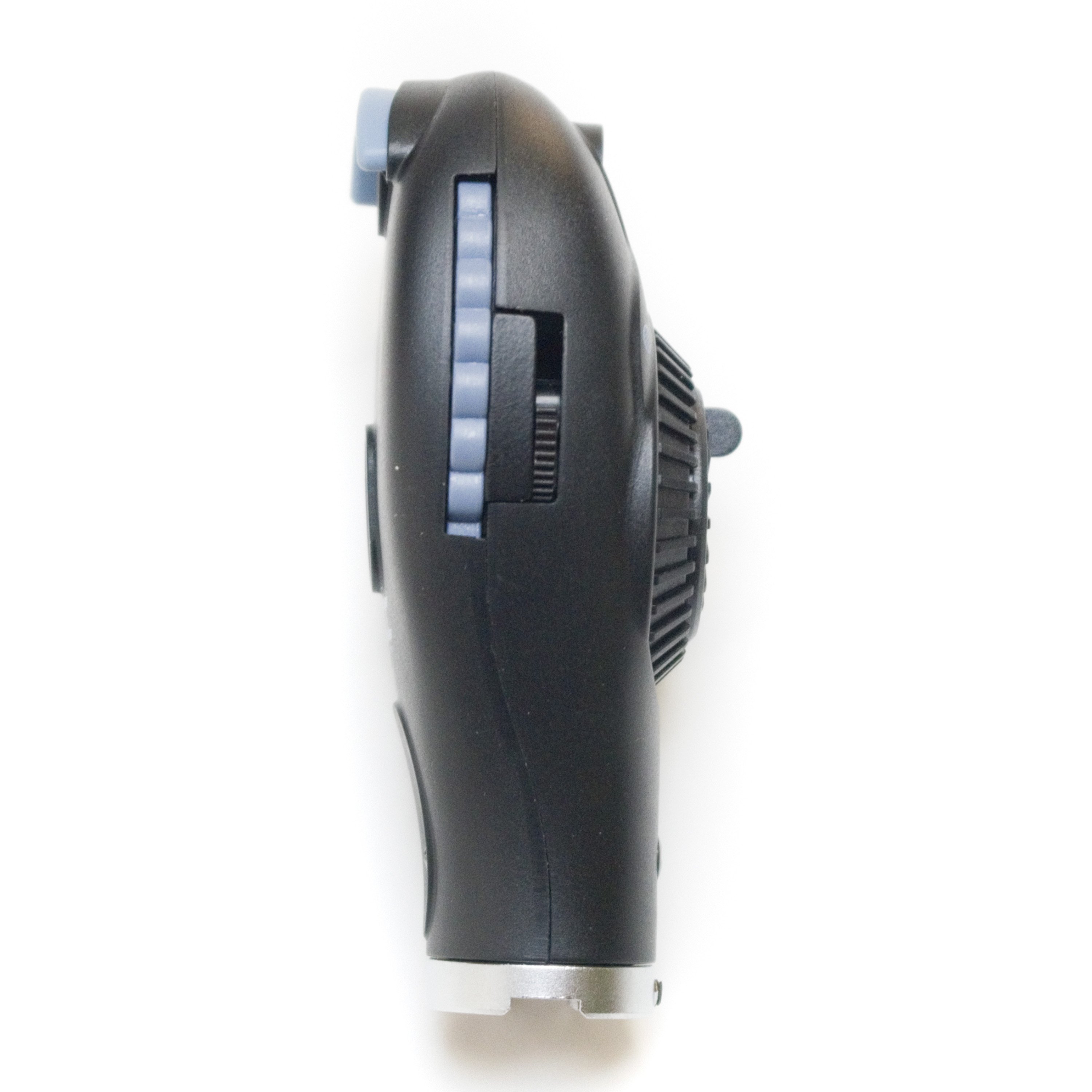

• Coax Plus Ophthalmoscope Head:
  • High-performance aspherical condenser lens reduces corneal reflection
  • Further reduction is provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
  • Ergonomic design and integral thumb rest improve stability and allow one-finger control of all functions
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses
  • Dust proof
  • Magnified, illuminated aperture viewing window
  • The anti-theft locking feature is standard
  • High-performance AdLED illumination provides 4200K temperature, a CRI>90, 17,000 lumens, and a 100,000-hour life
  • Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus instead of the 89 viewing lenses
  • 89 viewing lenses from -44 to +45 in a single step
  • 28 aperture/filter combinations for improved diagnostic capability
    • 7 Apertures Include:
      • Karo - A grid-like overlay that allows for easier transfer of observations to standard Karo (graph) paper
      • Slit - Used to help determine the levels of tumors and lesions
      • Fixation - Has graduated crosshairs for measuring eccentric fixation or locating lesions
      • Large - Standard aperture for a dilated pupil and general examination of the eye
      • Small - Provides an excellent view of the fundus through an undilated pupil
      • Micro Spot - Allows quick entry into small, undilated pupils
      • Half Moon - Provides a combination of depth perception and field of view
    • 3 Filters (Plus Neutral) Include:
      • Red Free - Excludes red rays from the examination field for easy identification of veins, arteries, and nerve fibers
      • Cobalt - Used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
      • Polarizing - Virtually eliminates corneal reflection
• 3.5V Plug-In Rechargeable Battery Handle:

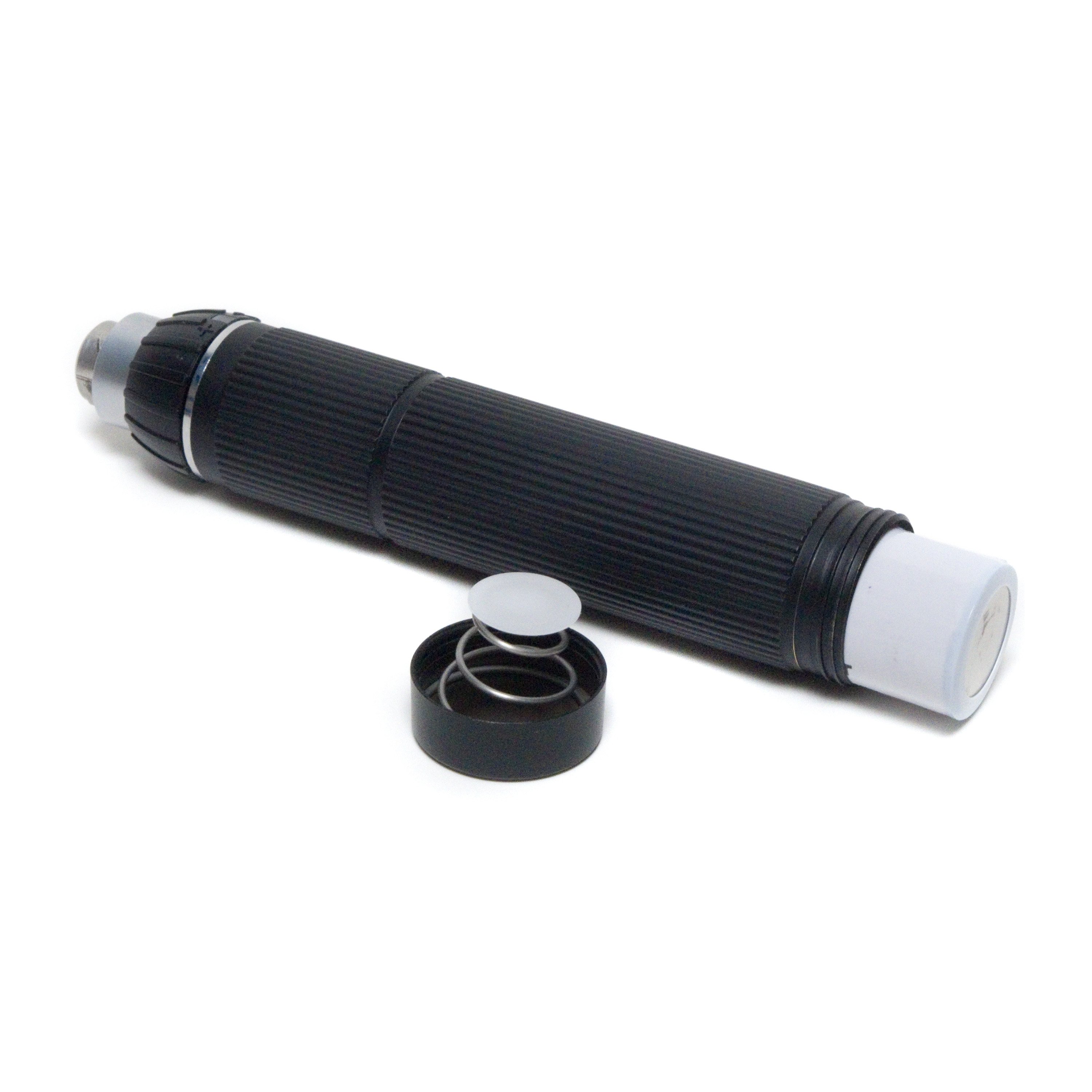

  • C-sized handle with 1400mAh Li-ion battery
  • CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control and an auto-off feature after two minutes to conserve battery life

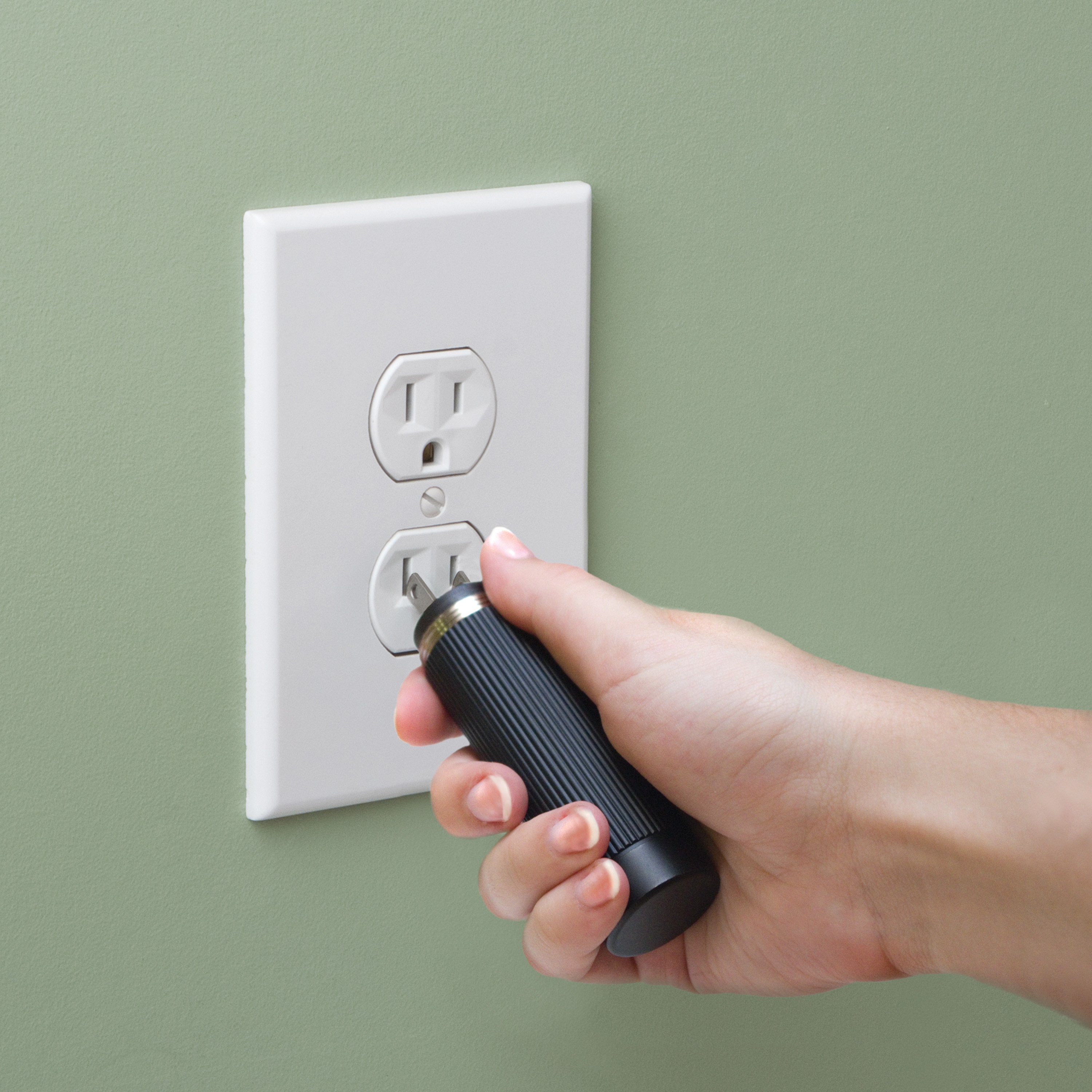

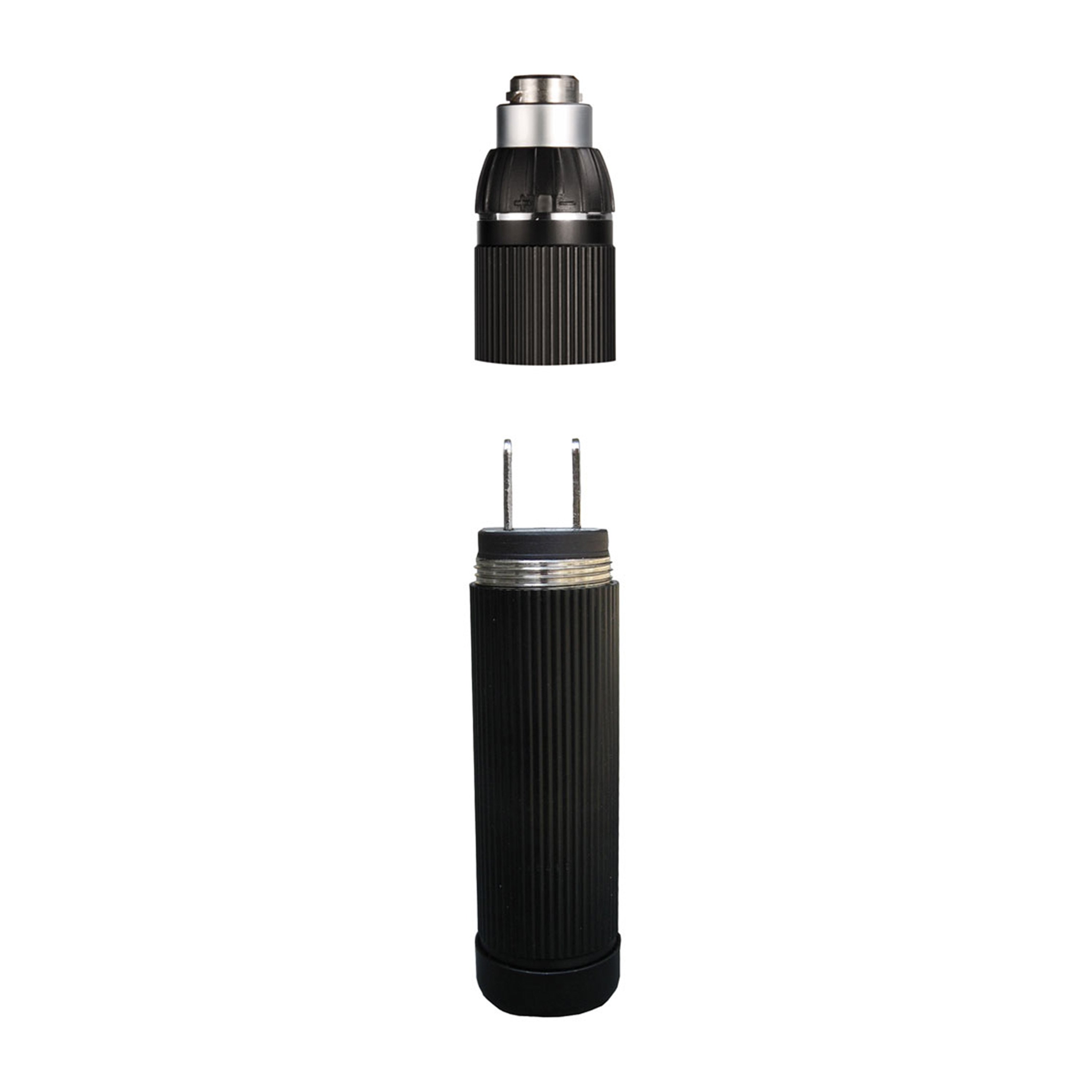

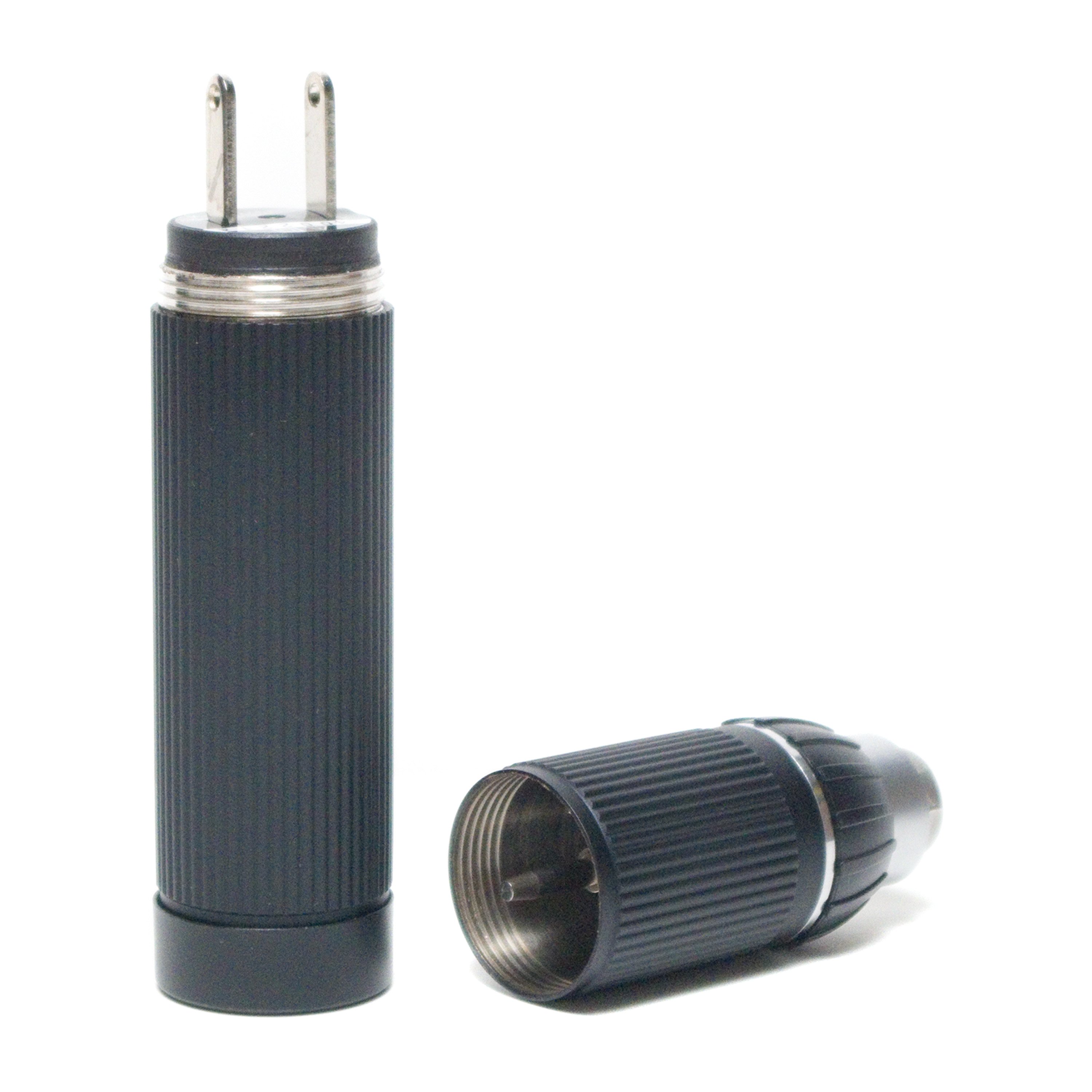

  • The top half of the handle unscrews to access the U.S. wall plug
  • Li-ion battery provides 6.5 hours of use with LED
  • Universal bayonet mount for compatibility with other brands of 3.5V instrument heads
• Comes Standard with:
  • (1) 3.5V Coax plus ophthalmoscope head
  • (1) 3.5V Plug-in rechargeable battery handle

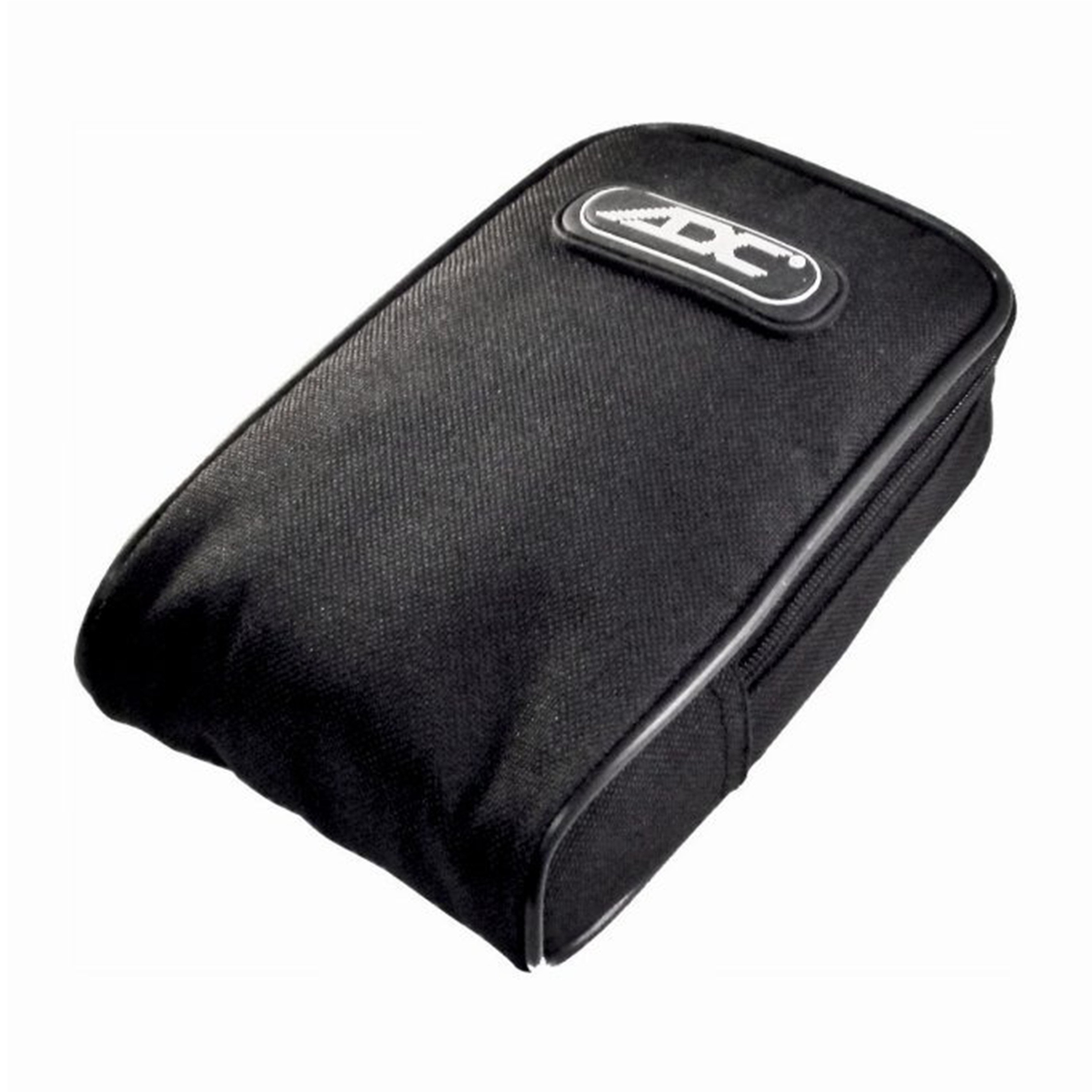

  • (1) Padded soft case
• Warranty:
  • Instrument: 5 Years
  • AdLED Lamp: Lifetime
