Product Description

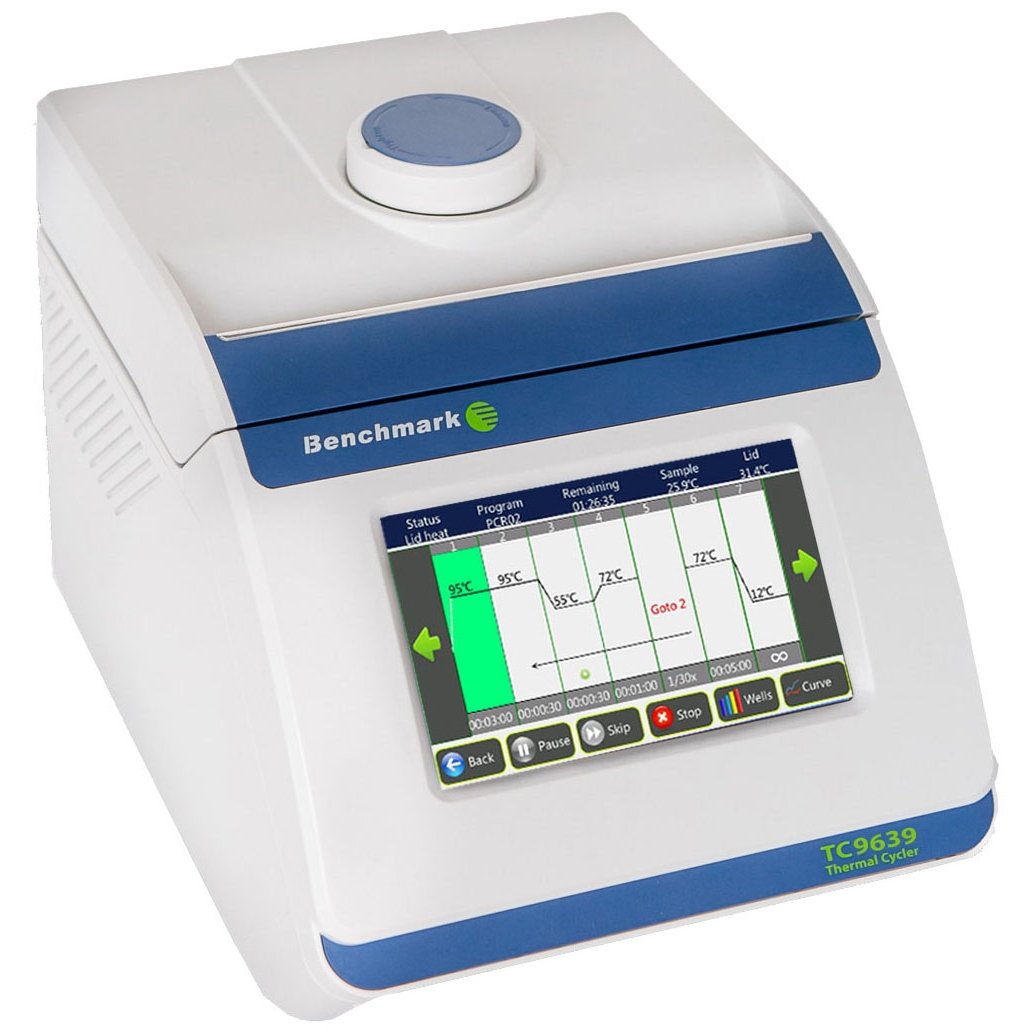

Benchmark's TC9639 Gradient Thermal Cycler provides consistent, reliable results for laboratories with medium to high throughput. The software has been upgraded to be even more user friendly and to include a gradient function. The gradient function has been added to allow the user to set up a temperature differential across the block to help determine the proper annealing temperature for a specific reaction.


  • Gradient capabilities - Ideal for protocol optimization
  • Intuitive touch screen control - Works even when wearing gloves
  • Program Wizard - quick, easy & foolproof
  • Upgraded software - Even easier to use than before!


A large, full color touch screen serves as the operations center where all functions are accessed. From the "Home" screen, simply touch an icon to view the last run program, enter the program library, or use the program wizard to quickly enter a new protocol. In addition, icons for frequently used programs can be added for instant access.

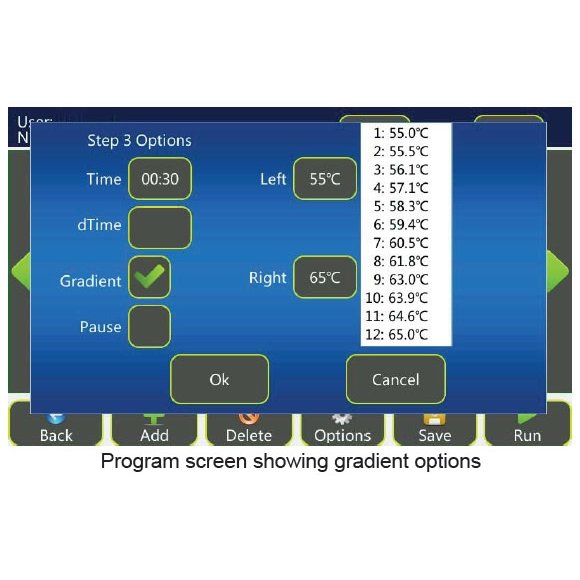

Designed with extensive user feedback, the program wizard quickly and easily guides users through protocol set-up, all in a single screen. Once entered, programs are shown graphically, and can be edited by simply touching the step that requires modification. Time and temperature increments can be built into programs as well as slower ramp rates. Storage capabilities are unlimited; programs can be stored in public folders, password protected folders or on a flash drive. The full virtual keyboard allows for alphanumeric naming of programs and folders.

The fully adjustable heated lid prevents condensation and evaporation of samples. Lid temperature can be programmed, and when the block temperature is below 35°C, the lid automatically shuts off. Heating and cooling of the block are precisely and accurately controlled within exceptionally tight tolerances by a proprietary algorithm that simulates sample temperature.

Technical Data:

  • Capacity: 1 x 384 well plate
  • Temp. Control Range: 0° to 100°C
  • Temp. Control: Simulated sample or block
  • Accuracy/Uniformity: ± 0.2°C / ± 0.2°C
  • Ramp Rate: 4°C / Sec. (maximum)
  • Gradient Range/Differential: 30° to 115°C / 1° to 30°C
  • Lid Temp: 30° to 112°C, user adjustable
  • Program Memory: Unlimited with flash drive
  • Increments/Decrements: Yes, both time and temperature
  • Multiuser Login: Yes, with password protection
  • Power Failure Restart: Yes
  • Power Supply: Universal, 75 to 275V, 50 to 60Hz, US Plug
  • Communication: USB, LAN and RS232
  • Dimensions: 10.2" W x 14.2" D x 9.9" H
  • Warranty: 2 years


Manufacturer Benchmark Scientific
Actual Product Weight 16 lbs
Overall Height 9.9"
Overall Width 10.2"
Overall Length 14.2"
Item Ships From New Jersey
