Product Description

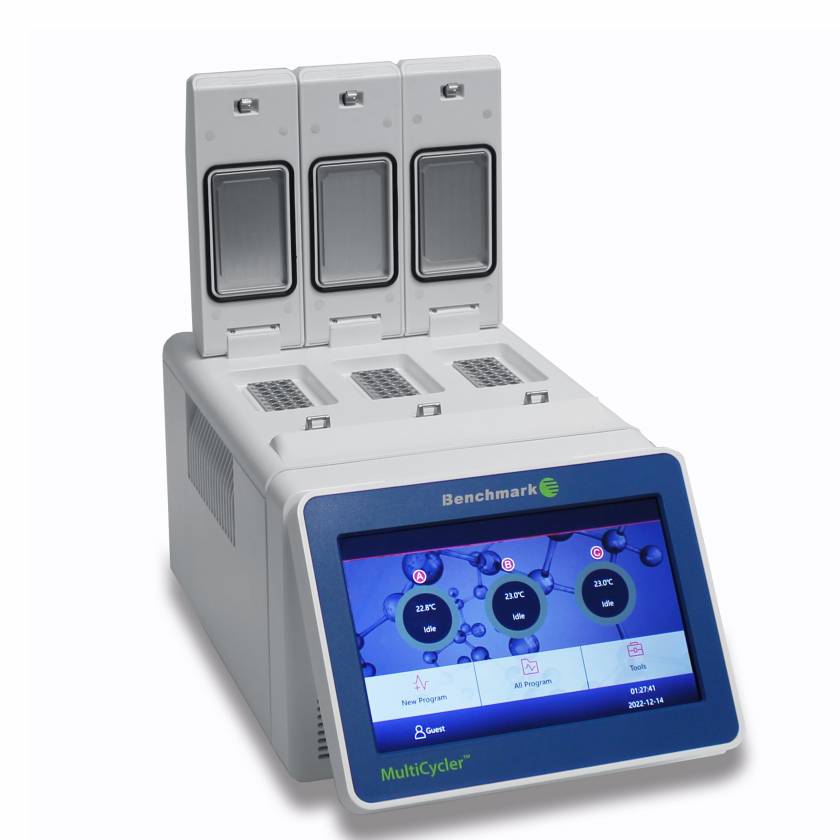

Designed for laboratories wanting flexibility in their applications, Benchmark’s T3-0332G MultiCycler™ Thermal Cycler offers triple, independent cycling blocks in a single unit and is supplied with a US plug, for research use only.

Features:

  • Triple Block Format - Accepts 32 x 0.2 mL PCR tubes and strips, flat or dome caps. The wells are arranged in a 4 x 8 format
  • Gradient Capabilities - Up to 8 temperatures/block
  • Intuitive Touch Screen Control - All programming features are accessed from the large, 10" full-color touch screen. The screen can be angled towards the user when in use and then tucked away to save space
  • Program Wizard - Guides users through the simple protocol setup process. Advanced programming features include gradient, adjustable ramp rates, and time increments and decrements. For multi-user labs, password protection prevents interference of an existing run. A USB provides for unlimited program storage and easy transfer of protocols between MultiCycler machines
  • The Auto-adjusting Heated Lid - Prevents sample condensation and evaporation. Lid temperature can be programmed, and when the block temperature is below 35°C, it automatically shuts off.
  • Peltier Units - Allow for exceptionally fast heating and cooling of the blocks. Temperature change is precisely and accurately controlled within tight tolerances by a proprietary algorithm that simulates sample temperature, resulting in fast runs and reproducible results

Technical Data:

Capacity: 3 x 32 well blocks. Accepts 0.2mL PCR tubes and strips, flat or dome caps
Heating and Cooling: Peltier elements
Display: 10" full color touch screen with adjustable angle
Comm Port: USB 2.0
Block Temperature Range: 4°C to 99.9°C
Maximum Heating Rate: 7.5°C/sec
Maximum Cooling Rate: 6°C/sec
Ramp Rate Adjustment: 0.1°C to 5.0°C
Temperature Uniformity: ≤ ±0.2°C (at 90°C)
Temperature Accuracy: ≤ ±0.2°C (at 90°C)
Gradient Functionality: Yes, 8 different temps/block
Gradient Accuracy: ±0.1°C
Gradient Range: 30°C to 99.9°C
Heated Lid: Yes, 30°C to 112°C
Power: 100V, 50-60Hz
Dimensions: 14.75" L x 10.5" W x 10.9" H
Product Weight: 28.7 lbs
Warranty: 2 years

Also available is the MultiCycler™ 248 Dual Block Gradient Thermal Cycler, 2 x 48 Well Blocks (T3-0248G).

Specifications

Specifications
Manufacturer Benchmark Scientific
Latex Free Yes
Actual Product Weight 28.7 lbs
Overall Height 10.9"
Overall Width 10.5"
Overall Length 14.75"
Country of Manufacture China
Item Ships From New Jersey
