Product Description

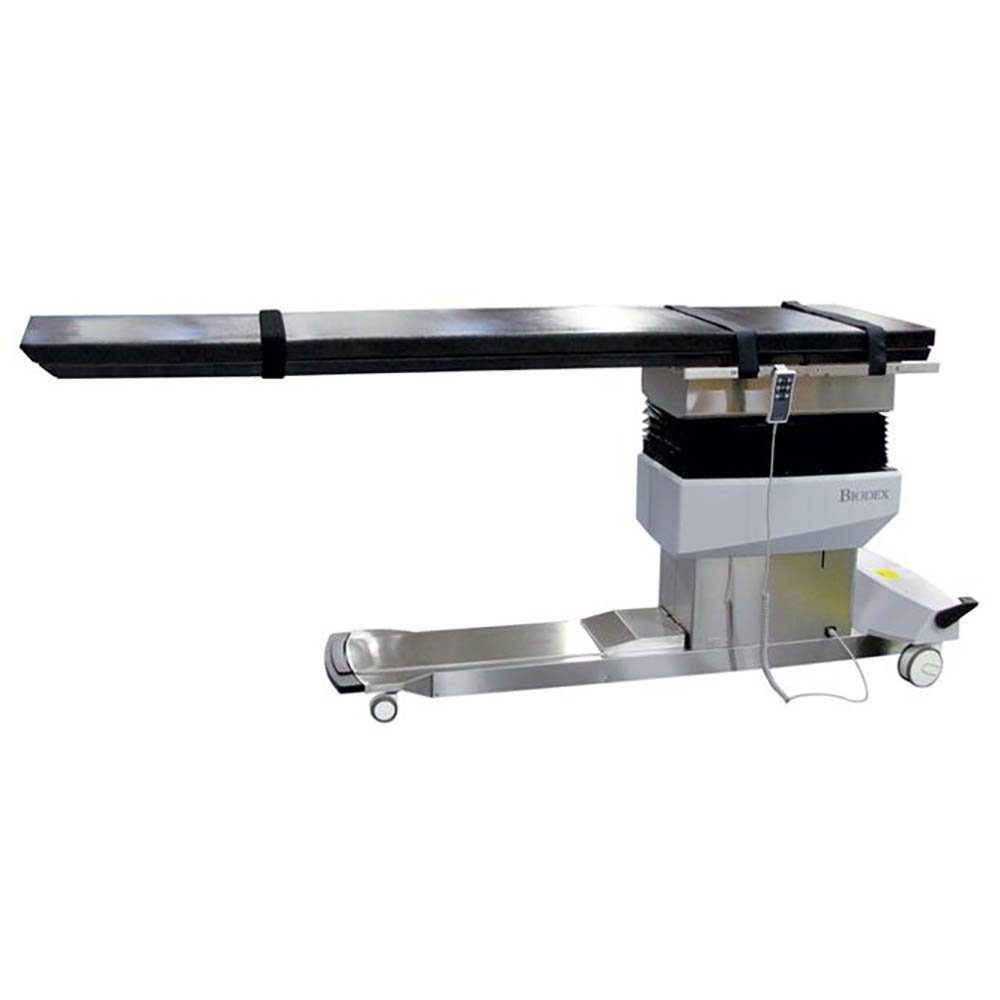

Featuring a large radiolucent area, motorized actuation of height, lateral roll and Trendelenburg motions, the 870 is ideal for pain care applications

  • Low attenuation carbon fiber tabletop with rectangular tabletop design
  • High-speed actuators assure quick, three axis motorized tabletop positioning
  • Convenient positioning controllers
  • Smooth starts and stops programmed into all motorized movements
  • 500-lb patient capacity
  • Low profile base for C-Arm clearance
  • Accessory Rails

Automatic positioning: A portable hand-held controller and optional foot-operated controller can be positioned for convenient access from any point around the table. Both controllers offer the freedom to adjust height, lateral roll, and Trendelenburg motions from locations away from the table, The foot-operated controller can be used when hands are busy with other functions. The hand-held controller hangs on an accessory rail when not in use.
Accommodates portable or ceiling-suspended C-Arms: Designed for procedures where stability, access, and precise, quiet, vibration-free positioning are essential, the Pain Management C-Arm Table is excellent for image-guided procedures. A cantilevered low attenuation carbon fiber tabletop accommodates portable or ceiling-suspended C-Arms. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening.
Rectangular Tabletop offers additional space to allow for superior image quality for long-leg runoff studies.

Optional Accessories are install by the customer.

Specifications:

  • Dimensions: 93" L x 26" W with OR accessory rails
  • Tabletop: 90" L x 24" W
  • Radiolucent Area: 60" L x 24" W unobstructed head to accessory rail - 4" L x 17.5" W additional, between accessory rails
  • Radiolucent Area, Total Length: 64" L
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2" thick
  • Attenuation: •Tabletop: 0.7 mm Aluminum equivalence  •Mattress: 0.5 mm Aluminum equivalence
  • Motions: •Height Adjustable: 30" to 40"  •Trendelenburg: 0° to 20°  •Reverse Trendelenburg: 0° to 20°  •Lateral Roll: 0° to 20°
  • Hand Control: activates height, lateral roll and Trendelenburg motions
  • Optional Foot Control: activates height, lateral roll and Trendelenburg motions
  • Wheels: •Head End: 3" swivel casters, integral locking system on base  •Foot End: 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375" mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb; weight tested to four times the patient load rating
  • Lift Capacity: May vary between 460 lb - 500 lb based on line voltage
  • Power: 115 VAC
  • Certifications: ETL and cETL listed to UL-2601-1, CAN/CSA C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2:2001-09

As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-2601-1 Medical Electrical Equipment Safety Standard. Biodex is certified for ISO 9001:2008, ISO 13485:2003.

About this Brand

Specifications

Specifications
Manufacturer Biodex
Actual Product Weight 550
Overall Height 40
Overall Length 93
Overall Width 26
Weight Capacity 500
Country of Manufacture United States
Item Ships From New York
GSA Contract Number V797D-40002

Literature 2

pdf
(Size: 803.8 KB)
pdf
(Size: 135.3 KB)

Instructions

Warranty:

Biodex Medical Systems, Inc., (Biodex), hereby warrants its products sold to buyer to be free of defects in workmanship and material for a period of 2 years from date of shipment. The foregoing warranty is expressly in lieu of all other warranties expressed, statutory or implied. Including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Final determination of the suitability of the products for the use contemplated by buyer is the sole responsibility of buyer, and Biodex shall in no way be responsible for the suitability of the products for any particular use. Claims for defects in workmanship or material must be presented to Biodex in writing and received by Biodex prior to the expiration of the warranty period. Buyer's sole and exclusive remedy, and Biodex's sole obligation, under this warranty shall be repair or replacement of the defective product as determined at Biodex's sole option. It is understood that upon repair or replacement, Biodex shall have no further obligation to buyer with respect to the defective product. Under no circumstances shall Biodex be liable to buyer or any third party for special, incidental or consequential damages, losses or expenses in connection with, or by reason of the inability to use the products for any purpose, or for damages and/or injuries incurred by buyer, its agents and employees, by virtue of defects in the products, even if Biodex has been advised of the possibility of such damages. Use or misuse by the buyer and/or agents, employees or others will, at the option of Biodex, void all product warranties.

Returns

Return must be requested from Customer service within 30 days of the product shipment date. All returns must be in new, unused condition. The manufacturer reserves the right to assess a 25% restocking fee at their discretion. All shipping charges remain payable by the purchaser.
