RSD Micro-Computed Tomography Quality Assurance Phantom Set
Usually Ships in 6-8 Weeks
In stock
Product Description
The RSD Micro-Computed Tomography Quality Assurance Phantom Set is designed for the precise and reliable assessment of Micro-CT imaging systems and research applications.
Features:
- Enhanced Imaging Performance - Enables accurate evaluation and optimization of Micro-CT systems
- Versatility for Research and Clinical Use - Supports a wide range of applications in both diagnostic and research settings
- Flexible Usage - Phantoms are available individually or as a complete kit for tailored solutions

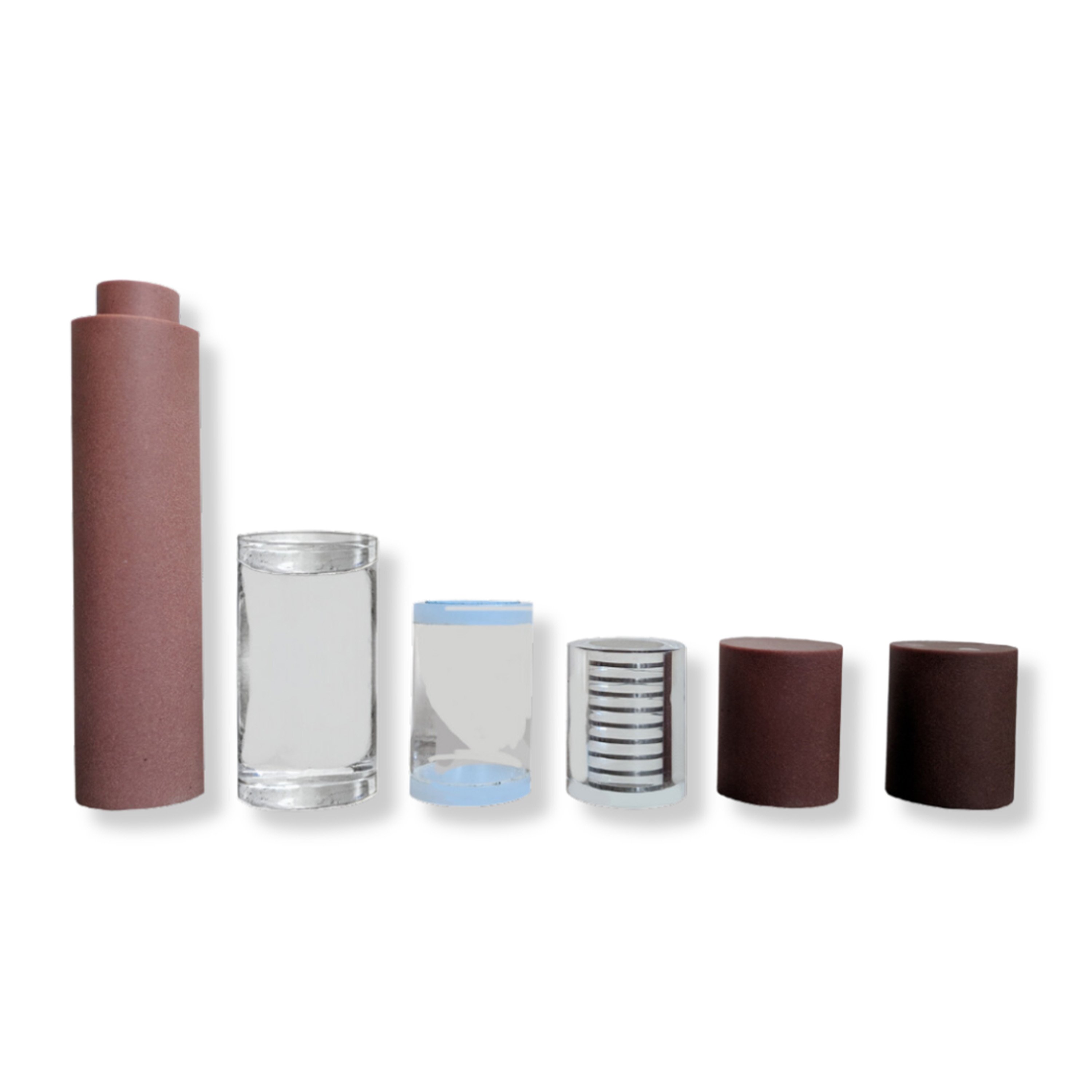

- Phantom Set Includes:
- CT Dose Phantom - Includes a water-equivalent background and is designed to accommodate a standard pencil ionization chamber in the central bore for dose measurements
- Water Phantom - Pre-filled with distilled water and provides a consistent, homogeneous background for testing and calibration
- Point Spread Function (PSF) Phantom - Enables evaluation of both the Point Spread Function (PSF) and Modulation Transfer Function (MTF). It contains two wires – one positioned at the center, and another offset to assess image quality in both the central and peripheral regions
- Multi-Layer Phantom (Defrise) - Featuring high-density disks separated by 3mm layers of low-density material. It is ideal for evaluating artifacts in reconstruction algorithms
- Hydroxyapatite (HA) Phantom - Designed to replicate the properties of high-density bone and contains five cylindrical inserts made of varying densities of calcium hydroxyapatite (CaHA), with a water background for accurate tissue simulation

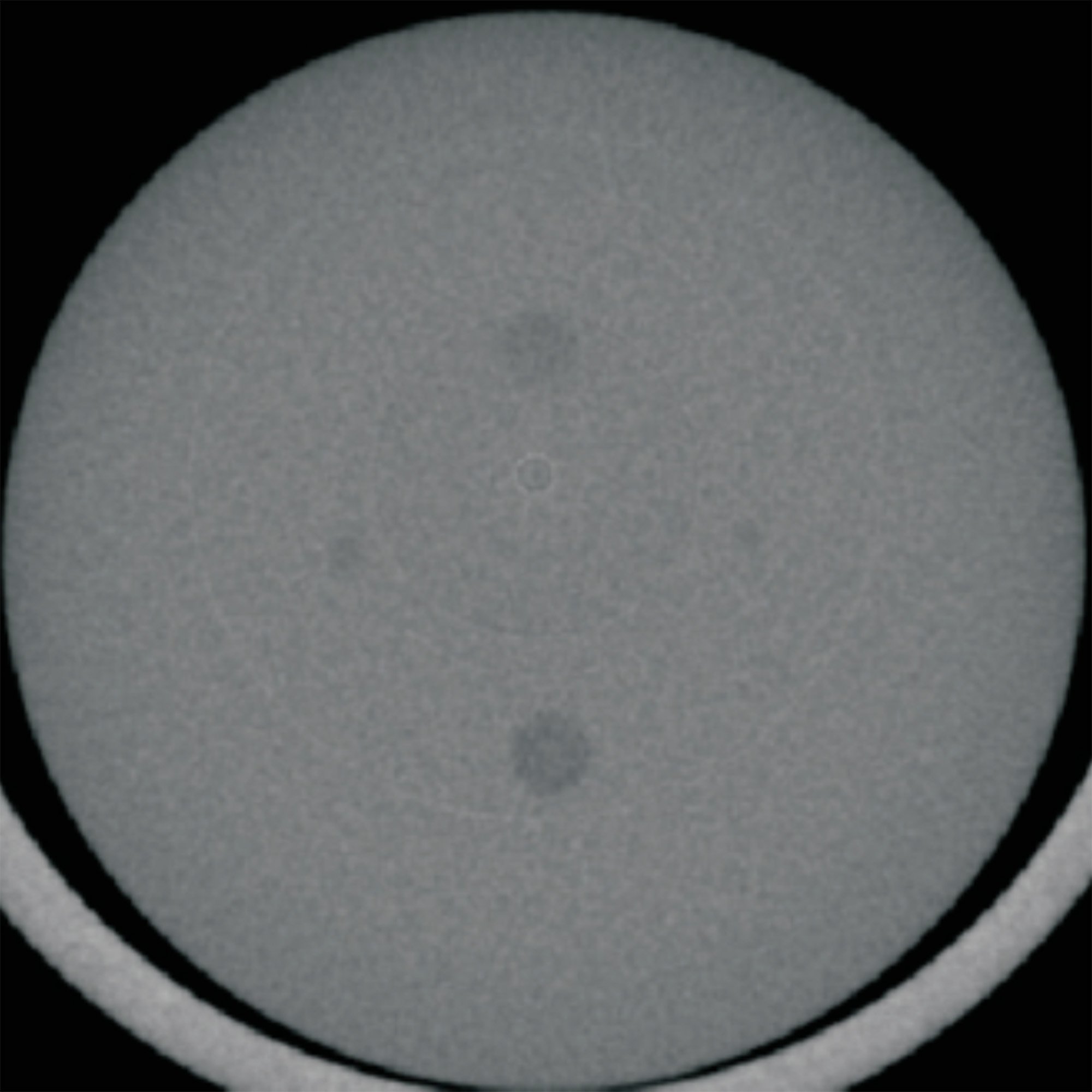

- Low Contrast Phantom - Mimics low-density bone and comes with a water background, ideal for assessing contrast resolution in CT imaging
- Comes Standard With:
- Comprehensive product manual
- Sturdy carrying case
- Standard Diameter: 32 mm
- Actual Product Weight: 2.2 lbs
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 2.2 lbs |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
Literature
Instructions
Warranty: Radiology Support Devices, Inc. (RSD) warrants this Product (including any accessories) against defects in material or workmanship as follows:
Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.
For Complete Warranty Details, please see the literature above.
Returns
This item is not able to be returned.
