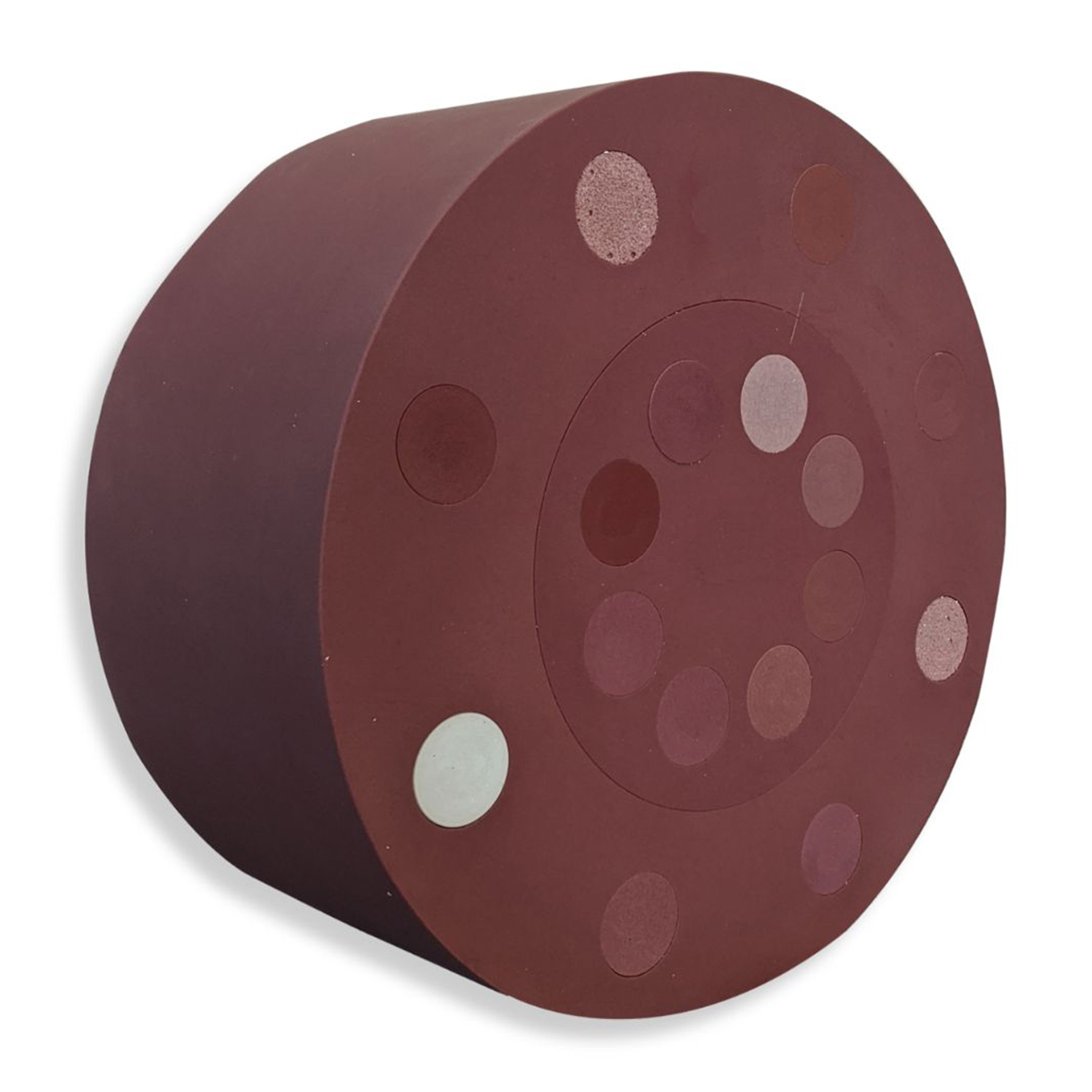

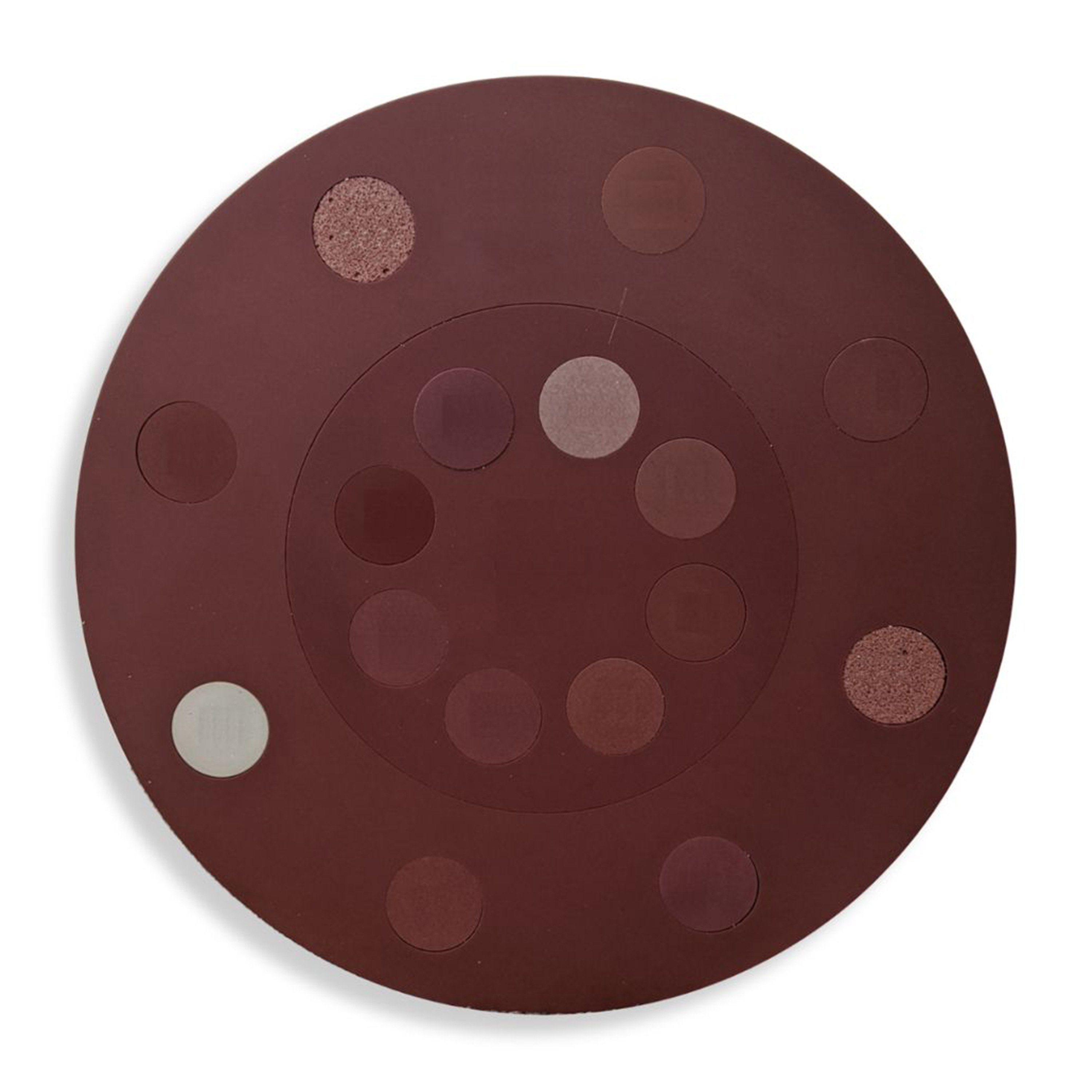

RSD Computed Tomography Number and Electron Density Quality Assurance Phantom
Usually Ships in 6-8 Weeks
In stock
Product Description
The RSD Computed Tomography Number and Electron Density Quality Assurance Phantom is a precision-engineered tool designed for comprehensive CT imaging quality assurance and calibration. It ensures your CT systems meet clinical standards and deliver exceptional imaging performance every time.
Features:
- Geometric Accuracy - Ensures precise CT scanner geometry, enabling accurate imaging and measurements for diagnostic and treatment planning
- Tissue Homogeneity Assessment - Provides a reliable evaluation of tissue HU values to correct for inhomogeneities and verifies image uniformity, ensuring consistent scanner performance
- CT Hounsfield Unit Validation - Confirms the accuracy of Hounsfield unit measurements, allowing for precise tissue characterization and differentiation
- Optimized Dose Calculations - Enhances the accuracy of radiation dose calculations, critical for effective and safe treatment planning in radiation therapy
- CT Number and Electron Density Correlation - Accurately correlates CT numbers with tissue electron densities, ensuring optimal quality in treatment planning and delivering better patient outcomes
- 16 Interchangeable chambers - For detailed tissue characterization
- Standards Compliance:
- IEC 61223-3-1: Evaluation and routine testing in medical imaging departments – Part 3-1: Acceptance tests – Imaging performance of X-ray equipment for radiographic and radioscopic systems

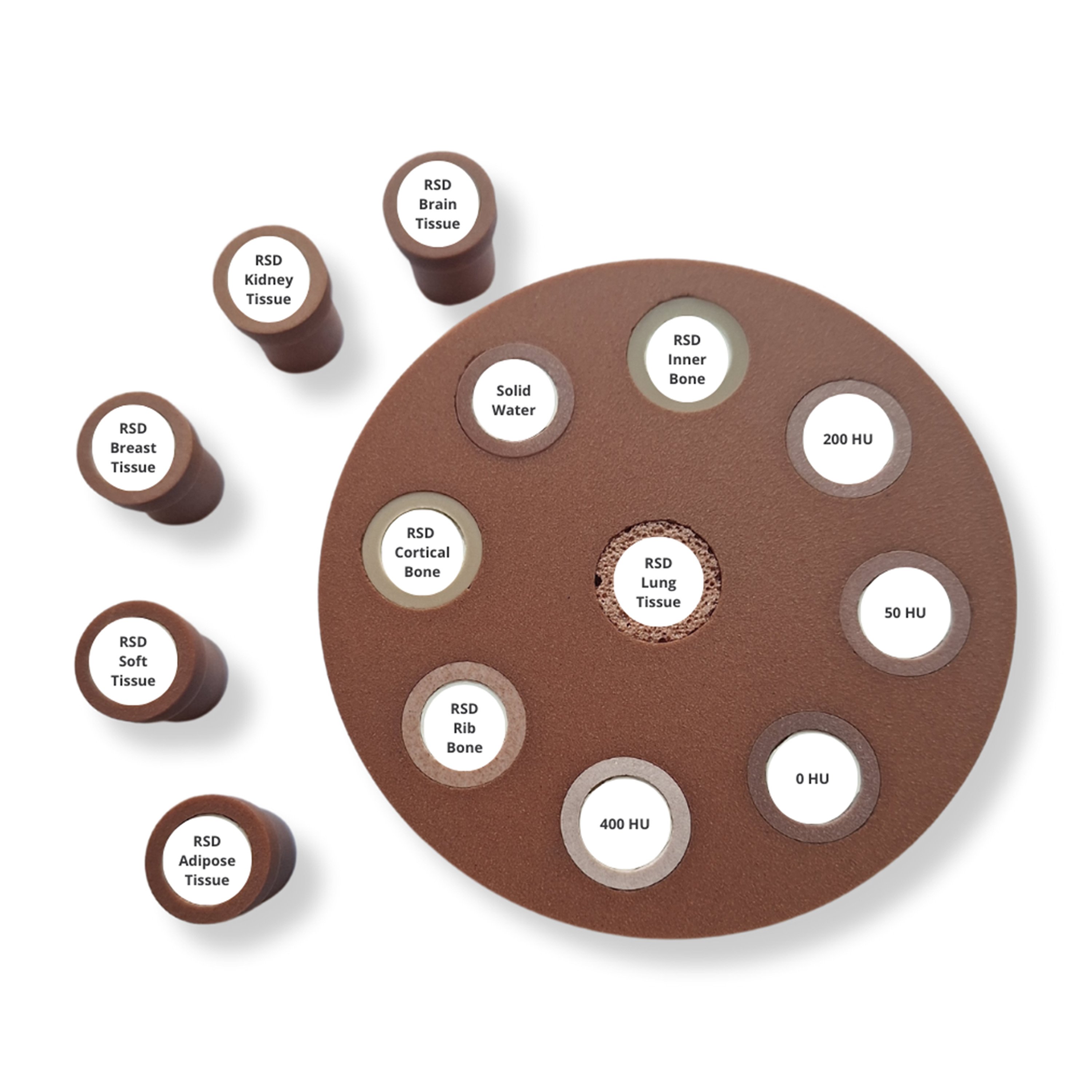

- Tissue Types: Solid water tissue, adipose tissue, lung tissue, brain tissue, soft tissue, breast tissue, hard cortical bone, kidney tissue, liver tissue, rib bone, inner bone, and true water tissue
- Comes Standard With:
- Comprehensive product manual

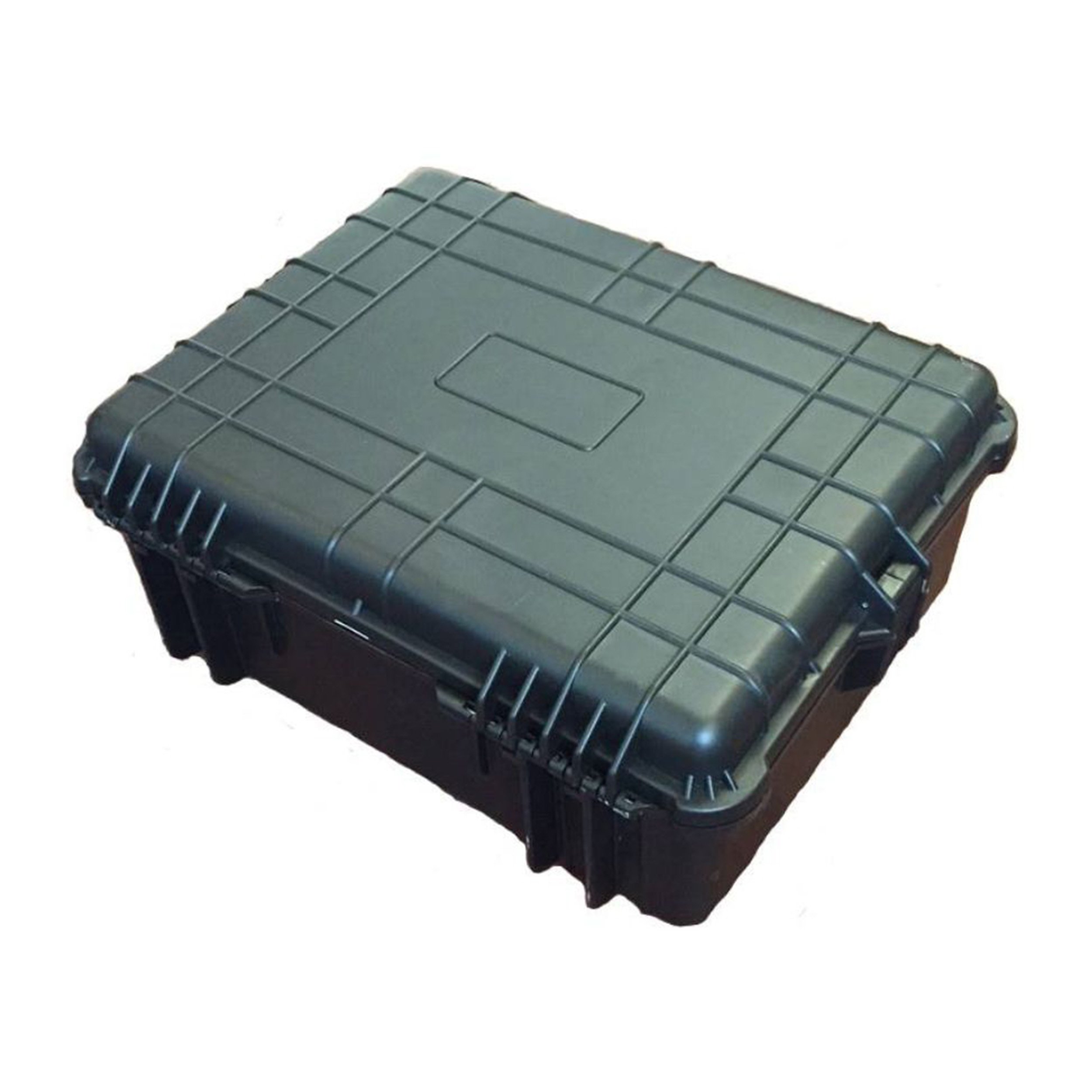

- Sturdy carrying case
- Ready-made stand
- Electron and physical density chart
Technical Specifications:

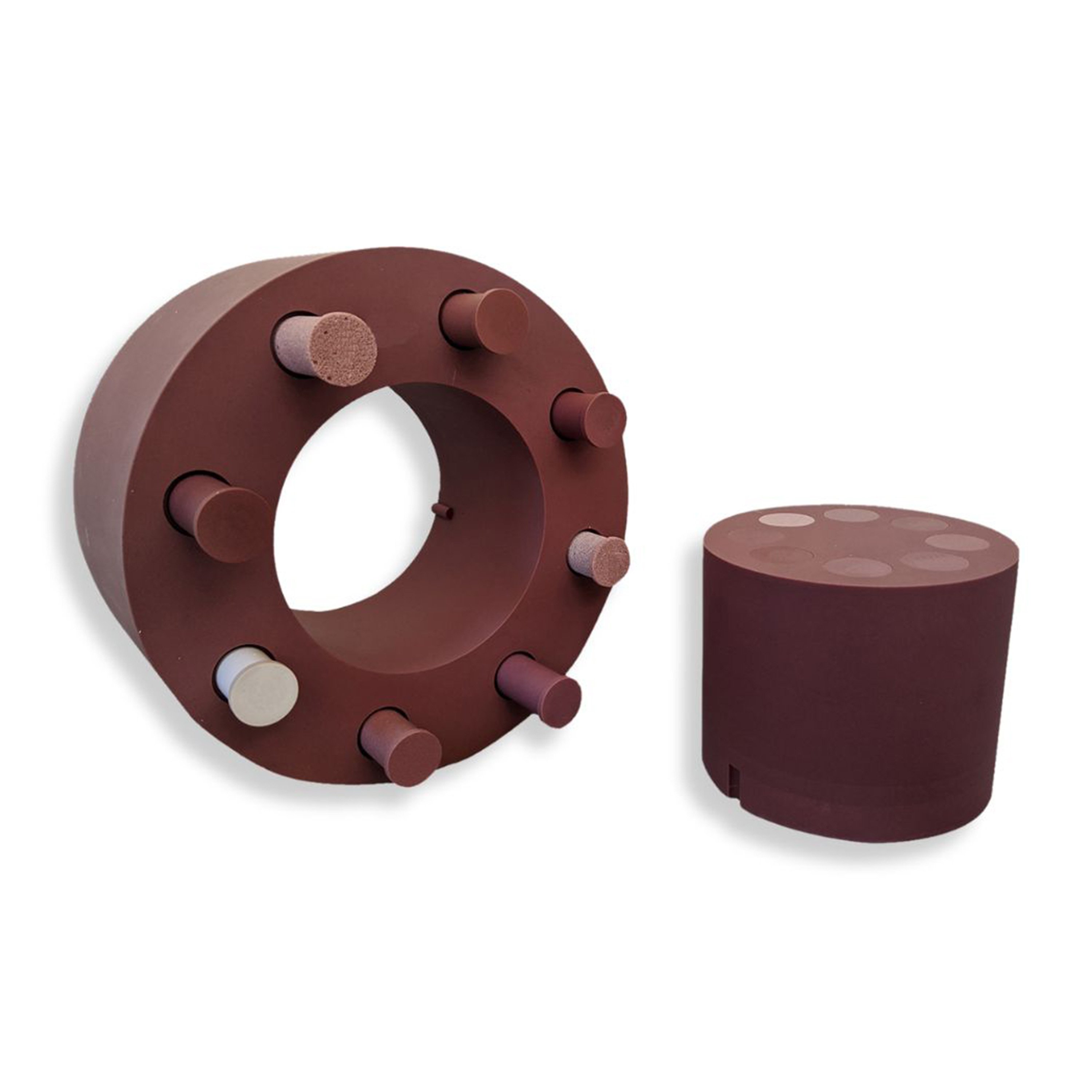

- Head and Body Sections Material: Water-mimicking
- Inner Head (Insert) Dimensions: 180 mm Diameter x 150 mm Height
- Outer Body Dimensions: 330 mm Diameter x 150 mm Height
- Actual Product Weight: 55 lbs
Electron and Physical Density Chart
| Plug Label | Tissue Type | Physical Density (g/cm3) | Electron Density (m-3 x 1026) | Electron Density (relative to H20) |
| WT1 | Solid Water | 1.01^ | 3310* | 0.99 |
| WT1 | Brain Tissue (WT1 equivalent) | 1.04^ | 3460* | 1.03 |
| WT1 | Liver Tissue (WT1 equivalent) | 1.06^ | 3510* | 1.05 |
| WT1 | Kidney Tissue (WT1 equivalent) | 1.05^ | 3480* | 1.04 |
| LN10 | Lung Tissue | 0.30^ | 1000* | 1.03 |
| AP7 | Adipose Tissue | 0.92^ | 2990* | 0.90 |
| BR12 | Breast Tissue (2 plugs provided) | 0.98^ | 3170* | 0.95 |
| IB7 | Inner Bone | 1.25^ | 4010* | 1.20 |
| RB2 | Rib Bone | 1.31^ | 4350* | 1.30 |
| SB5 | Hard Bone | 1.81^ | 5770* | 1.73 |
| WTE | True Water (HA0, HA50, HA200, and HA400) | 1.04^ | 3460* | 1.03 |
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 55 lbs |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
