RSD Computed Tomography Dose Index Quality Assurance Phantom
Product Description
The RSD Computed Tomography Dose Index Quality Assurance Phantom is a high-quality tool designed for the precise measurement and evaluation of CT dose indices (CTDI) in medical imaging: DI (dose index), CTDI100 (center and peripheral), CTDIw (weighted CTDI100), CTDIvol (weighted CTDIw), and CTDIfree air.
Features:

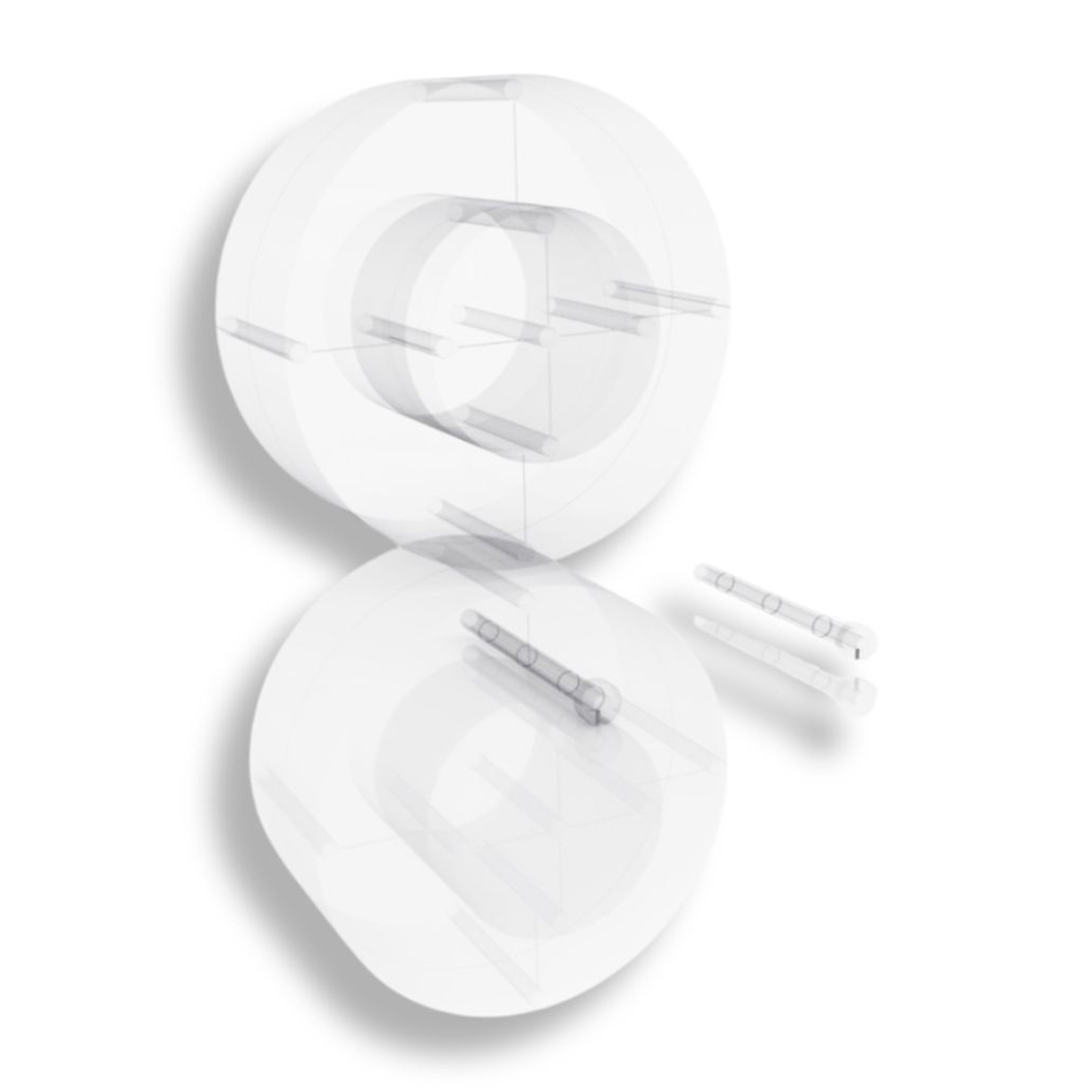

- Two Large PMMA Cylinders - Simulates adult head and body with a supplemental pediatric head that fits within the adult head and is sold separately. The adult head section is designed to nest inside the body section for realistic imaging evaluations
- Safety and Efficacy - Assess and monitor CT scans safely and efficiently to help safeguard patient health
- Optimal Performance - Ensures optimal performance in both clinical and research environments
- Exceptional Accuracy - Ensures precise, consistent CTDI measurements for regulatory compliance and quality assurance in assessing patient radiation exposure
- Comprehensive Measurement Capabilities - Measures CTDIw, CTDIvol, and DLP for effective dose management across protocols
- User-Friendly Interface - Simple setup with clear instructions for quick use by operators of all experience levels
- Advanced Material Construction - Durable, tissue-mimicking materials for accurate dose distribution assessment
- Flexible Design - Accommodates various CT scanner models and adapts to different scanning protocols
- Alignment markers
- Polymethyl methacrylate (PMMA) plugs - For plugging the holes when not in use
- Standards Compliance:
- IEC 61223-3-5: Evaluation and routine testing in medical imaging departments – Part 3-5: Acceptance and constancy tests – Imaging performance of computed tomography X-ray equipment
- IEC 61223-3-6: Evaluation and routine testing in medical imaging departments – Part 3-6: Acceptance and constancy tests – Imaging performance of mammographic X-ray equipment used in a mammographic tomosynthesis mode of operation
- IEC 60601-2-44: Medical electrical equipment – Part 2-44: Particular requirements for the basic safety and essential performance of X-ray equipment for computed tomography
- Comes Standard With:
- Comprehensive product manual

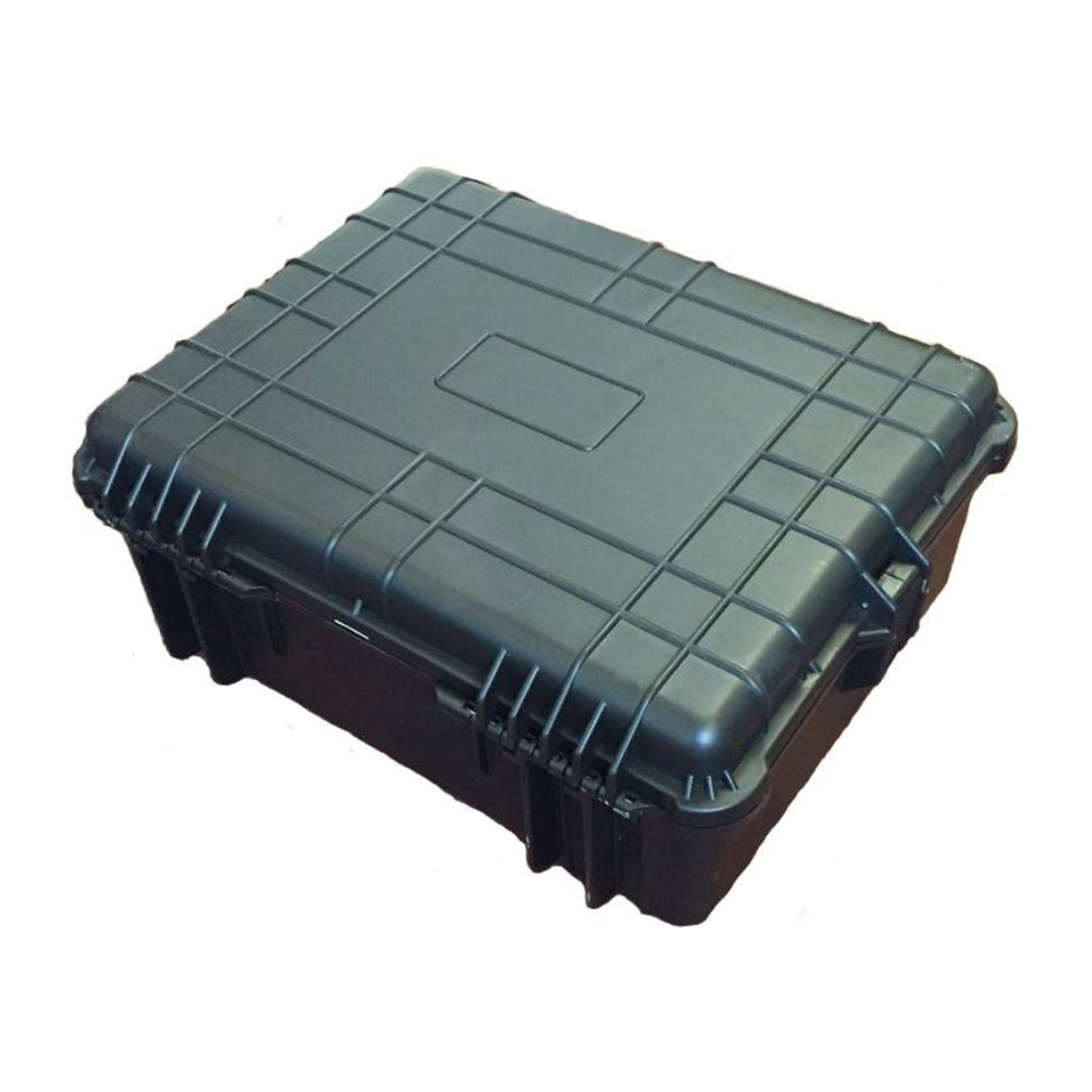

- Sturdy carrying case
- Available in Two Variations:
- Adult & Pediatric (QA-CT010)
- Adult Only (QA-CT011)
Technical Specifications:
- Body Diameter: 320 mm
- Adult Head Diameter: 160 mm
- Pediatric Head Diameter: 80 mm
- Cylinder Length: 145 mm
- Cylinder Holes in each cylinder for 8, 10, and 13 mm diameter radiation detectors
- Actual Product Weight: 55 lbs
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 55 lbs |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
Literature
Instructions
Warranty: Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.
For Complete Warranty Details, please see the literature above.
