RSD Domestic Violence Take-Apart PIXY - Transparent, No Fill Ports

Domestic Violence Transparent Break-Apart PIXY with NO Fill Ports is Tinted Green. Includes storage Case.

ANTHROPOMORPHIC TRAINING & TEACHING PHANTOM WITH 16 PATHOLOGIES AND TRAUMAS AVAILABLE

• Phantom disassembles into 9 parts
• Ideal substitute for teaching and training radiological technologists
• Small size and low weight simplify positioning
• Unlimited repetition of most views for which patients cannot be used
• Provides valid feedback to evaluate trainee performance
• Designed to image any clinical view (AP, oblique, lateral, frog legs, etc.)

Designed with the expert assistance of Judy McNitt-Mell, RSD's Domestic Violence Take-Apart Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5' 1" (156 cm) weighing 105 lbs (48 kg), Domestic Violence Take-Apart Pixy is a repeatable, convenient substitute for patients and virtually indestructible.

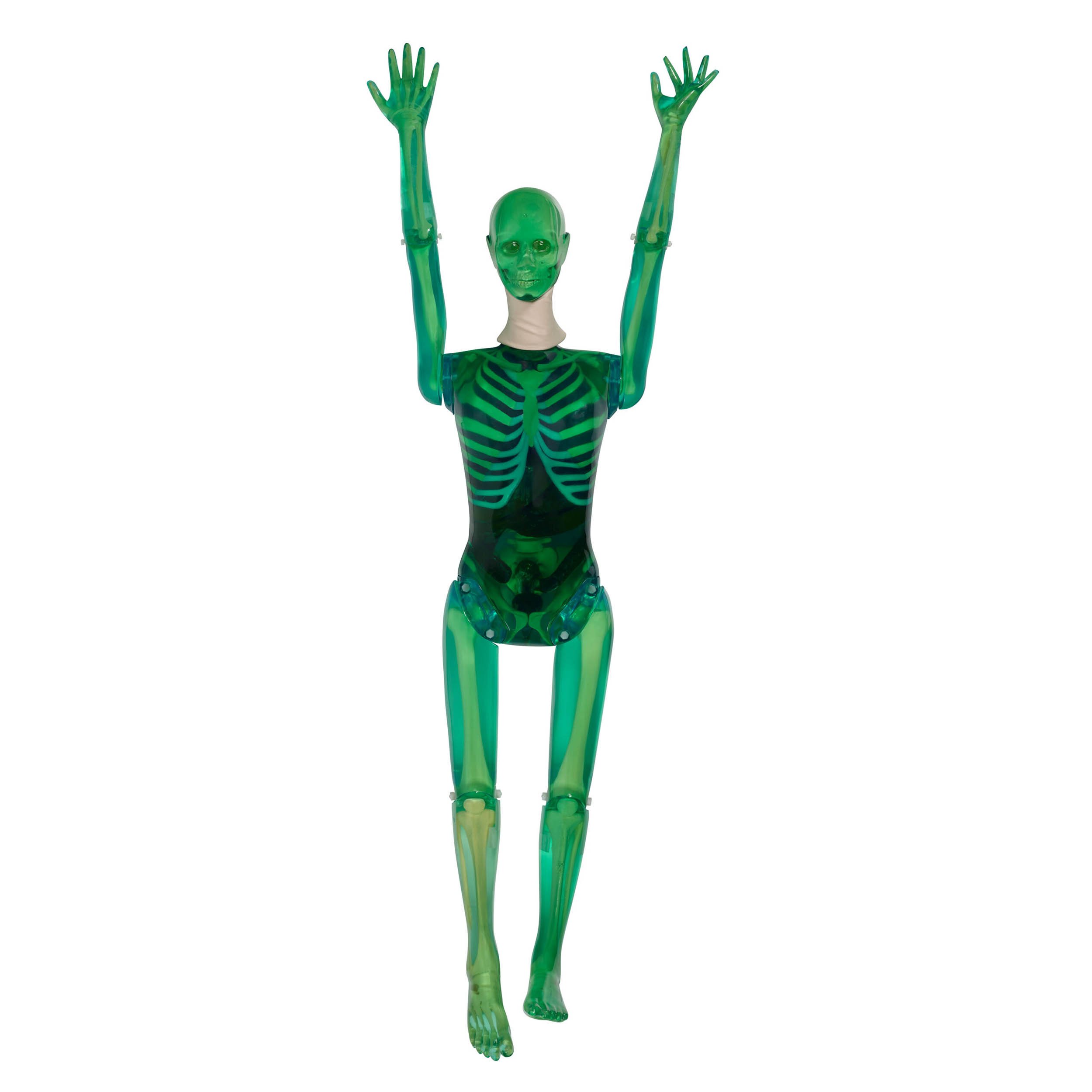

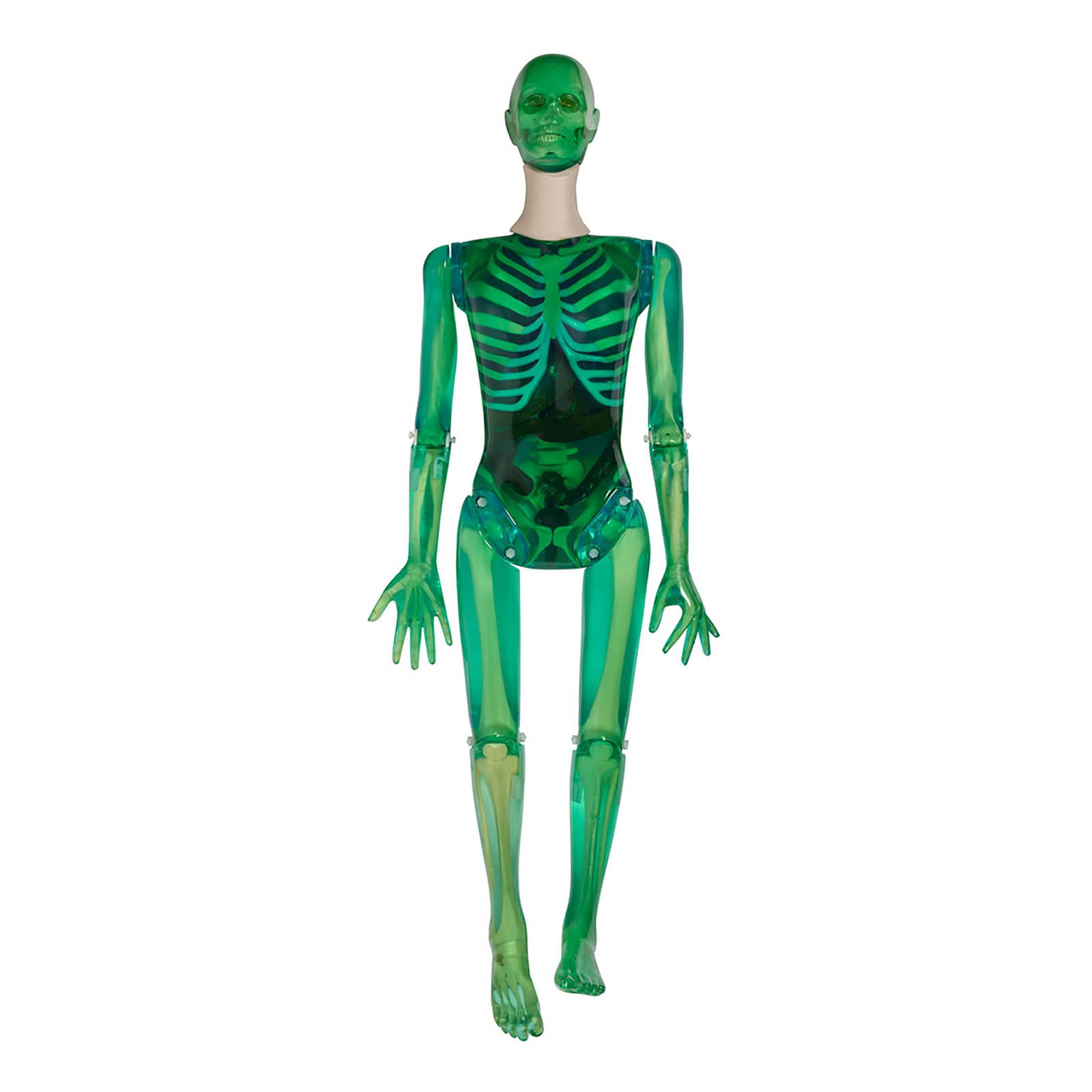

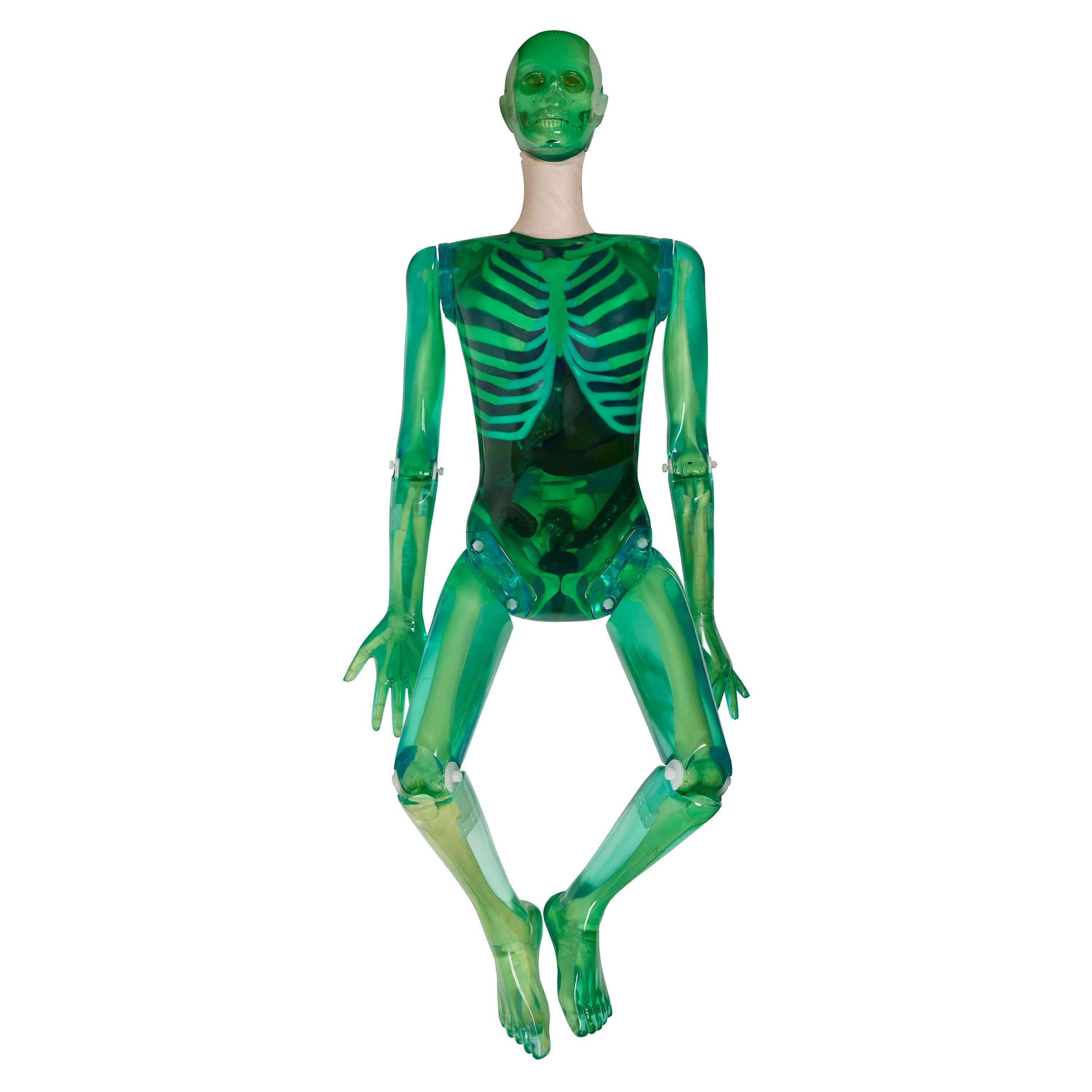

Domestic Violence Take-Apart Pixy is tinted green with visible skeleton and organs, including the stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure. The organs are air-filled but accept water or contrast media that can be easily flushed after use.

Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Domestic Violence Take-Apart Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for evaluation of student performance. Students have no difficulty in maneuvering Domestic Violence Take-Apart Pixy into most desired positions as the phantom is built to tolerate trainee errors.

Applications

• ER evaluation of technologist performance in identifying common trauma of domestic violence
• Teaching & training of patient positioning
• Image quality
• Diagnostic radiology
• Dosimetry verification
• Protocol verification

Modalities: CT, X-Ray, Fluoroscopy

Anatomy

• Shoulders have ball and socket joints
• Elbows and knees flex 90° to 100°

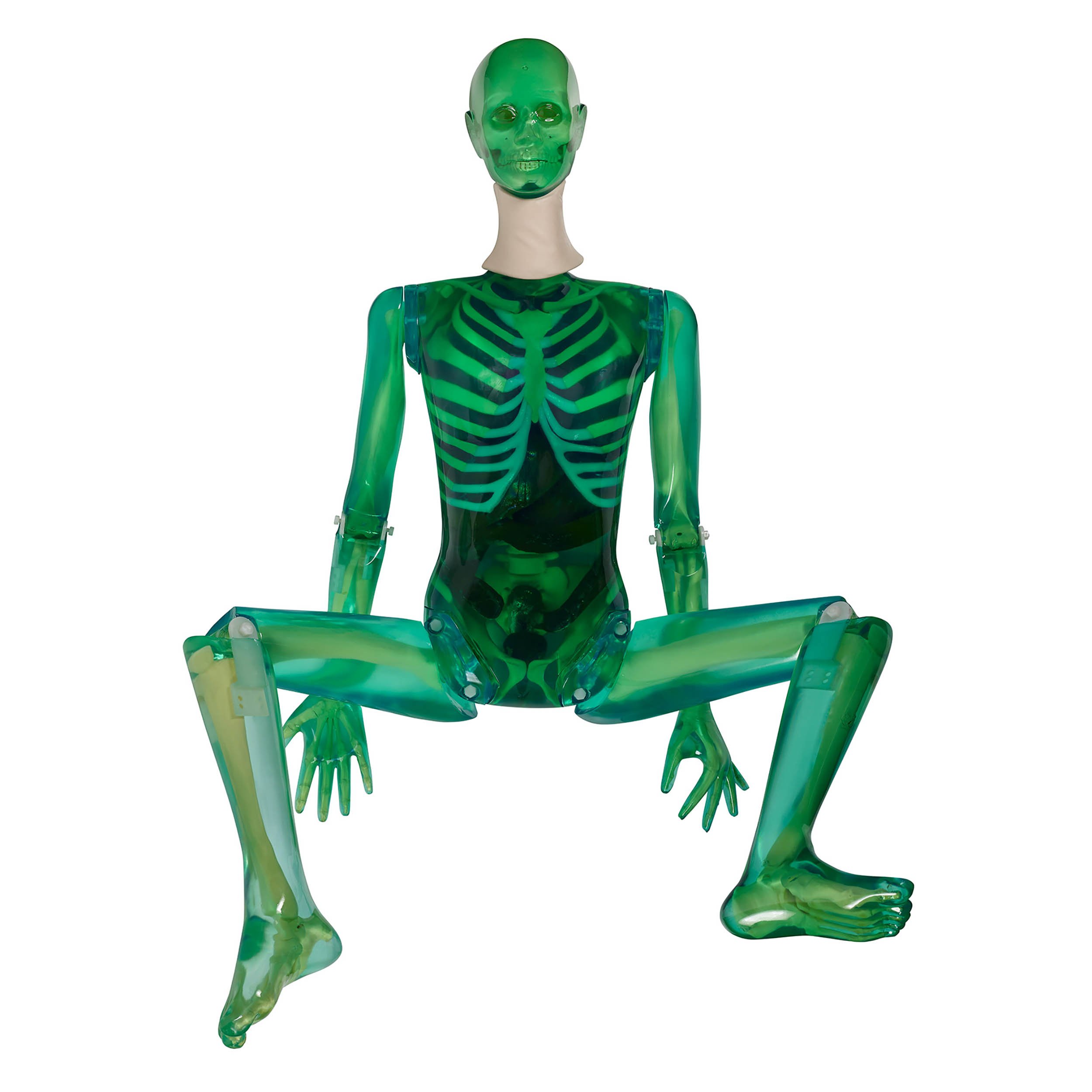

• A "frog position" is possible at the hips
• Right hand is molded with fingers positioned for an AP view
• Left hand is in an oblique-lateral position
• Feet are in natural position

Domestic Violence Take-Apart Pixy is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, digital processing, OFD and TFD. Made of tissue-equivalent materials and life-like articulations, Domestic Violence Take-Apart Pixy is more realistic than a cadaveric skeleton with radiographs that are optically equivalent in density and contrast to human patients.

C1, C2, C6, and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. This design permits the remaining neck vertebrae to be fixed in a normal position, while assuring a full range of head motion.

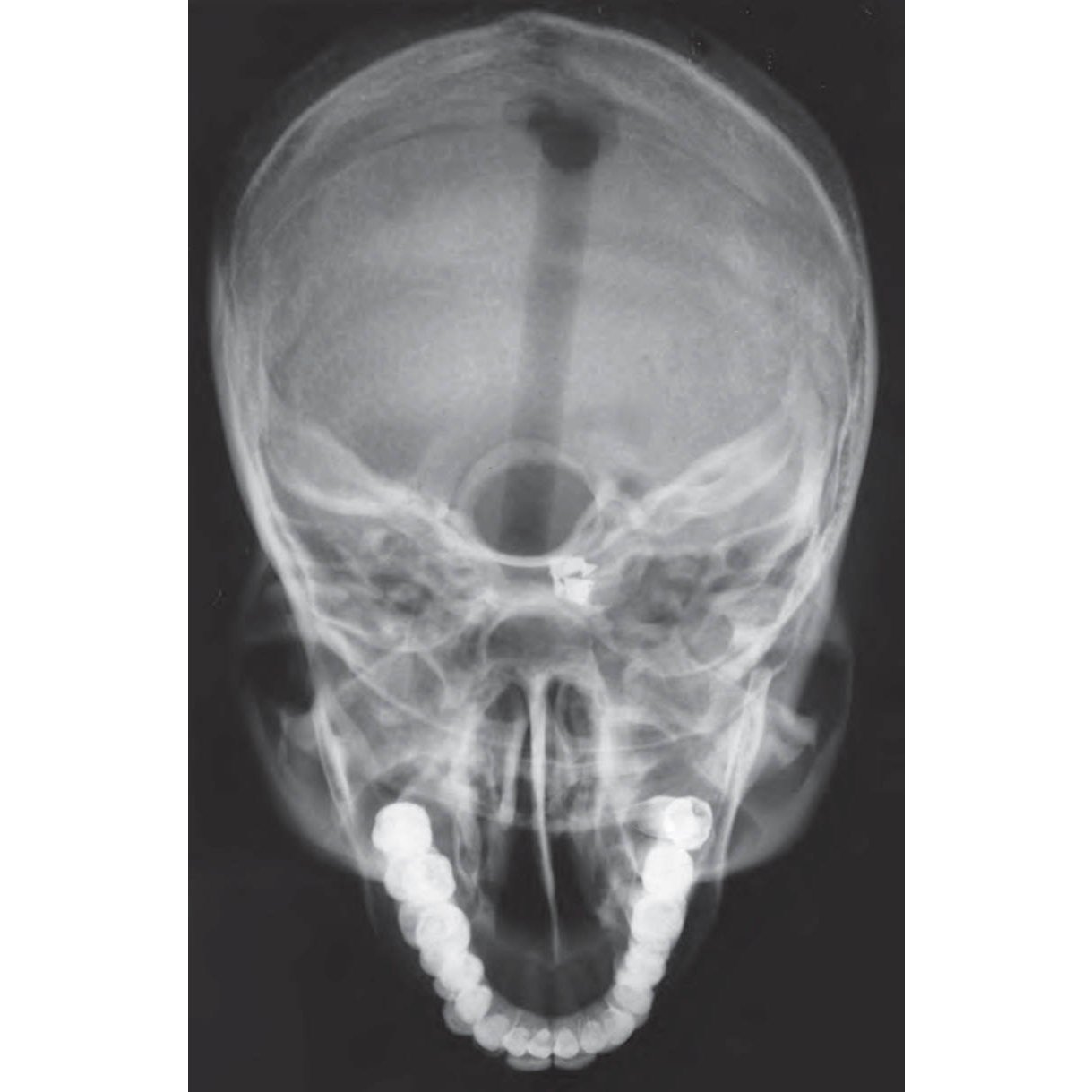

The skull of Domestic Violence Take-Apart Pixy has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells, and the auditory ossicles. Bone sutures are radiographically visible.

Domestic Violence Take-Apart Pixy lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30 g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.

PATHOLOGIES and TRAUMAS:

HEAD:

• Displacement of mandibular condyle fracture
• Separate fracture of left frontal zygomatic bone
• Step deformity of left infraorbital rim
• Mandible fracture with missing bone
• Fracture of nasal bone

NECK: C4+C5 compression fracture

BODY:

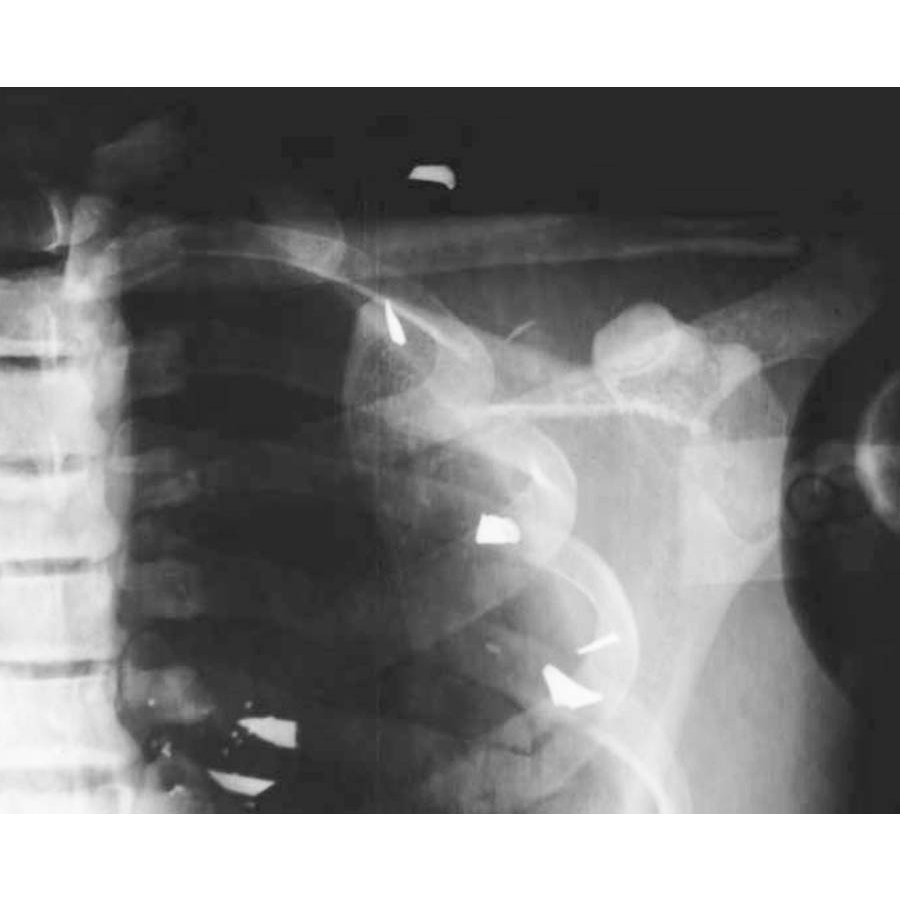

• Glenoid Fracture left scapular

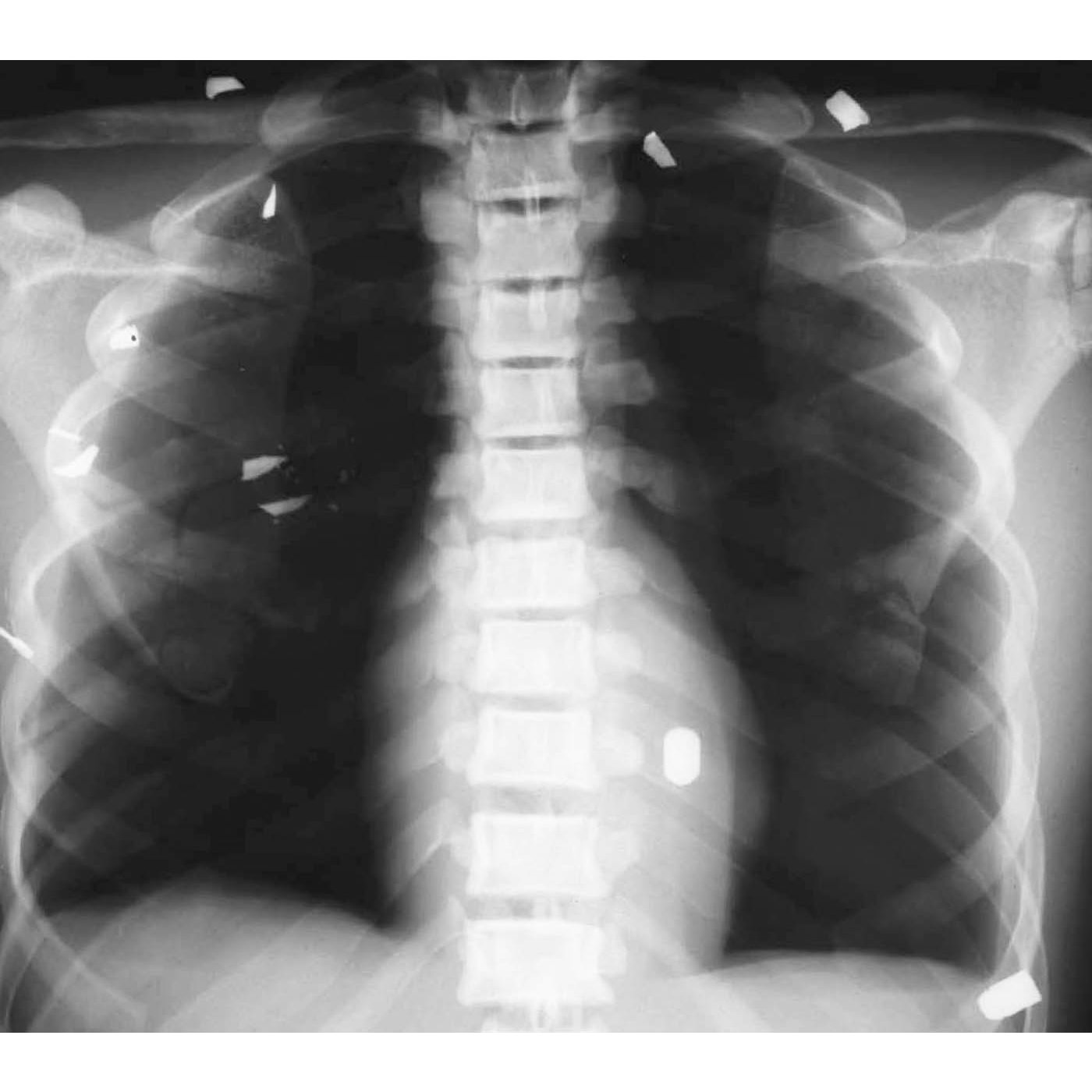

• Fracture of lateral right ribs 6+7
• Fracture of left ribs 8+9 mediolateral
• Right 12 rib fracture

ARM:

• Displaced fracture of left radius and ulna, midshaft
• Left hand 3rd and 4th metacarpals shattered
• Proximal tibia fracture with multiple bone fragment
• Right minimally displaced distal fibula fracture

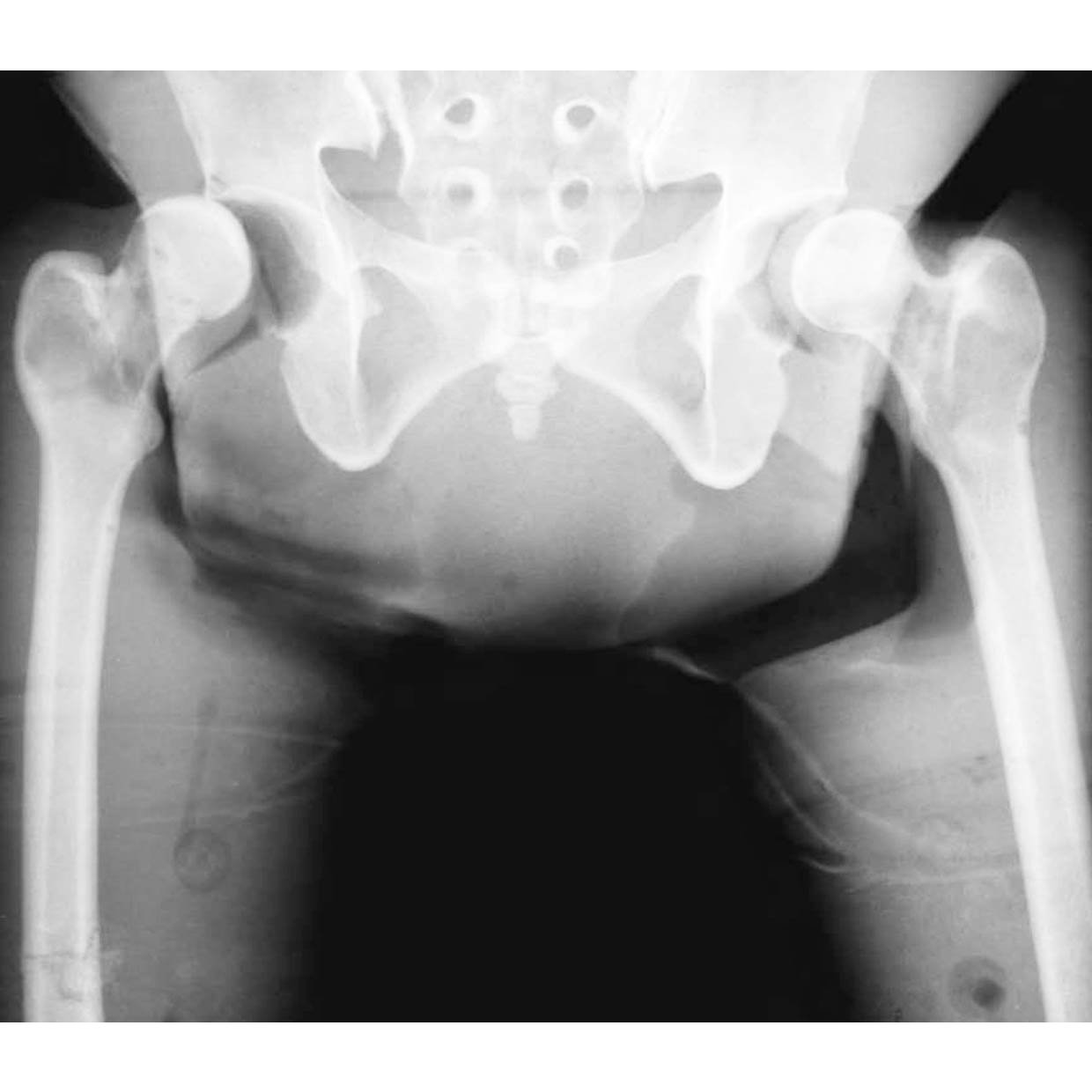

PELVIS: Displaced pubic ramus fracture right and left

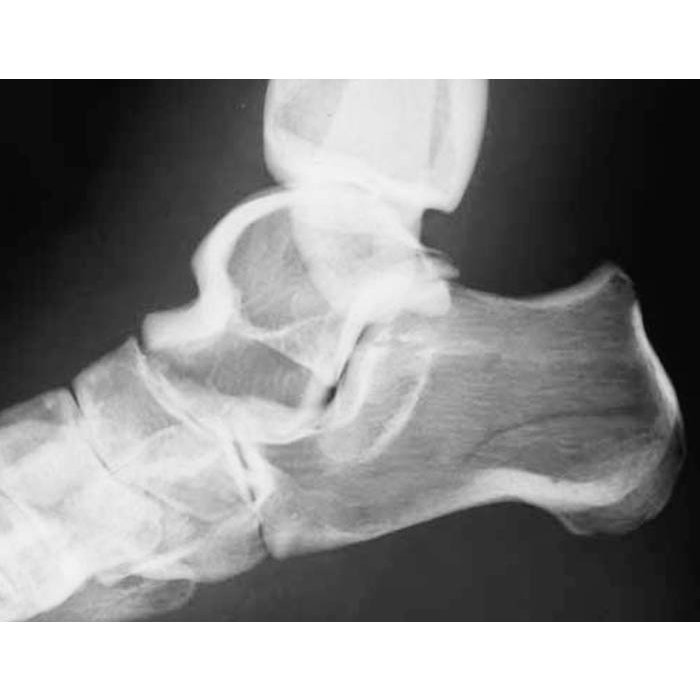

FOOT: Right displaced angle fracture in calcaneus bone
