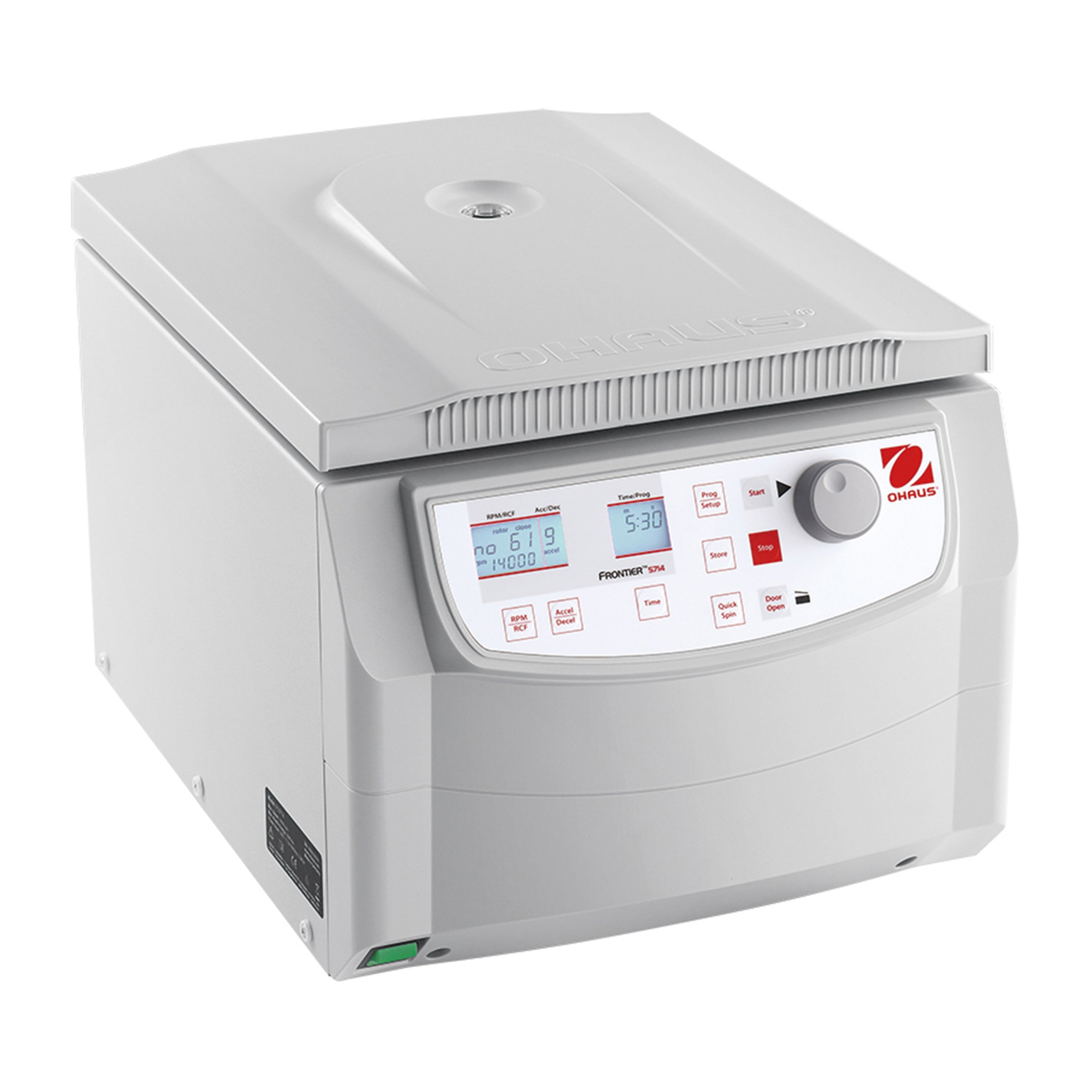

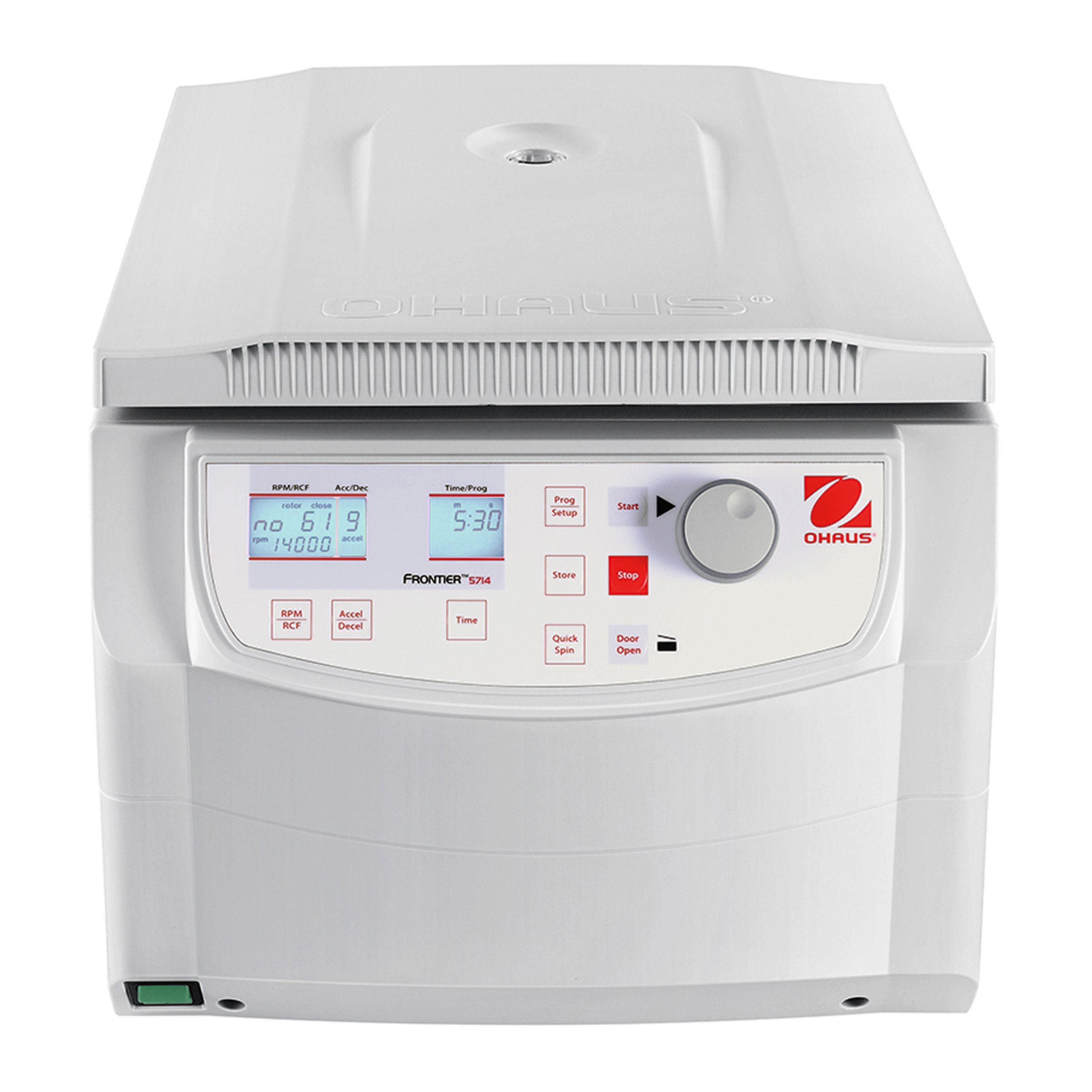

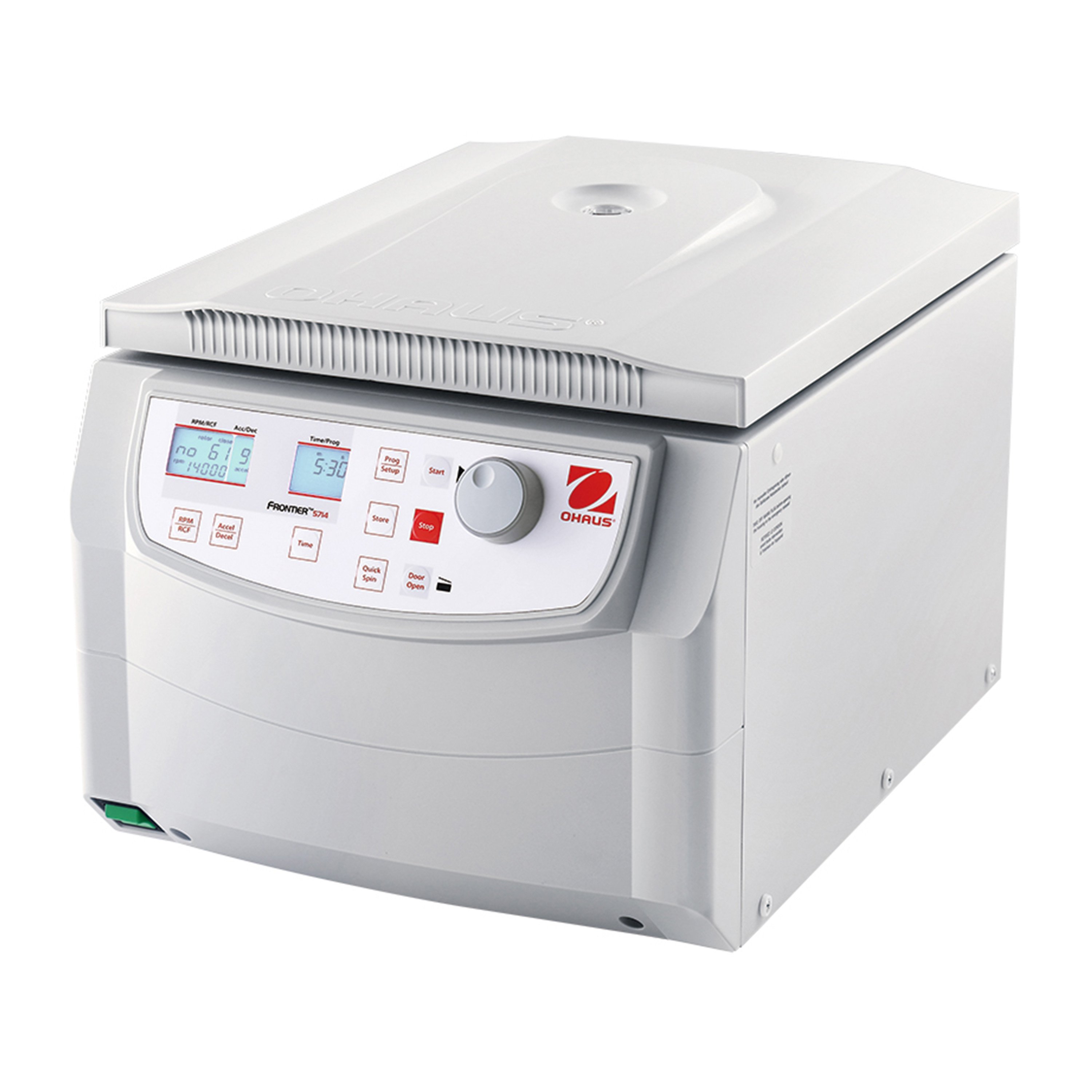

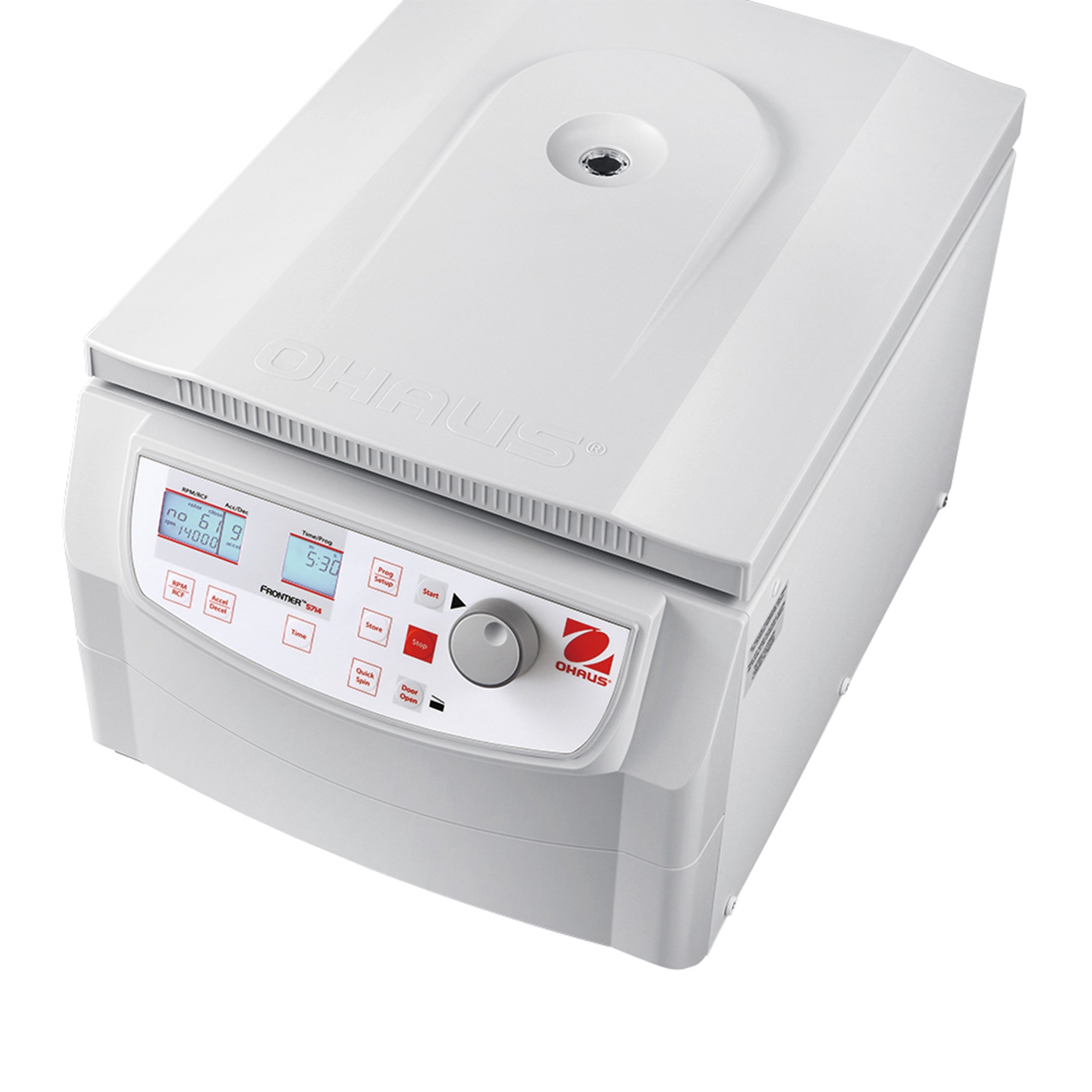

OHAUS FC5714 Frontier™ 5000 Series Multi Pro Centrifuge

The OHAUS FC5714 Frontier™ 5000 Series Multi Pro Centrifuge is made for universal use in multiple applications in research, industrial, and clinical settings. It features high-speed performance at maximum volume, automatic rotor identification, and safety features.

Features:

• Compatible with up to 8 optional rotors and 59 accessories
• Capacities from microliter to 4 x 145 mL
• Improved sample processing throughput with an additional rotor for blood collection
• Provide a high-speed centrifugation platform that can be customized to your workflow using a wide range of rotors and accessories
• Intuitive design of the centrifuge and accessories allows easy access to parameter settings and quick rotation between applications
• Features automatic rotor recognition and a large backlit LCD
• Program storage up to 99 runs, including parameter settings and rotor types
• Engineered in Germany with high-quality components for reliable use
• Made of chemical-resistant stainless steel to ensure durability in laboratory use
• Equipped with protective features, including automatic over-speed protection, imbalance detection, and a self-diagnostic system to ensure reliable use and operator safety
• Maintenance-free induction drive and a thread-free rotor locking mechanism
• Optimized airflow system to keep samples cool (non-refrigerated models)
• Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
• Over-speed protection, immediately upon rotor insertion
• Motorized Lid-locking System - It prevents the centrifuge from opening during operation
• Active imbalance-detection with individual imbalance tolerances set for each rotor
• Sealed and bio-containment rotors to safeguard operators from harmful aerosols

Technical Specifications:

• Speed Range: 200 RPM - 14,000 RPM; 10 RPM/set
• Maximum RCF: 18,624 x g; 10 x g/set
• Maximum Capacity (Rotor): 4 x 200 mL
• Program Memories: 99
• Acceleration Gear: 10
• Deceleration Gear: 10
• Display: LCD with backlight
• Lid Lock: Mechanical
• Rotor Recognition Method: Auto
• Temperature Range: Air cooled
• Working Environment Temperature: 5°C – 35°C, 80% RH, non-condensing
• Altitude: Use up to an altitude of 2,000 m
• Rotor Compatibility: Angle 12 x 15 mL RB/FA ID, Angle 24 x 1.5/2.0 mL ID Sealable, Angle 30 x 15 mL RB/FA ID, Swing out 4 x 100 mL ID, Angle 30 x 1.5/2.0 mL ID Sealable, Swing out 4 x 100 mL ID Sealable, Angle 24 x 1.5/2.0 mL ID, Angle 6 x 50 mL RB/FA ID, Swing out 2 x 3 MTP ID
• Running Time: 10 sec to 99 hr 59 min 59 sec or continuous
• Noise Level (Varies by rotor): ≤ 63±2 dB(A)\
• Allowable Density at Maximum Speed: 1.2 g/mL
• Allowable Kinetic Energy: 5,595 Nm
• AC Power: 120V, 50-60 Hz
• Fluctiation: ± 10%
• Current Composition: 2.4 A
• Power Consumption: 300 W
• ECM: EN/IEC 61326-1 Class B emissions, Basic immunity FCC Class B emissions
• Applications: Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
• Overall Dimensions: 19.41" L x 12.99" H x 14.25" W
• Actual Product Weight: 66 lbs

*Please Note: Rotors, buckets, racks, adapters, tubes, and other accessories are sold separately.
