OHAUS Achiever™ 5000 Overhead Stirrer
Product Description
The OHAUS Achiever™ 5000 Overhead Stirrer combines powerful, precise stirring with safety and simplicity. Its compact design and user-friendly features ensure easy operation in any application.
Features:
- Ideal for applications such as mixing buffers, stirring paint, ink, and adhesives, formulating cosmetics, and research and development of food and beverages
- Simple Knob Control - Allows for easy and precise setting adjustments
- Bright LED Digital Display - Shows current settings clearly for precise monitoring, including speed, real-time torque tendency LED indicator bar, and an integrated timer

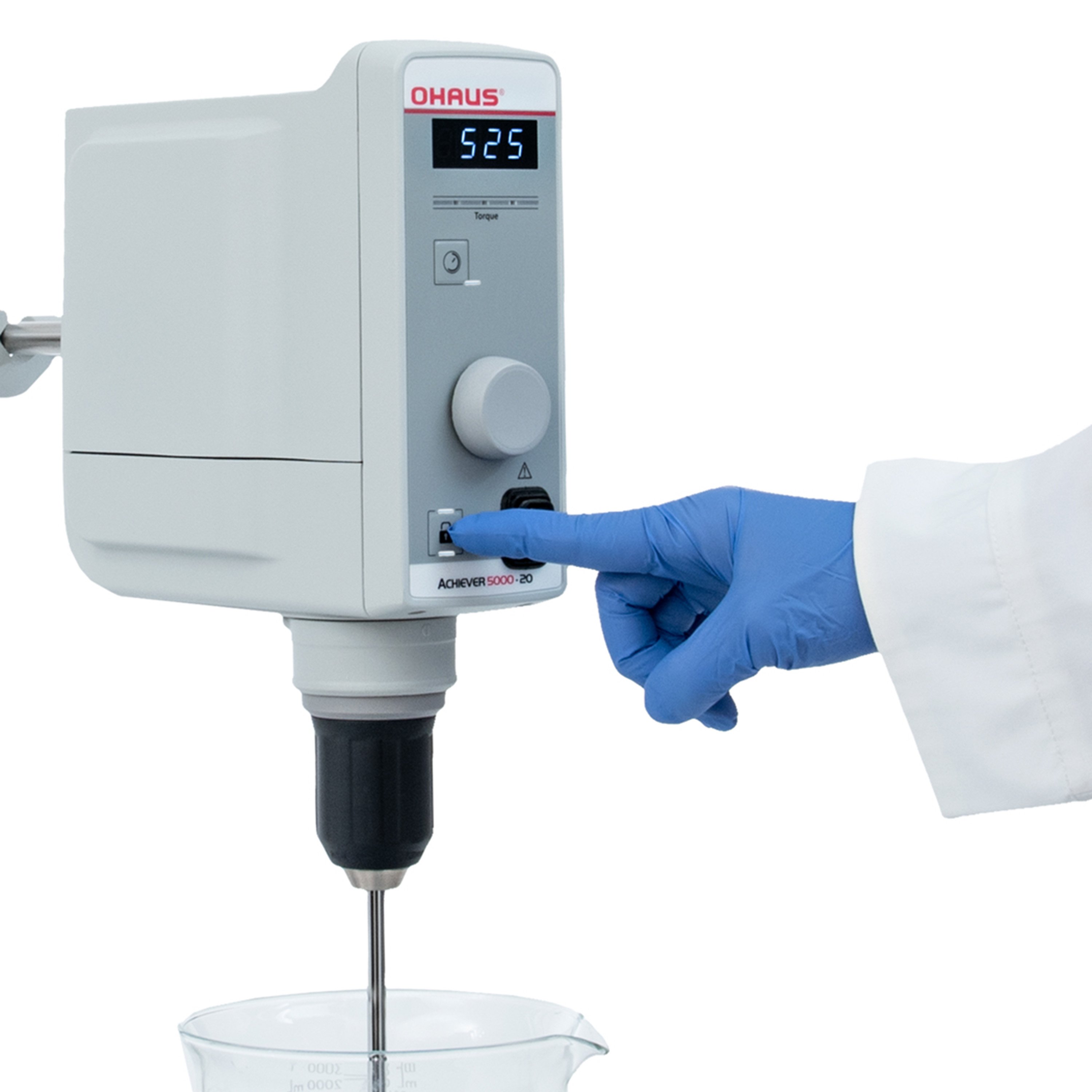

- Lock Button - Designed for safety, it prevents accidental speed changes
- Motor's Overload Sensing Technology - Shuts off stirring before an overload, overtemperature, or overcurrent condition occurs
- Software-Controlled Speed Ramping - Provides easy setup and safe stirring to protect the sample and user
- Sealed Aluminum Housing with IP54 Rating - Ensures safe mixing performance even in the most demanding applications

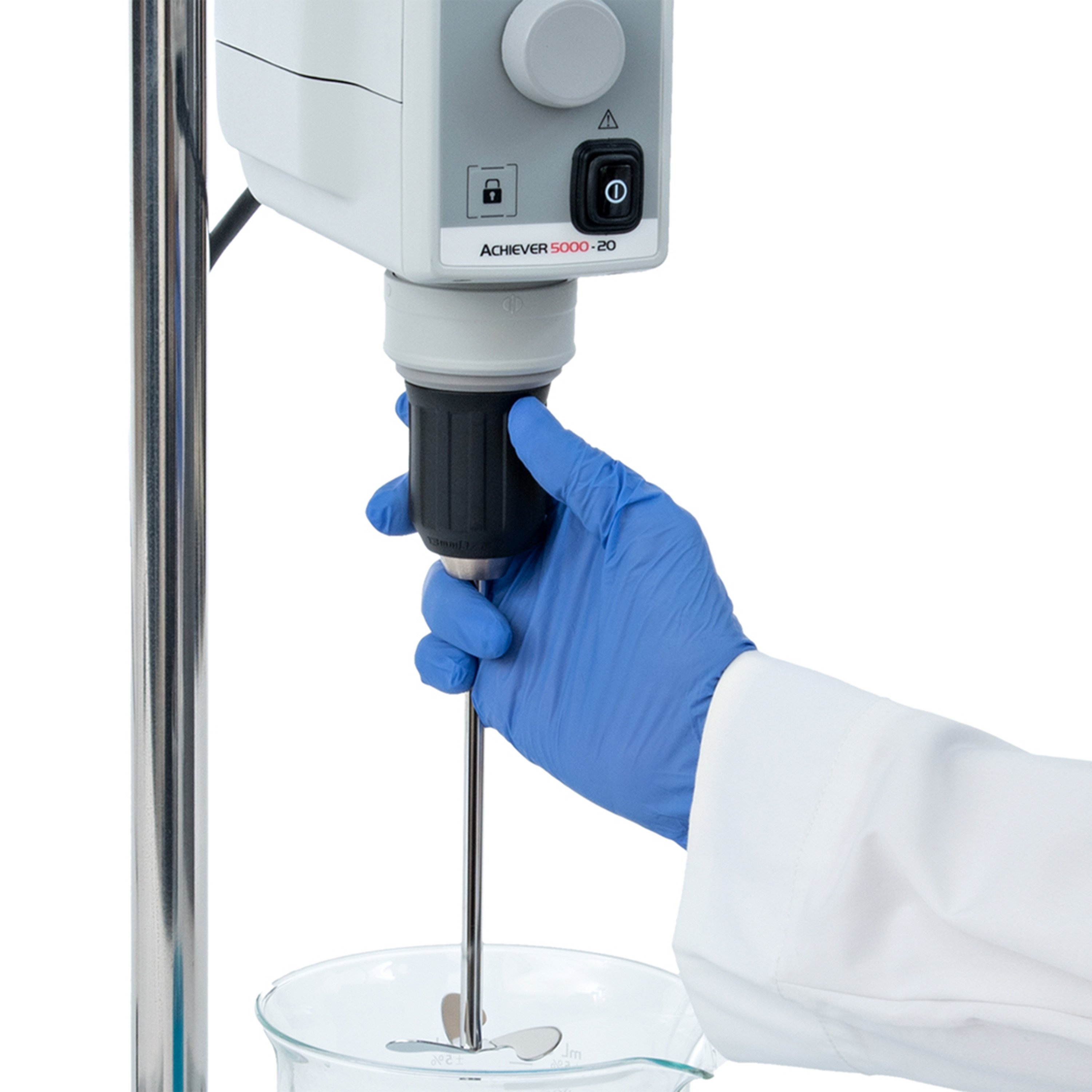

- Keyless Chuck - Change shafts quickly and easily with one hand—no tools needed. This unique design saves time and effort, making it more efficient in a lab environment
- Brushless Motor and Torque Compensation Technology - Provides powerful mixing and constant speed, and delivers accurate, controlled stirring of viscous liquids with quiet operation

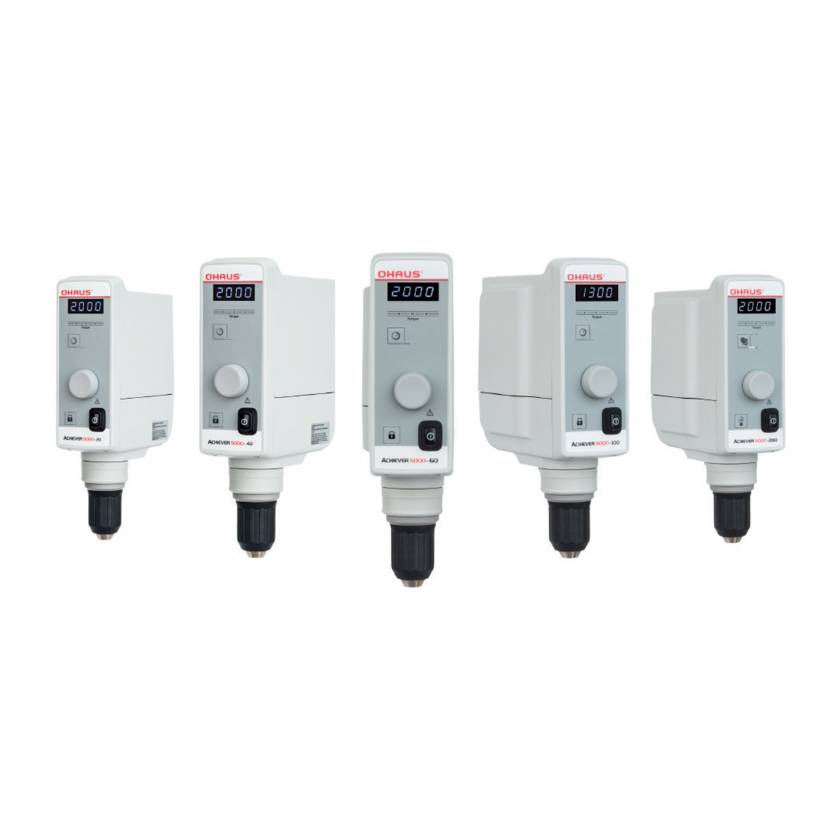

- Five models are available with different maximum torques: 20 Ncm, 40 Ncm, 60 Ncm, 100 Ncm, and 200 Ncm

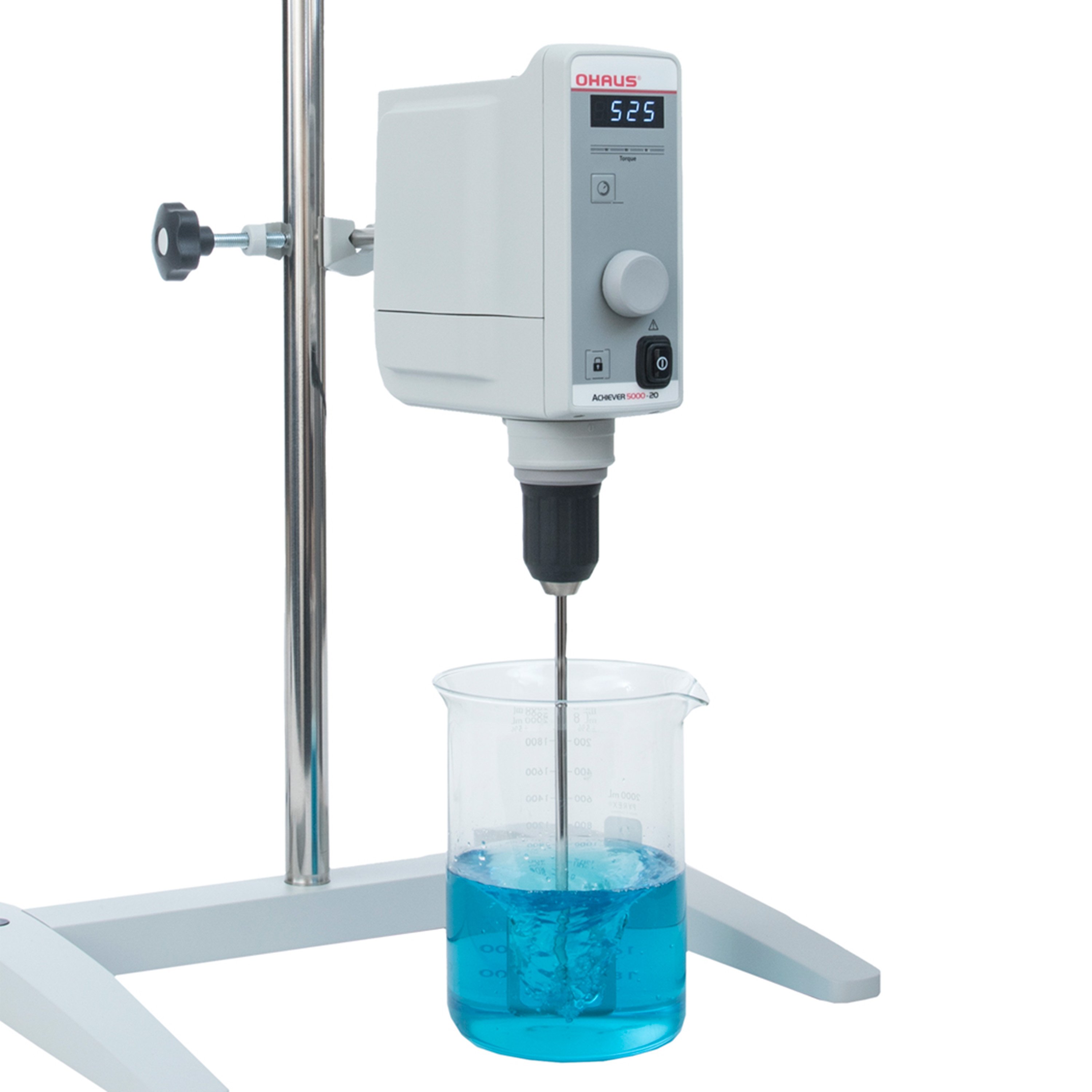

- A setup requires an Achiever™ Overhead Stirrer, a Support Stand, a Clamp Double to secure the unit to the stand, and the appropriate Stirring Shaft that suits the application
- Accessories are sold separately and include:
- 8 Different stirring shafts: 30586775, 30586776, 30586777, 30586778, 30586779, 30586780, 30586781, 30586782
- 2 Different support stands: 30586771, 30586772
- 2 Different clamps: 30586773, 30586774
- 1 Chuck cover: 30586842
Technical Specifications:
- Speed Accuracy: 1 RPM
- Speed Control: Digital
- Display: LED
- Timer: Yes
- Lock Button: Yes
- Chuck Range (Diameter): 1 mm - 13 mm
- Shaft Pass Through (Diameter): Up to 8.5 mm
- Ingress Protection: IP54
- Power Supply: 115V, 50/60 Hz
- Power Input: 190W (115V)
- Working Environment: 41°F - 104°F, 80% RH, non-condensing / 5°C - 40°C, 80% RH, non-condensing
| SKU | 30586763 | 30586764 | 30586765 | 30586766 | 30586767 |

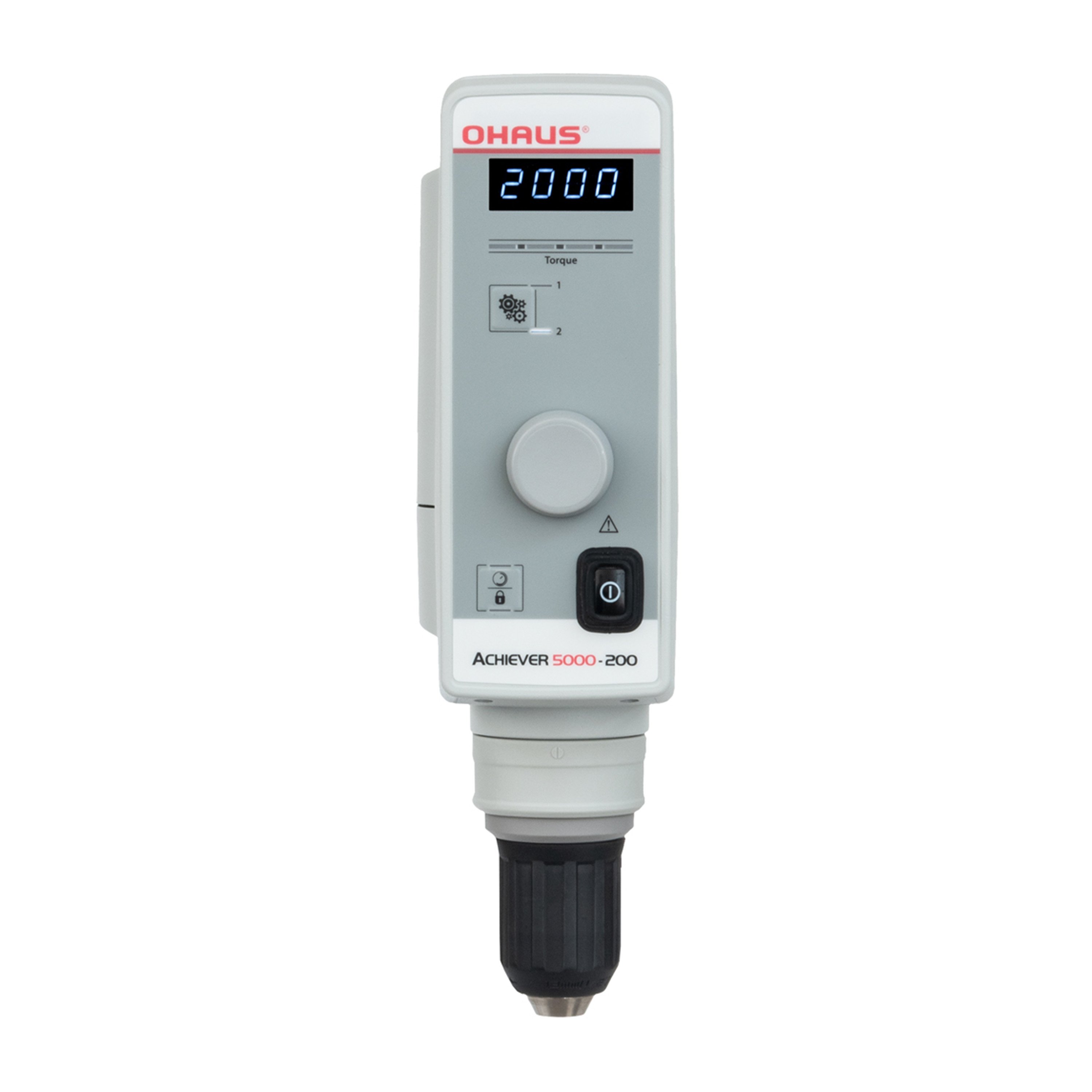

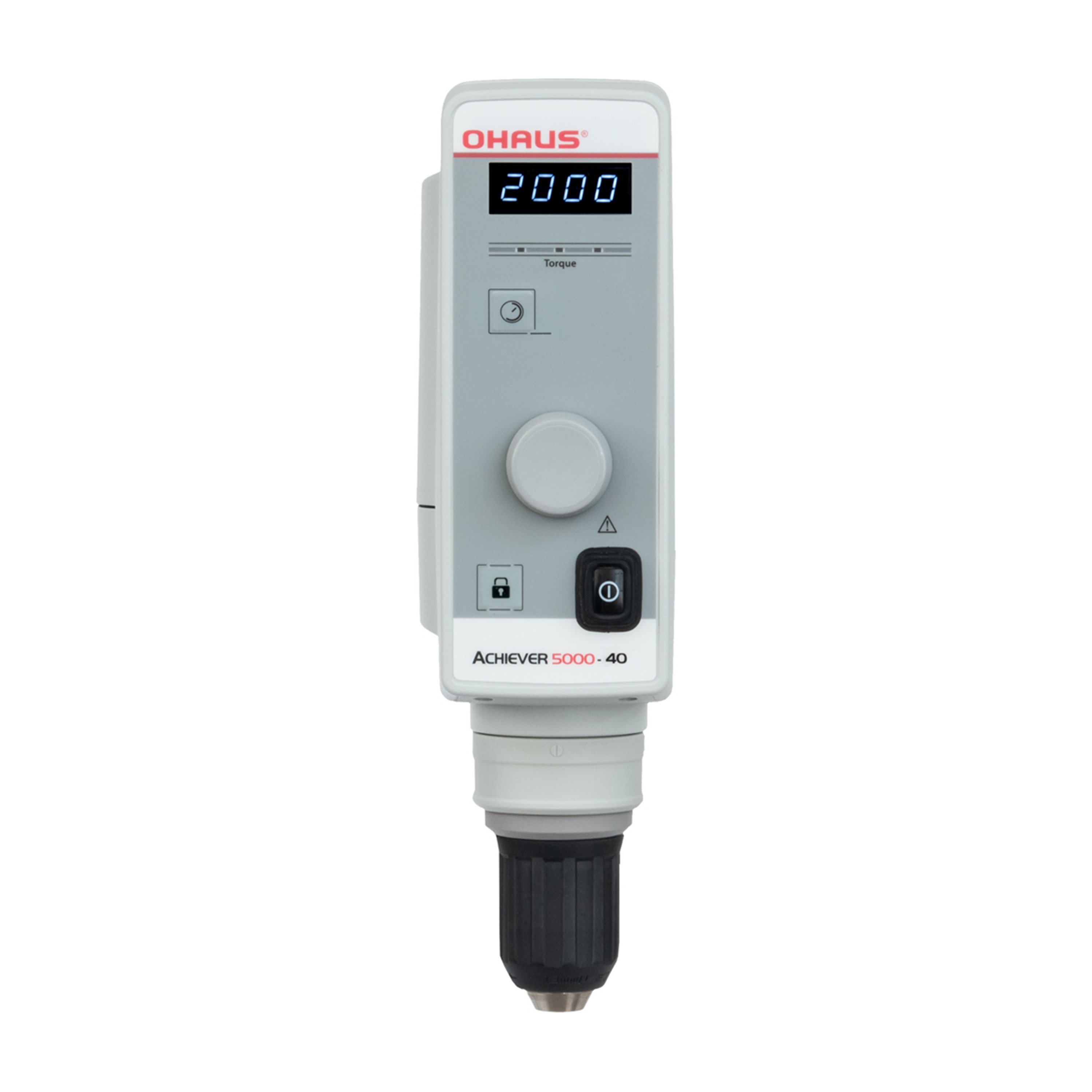

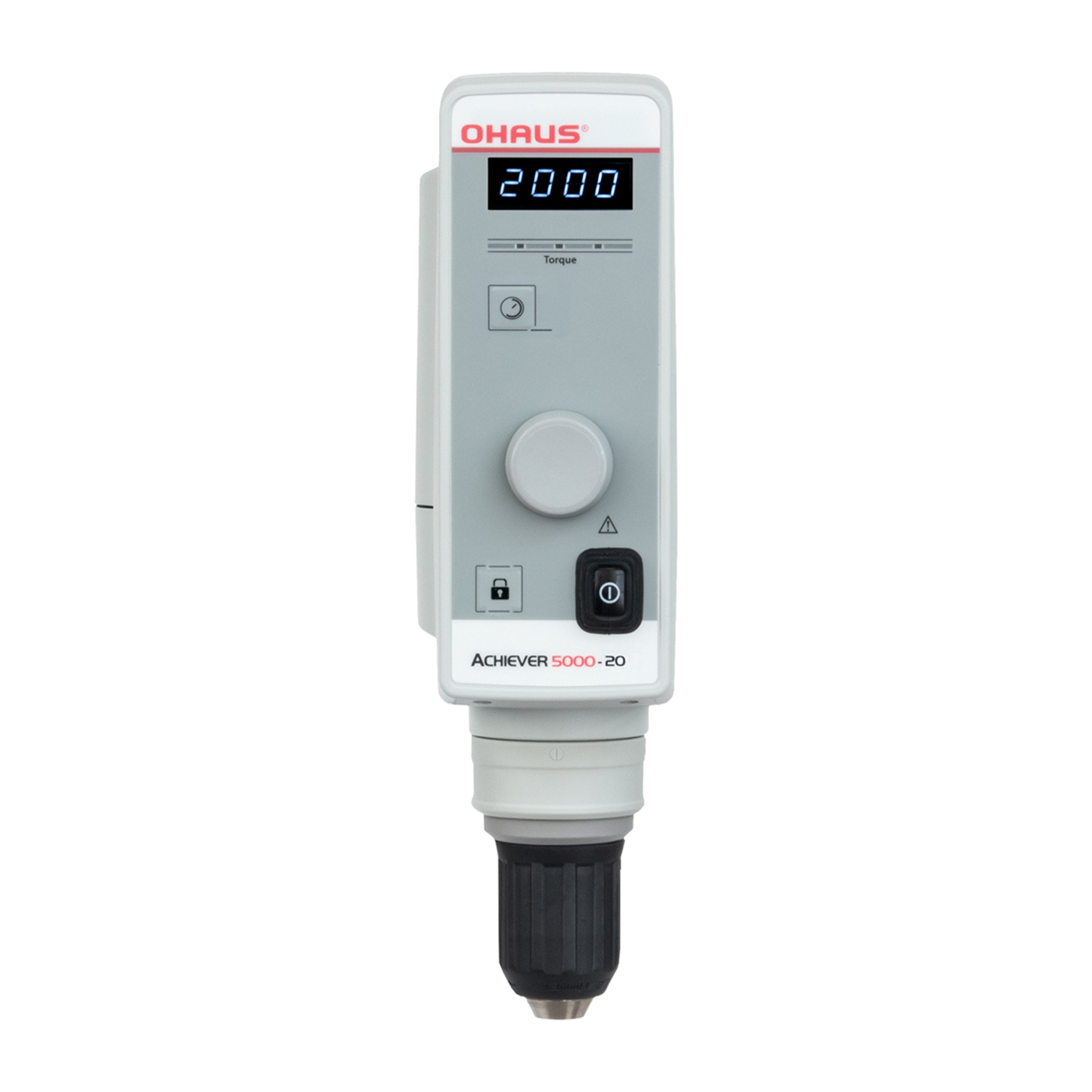

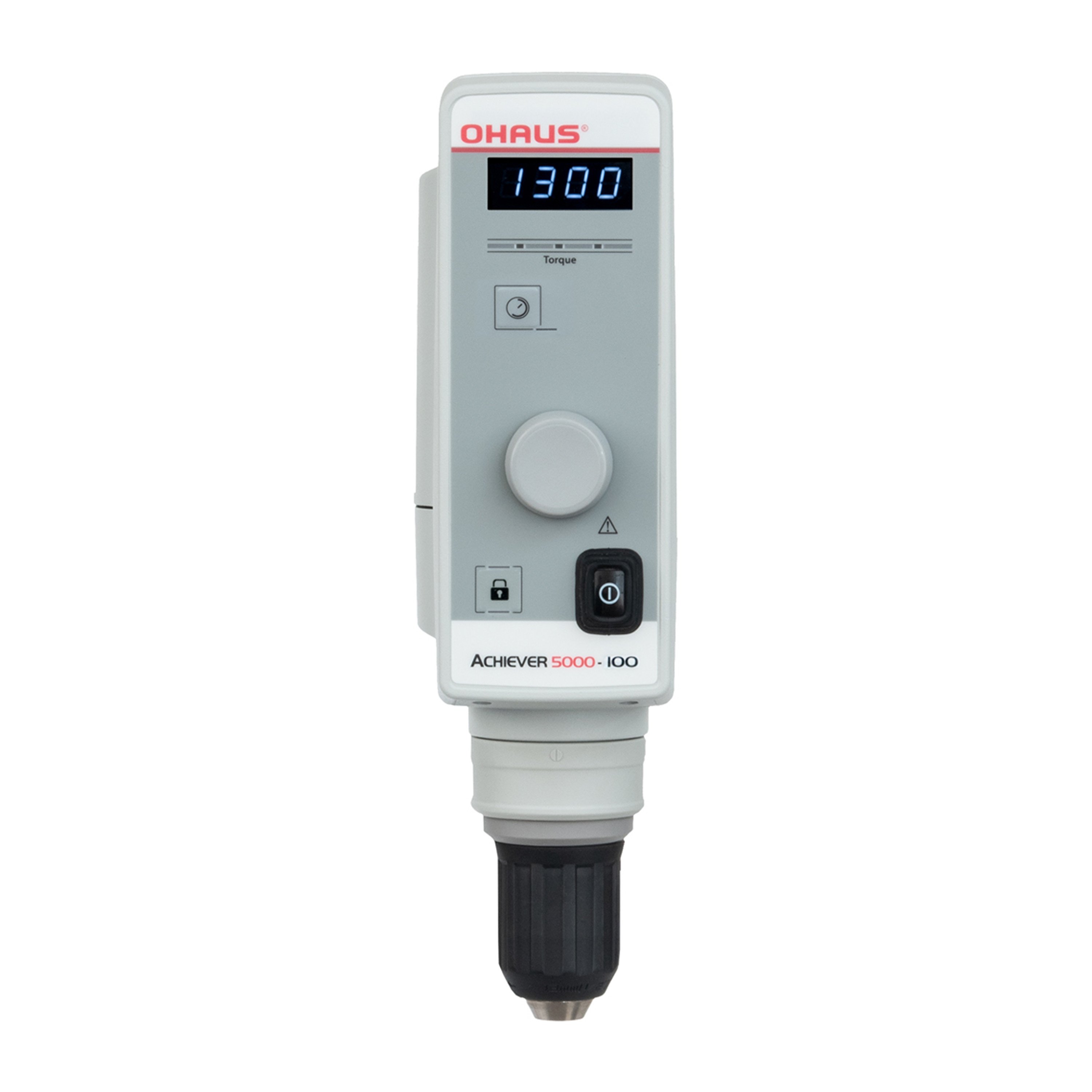

| Model | e-A51ST020 | e-A51ST040 | e-A51ST060 | e-A51ST100 | e-A51ST200 |
| Stirring Speed Range | 30 RPM - 2000 RPM | 30 RPM - 1300 RPM |
6 RPM - 400 RPM (I) 30 RPM - 2000 RPM (II) |
||
| Stirring Volume (H2O) | up to 25 L | up to 40 L | up to 100 L | ||
| Maximum Viscosity (cP or mPa-s) | 10000 | 25000 | 50000 | 70000 | 100000 |
| Maximum Torque (Ncm) | 20 | 40 | 60 | 100 | 200 |
| Speed Gears | 1 | 2 | |||

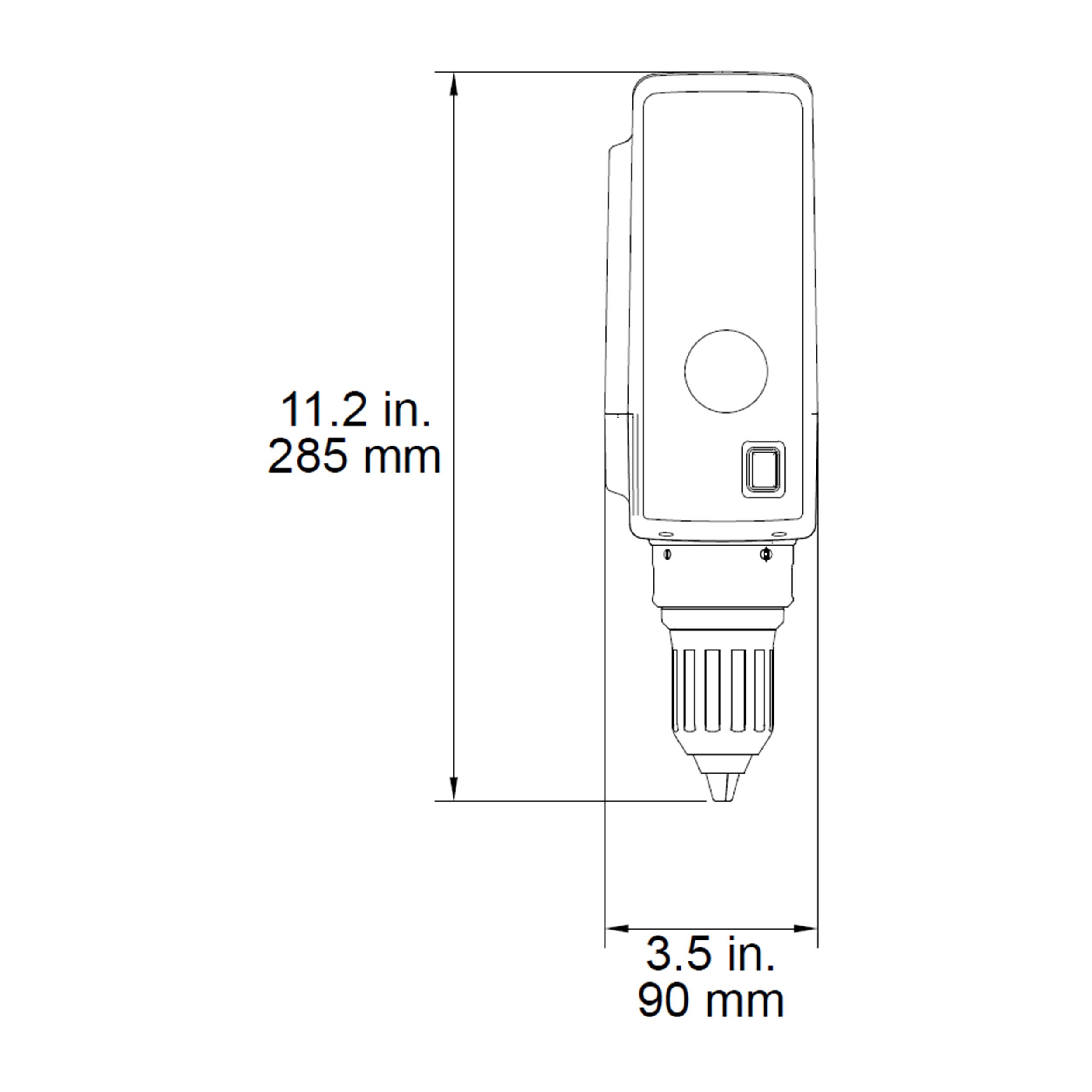

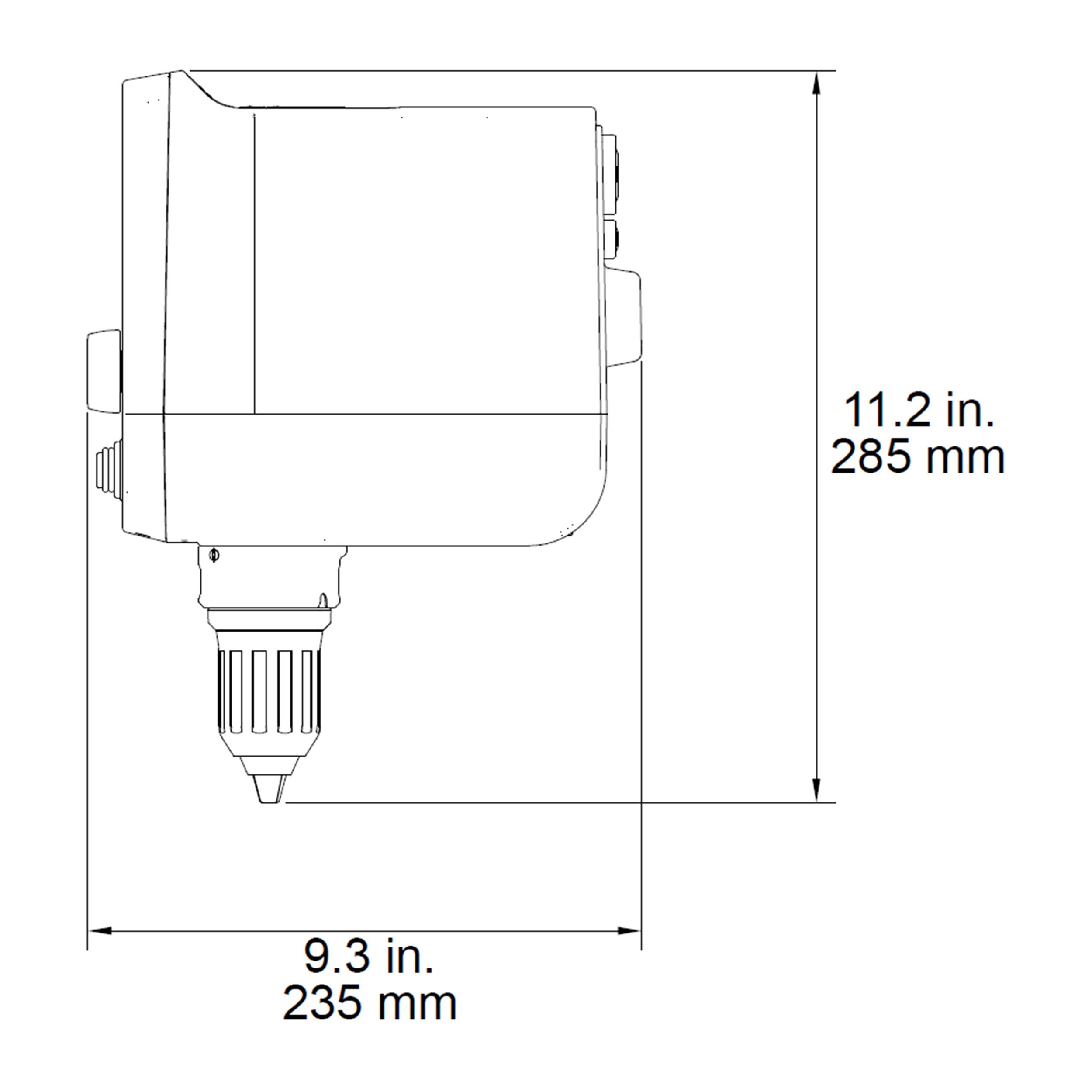

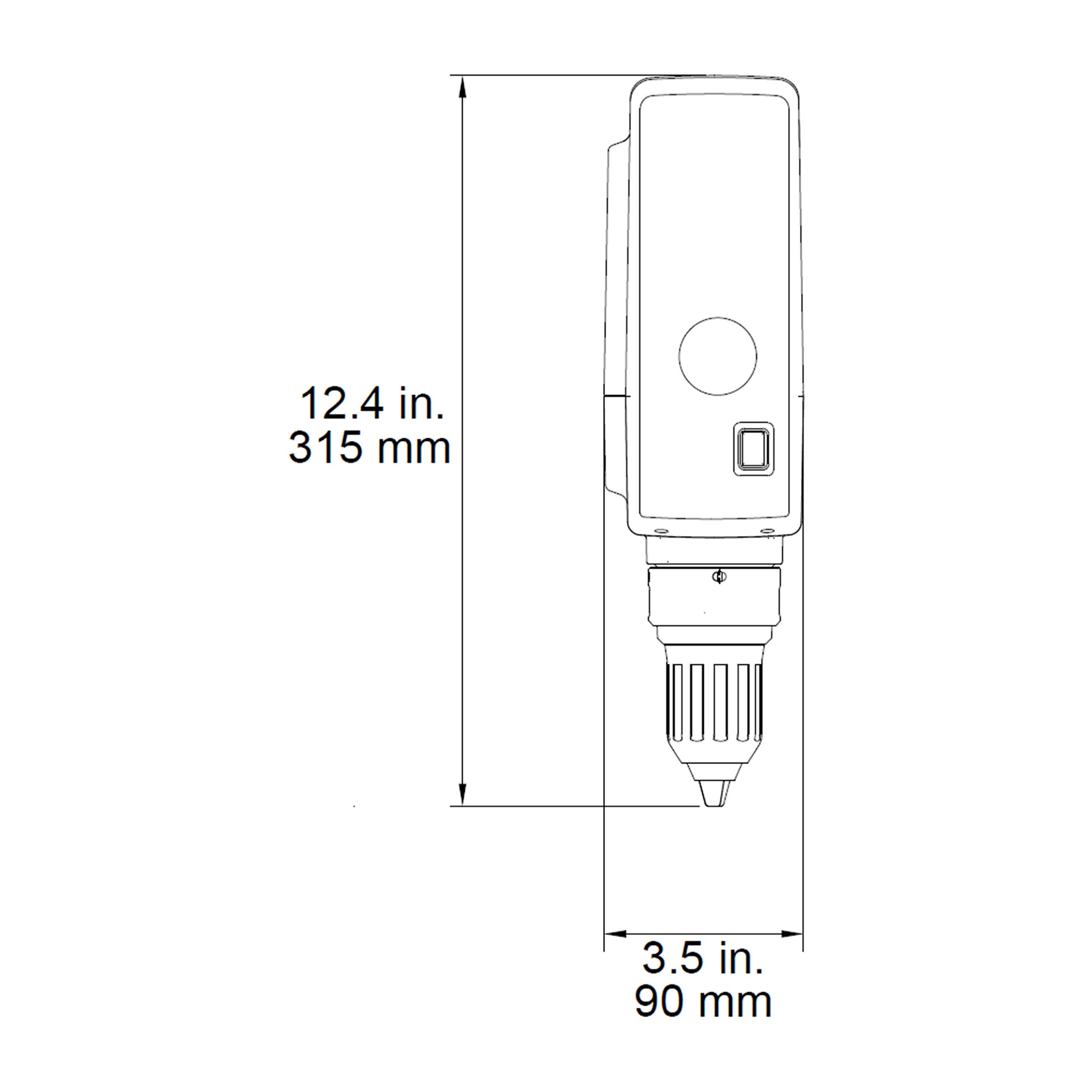

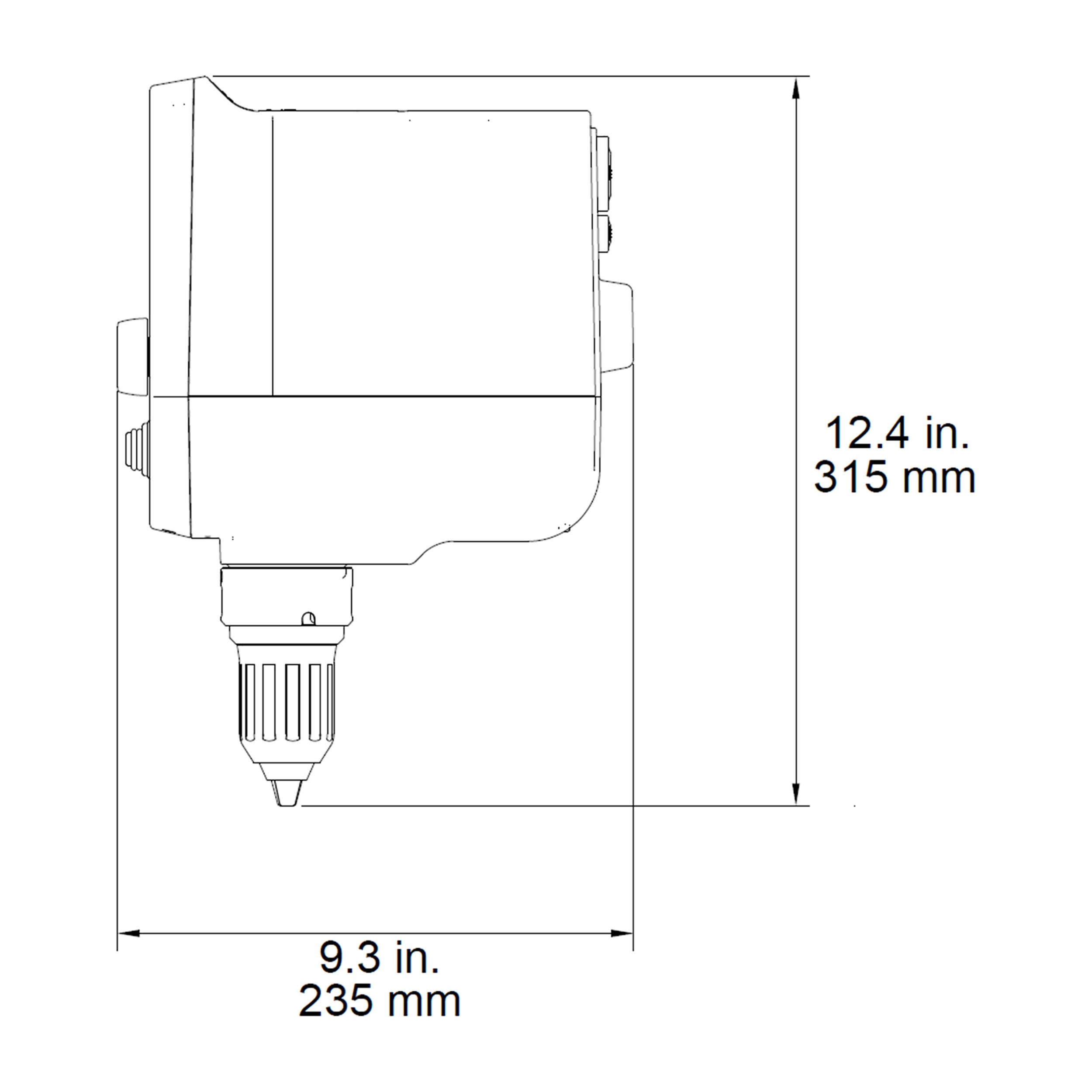

| Overall Dimensions (L x W x H) | 9.3" x 3.5" x 11.2" | 9.3" x 3.5" x 12.4" | |||
| Actual Product Weight | 9 lbs | 10.1 lbs | |||
Specifications
| Manufacturer | Ohaus Corporation |
|---|---|
| Latex Free | Yes |
| Proposition 65 Warning | Yes |
| Power Supply | 115V, 50/60 Hz |
| Country of Manufacture | Italy |
| Item Ships From | Ohio |
