Product Description

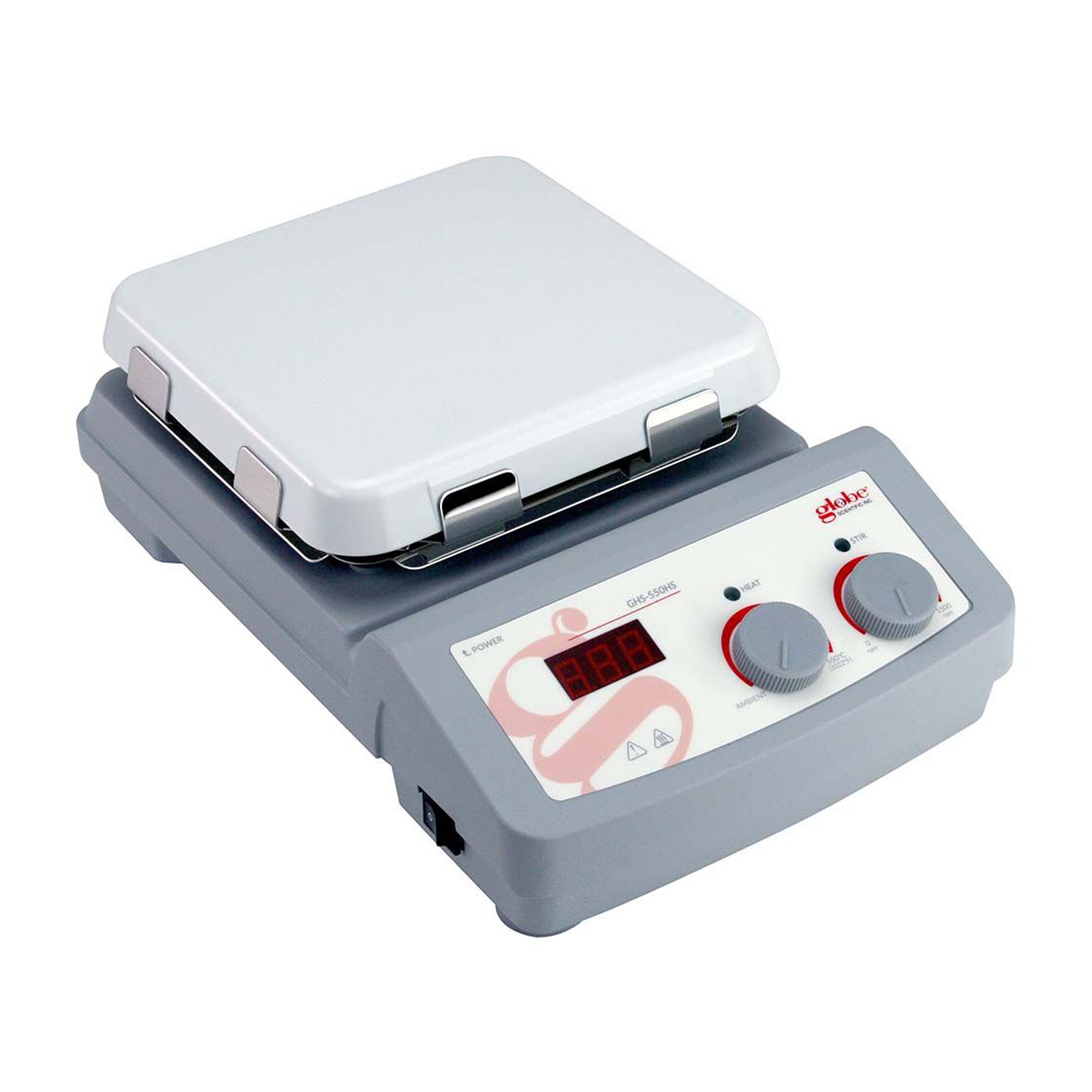

The Hotplate and Stirrer with Glass Ceramic Top Plate offer safety and precision for laboratory heating and mixing applications.

Features:

  • Low profile and compact footprint save valuable workspace
  • Durable and easy to clean with chemical-resistant glass ceramic-coated 7-inch working surface

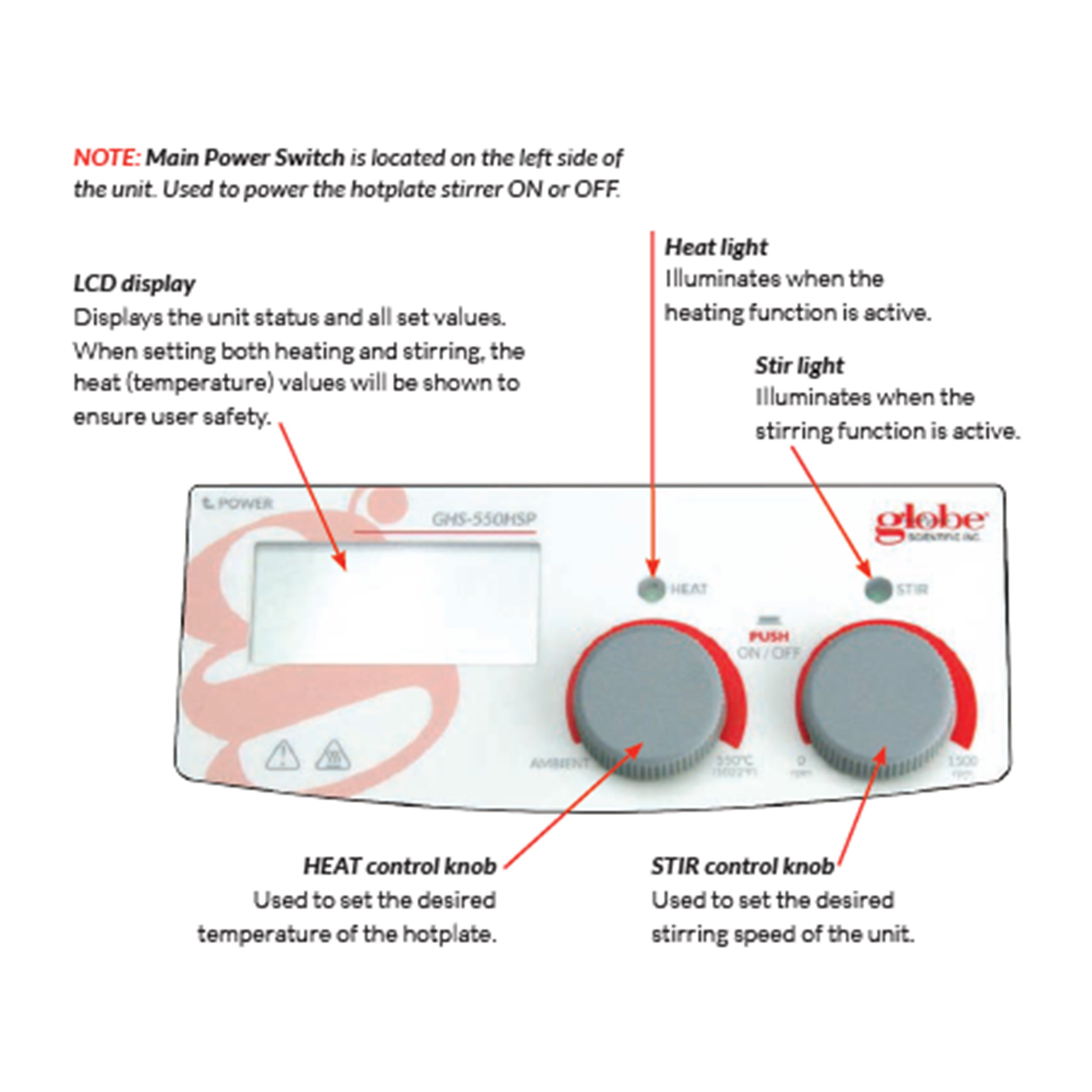

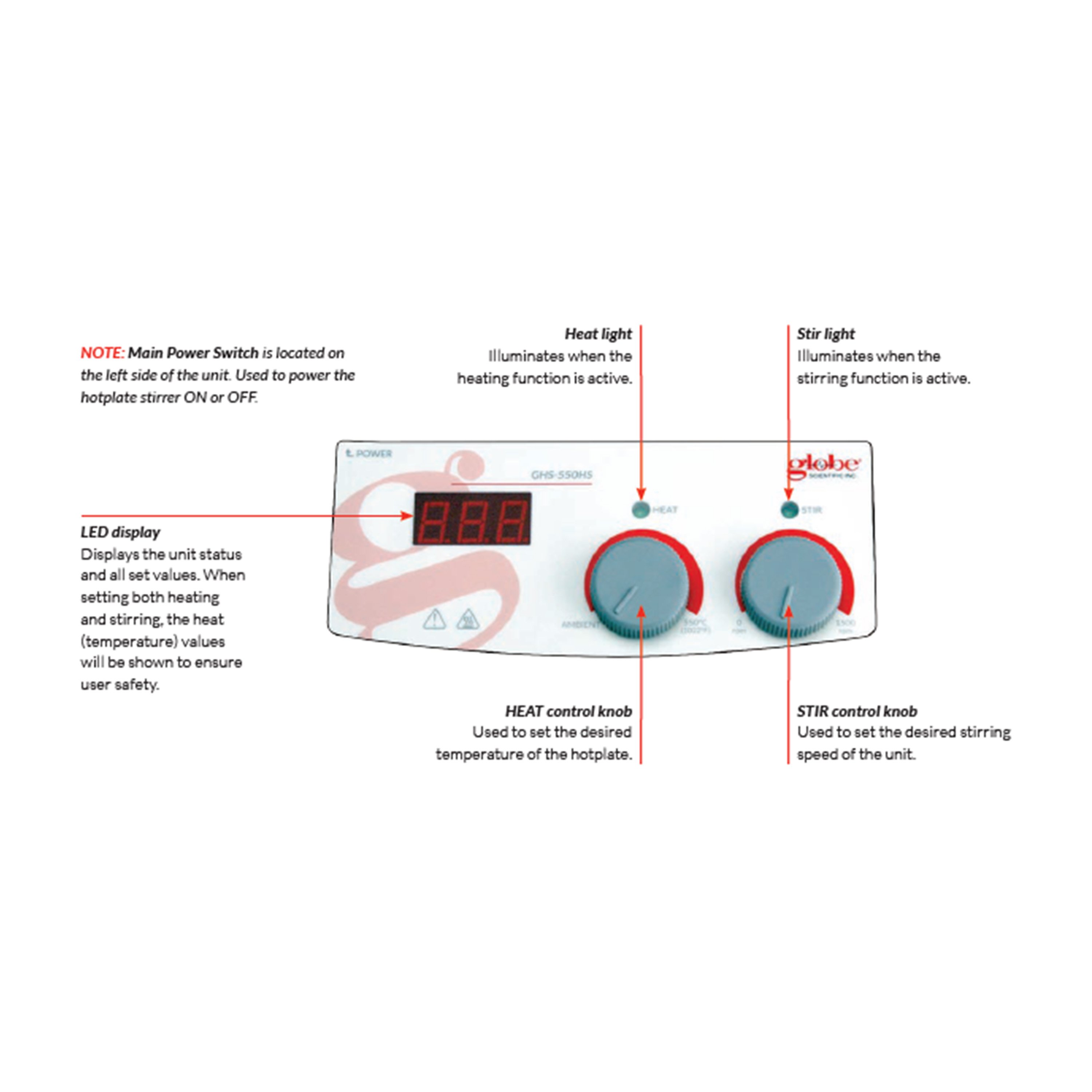

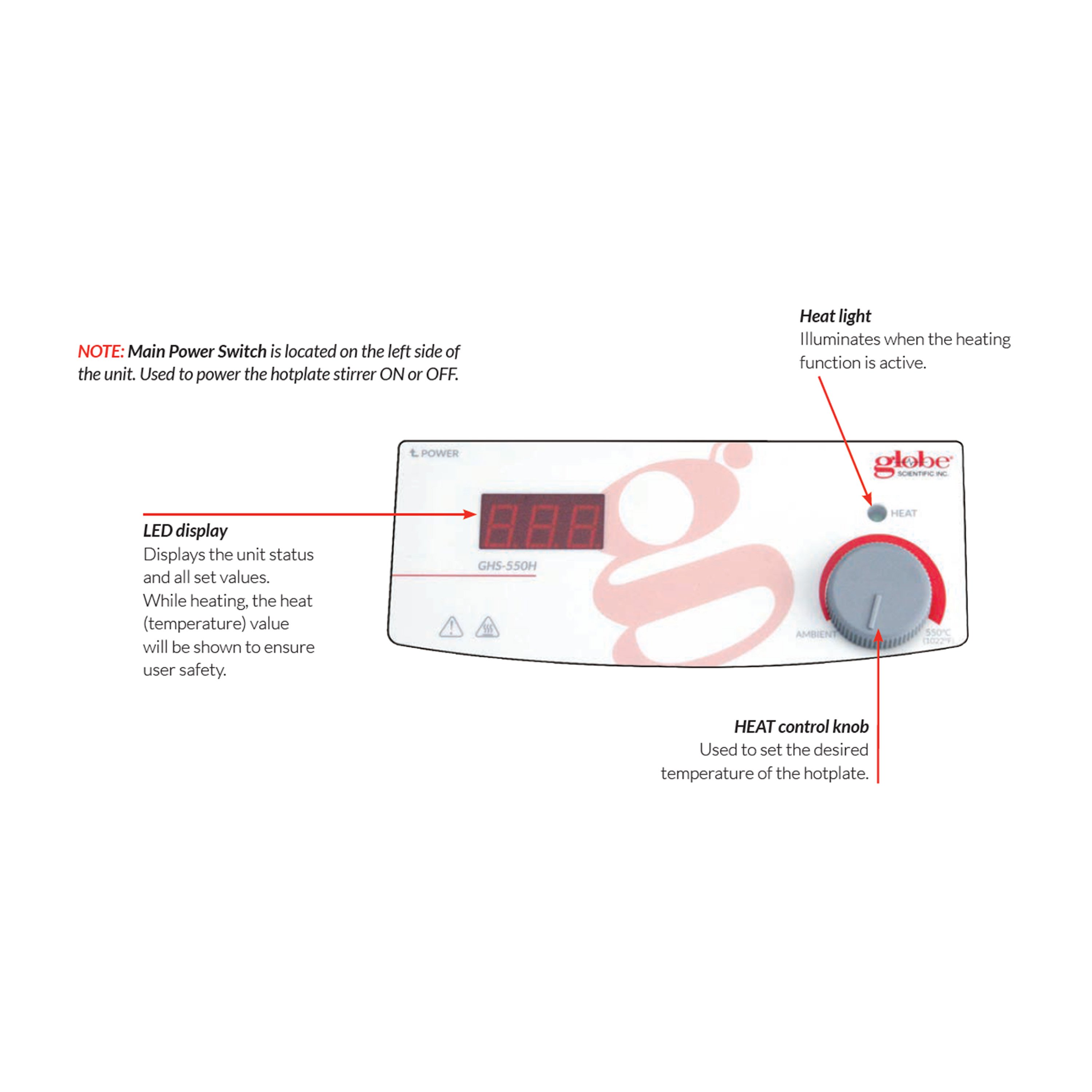

  • Heat setting via control knobs, inputting to a microprocessor controlled circuit for accurate, stable control

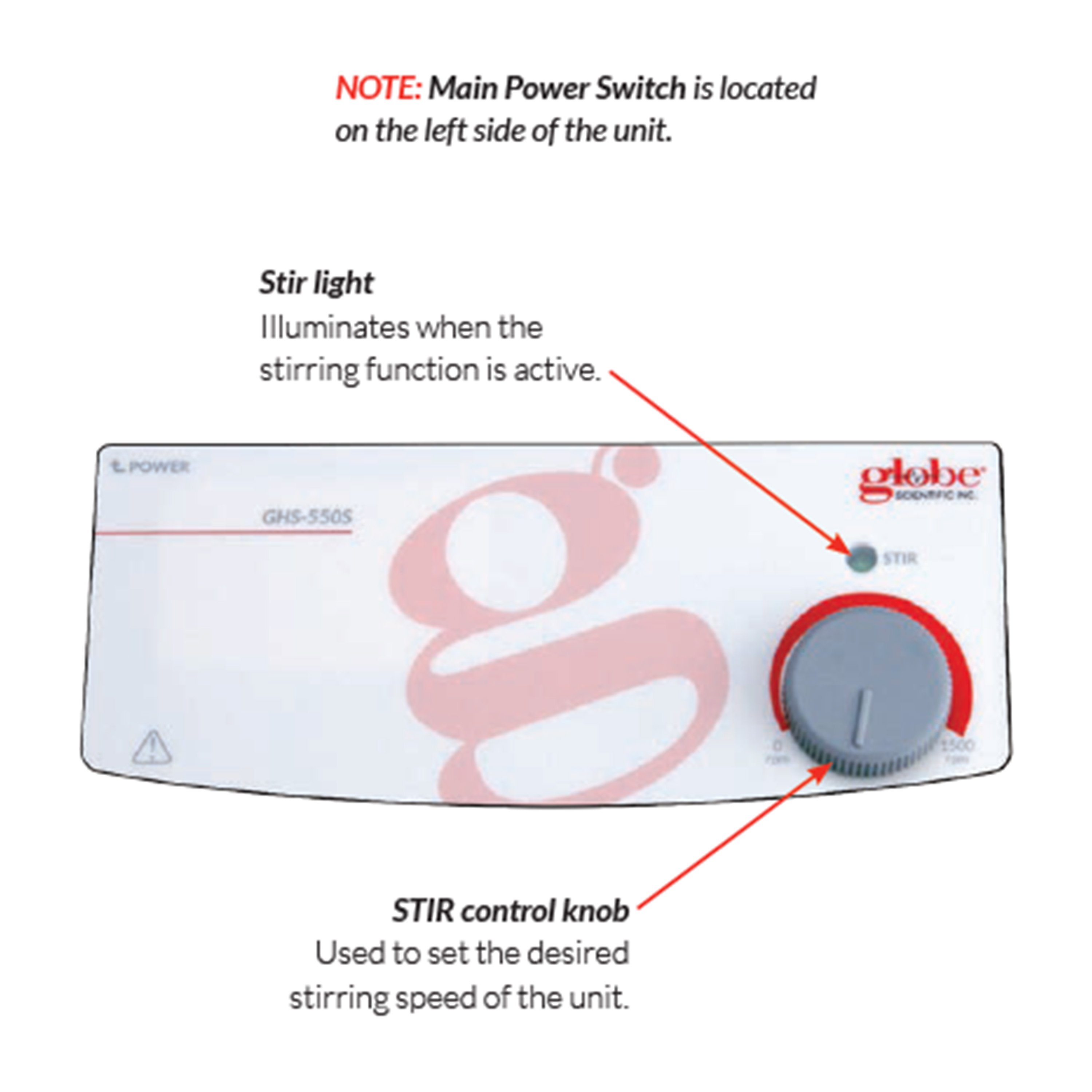

  • Speed is set using an easy-to-use analog knob and scale
  • Power cable(s) included to ensure a quick and easy setup
Features GHS-550H GHS-550HS GHS-550HSP GHS-550S
Designed with a powerful 1000-watt heater that provides temperatures up to 550°C
Temperature control accuracy within 0.2°C ✔
“Hot” warning indicator flashes when plate temperature exceeds 50°C
Overtemperature protection activates at 580°C for enhanced safety

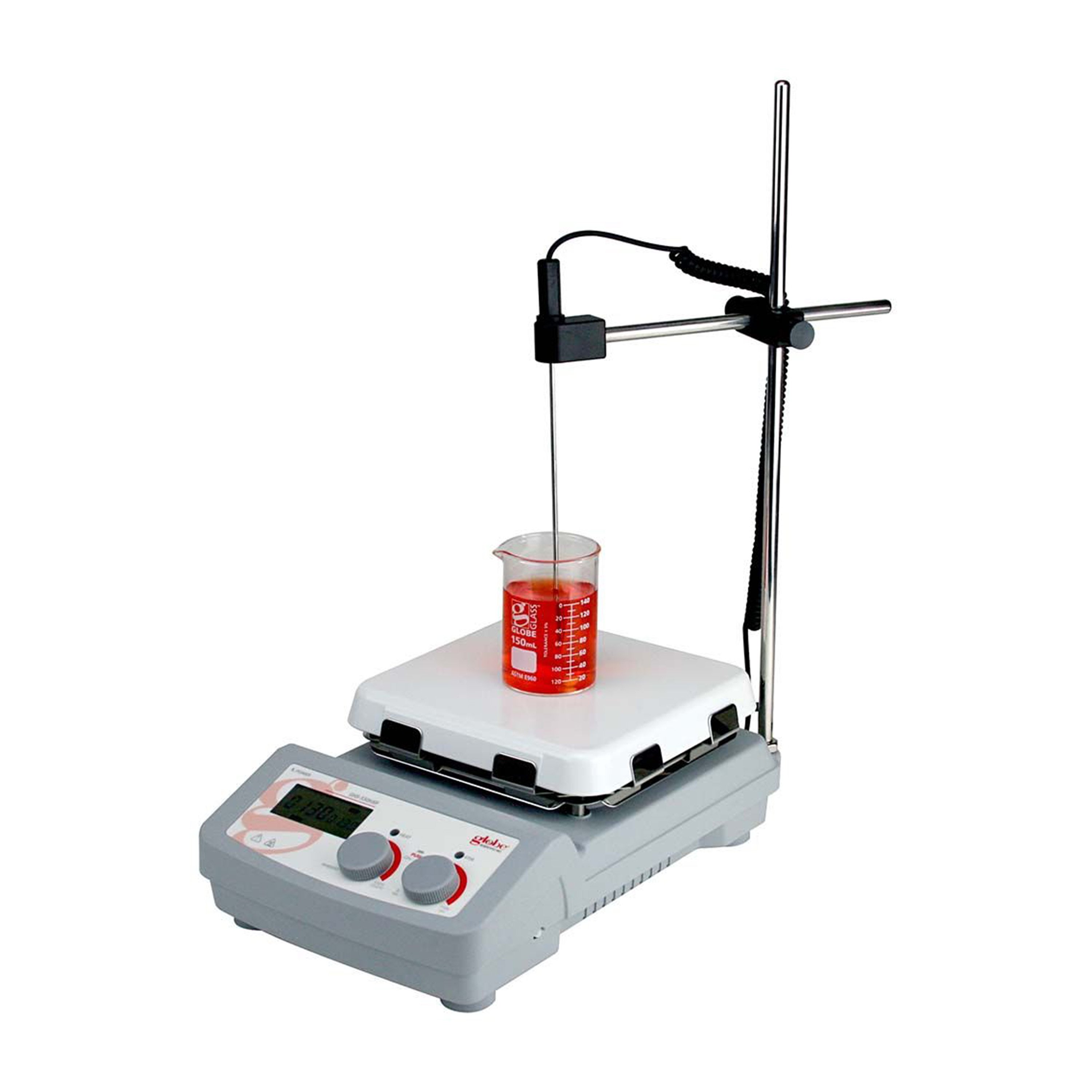

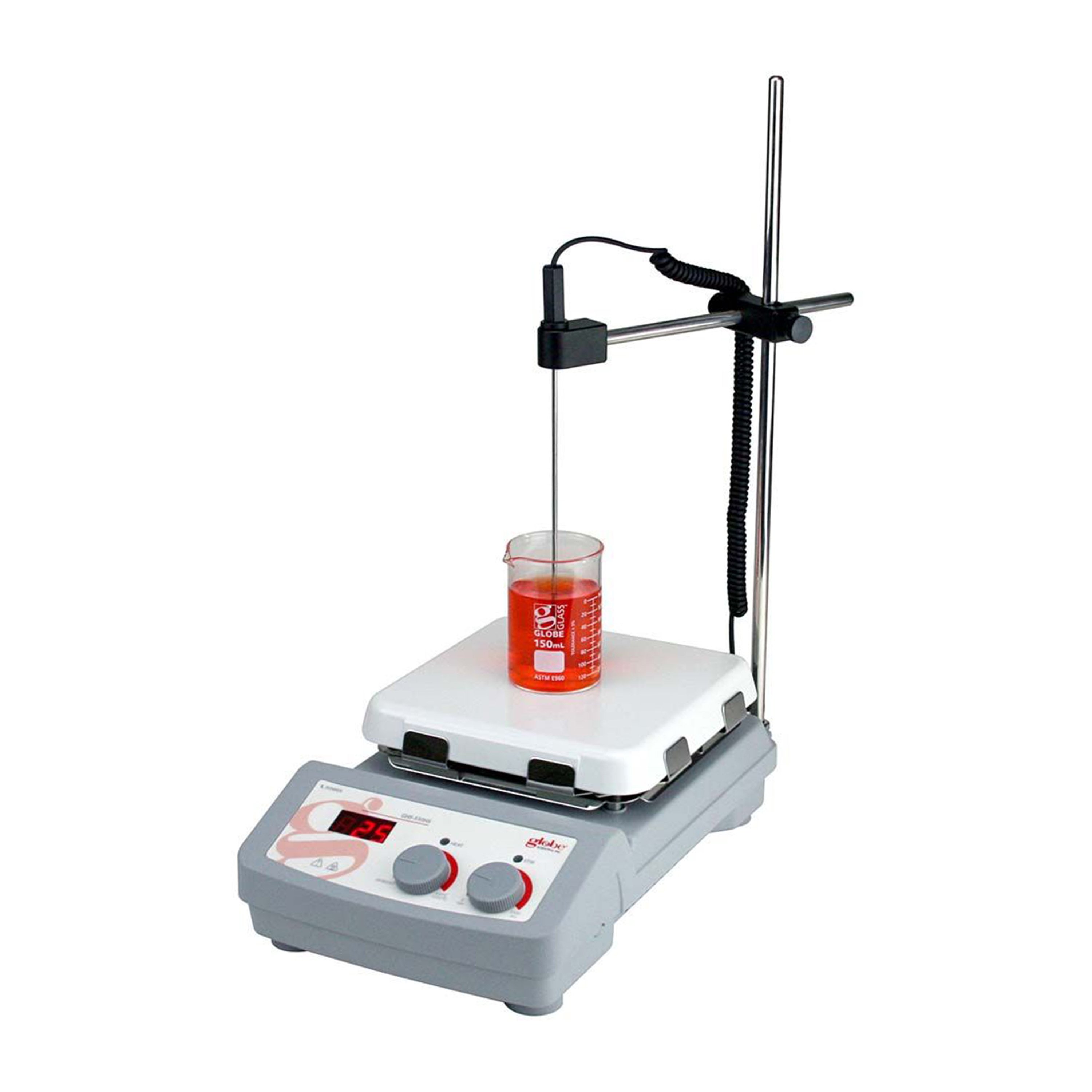

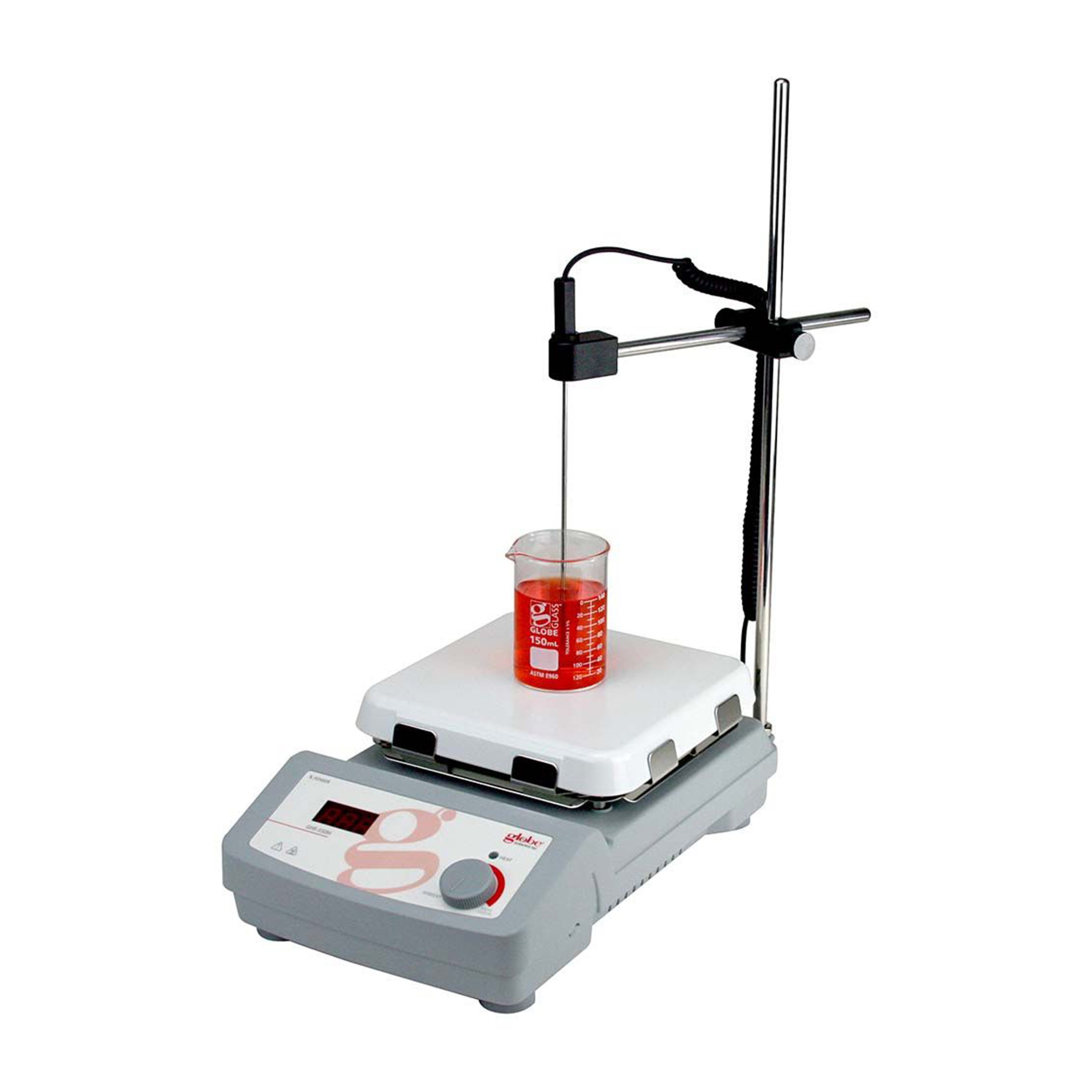

Optional external sensor for precise temperature control (GHS-S230 or GHS-S230G)
Provides a strong magnetic coupling for powerful mixing
Maintenance-free brushless DC motor   ✔
Ensures excellent homogeneity of solutions
Stirring capacity: Up to 10 liters of water
 Stirring capacity: Up to 20 liters of water
Replaces the LED display with an LCD for precise monitoring of speed and temperature
Built-in PID temperature control with overheating protection
Includes RS232 port for remote operation, PC connectivity, and data transfer (software not included)
Inclusions Hotplate
Power Cables
Quick Start Guide
Hotplate Stirrer
Stirring Bar
Power Cables
Quick Start Guide
Hotplate Stirrer
Stirring Bar
Power Cables
Quick Start Guide
Stirrer
Stirring Bar
Power Cables
Quick Start Guide

Technical Specifications:

  • Voltage: 100 - 120V, 60 Hz
  • Permissive Relative Humidity: 80% RH (non-condensing)
  • Operating Temperature: 5-40°C
  • Working Area: 7" W x 7" D
  • Working Area Material: Glass Ceramic
  • Overall Dimensions: 4.3" H x 8.5" W x 14.2" D
SKU GHS-550H GHS-550HS GHS-550HSP GHS-550S

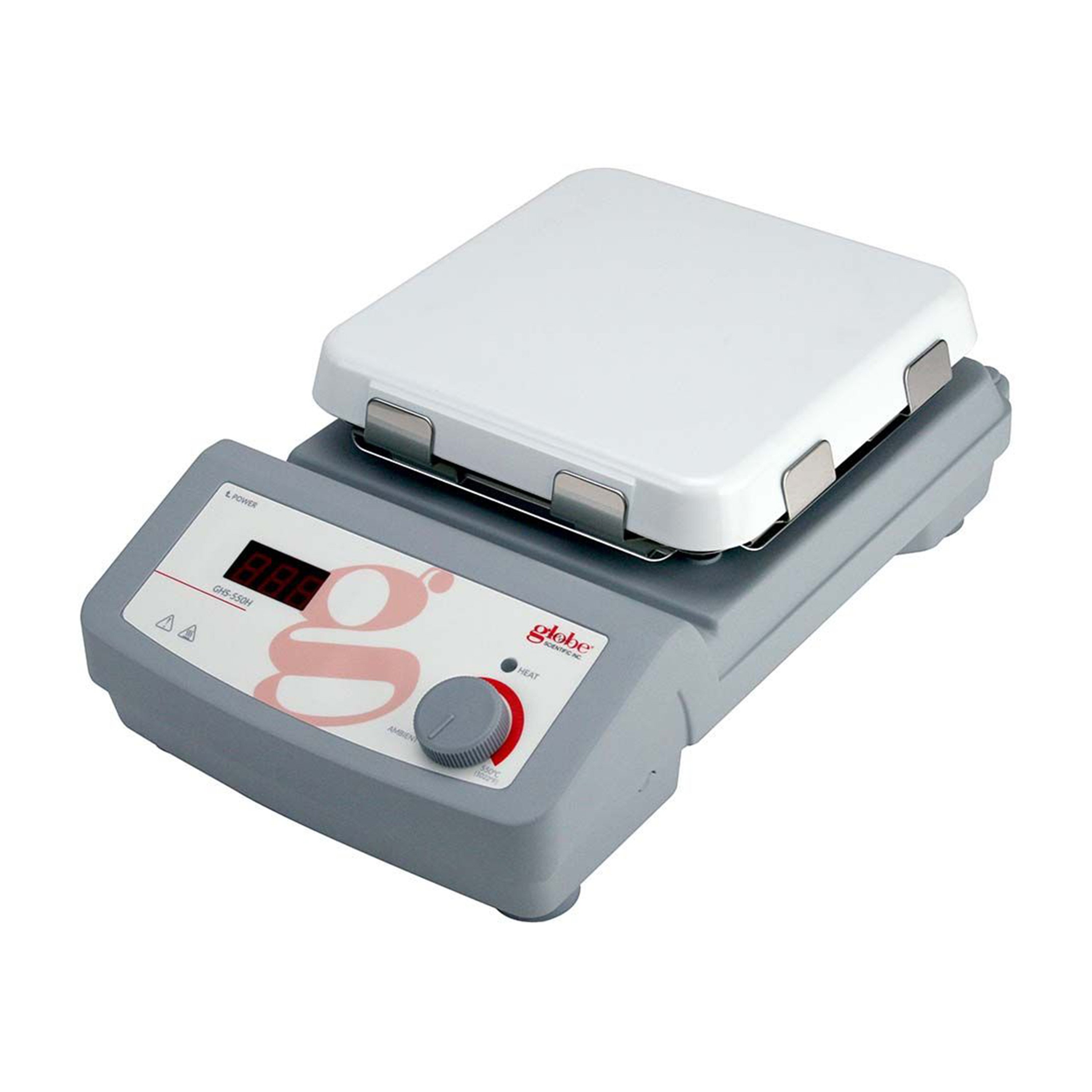

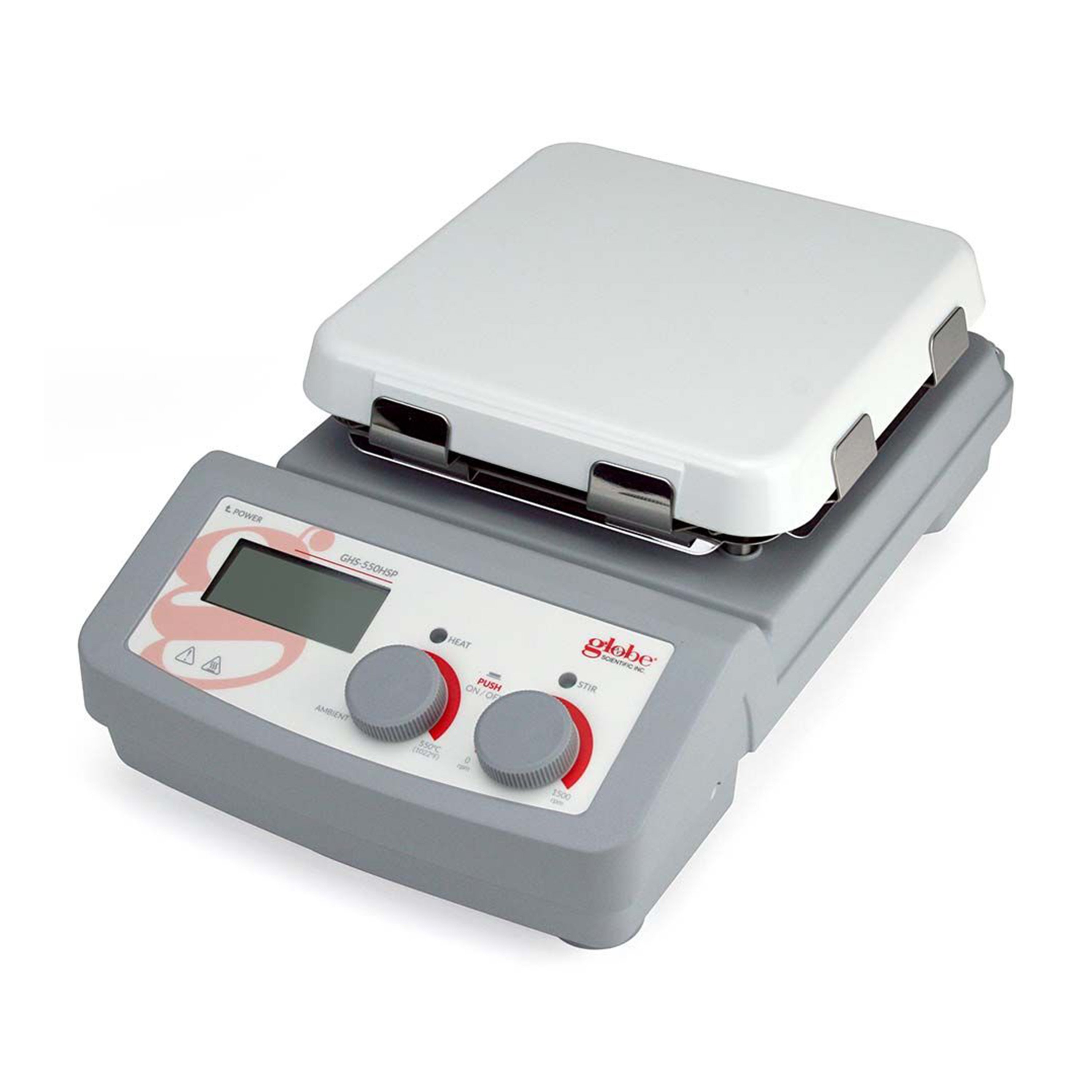

Variant Digital Hotplate Digital Hotplate-Stirrer Digital Hotplate-Stirrer with RS232 port Analog Stirrer
Display Type LED LCD N/A
Heating Power 1000W N/A
Temperature Range Ambient +5°C to 550°C N/A
Temperature Accuracy ±10°C ±1°C (<100°C) ±1%(>100°C) N/A
Max Stir Volume N/A 10 L 20 L 10 L
Stirring Speed Range N/A 0-1500 rpm 100-1500 rpm 0-1500 rpm
Stir Bar Length N/A 3.15"
RS232 Port N/A N/A Yes N/A
Power 1010W 1030W 1050W 30W
Actual Product Weight 9.9 lbs 9.9 lbs 11.7 lbs     8.4 lbs

Please note: Beaker, Temperature Sensor, and Sensor Support Stand are sold separately.

About this Brand

Specifications

Specifications
Manufacturer Globe Scientific
Latex Free No
Overall Height 4.3"
Overall Width 8.5"
Overall Depth 14.2"
Operating Temperature 5-40°C
Power Supply 100 - 120V, 60 Hz
Country of Manufacture China
Item Ships From New Jersey

Literature

pdf
(Size: 385.4 KB)
pdf
(Size: 910.3 KB)

Instructions

Limited Warranty Period: Globe Scientific Inc. ("Globe") hereby warrants its benchtop equipment (the "Product") to be free of defects in workmanship and materials for a period of two (2) years from the original purchase date. This Limited Warranty applies only to the original end user (the "User") of the Product and cannot be assigned or transferred. Excluded from this Limited Warranty is any damage caused during the shipment, transport or handling of the Product following its initial receipt by the User; the replacement of wearing parts and any damage caused by (a) accident, fire, flood, wind, lightning or similar disaster; (b) unauthorized modifications including writing on or defacing the Product, or if the Product's serial number has been altered, effaced or removed; (c) improper maintenance, misuse, abuse or negligence in the operation or maintenance of the Product, including without limitation, unsafe operation, operation by untrained personnel and failure to perform routine maintenance or calibration; (d) maintenance or alteration of the Product by persons or service centers not authorized by Globe.

Returns

No return will be accepted by the seller for any reason without prior written authorization. Returns will be accepted within 30 days of shipment, only if products are in new and unused condition (must be in original, unopened carton/packaging) and accompanied by a health and safety declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 20 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.

NOTE: Discontinued items, sterile products, and prefilled containers are NOT returnable.  Also, Special Order Items are non-cancellable and not able to be returned as these are made to order.
