Product Description

The Digital Hotplate and Stirrer with Ceramic-Coated Top Plate are reliable and easy to use.

Features:

  • Low profile and compact footprint save valuable workspace
  • Durable and easy to clean with chemical-resistant ceramic-coated 5.5-inch square surface

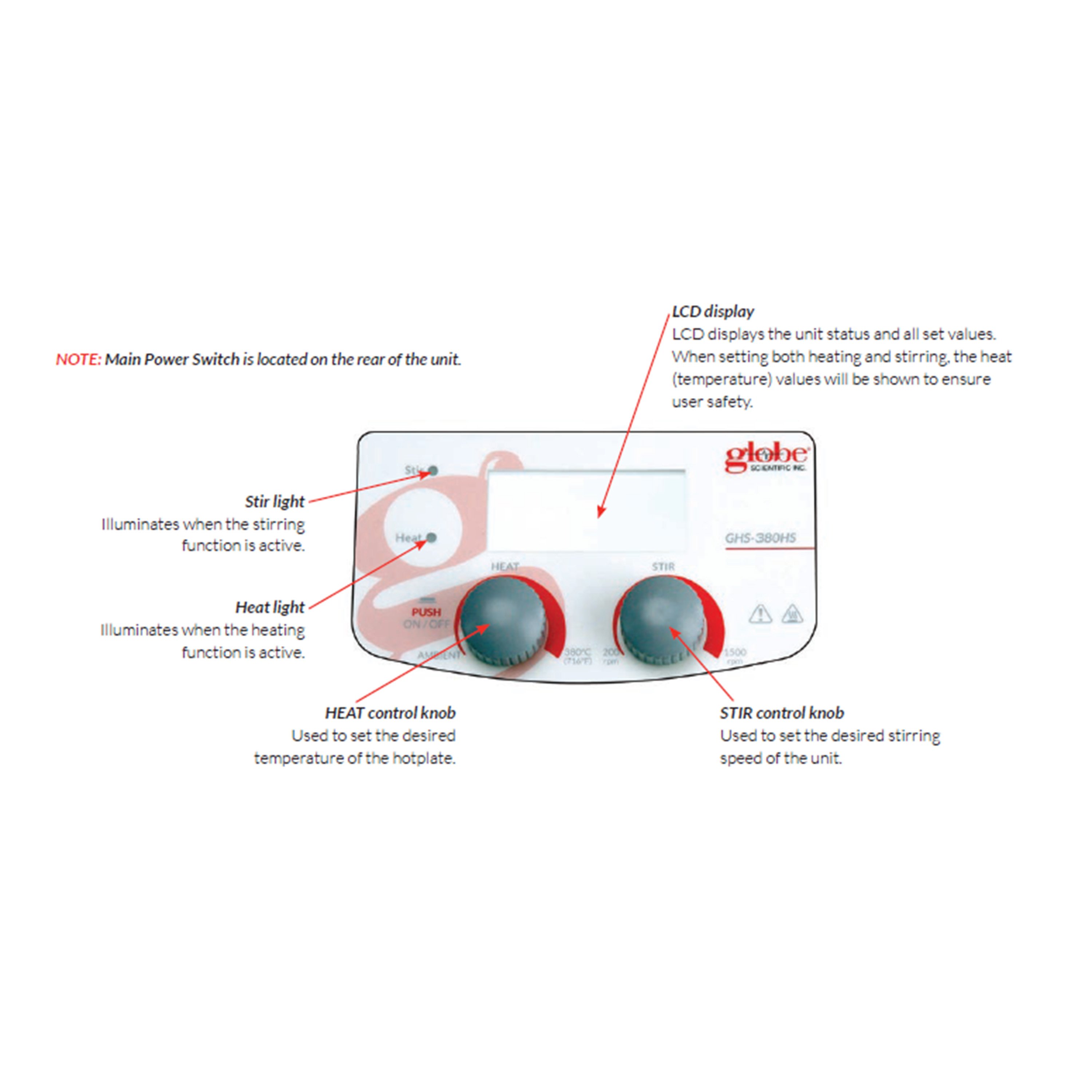

  • With a digital LCD and control knobs that link to a microprocessor-controlled system, adjusting the heat temperature and stirring speed is user-friendly, ensuring accurate and stable heating and stirring performance
  • Power cable(s) included to ensure a quick and easy setup
Features GHS-380H GHS-380HS GHS-380S
Designed with a powerful 500-watt heater that provides temperatures up to 380°C
Overtemperature protection activates at 420°C
Provides a strong magnetic coupling for powerful mixing
Maintenance-free brushless DC motor
Ensures excellent homogeneity of solutions
Stirring capacity: Up to 5 liters of water
Optional external sensor for precise temperature control (GHS-S230 or GHS-S230G)
Inclusions Hotplate
Power Cables
Quick Start Guide
Hotplate
Stirring Bar
Power Cables
Quick Start Guide
Stirrer
Stirring Bar
Power Cables
Quick Start Guide

Technical Specifications:

  • Voltage: 100 - 120V, 60 Hz
  • Power: 510W
  • Protection Class: IP21
  • Permissive Relative Humidity: 80% RH (non-condensing)
  • Operating Temperature: 5-40°C
  • Working Area: 5.5" W x 5.5" D
  • Working Area Material: Ceramic-coated Aluminum
  • Overall Dimensions: 4.3" H x 12.6" W x 7.1" D
  • Actual Product Weight: 4.9 lbs
SKU GHS-380H GHS-380HS GHS-380S
Variant Hotplate Hotplate Stirrer Stirrer
Heating Power 500W N/A
Temperature Range Ambient +5°C to 380°C N/A
Maximum Stir Volume N/A 5 L
Stirring Speed Range N/A 200-1500 rpm
Stir Bar Length N/A 2"

Please note: Beaker, Temperature Sensor, and Sensor Support Stand are sold separately.

About this Brand

Specifications

Specifications
Manufacturer Globe Scientific
Latex Free No
Actual Product Weight 4.9 lbs
Overall Height 4.3"
Overall Width 12.6"
Overall Depth 7.1"
Operating Temperature 5-40°C
Power Supply 100 - 120V, 60 Hz, 510W
Country of Manufacture China
Item Ships From New Jersey

Literature

pdf
(Size: 375.5 KB)
pdf
(Size: 602.8 KB)

Instructions

Limited Warranty Period: Globe Scientific Inc. ("Globe") hereby warrants its benchtop equipment (the "Product") to be free of defects in workmanship and materials for a period of two (2) years from the original purchase date. This Limited Warranty applies only to the original end user (the "User") of the Product and cannot be assigned or transferred. Excluded from this Limited Warranty is any damage caused during the shipment, transport or handling of the Product following its initial receipt by the User; the replacement of wearing parts and any damage caused by (a) accident, fire, flood, wind, lightning or similar disaster; (b) unauthorized modifications including writing on or defacing the Product, or if the Product's serial number has been altered, effaced or removed; (c) improper maintenance, misuse, abuse or negligence in the operation or maintenance of the Product, including without limitation, unsafe operation, operation by untrained personnel and failure to perform routine maintenance or calibration; (d) maintenance or alteration of the Product by persons or service centers not authorized by Globe.

Returns

No return will be accepted by the seller for any reason without prior written authorization. Returns will be accepted within 30 days of shipment, only if products are in new and unused condition (must be in original, unopened carton/packaging) and accompanied by a health and safety declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 20 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.

NOTE: Discontinued items, sterile products, and prefilled containers are NOT returnable.  Also, Special Order Items are non-cancellable and not able to be returned as these are made to order.
