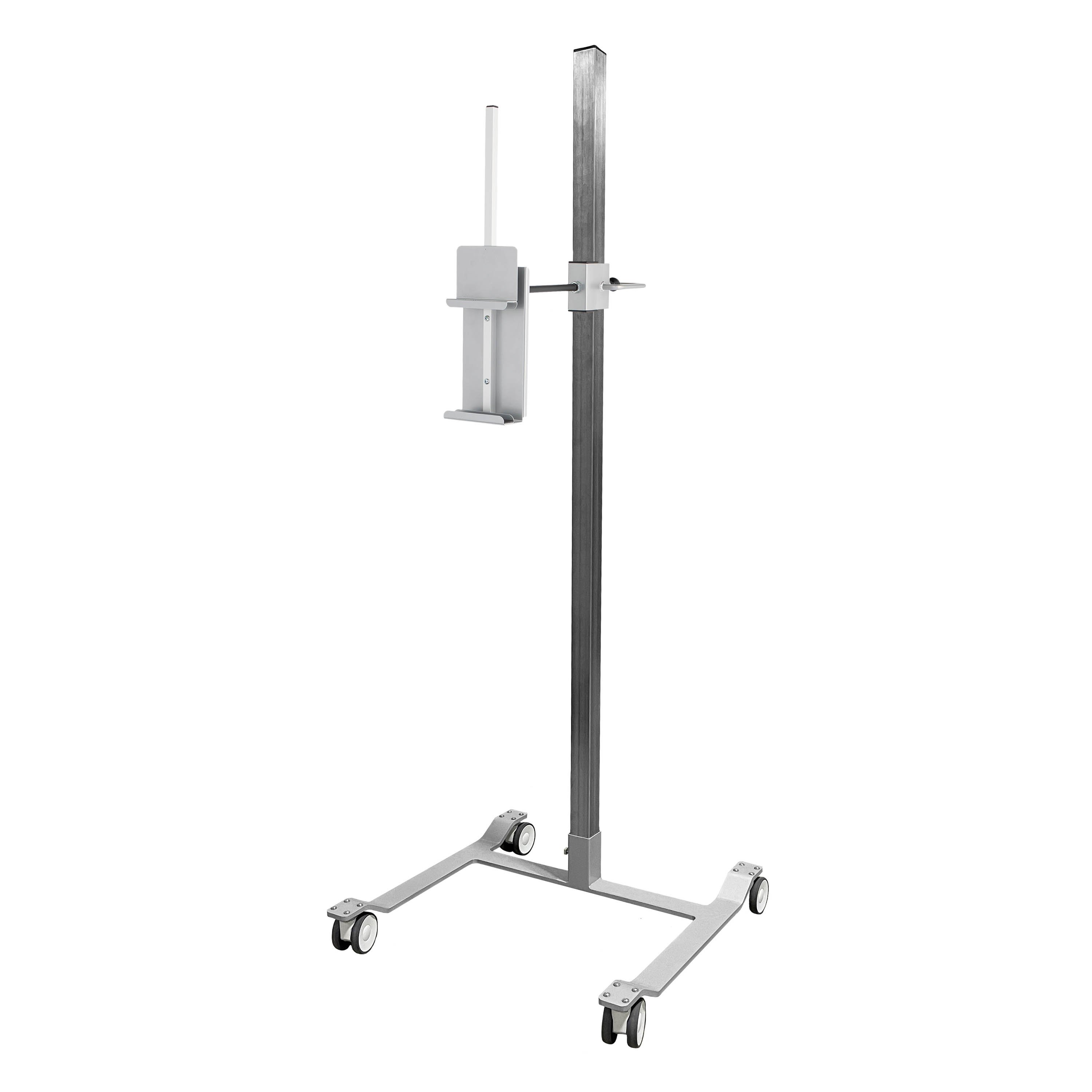

Mobile CR/DR Panel Holder with Extension Arm, Tilt & Rotate Head
Product Description
Techno-Aide's Mobile CR/DR Panel Holders are the premium option for nearly any imaging facility. Safely and securely position your CR/DR panels when and where you need them, cutting down on costly reshoots and dangerous errors.
The Mobile CR/DR Panel Holder with Extension Arm, Tilt & Rotate Head Model is available with vertical or horizontal orientation. Each panel holder features our incredibly durable and weight-bearing, low-clearance "easy-glide" h-base for superior functionality and versatility no matter where you use it.
- Panel Holder Movement: Full Motion (Tilt, Rotate, and Extend)
- Clamp Range:
- Vertical (MCH-37B): 8" - 20"
- Horizontal (MCH-37C): 13.5" - 20.5"
- Tilt Range: +/-90 degrees
- Rotate Range: +/- 360 degrees
- Extension Range From Pole: 11" - 23"
Model | Clamp Style | Head Dimensions | Pole Dimensions | Base Dimensions |
MCH-37B | Vertical | 20" x 14.5" x 24.5" | 1.75" x 1.75" x 60.25" | 23.5" x 24.25" x 6.5" |
MCH-37C | Horizontal | 20" x 14.5" x 17" | 1.75" x 1.75" x 60.25" | 23.5" x 24.25" x 6.5" |
Please note, the 1st and 2nd images shown Mobile CR/DR Panel Holder with Tilt & Rotate Head Model MCH-33 Series.
About this Brand
Specifications
Manufacturer | Techno-Aide |
---|---|
Latex Free | Yes |
Country of Manufacture | United States |
Item Ships From | Tennessee |
Instructions
Warranty: The manufacturer warrants to the original end user all products manufactured by the company to be free from defects in material and workmanship under normal use and service for the period of one (1) year from the date of purchase. This warranty does not cover damage dues to abuse, modification or improper use, or for any use which exceeds the published capacity of the product. The manufacturer reserves the right to deem any and all product defects or damage not covered by warranty for any of the aforementioned reasonings.
