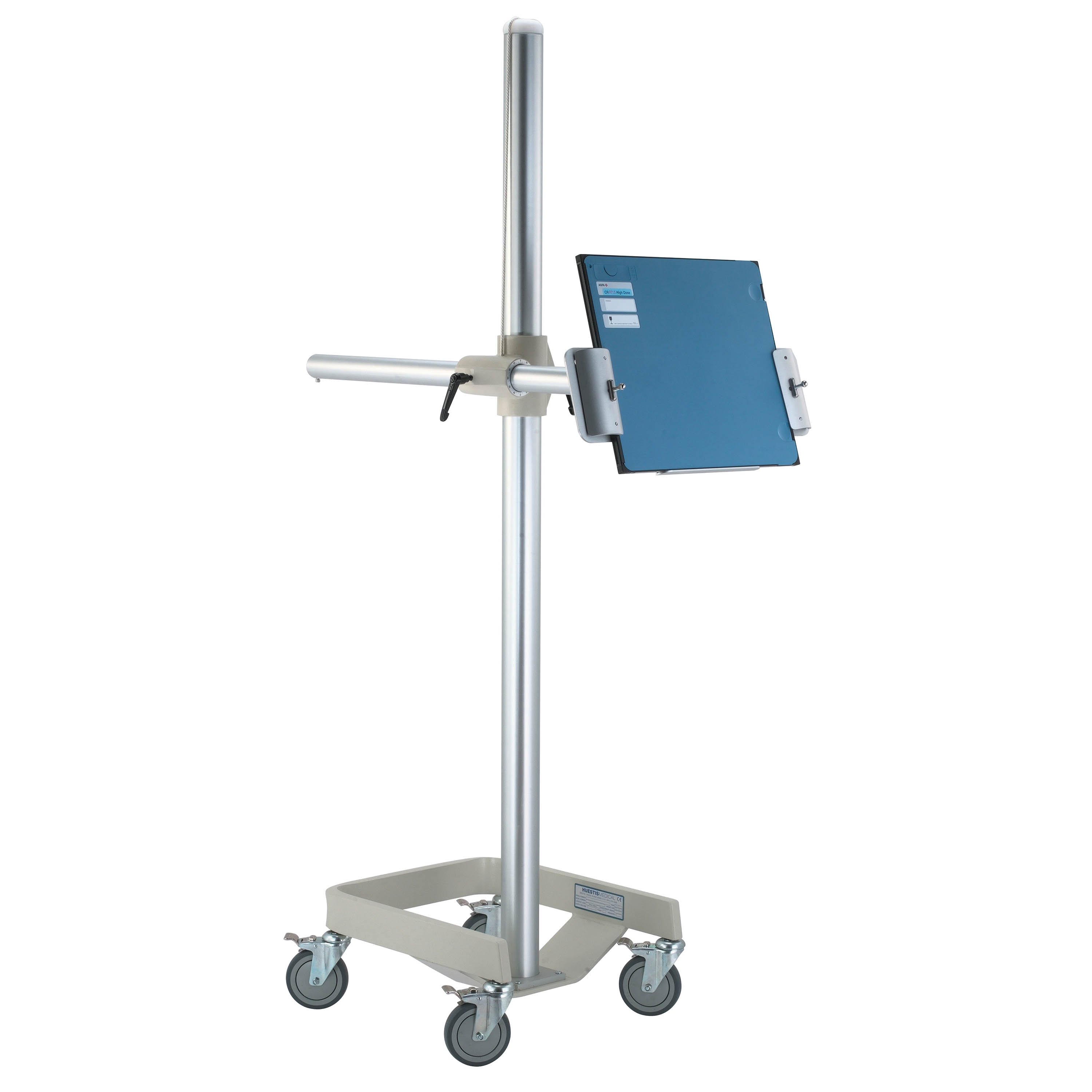

Flexi•holder® FH-410 series significantly reduces retakes caused by improper cassette positioning. It permits smoother scheduling and superior radiographs–saving film, time and labor for cost effective radiographic procedures.
Flexible Arm Movement
Radiographs can be taken from any angle from floor level to 71" (180 cm)
Tilts cassette 180° facing straight up, straight down or anywhere in between
Rotates cassette 360° clockwise or counterclockwise
Arm rotates 360° on vertical column
Incorporates a ± 90º rotation at the cassette plate
Arm assembly is counter-weighted for easy raising or lowering
Two models to choose from:
Standard Arm telescopes 26" (66 cm) over the X-ray or operating room table
Extension Arm telescopes 36" (91 cm) over the X-ray or operating room table
Very Stable, Compact Design
Rolls into position on large, locking casters for stable positioning
Dimensions: 19" x 22" x 75" (48 x 56 x 191 cm)
Product Weight: 110 lbs. (50 kg)
Weight limit is approximately 30 lbs
Convenient Ratchet Handles - Ratchet handles can be repositioned easily to help eliminate interference problems when positioning cassettes
Accepts All Cassettes
Accepts virtually all cassettes and does not obscure cassette film area
Accepts larger cassettes up to 20" (50 cm) wide and up to 1.25" (3 cm) thick
One Hand Operation - A lip on the cassette holder enables the cassette to be inserted with one hand, if necessary

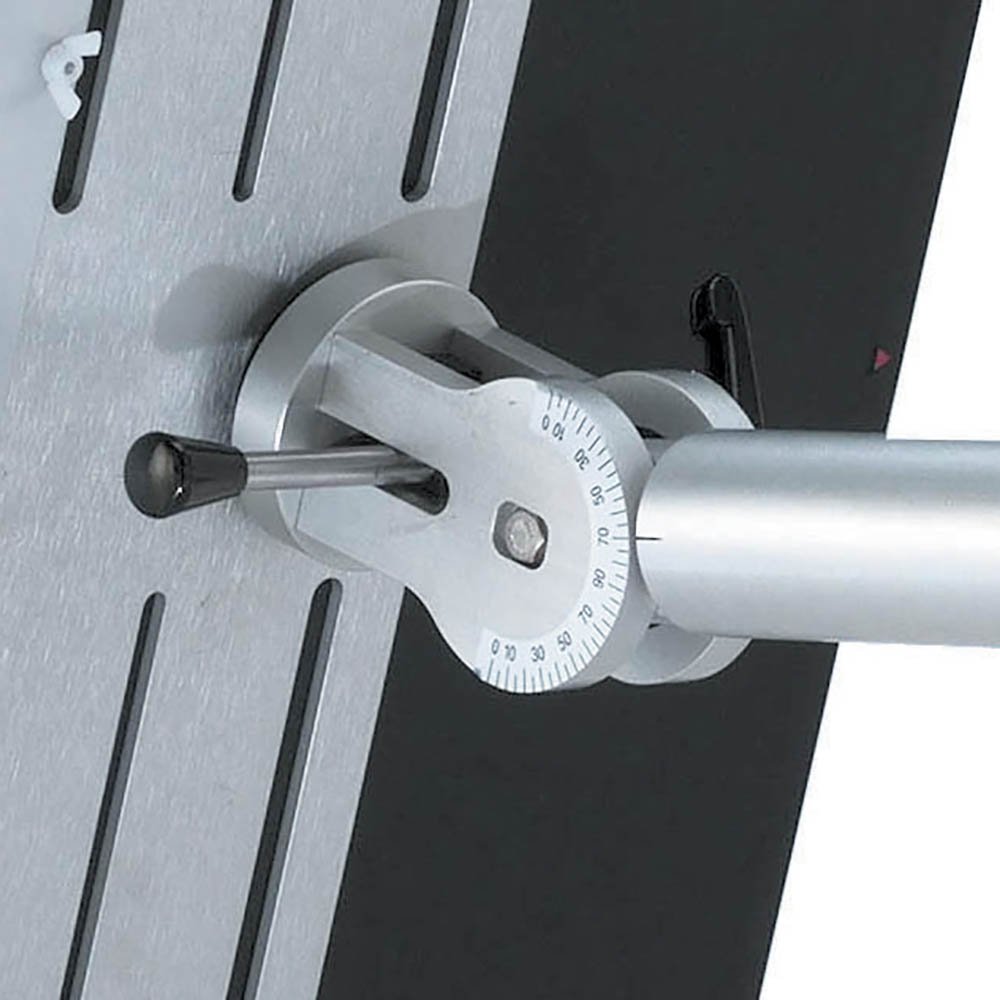

Accurate Calibration Scales - Column and arm calibration scales provide exact, repeatable angulation
Diagnostic Applications
Three-way studies of acute abdomens
Myelograms
Fractures where patient is immobilized
Lateral decubitus fluid level studies of abdomen and chest
Operating room radiography
Therapeutic Applications
Radiation therapy verification films (portal films)
Localization for tangential breast, isocentric or oblique fields
Simulation without fluoroscopy
Implant source localization by orthogonal films
Please note, Agfa® digital cassette shown in photograph is NOT included.
Specifications
Specifications
Country of Manufacture
United States
Item Ships From
Rhode Island
Returns
Requests for return must be made within 30 days of item receipt. The item must be unused and in all original packaging. To prevent damage in return transit, ideally the unit will not have been assembled prior to return. A minimum 25% re-stock fee is assessed on all returns and all shipping fees remain payable by the buyer.
